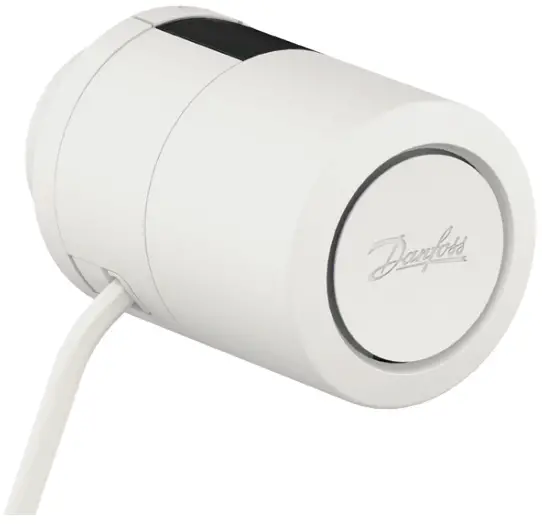

Danfoss Ally Power Module 24V

Ally Power Module 24V

Battery Installation

Remove the cover
Remove the cover

Remove the batteries (if fitted).
Remove the batteries (if fitted).

Insert the Danfoss Ally™ Power Module 24V in the same place.
Insert the Danfoss Ally™ Power Module 24V in the same place.

Use the cover provided in the box.
Battery Installation

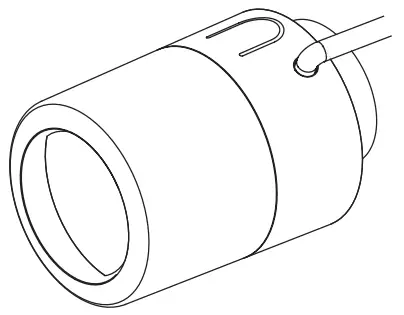

Connect the cable to the existing 24 V supply from a safe source with class II insulation level (Power supply with built-in double or reinforced insulation level between supply voltage and safe voltage).
Battery Installation

When using Danfoss Ally™ Protect RA it is important to install Danfoss Ally™ Power
Module 24V before completing the installation of Danfoss Ally™ Protect RA. The cable should go inside one of the cable tracks.
Battery Installation

Safety precautions

Danfoss Ally™ Power Module 24V is designed to be used together with Danfoss electronic radiator thermostats only.
SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, Danfoss A/S declares that Danfoss Ally™ Power Module 24V is in compliance with Directive EN/IEC 60730-1:2011 and EN/IEC 63000:20018. The full text of the EU declaration of conformity is available at the following internet address: www.danfoss.com.
24 V supply must be from a safe source with class II insulation level (Power supply with build-in double or reinforced insulation level between supply voltage and safe voltage). The power module is not intended for children and must not be used as a toy. Do not leave packaging materials where children may be tempted to play with them, as this is extremely dangerous. Do not attempt to dismantle the power module as it contains no user-serviceable parts.

Technical Specifications

Power supply Input: 24V~ or 24V== SELV +/-25%
Output: 3V== -5%/+25%
Transportation temperature range -20 to 65 °C
Safety classification Type 1
Pollution degree 2 PD2
Overvoltage category I OVI 1,5 kV

Homepage:
www.danfoss.com

Danfoss cannot accept any responsibility for possible errors in catalogues, brochures, videos and other material. Danfoss reserves the right to alter its products without notice. This also applies to products ordered but not delivered provided that such alterations can be made without changes to form, fit or function of the product. All trademarks in this material are property of Danfoss A/S or Danfoss group companies. Danfoss and the Danfoss logo are trademarks of Danfoss A/S. All rights reserved.
