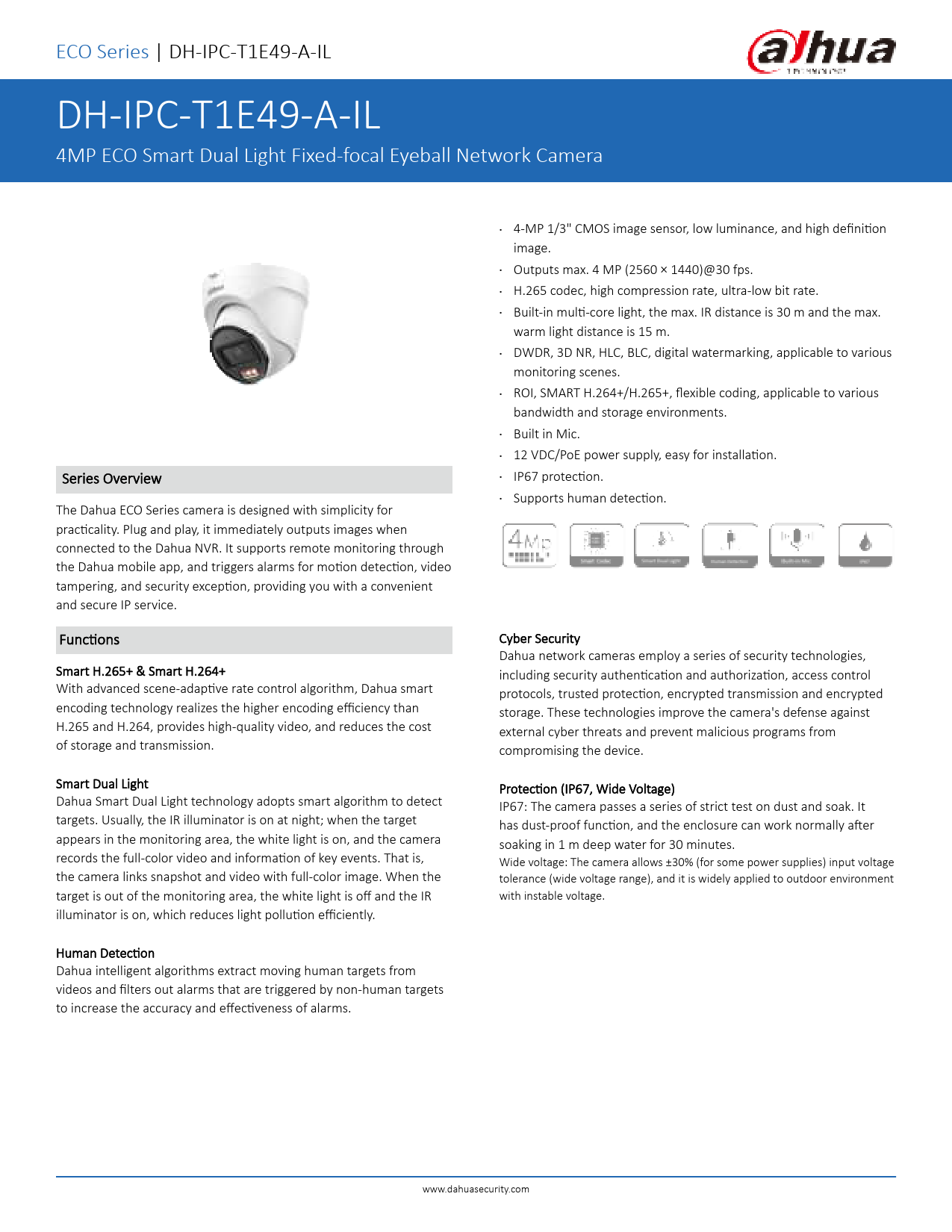

dahua DH-IPC-T1E49-A-IL 4MP ECO Smart Dual Light Fixed Network Camera
Technical Specification
Camera
| Image Sensor | 1/3″ CMOS |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 16 MB |
| RAM | 64 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.008 lux@F1.6 (Color, 30 IRE);
0.0008 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | ＞ 56 dB |
| Illumination Distance | Up to 30 m (98.43 ft) (IR);
Up to 15 m (49.21 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (Multi-core (IR + warm) light) |
| Angle Adjustment | Pan: 0°–360°
Tilt: 0°–78° Rotation: 0°–360° |
Lens
| Lens Type | Fixed-focal | ||||
| Lens Mount | M12 | ||||
| Focal Length | 2.8 mm; 3.6 mm | ||||
| Max. Aperture | F1.6 | ||||
| Field of View | 2.8 mm: H: 94°; V: 52°; D: 111°
3.6 mm: H: 78°; V: 41°; D: 94° |
||||
| Iris Control | Fixed | ||||
| Close Focus Distance | 2.8 mm: 1.1 m (3.61 ft)
3.6 mm: 1.7 m (5.58 ft) |
||||
| DORI
Distance |
Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 64.0 m
( 209.97 ft) |
25.6 m
( 83.99 ft) |
12.8 m
( 41.99 ft) |
6.4 m
( 21.00 ft) |
|
| 3.6 mm | 85.4 m
( 280.18 ft) |
34.2 m
( 112.20 ft) |
17.1 m
( 56.10 ft) |
8.5 m
( 27.89 ft) |
|
| *DORI (Detec | t, Observe, Recognize, Identify) is a standard system | ||||
| (EN-62676-4) | for defining the ability of a person to view the | ||||
| video to disti | nguish persons or objects within a covered area. | ||||
| The numbers | This table does not reflect an intelligent function | ||||
| Distances. For | Intelligent function distances refer to the installation | ||||
| and commissioning | manual/project design tool. | ||||
Intelligence
| Human Detection | Support the classification and accurate detection of human |
| Smart Search | Work together with Smart NVR to perform refined intelligent search, event extraction, and merging to event videos |
Video
| Video Compression | H.265;H.264H;H.264; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 2560 × 1440@(1–25/30 fps )
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max.Frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 ×
1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR;CBR |
| Video Bit Rate | H.264: 32 kbps–4096 kbps;
H.265: 12 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
Audio
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
Alarm
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception; SMD (human) |
Network
| Network Port | RJ-45 (10/100 Base-T) |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP;
SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; P2P |
| Interoperability | ONVIF (Profile S & Profile T); CGI |
| User/Host | 6 (Total bandwidth: 24 M) |
| Storage | FTP |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS Lite, DSS, DMSS, DoLynk Care |
| Mobile Client | iOS;Android |
Dimensions (mm[inch])
Series Overview
The Dahua ECO Series camera is designed with simplicity for practicality. Plug and play, it immediately outputs images when connected to the Dahua NVR. It supports remote monitoring through the Dahua mobile app and triggers alarms for motion detection, video tampering, and security exceptions, providing you with a convenient and secure IP service.
Functions
Smart H.265+ & Smart H.264+
With an advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Smart Dual Light
Dahua Smart Dual Light technology adopts a smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records full-color video and information of key events. That is, the camera links snapshot and video with a full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.
Human Detection
Dahua’s intelligent algorithms extract moving human targets from videos and filter out alarms that are triggered by non-human targets to increase the accuracy and effectiveness of alarms.
- 4-MP 1/3″ CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2560 × 1440)@30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in multi-core light, the max. IR distance is 30 m, and the maximum. Warm light distance is 15 m.
- DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Built in Mic.
- 12 VDC/PoE power supply, easy for installation.
- IP67 protection.
- Supports human detection.
Setting Up the Camera
Connect the camera to the Dahua NVR using the provided cables. Ensure proper power supply and network connection.
Remote Monitoring
Download the Dahua mobile app on your smartphone and follow the instructions to connect the camera for remote monitoring.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera’s defense against external cyber threats and prevent malicious programs from compromising the device.
Protection (IP67, Wide Voltage)
- IP67: The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
- Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to an outdoor environment with unstable voltage.
FAQs
Q: How can I adjust the angle of the camera?
A: The camera comes with an angle adjustment feature that allows you to modify the viewing angle for better coverage.
Q: Can I use this camera in low-light conditions?
A: Yes, the camera has a low illumination capability, making it suitable for use in various lighting environments.
Q: Does the camera support human detection?
A: Yes, the camera utilizes intelligent algorithms for human detection, enhancing accuracy in identifying human targets.
