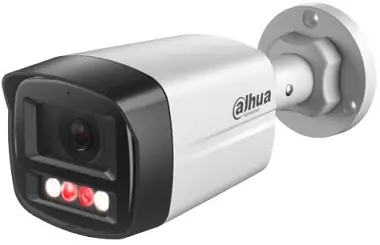

dahua DH-IPC-HFW1239TL1-PV 2MP Entry Smart Dual Light Active Deterrence Network Camera
Product Information
Specifications
- Model: DH-IPC-HFW1239TL1-PV
- Resolution: 2MP
- Camera Type: Fixed-focal Bullet Network Camera
- Image Sensor: 1/2.8″ CMOS
- RAM: 128 MB
- ROM: 128 MB
- Min. Illumination: 0.005 lux@F1.6 (Color, 30 IRE)
- Smart Features: Siren and Light Active Deterrence, Smart Dual Light, Human Detection, Smart H.265+, Smart H.264+
Product Usage Instructions
Installation
- Choose a suitable mounting location with a clear view of the area to be monitored.
- Securely mount the camera using appropriate hardware.
- Connect the camera to a power source and network using the provided cables.
Configuration
- Access the camera’s web interface using a web browser on a computer connected to the same network.
- Follow the on-screen instructions to set up network settings, image quality, and other preferences.
Operation
- Monitor the live feed from the camera through the web interface or dedicated software.
- Configure motion detection, alarm settings, and recording options as needed.
Series Overview
With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises.
Functions
Siren and Light Active Deterrence
Dahua siren and light active deterrence network camera supports the light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customized voice importing.
Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.
Human Detection
Dahua intelligent algorithms extract moving human targets from videos and filters out alarms that are triggered by non-human targets to increase the accuracy and effectiveness of alarms.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
- 2-MP 1/2.8″ CMOS image sensor, low luminance, and high definition image.
- Outputs max. 2 MP (1920 × 1080)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED and warm light, and the max. IR distance is 50 m, the max. warm light distance is 50 m.
- DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict and illegal access.
- Built-in Mic; built-in speaker; support two-way talk.
- 12 VDC/PoE power supply, easy for installation.
- IP67 protection.
- Sound and light alarm.
- Supports human detection.
- One-tap arming/disarming.
Protection (IP67, Wide Voltage)
- IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
- Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Technical Specification
Cemra
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
|
Min. Illumination |
0.005 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
|
Illumination Distance |
Up to 50 m (164.04 ft)(IR)
Up to 50 m (164.04 ft)(Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
|
Angle Adjustment |
Pan: 0°–360°
Tilt: 0°–90° Rotation: 0°–360° |
Lens
| Lens Type | Fixed-focal | ||||
| Lens Mount | M12 | ||||
| Focal Length | 2.8 mm; 3.6 mm; 6 mm | ||||
| Max. Aperture | F1.6 | ||||
| Field of View | 2.8 mm: H: 103°; V: 55°; D: 123°
3.6 mm: H: 86°; V: 46°; D: 103° 6 mm: H: 53°; V: 29°; D: 62° |
||||
| Iris Control | Fixed | ||||
| Close Focus Distance | 2.8 mm: 0.8 m (2.62 ft)
3.6 mm: 1.1 m (3.61 ft) 6 mm: 2.6 m (8.53 ft) |
||||
| DORI
Distance |
Lens | Detect | Observe | Recognize | Identify |
|
2.8 mm |
44.1 m
( 144.69 ft) |
17.7 m
( 58.07 ft) |
8.8 m
( 28.87 ft) |
4.4 m
( 14.4 ft) |
|
|
3.6 mm |
53.8 m
( 176.51 ft) |
21.5 m
( 70.54 ft) |
10.8 m
( 35.43 ft) |
5.4 m
( 17.72 ft) |
|
|
6 mm |
85.5 m
( 280.51 ft) |
34.2 m
( 112.2 ft) |
17.1 m
( 56.10 ft) |
8.6 m
( 28.22 ft) |
|
| *DORI (Detect, Observe, Recognize, Identify)is a standard system (EN-62676-4)for defining the ability of a person viewing the video to distinguish persons or objects within a covered area.
The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
|||||
Intelligence
- Human Detection
Support the classification and accurate detection of human - Smart Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
|
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported
by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
|
Video Frame Rate |
Main stream: 1920 × 1080@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 2 streams |
| 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × | |
| Resolution | 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF |
| (352 × 288/352 × 240) | |
| Bit Rate Control | CBR/VBR |
|
Video Bit Rate |
H.264: 32 kbps–4096 kbps; H.265: 12 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
|
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Manual;Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | Yes (4 areas) |
Audio
| Built-in MIC
Built-in Speaker |
Yes, built-in Mic
Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering;audio detection
;SMD (human); security exception; |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
|
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast;
ICMP; IGMP；P2P; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile T); CGI |
| User/Host | 6 (Total bandwidth: 24 M) |
| Storage | FTP |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS;Android |
| Security | Digest;WSSE;Account lockout;Security logs;Generation and importing of X.509 certification;HTTPS;Trusted boot;Trusted execution;Trusted upgrade |
Certification
|
Certifications |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
|
Power Consumption |
Basic: 1.9 W (12 VDC); 2.4 W (PoE);
Max.: 11.5 W (12 VDC); 13.1 W (PoE) (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker) |
| ePoE | No |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal + Plastic |
| Product Dimensions | 197.9 mm × 80.2 mm × 76.2 mm (7.79″ × 3.16″ × 3.00″) (L × W × H) |
| Net Weight | 0.35 kg (0.77 lb) |
| Gross Weight | 0.49 kg (1.08 lb) |
Ordering Information
| Type | Model | Description |
| IP CAMERA | DH-IPC-HFW1239TL1-PV | 2MP Entry Smart Dual Light Active Deterrence Fixed-focal Bullet Network Camera |
| Accessories (Optional) | DH-PFA151 | Corner Mount Bracket |
| G3416GW | G3/4″ Water Joint | |
| DH-PFA130-E | Water-proof Junction Box | |
| DH-PFA157 | Pole Mount Bracket |
| Type | Model | Description |
| DH-PFA134 | Junction Box | |
| DH-PFM321-EN | DC12V1A power adapter | |
| DH-PFM320D-EN | DC12V2A power adapter | |
| PFM900-E | Integrated Mount Tester |

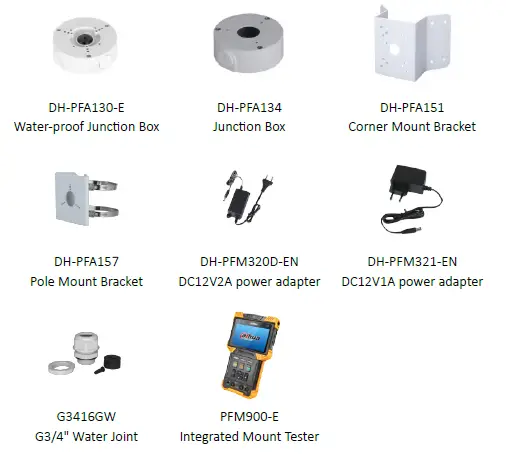

Accessories
Optional:

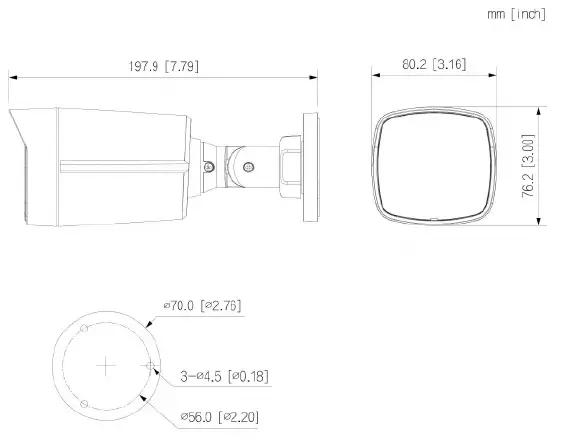

Dimensions (mm[inch])
Rev 002.000 © 2025 Dahua. All rights reserved. Design and specificatons are subject to change without notce.
Pictures in the document are for reference only, and the actual product shall prevail.
FAQ
Q: How far can the camera’s warm light illuminate?
A: The warm light can illuminate up to 50 meters (164.04 ft) from the camera.
Q: Can I customize the voice alarm on the camera?
A: Yes, the camera supports customized voice importing for the voice alarm feature.
Q: What is DORI Distance?
A: DORI (Detect, Observe, Recognize, Identify) is a standard system for defining the ability to distinguish persons or objects within a covered area based on different focal lengths of the lens.
