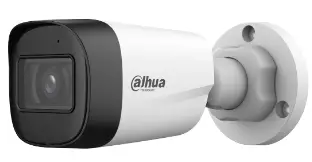

dahua DH-IPC-HFW1230C-A-IL 2MP Entry Smart Dual Light Bullet Network Camera
Series Overview
With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises.
Functions
Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.
Human Detection
Dahua intelligent algorithms extract moving human targets from videos and filters out alarms that are triggered by non-human targets to increase the accuracy and effectiveness of alarms.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
- The parameters and datasheets below can only be applied to 1230C-A series
- 2-MP 1/2.8″ CMOS image sensor, low luminance, and high definition image.
- Outputs max. 2 MP (1920 ×1080)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
- DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict, illegal access.
- Built in Mic.
- 12 VDC/PoE power supply, easy for installation.
- IP67 protection.
- Supports human detection.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera’s defense against external cyber threats and prevent malicious programs from compromising the device.
Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Technical Specification
Camera
| Image Sensor | 1/2.8″ CMOS | ||||
| eMsaoxlu. tiRon | 1920 (H) × 1080 (V) | ||||
| ROM | 16 MB | ||||
| RAM | 64 MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||
|
Min. Illumination |
0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) | ||||
| S/N Ratio | ＞ 56 dB | ||||
|
Illumination Distance |
Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light) |
||||
| Illuminator On/Off Control | Auto;Manual | ||||
| Illuminator Number | 1or(eM(IuRlti+-cwarm) light) | ||||
|
Angle Adjustment
Lens |
Pan: 0°–360°
Tilt: 0°–90° Rotation: 0°–360° |
||||

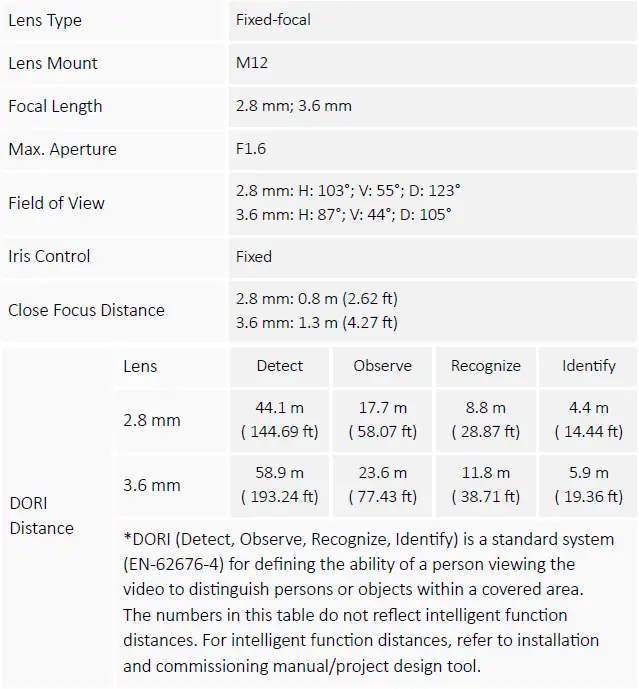

| Lens Type | Fixed-focal | ||||
| Lens Mount | M12 | ||||
| Focal Length | 2.8 mm; 3.6 mm | ||||
| Max. Aperture | F1.6 | ||||
|
Field of View |
2.8 mm: H: 103°; V: 55°; D: 123°
3.6 mm: H: 87°; V: 44°; D: 105° |
||||
| Iris Control | Fixed | ||||
|
Close Focus Distance |
2.8 mm: 0.8 m (2.62 ft)
3.6 mm: 1.3 m (4.27 ft) |
||||
|
DORI Distance |
Lens | Detect | Observe | Recognize | Identify |
|
2.8 mm |
44.1 m
( 144.69 ft) |
17.7 m
( 58.07 ft) |
8.8 m
( 28.87 ft) |
4.4 m
( 14.44 ft) |
|
|
3.6 mm |
58.9 m
( 193.24 ft) |
23.6 m
( 77.43 ft) |
11.8 m
( 38.71 ft) |
5.9 m
( 19.36 ft) |
|
| *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area.
The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
|||||
Lens

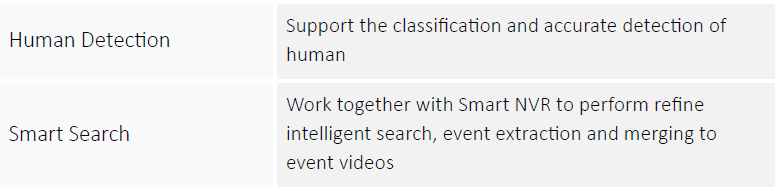

Intelligence
Video
| Smart Codec | Smart H.265+; Smart H.264+ |
|
Video Frame Rate |
Main stream: 1920 × 1080@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × | |
| Resolution | 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF |
| (352 × 288/352 × 240) | |
| Bit Rate Control | VBR;CBR |
|
Video Bit Rate |
H.264: 32 kbps–4096 kbps; H.265: 12 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
|
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| eNdouiscetiRon | 3D NR |
| tMecotitioonn De | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
|
oImtaatigoenR |
0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking
Audio Built-in MIC |
4 areas |
| Yes, built-in Mic | |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Network disconnection; IP conflict; illegal access; | |
| Alarm Event | motion detection; video tampering; audio detection; |
| security exception; SMD (human) | |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
|
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
| Interoperability | rOoNfiVleIF (P S & Profile T); CGI |
| User/Host | 6 (Total bandwidth: 24 M) |
| Storage | FTP |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Mobile Client | iOS;Android |
|
Cyber Security
Certification
Certifications
Power Power Supply |
Video encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;Generation and importing of
X.509 certification;HTTPS;Trusted boot;Trusted execution;Trusted upgrade |
| CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
|
| 12 VDC/PoE (802.3af) | |
|
Power Consumption
Environment Operating Temperature |
Basic: 1.4 W (12 VDC), 2.2 W (PoE);
Max.: 3.3 W (12 VDC), 4.4 W (PoE) (H.265 + intelligence on + warm light intensity) |
| –40 °C to +60 °C (–40 °F to +140 °F) | |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection
Structure Casing Material |
IP67 |
| Metal + Plastic | |
|
Product Dimensions |
161.6 mm × 70.0 mm × 69.7 mm (6.36″ × 2.75″ ×
2.74″) (L × W × H) |
| Net Weight | 0.24 kg (0.53 lb) |
| Gross Weight | 0.35 kg (0.77 lb) |
Structure
| Ordering Information | ||
| Type | Model | Description |
|
IP CAMERA |
DH-IPC-HFW1230C-A-IL |
2MP Entry Smart Dual Light Fixed-focal Bullet Network Camera |
|

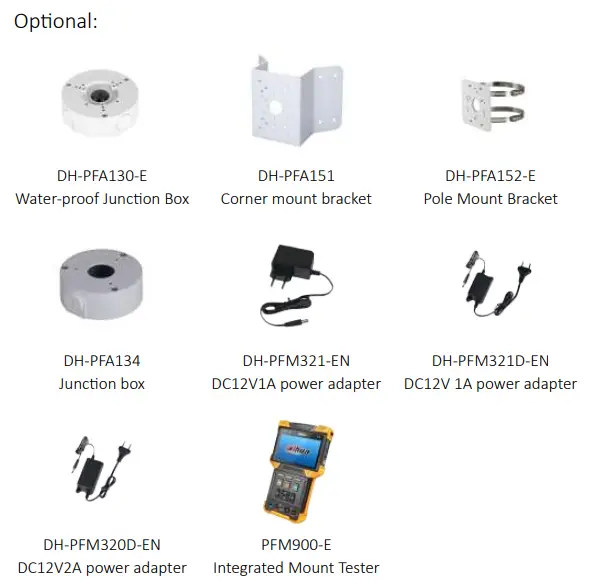

Accessories (Optional) |
DH-PFA130-E | Water-proof Junction Box |
| G3416GW | G3/4″ Water Joint | |
| DH-PFA151 | Corner mount bracket | |
| DH-PFA152-E | Pole Mount Bracket | |
| DH-PFA134 | Junction box | |
| DH-PFM321-EN | DC12V1A power adapter | |
| DH-PFM321D-EN | DC12V 1A power adapter | |
| DH-PFM320D-EN | DC12V2A power adapter | |
| PFM900-E | Integrated Mount Tester | |
Accessories
Dimensions (mm[inch])
© 2024 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail.
Frequently Asked Questions
Q: How far can the camera detect objects?
A: The camera can detect objects up to 44.1m with a 2.8mm lens and up to 58.9m with a 3.6mm lens.
Q: What is the purpose of Smart Dual Light technology?
A: Smart Dual Light technology switches between IR illuminator and white light based on motion to provide full-color video recording when needed.
