Indledning
The EPOMAKER EK21 VIA Gasket Number Pad is a versatile and customizable mechanical number pad designed to enhance productivity and typing comfort. It features a gasket-mounted design, triple-mode connectivity, hot-swappable switches, and VIA software compatibility for extensive customization. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal use of your EK21 number pad.
Produkt overview
Nøglefunktioner
- Pakningsstruktur: Designed for a flexible and comfortable typing experience, reducing impact and noise.
- VIA Programmerbar: Customize key assignments, macros, and lighting effects using the intuitive VIA software.
- Triple-Mode-forbindelse: Supports wired (USB-C), 2.4GHz wireless, and Bluetooth 5.0 connections for versatile use across multiple devices.
- 1000mAh batteri: Provides extended wireless usage without frequent recharging.
- Hot-swap printkort: Compatible with 3/5-pin mechanical switches, allowing for easy switch replacement and customization without soldering.
- Poron Underlay, Sandwich Foam, and IXPE Switch Pads: Enhances typing comfort by reducing finger fatigue and minimizing acoustic noise.
- Aluminum Alloy Knob: Offers precise control for volume or other customizable functions.
- Fine-Tuned Stabilizers: Ensures stable and satisfying keystrokes for larger keys.
- RGB-baggrundsbelysning: Features 16.8 million colors with various customizable effects.
- Dobbeltstød PBT-taster: Durable, wear-resistant keycaps with an ergonomic SA-like profile.
Pakkens indhold
The EPOMAKER EK21 package includes the following items:
- EPOMAKER EK21 Number Pad
- USB-C kabel
- Keycap aftrækker
- Aftrækker
- Additional Switches (if included with your specific model)
- Brugervejledning (dette dokument)

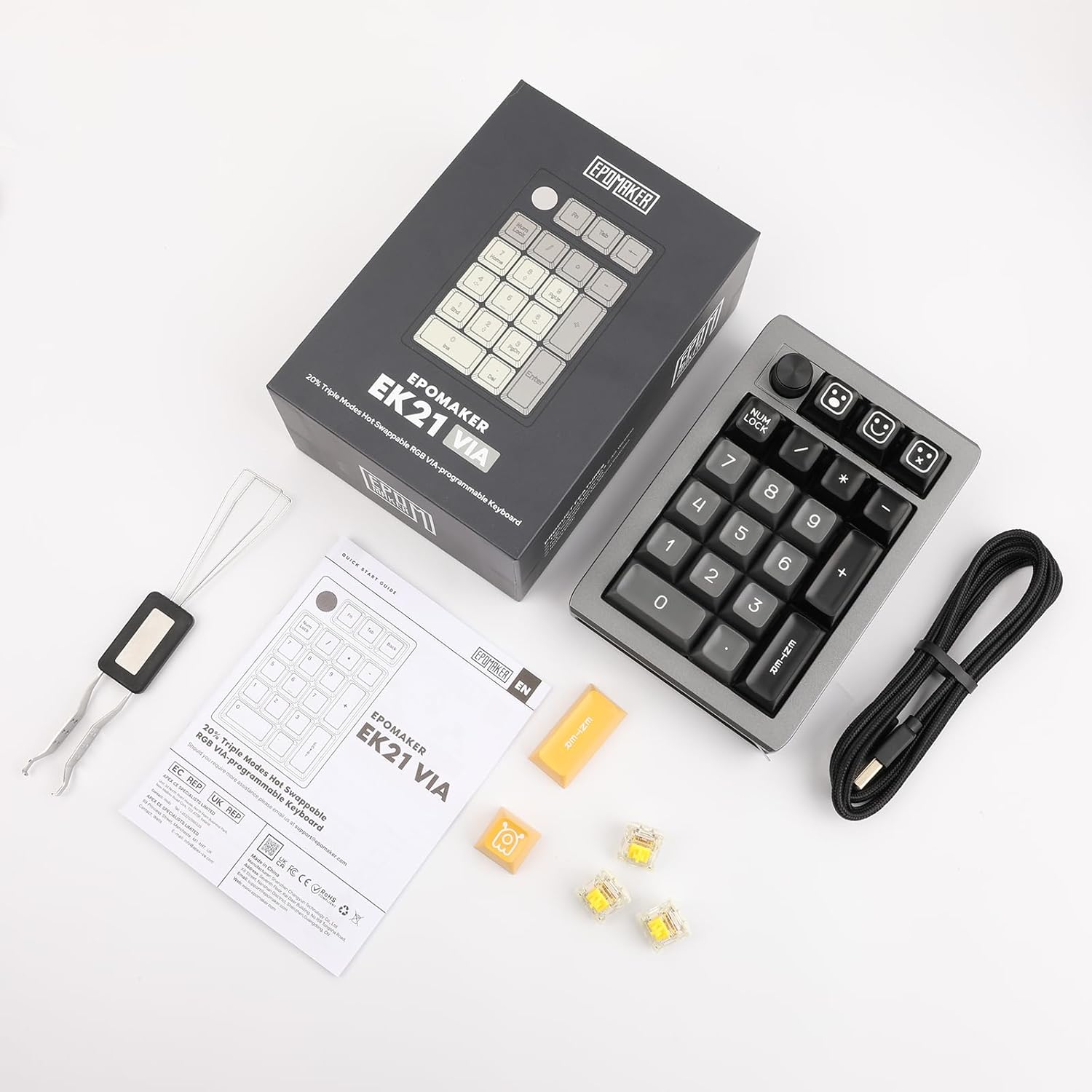

Image: EPOMAKER EK21 package contents.
Opsætning
Tilslutningstilstande
The EK21 supports three connection modes: Wired, 2.4GHz Wireless, and Bluetooth. A switch on the side of the number pad allows you to select the desired mode.
Image: EPOMAKER EK21 connectivity options.
1. Kablet forbindelse (USB-C)
- Locate the USB-C port on the number pad.
- Connect the provided USB-C cable to the number pad and your computer.
- The number pad will be automatically recognized and ready for use.
2. 2.4 GHz trådløs forbindelse
- Locate the 2.4G receiver stored in the compartment on the side of the number pad.
- Sæt 2.4G-modtageren i en ledig USB-port på din computer.
- Switch the mode selector on the number pad to '2.4G'.
- The number pad should connect automatically.
3. Bluetooth 5.0-forbindelse
- Switch the mode selector on the number pad to 'BT'.
- Aktiver Bluetooth på din computer eller enhed, og søg efter nye enheder.
- Select 'EPOMAKER EK21' from the list of available devices to pair.
- The indicator light will confirm successful pairing.
Gasket Structure and Hot-Swappable PCB
The EK21 features a gasket-mounted design for improved typing feel and a hot-swappable PCB, allowing you to change mechanical switches without soldering.
Billede: Eksploderet view of the EK21 Gasket Structure.
Image: Hot-swappable PCB and switch replacement.
For at udskifte kontakter:
- Use the keycap puller to gently remove the keycap from the desired switch.
- Use the switch puller to carefully grip the switch and pull it straight up to remove it.
- Juster stifterne på den nye kontakt med hullerne på printkortet.
- Tryk forsigtigt den nye kontakt på plads, indtil den klikker sikkert. Sørg for, at stifterne ikke er bøjede.
Betjeningsvejledning
Grundlæggende nøglefunktioner
The EK21 number pad includes standard numeric keys, function keys, and a multi-function knob.
Image: RGB Backlight and key combinations.
- Num Lock: Slår det numeriske tastatur til/fra.
- Fn + Enter: Toggles the RGB backlight effect.
- Fn + Tilbage: Turns the RGB backlight on or off.
- Fn + 0 (Hold for 3 seconds): Resets the number pad to factory settings.
- Knop: By default, controls volume (rotate) and mute (press). Functions can be customized via VIA software.
VIA Softwaretilpasning
The EK21 is compatible with VIA software, allowing for extensive customization of key mappings, macros, and lighting.

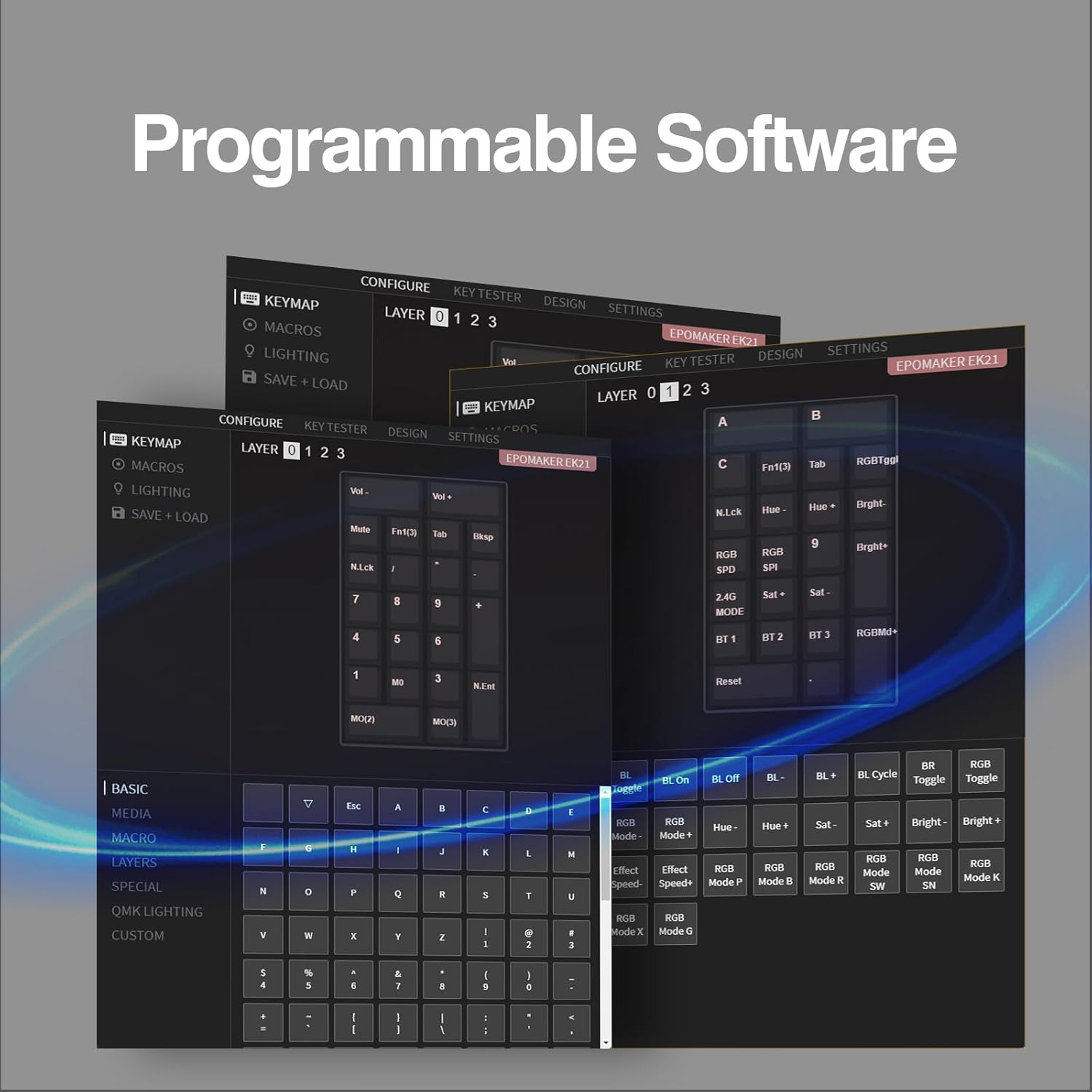

Image: VIA Programmable Software interface.
Sådan bruger du VIA-softwaren:
- Download the VIA software from the official EPOMAKER website or the VIA webwebsted.
- Connect the EK21 to your computer via USB-C cable.
- Launch the VIA software. The software should automatically detect the EK21.
- Use the interface to remap keys, create macros, and adjust lighting settings across different layers.
Batteristyring
The EK21 is equipped with a 1000mAh battery for wireless operation. To charge the battery, connect the number pad to your computer or a USB power adapter using the provided USB-C cable. The indicator light will show charging status.
Opretholdelse
- Rensning: Use a soft, dry cloth to clean the surface of the number pad. For keycaps, a damp en klud med mild sæbe kan bruges, så det sikres, at der ikke kommer væske ind i kontakterne.
- Udskiftning af tastatur og kontakt: Refer to the 'Setup' section for instructions on how to safely remove and install keycaps and switches.
- Opbevaring: When not in use for extended periods, store the number pad in a cool, dry place. Ensure the power is off to preserve battery life.
Fejlfinding
- Number pad not responding:
- Ensure the number pad is charged or connected via USB-C.
- Kontroller, at forbindelsestilstandsknappen (kablet, 2.4G, BT) er indstillet korrekt.
- For 2.4G skal du sørge for, at modtageren er korrekt tilsluttet.
- For Bluetooth, ensure it is paired correctly and your device's Bluetooth is enabled.
- Prøv at genstarte din computer eller enhed.
- Nøgler registreres ikke:
- Ensure Num Lock is enabled if you are trying to use the numeric functions.
- If a specific key is not working, try replacing the switch for that key (refer to 'Setup' section).
- Reset the number pad to factory settings (Fn + 0, hold 3s).
- Baggrundsbelysningen virker ikke:
- Ensure the backlight is turned on (Fn + Backspace).
- Check backlight settings in VIA software.
- VIA software not detecting the number pad:
- Ensure the number pad is connected via USB-C.
- Make sure you have the latest version of VIA software.
- Try restarting the VIA software and reconnecting the number pad.
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | EPOMAKER |
| Modelnummer | EK21 |
| Forbindelsesteknologi | Bluetooth, 2.4 GHz trådløs, USB-C kablet |
| Kompatible enheder | Tablet, Laptop, PC (Windows, Mac) |
| Batteri | 1 litium-ion-batteri (inkluderet), 1000 mAh |
| Materiale | Aluminium |
| Farve | Sort |
| Særlige funktioner | NKRO, Ergonomic, Customizable Display Keys, Backlit, Hot-Swappable |
| Produktets vægt | 420 g |
| Pakkedimensioner | 26 x 11 x 1.8 cm |
Garanti og support
Garantioplysninger
Specific warranty details for the EPOMAKER EK21 are not provided in this manual. Please refer to the product packaging, the official EPOMAKER website, or contact EPOMAKER customer support for comprehensive warranty information.
Kundesupport
If you encounter any issues or have questions regarding your EPOMAKER EK21 number pad that are not covered in this manual, please contact EPOMAKER customer support through their official website or the retailer where you purchased the product. Please have your product model and purchase details ready when contacting support.
