Epson PowerLite 970 3LCD Projektor Brugermanual

1. Introduktion

This manual provides essential information for the safe and efficient use of your Epson PowerLite 970 3LCD Projector. Please read it thoroughly before operating the projector and keep it for future reference.

1.1 Produkt overview

The Epson PowerLite 970 is a versatile 3LCD projector designed for clear and bright presentations. It features 4,000 ANSI lumens brightness, XGA (1024x768) native resolution with support for up to 1080p, and a 15,000:1 contrast ratio. Connectivity options include HDMI (one MHL-compatible), VGA, composite video, USB, LAN, and RS232, making it suitable for various source devices.

1.2 Sikkerhedsoplysninger

• Elektrisk fare: Never open any covers on the projector except as specifically explained in this manual. Dangerous electrical voltages inside the projector can cause severe injury.
• Varm overflade: Projektorens lamp and surrounding areas can become extremely hot during operation and immediately after shutdown. Avoid touching these surfaces to prevent burns.
• Lamp Udskiftning: Always turn off the projector and allow the lamp to cool completely before attempting replacement. Use only genuine Epson replacement lamps.
• Ventilation: Sørg for tilstrækkelig ventilation omkring projektoren. Bloker ikke ventilationsåbningerne, da dette kan føre til overophedning og beskadigelse.
• Strømkilde: Connect the projector only to a power outlet that matches the voltage and current specifications indicated on the projector's label.

2. Opsætning

2.1 Udpakning og indhold

Carefully remove the projector and all accessories from the packaging. Verify that all items are present:

• Epson PowerLite 970 Projector
• Strømkabel
• VGA-kabel
• IR fjernbetjening
• Brugervejledning (dette dokument)

2.2 Projektorplacering

Place the projector on a stable, level surface or mount it securely. Ensure there is sufficient space around the projector for proper ventilation. Adjust the projector's distance from the screen to achieve the desired image size. The projector features adjustable feet for minor angle corrections.

2.3 Tilslutning af enheder

The PowerLite 970 offers a variety of input and output ports for connecting different devices. Refer to the image below for port identification.

Image: Rear panel of the Epson PowerLite 970 projector, displaying connectivity options including HDMI 1, HDMI 2/MHL, Computer 1 (VGA), Computer 2 (VGA), Video (RCA), Audio 1, Audio 2, Mic, Monitor Out, Audio Out, RS-232C, USB-B, USB-A, and LAN.

• HDMI (HDMI 1, HDMI 2/MHL): Connect digital video and audio sources such as Blu-ray players, laptops, or streaming devices. HDMI 2 is MHL-compatible for direct connection to compatible smart devices.
• VGA (Computer 1, Computer 2): Connect computers or laptops using the provided VGA cable.
• Composite Video (Video): Connect older video devices using RCA cables (yellow for video, red/white for audio).
• Audio In (Audio 1, Audio 2, Mic): Connect external audio sources or a microphone.
• Lydudgang: Connect to external speakers or an audio system.
• USB-A: For connecting USB storage devices or optional wireless adapters.
• USB-B: For projector control or USB display functions.
• LAN (RJ-45): Til netværksforbindelse og -kontrol.
• RS-232C: For serial control from a computer or control system.

2.4 Strømtilslutning

Connect the power cable to the projector's AC inlet and then to a grounded electrical outlet. The projector is designed for 100-240V~, 50/60Hz power input.

3. Betjening af projektoren

3.1 Tænd/sluk

Tryk på Magt button on the projector's control panel or the remote control to turn the projector on. The status light will indicate the projector's state. To turn off, press the Magt button again and confirm shutdown if prompted.

Image: Top panel of the Epson PowerLite 970 projector, showing the control buttons including Power, Menu, Home, Source Search, A/V Mute, and navigation keys, along with focus and zoom rings.

3.2 Valg af indgangskilde

Tryk på Kildesøgning button on the control panel or remote control to cycle through available input sources (HDMI 1, HDMI 2, Computer 1, Video, etc.). Alternatively, use the dedicated input buttons on the remote control if available.

3.3 Billedjustering

• Fokusring: Rotate the focus ring located near the lens to sharpen the image.
• Zoomring: Rotate the zoom ring to adjust the image size without moving the projector.
• Keystone-korrektion: If the image appears trapezoidal, use the keystone correction feature (often found in the projector's menu or via dedicated buttons) to square the image.
• Justerbare fødder: Use the adjustable feet on the bottom of the projector to fine-tune the projection angle and level the image.

3.4 Menunavigation

Tryk på Menu button on the projector or remote to access the on-screen display (OSD) menu. Use the arrow buttons to navigate and the Indtast knappen for at vælge muligheder. Tryk på Esc for at gå tilbage eller afslutte menuen.

4. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger projektorens levetid.

4.1 Lamp Udskiftning

Projektoren lamp har en begrænset levetid. Når lamp livet nærmer sig sin ende, kan der vises en advarselsmeddelelse, eller lamp indicator light may illuminate. Always replace the lamp with a genuine Epson replacement lamp unit (ELPLP96).

Billede: Side view of the Epson PowerLite 970 projector, highlighting the lamp access cover, which can be removed for lamp udskiftning.

1. Sluk projektoren, og tag strømkablet ud.
2. Allow the projector to cool for at least one hour to prevent burns.
3. Find lamp cover (as shown in the image above) and remove the screw(s) securing it.
4. Fjern forsigtigt lamp dække.
5. Loosen the screws holding the lamp unit in place and gently pull out the old lamp.
6. Indsæt den nye lamp unit, ensuring it is seated correctly. Tighten the screws.
7. Udskift lamp cover and secure it with the screw(s).
8. Plug in the power cable and reset the lamp timer in the projector's menu.

4.2 Rengøring/udskiftning af luftfilter

The air filter prevents dust from entering the projector. Clean the filter regularly (e.g., every 100 hours of use) or replace it if it becomes clogged.

1. Sluk projektoren, og tag strømkablet ud.
2. Locate the air filter cover (refer to the manual for exact location).
3. Remove the cover and carefully take out the filter.
4. Clean the filter using a small vacuum cleaner or compressed air. If heavily soiled or damaged, replace it with a new one.
5. Reinsert the clean/new filter and replace the cover.

4.3 Generel rengøring

• Tør projektoren c afasing med en blød, tør og fnugfri klud.
• For genstridigt snavs, dampen the cloth slightly with water, but avoid harsh chemicals or abrasive cleaners.
• Gently clean the projector lens with a lens cleaning cloth or lens paper. Do not use abrasive materials.

5. Fejlfinding

Dette afsnit omhandler almindelige problemer, du kan støde på med din projektor.

6. Specifikationer

Detailed technical specifications for the Epson PowerLite 970 Projector.

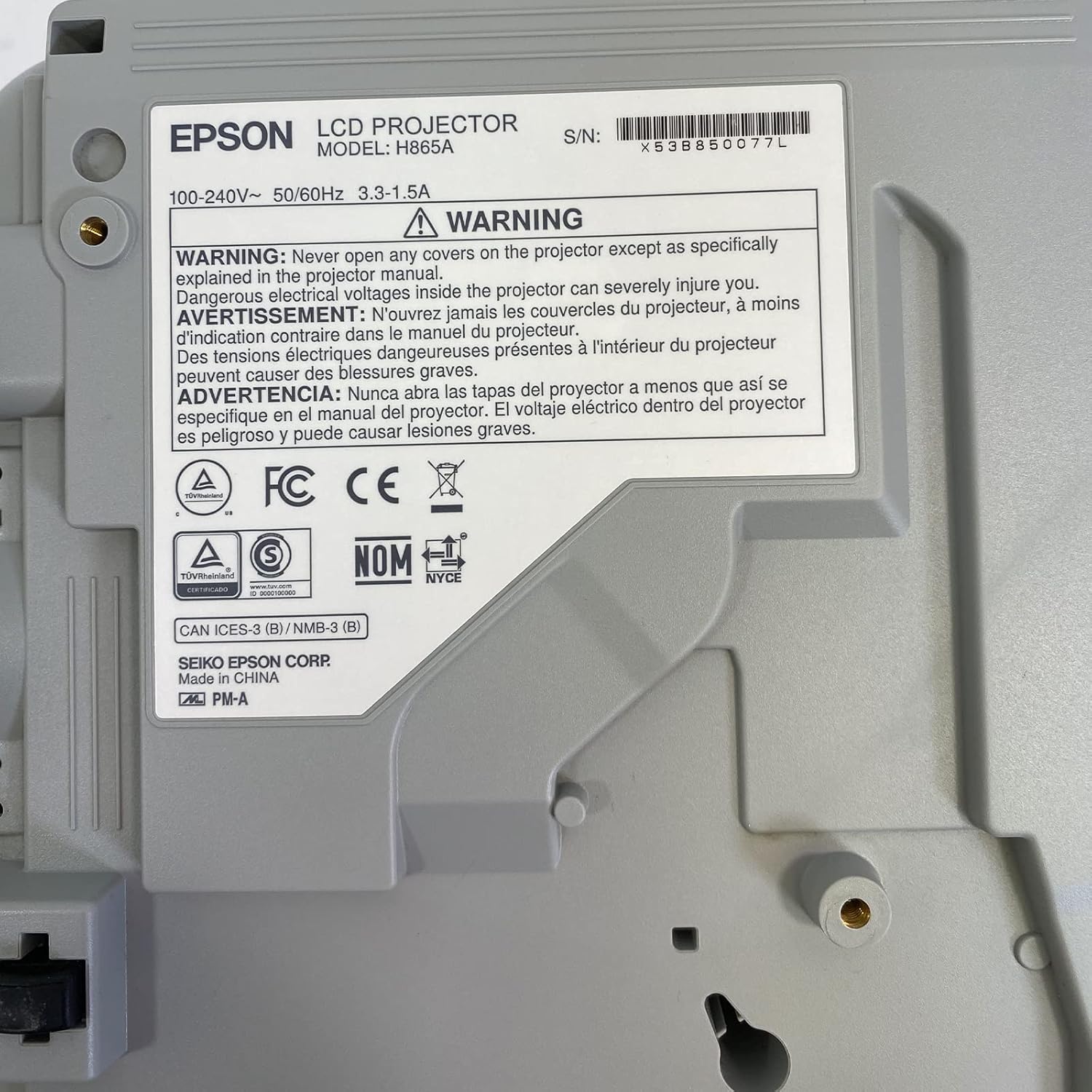

Image: Bottom label of the Epson PowerLite 970 projector, indicating model H865A and serial number X53B850077L, along with electrical ratings and safety certifications.

7. Garanti og support

7.1 Garantioplysninger

This Epson PowerLite 970 projector is offered with a 60-day replacement warranty provided by the seller, Good-DeAlZ-Online. This warranty covers functional defects and ensures a replacement if the product does not perform as expected within the specified period. Please retain your proof of purchase for warranty claims.

7.2 Kundesupport

For technical assistance, troubleshooting, or warranty inquiries, please contact the seller, Good-DeAlZ-Online. Customer service typically responds within 24 hours.

For general product information or support related to Epson products, you may visit the official Epson support webwebsted.
