1. Introduktion
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Erbauer EMT18-Li 18V Brushless Multi-Tool. Please read this manual thoroughly before using the tool and keep it for future reference.
The Erbauer EMT18-Li is a versatile cordless multi-tool designed for various applications such as cutting, sanding, scraping, and grinding. Its brushless motor technology ensures extended runtime and durability.
2. Sikkerhedsoplysninger
ADVARSEL: Læs alle sikkerhedsadvarsler, instruktioner, illustrationer og specifikationer, der følger med dette elværktøj. Undladelse af at følge alle instruktionerne nedenfor kan resultere i elektrisk stød, brand og/eller alvorlig personskade.
- Always wear eye protection, hearing protection, and a dust mask when operating the tool.
- Sørg for, at arbejdsemnet er sikkert klampfør du påbegynder nogen operation.
- Keep hands and body parts away from the cutting or sanding area.
- Brug ikke værktøjet i eksplosive atmosfærer, såsom i nærheden af brændbare væsker, gasser eller støv.
- Use the correct accessory for the task. Do not force the tool.
- Frakobl batteripakken fra værktøjet, før du foretager justeringer, skifter tilbehør eller opbevarer værktøjet.
- Opbevar inaktivt værktøj utilgængeligt for børn, og lad ikke personer, der ikke er bekendt med elværktøjet eller disse instruktioner, betjene elværktøjet.
3. Pakkens indhold
Upon opening the package, ensure all items are present and undamaged. If any parts are missing or damaged, contact your retailer immediately.
- Erbauer EMT18-Li 18V Brushless Multi-Tool (Tool only - battery and charger sold separately)
- Instruktionsmanual
- Standard accessories (e.g., sanding pad, various blades - specific accessories may vary by package)
4. Produktfunktioner og komponenter

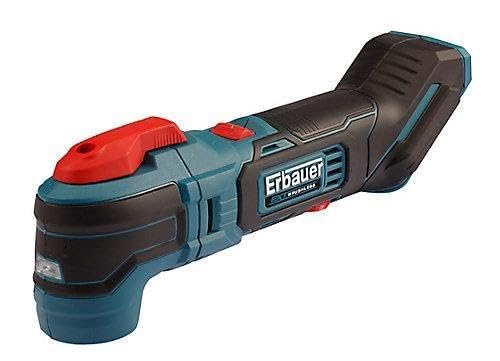

Figure 1: Erbauer EMT18-Li 18V Brushless Multi-Tool. This image displays the multi-tool from a side angle, showing its ergonomic handle, accessory attachment point, and power switch.
Familiarize yourself with the main components of your multi-tool:
- Accessory Attachment Point: For mounting various blades, sanding pads, and other attachments.
- Quick-Release Lever: Allows for fast and tool-free accessory changes.
- Tænd/sluk-knap: Aktiverer og deaktiverer værktøjet.
- Variabel hurtigopkald: Adjusts the oscillation speed for different materials and applications.
- Ergonomisk håndtag: Giver komfortabelt greb og kontrol under drift.
- Batteriport: For inserting a compatible Erbauer 18V battery pack.
5. Opsætning og montering
5.1. Batteriinstallation
The Erbauer EMT18-Li is sold as a bare tool, meaning the battery and charger are not included. Use only compatible Erbauer 18V battery packs.
- Sørg for, at værktøjet er slukket.
- Juster batteripakken med batteriporten på værktøjet.
- Skub batteripakken ind i porten, indtil den klikker sikkert på plads.
- For at fjerne batteriet skal du trykke på udløserknappen på batteripakken og skubbe den ud.
5.2. Montering af tilbehør
- Sørg for, at batteriet er fjernet fra værktøjet af sikkerhedsmæssige årsager.
- Locate the quick-release lever on the accessory attachment point.
- Push the quick-release lever to open the accessory clamp.
- Align the accessory (e.g., saw blade, sanding pad) with the attachment point, ensuring it fits snugly.
- Release the quick-release lever to secure the accessory. Ensure it is firmly locked in place before use.
6. Betjeningsvejledning
6.1. Tænd/sluk
- To turn the tool ON, slide the On/Off switch to the 'I' position.
- To turn the tool OFF, slide the On/Off switch to the 'O' position.
6.2. Justering af hastighed
The variable speed dial allows you to adjust the oscillation rate to suit the material and application:
- Rotate the speed dial to increase or decrease the oscillation speed.
- Lower speeds are suitable for delicate work, softer materials, or when more control is needed.
- Higher speeds are ideal for faster material removal on harder materials.
6.3. Generelle driftstips
- Apply light, consistent pressure. Do not force the tool, let the accessory do the work.
- For cutting, allow the blade to reach full speed before engaging the workpiece.
- For sanding, move the tool in a consistent pattern to ensure even material removal.
- Regularly check the accessory for wear and replace it when dull or damaged.
7. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer dit multiværktøjs levetid og optimale ydeevne.
- Rensning: Efter hver brug skal værktøjet tørres af med en ren,amp klud. Brug ikke skrappe kemikalier eller slibende rengøringsmidler. Hold ventilationsåbningerne fri for støv og snavs.
- Tilbehørsinspektion: Inspect accessories before and after each use for wear, cracks, or damage. Replace worn accessories promptly.
- Opbevaring: Store the tool in a dry, secure location out of reach of children. Remove the battery pack before long-term storage.
- Smøring: The tool's internal components are factory-lubricated and do not require additional lubrication.
8. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Værktøjet starter ikke | Battery not inserted correctly; Battery discharged; On/Off switch not fully engaged. | Ensure battery is fully inserted; Charge battery; Fully engage On/Off switch. |
| Reduceret ydeevne | Dull or damaged accessory; Overheating; Battery low. | Replace accessory; Allow tool to cool down; Charge battery. |
| Overdreven vibration eller støj | Accessory not properly secured; Damaged accessory. | Re-secure accessory; Replace damaged accessory. |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport.
9. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | ERBAUER |
| Model | EMT18-Li |
| Voltage | 18V (Batteri medfølger ikke) |
| Motortype | Børsteløs |
| Vægt | 4 Kilograms (Tool only) |
| ASIN | B0C7JDR95B |
10. Garanti og support
This Erbauer product is manufactured to high-quality standards and is guaranteed for a period of time from the date of purchase against faulty materials or workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions.
For technical assistance, spare parts, or warranty claims, please contact Erbauer customer support through your retailer or the official Erbauer webwebsted. Gem din købsbevis i tilfælde af garantikrav.
