Panasonic MK-F310 800W Food Processor User Manual

Indledning

Tak for købetasing the Panasonic MK-F310 800W Food Processor. This appliance is designed to simplify your food preparation tasks with its powerful motor and versatile attachments. This manual provides essential information for safe operation, proper assembly, maintenance, and troubleshooting to ensure optimal performance and longevity of your food processor.

Vigtige sikkerhedsoplysninger

Please read all instructions carefully before using the appliance. Failure to follow these safety guidelines may result in injury or damage to the appliance.

• Tag altid stikket ud af stikkontakten, inden du samler, skiller dig ad eller rengør apparatet.
• Hold hænder og redskaber væk fra bevægelige knive under drift for at forhindre skader.
• Knivene er skarpe. Håndter med ekstrem forsigtighed ved rengøring eller montering.
• Motorbasen må ikke nedsænkes i vand eller andre væsker. Rengør medamp kun klud.
• Sørg for, at låget er forsvarligt låst på plads, inden du bruger foodprocessoren.
• Do not process hot liquids or ingredients that are too hard, as this may damage the blades or bowl.
• Hold børn under opsyn, når apparatet er i brug. Dette apparat er ikke beregnet til brug af personer med nedsatte fysiske, sensoriske eller mentale evner, medmindre de er under opsyn.

Produktkomponenter

The Panasonic MK-F310 Food Processor comes with the following main components and attachments:

• Motorbase med kontrolhjul
• 2.4 Liter Processing Bowl
• Lid with Food Pusher
• Main Chopping Blade (S-blade)
• Pisk Blade
• Skæreblad
• Makuleringsblad
• Fransk stegeblad
• Blade Holder/Spindle

Image: The main unit of the Panasonic MK-F310 Food Processor, showing the motor base, processing bowl, and lid.

Image: A collection of the 5 versatile attachments included with the Panasonic MK-F310 Food Processor, including the main blade, whisk, slicing, shredding, and French fry blades.

Opsætning

Before first use, unpack all components and wash the processing bowl, lid, and all attachments in warm, soapy water. Rinse thoroughly and dry. The motor base should only be wiped with a damp klæde.

Monteringstrin:

1. Placer motorbasen på en stabil, flad og tør overflade.
2. Carefully place the processing bowl onto the motor base, aligning the bowl handle with the safety lock mechanism on the base. Twist clockwise until it locks into place.
3. Select the desired blade or attachment. For chopping, place the main chopping blade onto the spindle inside the bowl. For slicing/shredding/French fry, place the blade holder first, then the chosen disc blade on top.
4. Add your ingredients to the bowl. Do not fill above the maximum fill line.
5. Place the lid onto the processing bowl, aligning the lid tab with the safety lock on the bowl handle. Twist clockwise until it locks securely. The appliance will not operate if the bowl and lid are not correctly locked.
6. Insert the food pusher into the feed tube on the lid.

Betjeningsvejledning

Ensure the food processor is correctly assembled and locked before plugging it into a power outlet.

Indstillinger for kontrolopkald:

• 0 (Fra): The appliance is off. Always return the dial to '0' before changing attachments or unplugging.
• P (Puls): Provides short bursts of power at maximum speed. Turn the dial to 'P' and hold for desired duration, then release. Ideal for coarse chopping or when precise control is needed.
• 1 (Low Speed): Continuous operation at a lower speed. Suitable for mixing, light dough, or softer ingredients.
• 2 (High Speed): Continuous operation at a higher speed. Ideal for chopping harder ingredients, pureeing, or whisking.

Image: A hand adjusting the control dial of the Panasonic MK-F310 Food Processor, which features settings for High, Low, and Pulse functions.

Brug af vedhæftede filer:

• Main Chopping Blade: Use for chopping vegetables, nuts, meat, mixing batters, or pureeing soups. Place ingredients directly into the bowl.
• Slicing/Shredding/French Fry Blades: After assembling the blade holder and desired disc blade, place ingredients into the feed tube on the lid. Use the food pusher to guide ingredients down. Apply even, gentle pressure.
• Piskerisblad: Use for whipping cream, egg whites, or light batters. Ensure the bowl is clean and dry for best results.

Do not operate the appliance continuously for more than 1 minute. Allow it to rest for a few minutes between cycles to prevent overheating.

Vedligeholdelse og rengøring

Regular cleaning ensures hygiene and extends the life of your food processor. Always unplug the appliance before cleaning.

Rengøringstrin:

1. Turn the control dial to '0' and unplug the appliance.
2. Carefully remove the lid, then the blade/attachment, and finally the processing bowl from the motor base.
3. The processing bowl, lid, and all attachments (blades, food pusher) are dishwasher safe. Alternatively, wash them by hand in warm, soapy water. Use a brush for blades to avoid direct contact with sharp edges.
4. Tør motorbasen af ​​med adamp klæde. Nedsænk den ikke i vand.
5. Sørg for, at alle dele er helt tørre, før de monteres igen eller opbevares.

Fejlfinding

Hvis du støder på problemer med din foodprocessor, kan du se følgende almindelige problemer og løsninger:

Specifikationer

Detailed technical specifications for the Panasonic MK-F310 Food Processor:

• Model: MK-F310WTN
• Magt: 800 watt
• Kapacitet: 2.4 liter
• Hastigheder: 3 (Puls, Lav, Høj)
• Materiale: Plast, rustfrit stål
• Farve: Hvid
• Dimensioner (L x B x H): 25.5 x 23.5 x 40.7 cm
• Vægt: 3.6 kg
• Særlige funktioner: 18 functions, 5 attachments, Dishwasher safe parts, French fry blade.
• Anbefalede anvendelser: Chopping, mixing, mashing, slicing, dough making, French fry cutting.
• Vedligeholdelsesinstruktioner: Dishwasher safe parts.

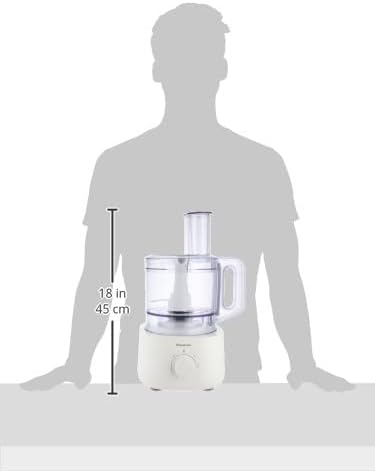

Image: A diagram illustrating the dimensions of the Panasonic MK-F310 Food Processor, indicating its height and width for placement reference.

Garanti og support

Your Panasonic MK-F310 Food Processor is covered by a Et års garanti fra købsdatoen. Denne garanti dækker fabrikationsfejl ved normal brug i husholdningen.

For warranty claims, technical support, or service inquiries, please contact Panasonic customer service through their official website or the retailer where the product was purchased. Please have your proof of purchase and model number (MK-F310) ready when contacting support.
