Vremi 12000 BTU Portable Air Conditioner with Heat - Instruction Manual

1. Produktet er slutview

The Vremi 12000 BTU Portable Air Conditioner with Heat (Model VRM050520N) is a versatile climate control solution designed for rooms up to 350 square feet. This multi-functional unit offers cooling, heating, fan-only operation, and dehumidification modes, providing comfort throughout the year. Its compact design, built-in castors, and integrated handles ensure easy portability between rooms.

Image: The Vremi 12000 BTU Portable Air Conditioner with Heat, a white unit, is shown in a modern living room next to a window with its exhaust hose connected. A sofa and a plant are also visible.

2. Sikkerhedsoplysninger

Please read all safety instructions carefully before operating the unit. Failure to follow these instructions may result in electric shock, fire, or personal injury.

• Placer altid enheden på en plan, stabil overflade.
• Ensure the unit remains in an upright position for at least 4 hours before initial use or after transport.
• Betjen ikke enheden med en beskadiget strømledning eller stik.
• Hold børn og kæledyr væk fra enheden under drift.
• Maintain adequate clearance around the unit for proper airflow.
• Stik ikke genstande ind i ventilationsåbningerne.

3. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• Bærbar klimaanlægsenhed
• Udstødningsslange
• Window Slider Kit (adjustable panels)
• Slangeadaptere (2)
• Fjernbetjening
• Drænrør
• Brugermanual

4. Opsætning og installation

4.1 Indledende placering

Place the portable AC unit on a flat, stable surface. For optimal performance, ensure the unit remains in an upright position for at least 4 hours before plugging it in and operating it for the first time. This allows the refrigerant to settle.

4.2 Montering af vinduessæt

The adjustable window slider kit is designed for easy installation in various window types (vertical or horizontal sliding windows).

1. Measure your window opening.
2. Assemble the window kit panels by sliding them together and securing them with the provided wing nuts to match your window's width or height.
3. Place the assembled window kit into the window opening and close the window sash against it to create a seal.

Image: A person is shown installing the adjustable window slider kit into a window frame, demonstrating the ease of setup.

4.3 Udstødningsslangetilslutning

The exhaust hose expels hot air from the unit to the outside, which is crucial for effective cooling.

1. Screw the round hose adapters onto both ends of the flexible exhaust hose.
2. Attach one end of the assembled exhaust hose to the exhaust outlet on the back of the portable AC unit.
3. Connect the other end of the exhaust hose to the opening in the installed window kit.
4. Ensure all connections are tight to prevent hot air from re-entering the room. The hose can extend up to 60 inches for flexible placement.

Image: A hand is shown connecting the flexible exhaust hose to the back of the portable air conditioner unit, illustrating the hose attachment process.

5. Betjeningsvejledning

Enheden kan betjenes via kontrolpanelet oven på enheden eller den medfølgende fjernbetjening.

5.1 Kontrolpanel

The control panel features an LED display and touch buttons for various functions:

• Power knap: Tænder/slukker enheden.
• Mode knap: Cycles through Cool, Heat, Fan, and Dry (Dehumidify) modes.
• Temperatur op/ned pile: Adjusts the desired temperature (range 55-81°F).
• Ventilatorhastighedsknap: Vælger høj eller lav ventilatorhastighed.
• Timer knap: Indstiller timeren for automatisk tænd/sluk.
• Sleep knap: Aktiverer støjsvag driftstilstand.
• Sving knap: Activates the automatic louver swing for wider air distribution.

Billede: En detaljeret view of the unit's top-mounted control panel with an LED display and various function buttons, alongside the remote control.

5.2 Fjernbetjening

Fjernbetjeningen giver nem adgang til alle funktioner på afstand.

• Alle funktioner, der er tilgængelige på kontrolpanelet, er også tilgængelige via fjernbetjeningen.
• Sæt to AAA-batterier (medfølger ikke) i fjernbetjeningen.

Image: A close-up of the white remote control, showing buttons for power, mode, fan speed, temperature adjustment, timer, and sleep mode.

5.3 driftstilstande

• Cool tilstand: Giver kraftig køling for at sænke rumtemperaturen.
• Varmetilstand: Offers heating functionality to warm the room.
• Ventilatortilstand: Cirkulerer luft uden afkøling eller opvarmning.
• Tørretilstand (affugtning): Fjerner overskydende fugt fra luften, ideel til fugtige forhold.
• Sove mode: Operates at a lower fan speed and adjusts the temperature gradually for quiet, comfortable sleep.

Image: Graphic displaying icons for Cool, Fan, Dry, Sleep, and Heat modes, indicating the unit's multi-functional capabilities.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for dit bærbare klimaanlæg.

6.1 Rengøring af luftfilter

The reusable air filter should be cleaned weekly to maintain air quality and unit efficiency.

1. Sluk og tag stikket ud af enheden.
2. Find og fjern luftfilteret fra bagsiden af ​​enheden.
3. Skyl filteret under rindende vand, indtil det er rent.
4. Allow the filter to air dry completely before re-installing.

Image: A hand is shown cleaning the removable air filter under a running faucet, emphasizing the 'easy to clean' feature.

6.2 Vandafledning

The unit collects moisture during cooling and dehumidifying operations. When the internal water tank is full, the "Water Full" indicator will illuminate, and the unit will stop operating until drained.

• Manuel dræning: Place a shallow pan or bucket under the drainage outlet located at the bottom rear of the unit. Remove the rubber stopper to allow water to drain. Replace the stopper once the tank is empty.
• Kontinuerlig dræning: For continuous dehumidification, attach the provided drainage tube to the drainage outlet and direct the other end to a suitable floor drain or a larger container.

7. Fejlfinding

Hvis du støder på problemer, kan du se følgende almindelige fejlfindingstrin:

• Enheden tænder ikke: Check if the power cord is securely plugged into a grounded outlet. Ensure the "Water Full" indicator is not lit; if it is, drain the water tank.
• Enheden køler/varmer ikke effektivt: Verify that the desired temperature is set correctly. Check if the air filter is clean. Ensure the exhaust hose is properly installed and sealed to prevent air leakage. Confirm that windows and doors are closed.
• "Water Full" indicator is on: The internal water tank is full. Refer to section 6.2 for drainage instructions.

For further assistance, please contact Vremi customer support.

8. Specifikationer

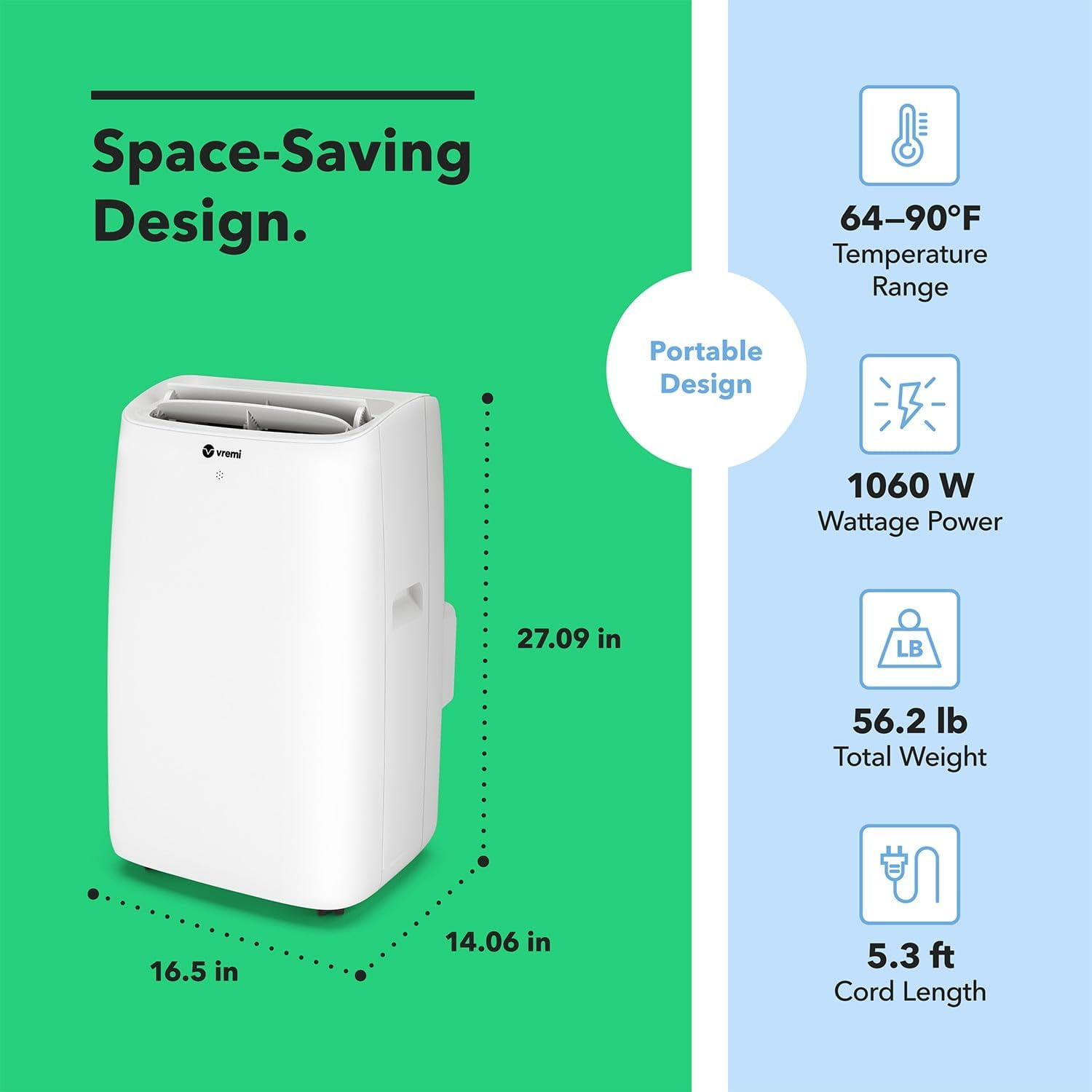

Image: A graphic illustrating the dimensions (depth, width, height) and weight of the portable air conditioner, along with its temperature range and wattage.

9. Garanti og kundesupport

This Vremi product comes with a limited warranty. For detailed warranty information, product registration, or technical support, please refer to the contact information provided in the original packaging or visit the official Vremi webwebsted.
