Indledning
This manual provides essential instructions for the safe and effective use of your Sony HVL-F45RM camera flash. Please read this manual thoroughly before using the product and retain it for future reference.
The Sony HVL-F45RM is a powerful, compact flash unit designed for advanced photography. It features a Guide Number (GN) of 45, radio wireless communication for multi-flash setups, and a 1-inch display for intuitive control. Its capabilities include bounce lighting and High-Speed Sync (HSS), making it suitable for various creative lighting scenarios.
Sikkerhedsoplysninger
Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af produktet:
- Du må ikke skille blitzenheden ad eller ændre den.
- Hold enheden tør og væk fra fugt.
- Udsæt ikke enheden for ekstreme temperaturer.
- Use only specified batteries (AA-size).
- Undgå direkte kontakt med blitzen.
Pakkens indhold
Bekræft at alle varer er til stede i pakken:
- Sony HVL-F45RM Flash Unit
- Stikbeskyttelseshætte
- Mini-Stand
- Bæretaske
- AA-size Batteries (4 included)
Image: Sony HVL-F45RM flash unit and its accessories.
Opsætning
1. Installation af batterier
- Åbn batteridækslet på blitzenheden.
- Insert four AA-size batteries, ensuring correct polarity (+/-).
- Luk batterirummets dæksel forsvarligt.
2. Tilslutning til kamera
- Slide the flash unit into the camera's Multi Interface Shoe until it clicks into place.
- Tighten the locking screw (if present) to secure the flash.
- Ensure the flash is compatible with your camera's MI Shoe. An adapter may be required for other shoe types.

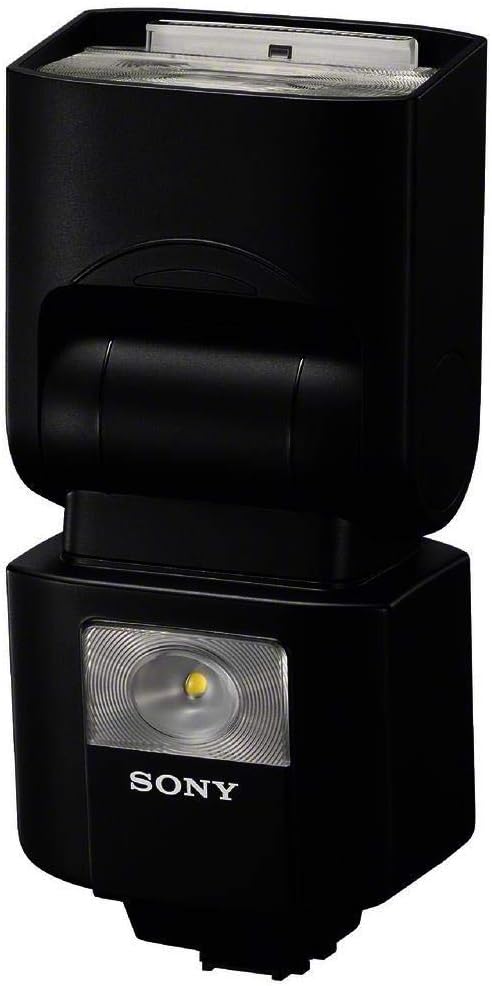

Billede: Side view of the HVL-F45RM, illustrating its compact design and mounting point.
Betjeningsvejledning
Tænd/sluk
Press and hold the power button to turn the flash unit on or off. The 1-inch display will illuminate upon power-on.
Basic Flash Modes
- TTL (gennem objektivet) tilstand: The flash output is automatically controlled by the camera's metering system.
- Manuel tilstand: Allows you to manually set the flash output power.
- Multi Mode: Fires the flash multiple times during a single exposure for stroboscopic effects.
Radio Wireless Communication
The HVL-F45RM can operate as an on-camera flash, a radio wireless commander, or a receiver. It supports up to 15 units in up to 5 groups, with a range of approximately 98 feet.
- Commander Mode: Mount the flash on your camera to control other compatible Sony wireless flash units.
- Modtagertilstand: Position the flash off-camera to be triggered by a compatible Sony wireless commander.
Bounce Flash Operation
The flash head can be tilted and rotated to direct light off a ceiling or wall, creating softer, more natural illumination.
- Lodret hældning: The flash head can tilt upwards by 150 degrees and downwards by 8 degrees.
- Vandret rotation: The flash head can rotate 180 degrees to the left and 180 degrees to the right.

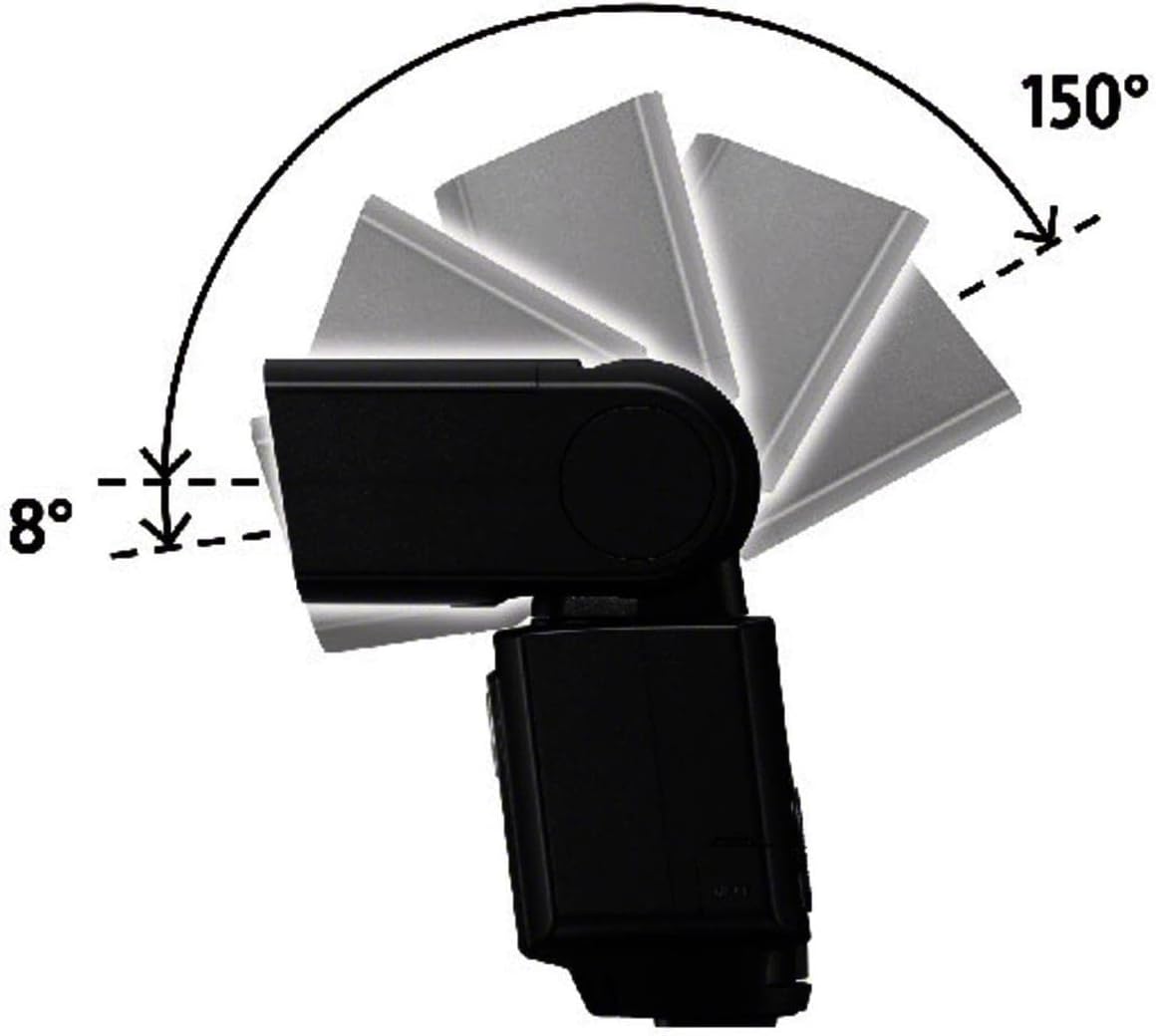

Image: Vertical tilt range of the flash head.
Image: Horizontal rotation range of the flash head.
Højhastighedssynkronisering (HSS)
HSS allows the flash to synchronize with shutter speeds faster than the camera's normal sync speed, enabling flash use in bright conditions or with wide apertures.
Recycling Time and Bursts
The flash has a recycling time of approximately 2.5 seconds and can deliver up to 210 bursts on a single set of batteries.
Opretholdelse
- Rensning: Brug en blød, tør klud til at rengøre blitzenheden. Ved genstridigt snavs, tør letampRengør kluden med vand. Brug ikke organiske opløsningsmidler.
- Batteripleje: Fjern batterierne, hvis blitzen ikke skal bruges i længere tid, for at forhindre lækage.
- Opbevaring: Store the flash in its carrying case in a cool, dry place, away from direct sunlight and extreme temperatures.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Blitzen går ikke ud. | Batteries are depleted or incorrectly inserted. Flash is not securely mounted. Flash is in standby mode. | Replace batteries or check polarity. Re-mount flash securely. Press shutter button halfway to wake flash. |
| Blitzudgangen er for svag/stærk. | Incorrect flash mode or power setting. Subject too far/close. | Adjust flash compensation or manual power. Ensure subject is within flash range. |
| Fejl i trådløs kommunikation. | Units are out of range. Interference. Incorrect channel/group settings. | Reduce distance between units. Change wireless channel/group. Check for obstructions. |
| Blitzen overopheder. | Overdreven kontinuerlig affyring. | Allow the flash to cool down. Reduce frequency of flashes. |
Specifikationer
| Feature | Detalje |
|---|---|
| Guidenummer (GN) | 45 (at ISO 100, 105mm) |
| Radio Wireless Communication | Yes (Commander/Receiver, up to 15 units in 5 groups, approx. 98 ft range) |
| Flashvarighed | Approx. 1.7 ms (1/1 MANUAL) |
| Genbrugstid | Ca. 2.5 sekunder |
| Antal blink | Up to 210 bursts (with Sony AA-size alkaline batteries) |
| Continuous Lighting Time | 4 hours (with Sony AA-size alkaline batteries) |
| Strømkilde | 4 x AA alkaliske eller Ni-MH-batterier |
| Dimensioner (B x H x D) | 2.38 x 4.5 x 3.5 tommer (ca.) |
| Vægt | 11.2 ounce (uden batterier) |
| Kompatible monteringer | Sony Alpha Multi Interface Shoe |
Garanti og support
Garantioplysninger
This Sony product is covered by a limited warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty period and coverage details. Retain your proof of purchase for warranty service.
Kundesupport
For teknisk assistance, fejlfinding eller serviceforespørgsler, besøg venligst den officielle Sony-supportside website or contact Sony customer service. Contact information can typically be found on the Sony webwebstedet eller i din produktdokumentation.
Sony support Webwebsted: www.sony.com/electronics/support
