Indledning
This manual provides essential instructions for the proper installation, operation, maintenance, and troubleshooting of your Blomberg 4911630300 Ice Maker. This is an authorized OEM replacement part designed to fit various Blomberg brand refrigerator models. Please read this manual thoroughly before beginning any procedures to ensure safe and correct usage.
Vigtige sikkerhedsoplysninger
Always disconnect power to the appliance before installing, servicing, or cleaning the ice maker. Failure to do so can result in electrical shock or injury. Wear appropriate personal protective equipment, such as gloves, during installation to prevent cuts or scrapes.
- Ensure the appliance is unplugged before any service.
- Follow all local electrical and plumbing codes.
- Hvis du er usikker på et trin, skal du kontakte en kvalificeret servicetekniker.
Produkt overview
The Blomberg 4911630300 is an original equipment manufacturer (OEM) ice maker designed as a direct replacement part for compatible Blomberg refrigerators. It ensures your appliance continues to produce ice efficiently.

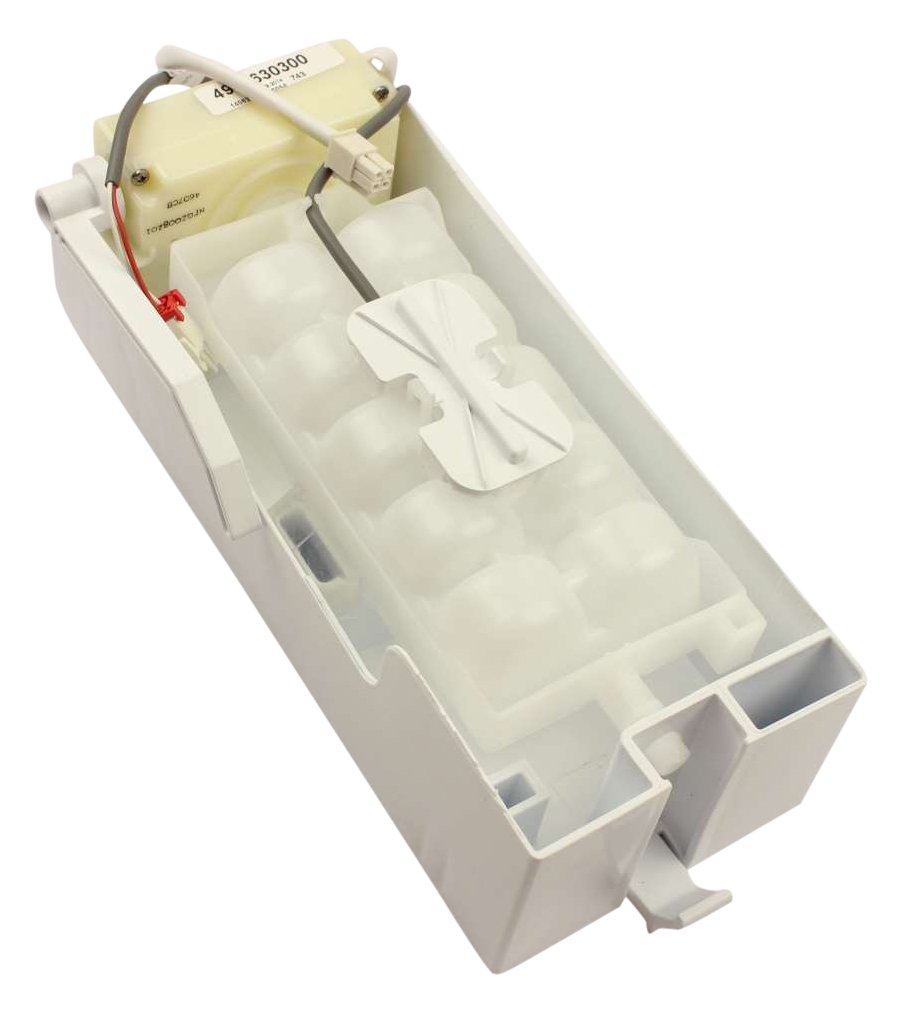

Figur 1: Blomberg 4911630300 Ice Maker. This image shows the complete ice maker assembly, including the ice mold, motor, and electrical connections, ready for installation into a compatible refrigerator or freezer unit.
Opsætning og installation
Installation of the Blomberg 4911630300 Ice Maker typically involves replacing an existing unit. Ensure you have the correct model (4911630300) as there might be similar models with different plug configurations.
- Afbryd strømmen: Tag stikket til køleskabet ud af stikkontakten, eller sluk for afbryderen, der forsyner apparatet med strøm.
- Adgang til ismaskinerum: Open the freezer door and locate the existing ice maker. You may need to remove the ice bucket and any shelves obstructing access.
- Fjern den gamle ismaskine: The old ice maker typically pulls forward to disengage from its mounting brackets. Carefully disconnect the electrical plug by pressing any release tabs and pulling the connector apart.
- Installer ny ismaskine: Connect the electrical plug of the new Blomberg 4911630300 Ice Maker to the refrigerator's harness. Ensure the connection is secure.
- Mount New Ice Maker: Slide the new ice maker into the mounting brackets until it clicks securely into place.
- Gendan strøm: Sæt køleskabet i stikkontakten igen, eller tænd for afbryderen.
- Indledende drift: Allow several hours for the freezer compartment to reach the correct temperature and for the ice maker to begin producing ice. The first few batches of ice may be smaller or irregular; discard them.
Note: Refer to your refrigerator's specific service manual for detailed instructions on accessing and removing components, as procedures may vary by model.
Betjeningsvejledning
Once installed and powered, the Blomberg 4911630300 Ice Maker operates automatically. It will fill with water, freeze the water into cubes, and then eject the ice into the ice bucket.
- Isproduktion: The ice maker will cycle automatically as needed to keep the ice bucket full.
- Isniveausensor: Most refrigerators have an ice level sensor (often a wire arm or optical sensor) that stops ice production when the bucket is full. Ensure this sensor is not obstructed.
- Vandforsyning: Ensure the refrigerator's water supply line is connected and the water shut-off valve is open for the ice maker to function.
Opretholdelse
Regelmæssig vedligeholdelse er med til at sikre optimal ydeevne og levetid for din ismaskine.
- Rengøring af isspanden: Fjern og vask isspanden med jævne mellemrum med mild sæbe og varmt vand. Skyl grundigt og tør den helt, før du sætter den tilbage i fryseren.
- Udskiftning af vandfilter: If your refrigerator has a water filter, replace it according to the manufacturer's recommendations (typically every 6 months) to ensure clean ice and proper water flow to the ice maker.
- Inspicer vandledningen: Kontrollér vandforsyningsledningen af og til for knæk eller lækager.
Fejlfinding
If your Blomberg 4911630300 Ice Maker is not functioning as expected, review følgende almindelige problemer, før du kontakter service.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ismaskinen producerer ikke is. | Refrigerator not connected to water supply; water valve closed; freezer temperature too high; ice maker power switch off; clogged water filter. | Ensure water supply is connected and valve is open. Check freezer temperature (should be 0°F/-18°C). Verify ice maker power switch is ON. Replace water filter if necessary. |
| Small or hollow ice cubes. | Lavt vandtryk; tilstoppet vandfilter; delvist frossen vandledning. | Check water pressure. Replace water filter. Thaw any frozen water lines (disconnect power first). |
| Ice maker producing too much ice / not stopping. | Ice level sensor obstructed or faulty. | Ensure nothing is blocking the ice level sensor arm or optical sensor. If the sensor is faulty, it may require replacement. |
| Is har en usædvanlig smag eller lugt. | Old ice; dirty ice bucket; old water filter; food odors in freezer. | Discard old ice. Clean ice bucket. Replace water filter. Store strong-smelling foods in airtight containers. |
Specifikationer
Key specifications for the Blomberg 4911630300 Ice Maker:
- Varenummer: 4911630300
- Varemodelnummer: 4911630300
- Mærke: Blomberg
- Varens vægt: Cirka 1.15 pund (0.52 kg)
- Produktdimensioner: Cirka 12 x 8 x 9 tommer (30.5 x 20.3 x 22.9 cm)
- Inkluderede komponenter: Appliance replacement parts (Ice Maker Assembly)
- Batterier påkrævet: Ingen
Garanti og support
For warranty information and technical support regarding your Blomberg 4911630300 Ice Maker, please refer to the documentation provided with your original refrigerator appliance or contact Blomberg customer service directly. As an OEM replacement part, its warranty may be covered under the original appliance's warranty or a separate parts warranty.
When contacting support, please have your refrigerator's model and serial number, along with the ice maker's part number (4911630300), readily available.
