KOHLER Tresham K-3950-RA-0 Two-Piece Elongated Comfort Height Toilet User Manual

1. Introduktion

This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your KOHLER Tresham K-3950-RA-0 two-piece elongated Comfort Height toilet. Please read these instructions carefully before beginning installation or use to ensure proper function and longevity of your product.

The Tresham toilet features an elongated bowl for added comfort and a Comfort Height design, offering chair-height seating for easier use by most adults. It operates with a 1.28 gallons per flush (gpf) system, designed for efficient water usage.

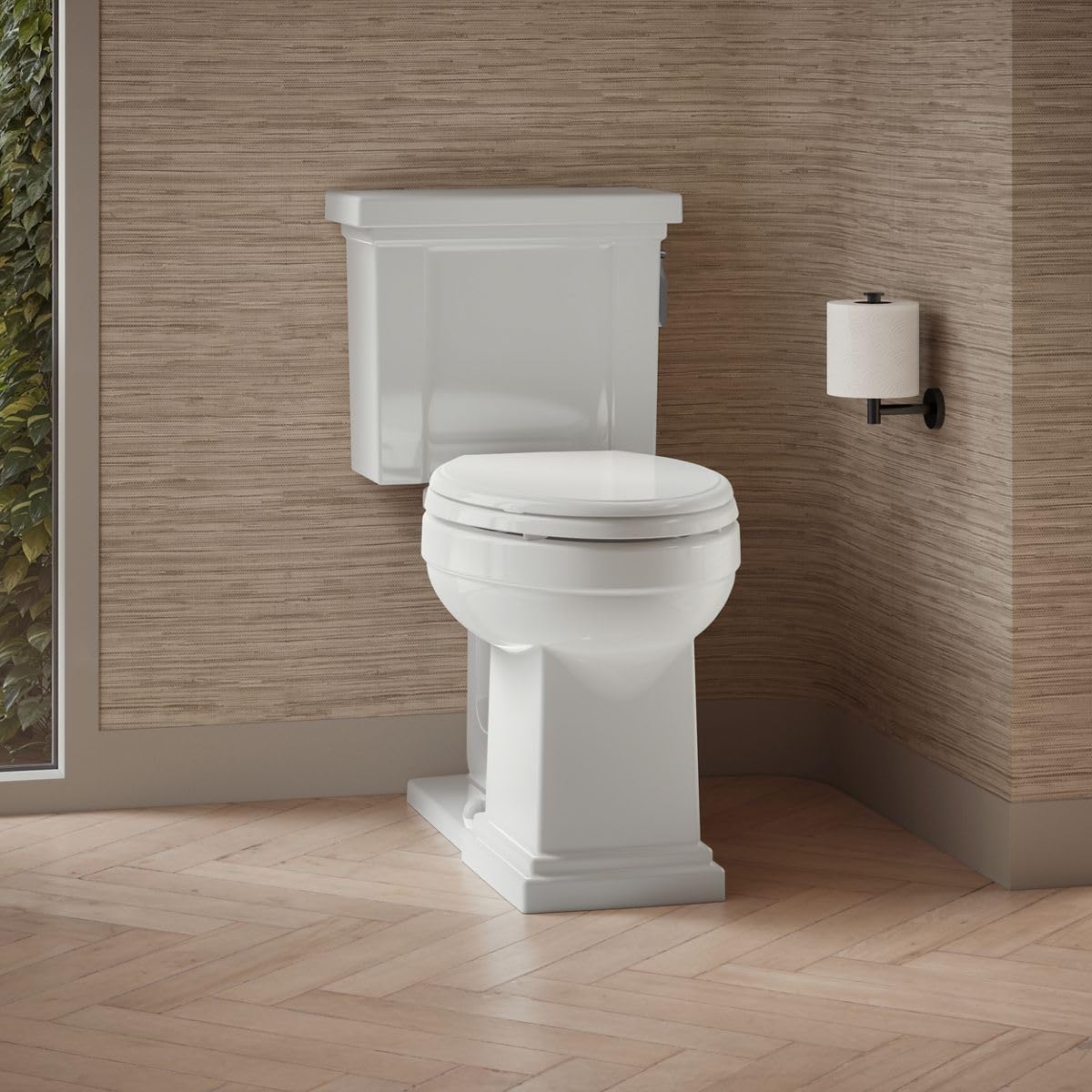

Figure 1.1: The KOHLER Tresham K-3950-RA-0 toilet installed in a bathroom.

2. Opsætning og installation

2.1 Før du begynder

• Ensure all necessary components are present: toilet bowl, tank, tank cover, trip lever, bolt accessory pack, and tank accessory pack.
• Verify the rough-in dimension is compatible with your plumbing. This toilet is designed for a standard 12-inch (305 mm) rough-in.
• Sluk for vandforsyningen til toiletområdet.
• Clear the installation area of any debris.

2.2 Installation Steps (Floor Mounted)

1. Prepare the Floor Flange: Ensure the floor flange is securely mounted and level with the finished floor. Install new closet bolts into the flange.
2. Installer voksring: Place a new wax ring over the floor flange, ensuring it is centered.
3. Sæt skålen: Carefully lower the toilet bowl onto the closet bolts, aligning the bolt holes. Press down firmly and evenly to compress the wax ring.
4. Fastgør skålen: Install washers and nuts onto the closet bolts. Tighten nuts alternately until the bowl is snug and stable. Do not overtighten, as this can crack the ceramic. Cover bolts with caps.
5. Saml tanken: Attach the tank-to-bowl gasket and bolts to the tank according to the tank accessory pack instructions.
6. Monter tanken: Carefully place the tank onto the back of the toilet bowl, aligning the tank bolts with the holes in the bowl. Tighten the tank nuts evenly until the tank is secure and stable.
7. Tilslut vandforsyning: Connect the water supply line to the fill valve on the underside of the tank. Hand-tighten, then use a wrench for a quarter turn.
8. Install Trip Lever: Attach the right-hand trip lever to the tank.
9. Install Tank Cover: Place the tank cover on top of the tank.
10. Genopret vandforsyningen: Turn on the water supply and check for leaks. Flush the toilet several times to ensure proper operation.

Figure 2.1: Key dimensions of the Tresham toilet. Total Height: 31-1/4" (794 mm), Bowl Height: 16-1/2" (419 mm), Width: 16-5/8" (422 mm), Length: 16-1/2" (419 mm). Standard 12" (305 mm) rough-in.

Figure 2.2: The Tresham toilet features an elongated bowl, providing more room and comfort compared to a round-front bowl.

3. Betjeningsvejledning

3.1 Skylning af toilettet

To flush the toilet, press down firmly on the right-hand trip lever located on the side of the tank. The toilet is designed to use 1.28 gallons of water per flush (gpf) for efficient waste removal.

Figure 3.1: The AquaPiston Technology delivers a powerful and effective flush, ensuring efficient performance with each use.

3.2 Comfort Height Feature

The Comfort Height feature provides a bowl height comparable to that of a standard chair, making sitting down and standing up easier for most adults. This design enhances accessibility and comfort.

Figure 3.2: Comfort Height toilets offer a taller bowl height (16+" vs. 15" standard) for improved accessibility.

4. Vedligeholdelse

4.1 Rengøringsinstruktioner

• Use mild, non-abrasive cleaners for all surfaces. Avoid harsh chemicals, abrasive pads, or scouring powders, as these can damage the ceramic finish.
• For the bowl interior, use a toilet bowl cleaner and a soft brush. Follow the cleaner manufacturer's instructions.
• Wipe down the exterior of the toilet, including the tank, bowl, and trip lever, with a soft cloth and a mild cleaning solution.
• Rinse all surfaces thoroughly with clean water after cleaning and dry with a soft cloth to prevent water spots.

4.2 Generel pleje

• Regularly inspect the water supply line for any signs of wear or leaks.
• Ensure the trip lever operates smoothly. If it becomes stiff, check for obstructions or mineral buildup.
• The 2-1/8-inch glazed trapway is designed to minimize clogs, but avoid flushing non-biodegradable items.

5. Fejlfinding

If you are unable to resolve an issue using these troubleshooting steps, please contact Kohler customer support or a qualified plumber.

6. Specifikationer

• Modelnummer: K-3950-RA-0
• Produkttype: To-delt toilet
• Skålform: Forlænget
• Skylletype: Gravity Flush with AquaPiston Technology
• Gallons Per Flush (GPF): 1.28 gpf
• Trapway Size: 2-1/8 inches, Glazed
• Groft ind: Standard 12 inches (305 mm)
• Materiale: Keramisk
• Farve: Hvid
• Installationstype: Gulvmonteret
• Dimensioner (D x B x H): 27.75" x 17.25" x 29.5" (705 mm x 438 mm x 749 mm)
• Varens vægt: 45.5 pund (20.6 kg)
• Inkluderede komponenter: Bolt accessory pack, Tank accessory pack, Tank cover, Trip lever

Figure 6.1: This product meets EPA WaterSense criteria, ensuring water conservation without compromising performance.

7. Garantioplysninger

This KOHLER Tresham toilet is covered by a Et års begrænset garanti. For specific details regarding warranty coverage, terms, and conditions, please refer to the official warranty documentation provided with your product or visit the Kohler webwebsted.

8. Support

For technical assistance, replacement parts, or further inquiries, please contact Kohler customer service. You can find contact information on the official Kohler webwebstedet eller i den dokumentation, der fulgte med dit køb.

Online resources and FAQs may also be available on the Kohler webwebsted til at hjælpe med almindelige spørgsmål og problemer.
