Apollo Valve 14-200 Series Bronze Safety Relief Valve

1. Introduktion

This manual provides essential information for the proper installation, operation, and maintenance of the Apollo Valve 14-200 Series Bronze Safety Relief Valve. This high-capacity steam safety valve is designed to protect heating boiler systems by automatically relieving excess pressure. Adherence to the guidelines presented herein is crucial for ensuring the safety, longevity, and optimal performance of the valve.

The Apollo Valve 14-200 series is ASME safety rated for Section IV heating boilers, making it suitable for use with medium and large size commercial and industrial heating boilers.

2. Sikkerhedsoplysninger

ADVARSEL: Improper installation, operation, or maintenance of this safety relief valve can result in property damage, serious injury, or death. Always follow all local codes, regulations, and manufacturer instructions.

• Ensure the valve is installed by qualified personnel in accordance with all applicable codes and standards.
• Verify that the valve's set pressure (15 psi) is appropriate for the system it is protecting.
• Må ikke tamper with the factory-set pressure. Any adjustments must be performed by authorized personnel using proper calibration equipment.
• Ensure proper discharge piping is installed to safely vent steam or fluid away from personnel and equipment.
• Regularly inspect the valve for signs of damage, corrosion, or leakage.
• Always depressurize the system before attempting any maintenance or inspection.

3. Produktet er slutview

The Apollo Valve 14-200 Series is a robust bronze safety relief valve designed for reliable overpressure protection in steam heating boiler systems. Its construction features a durable cast bronze body, a steel spring, and a PTFE-faced disc for a positive seal.

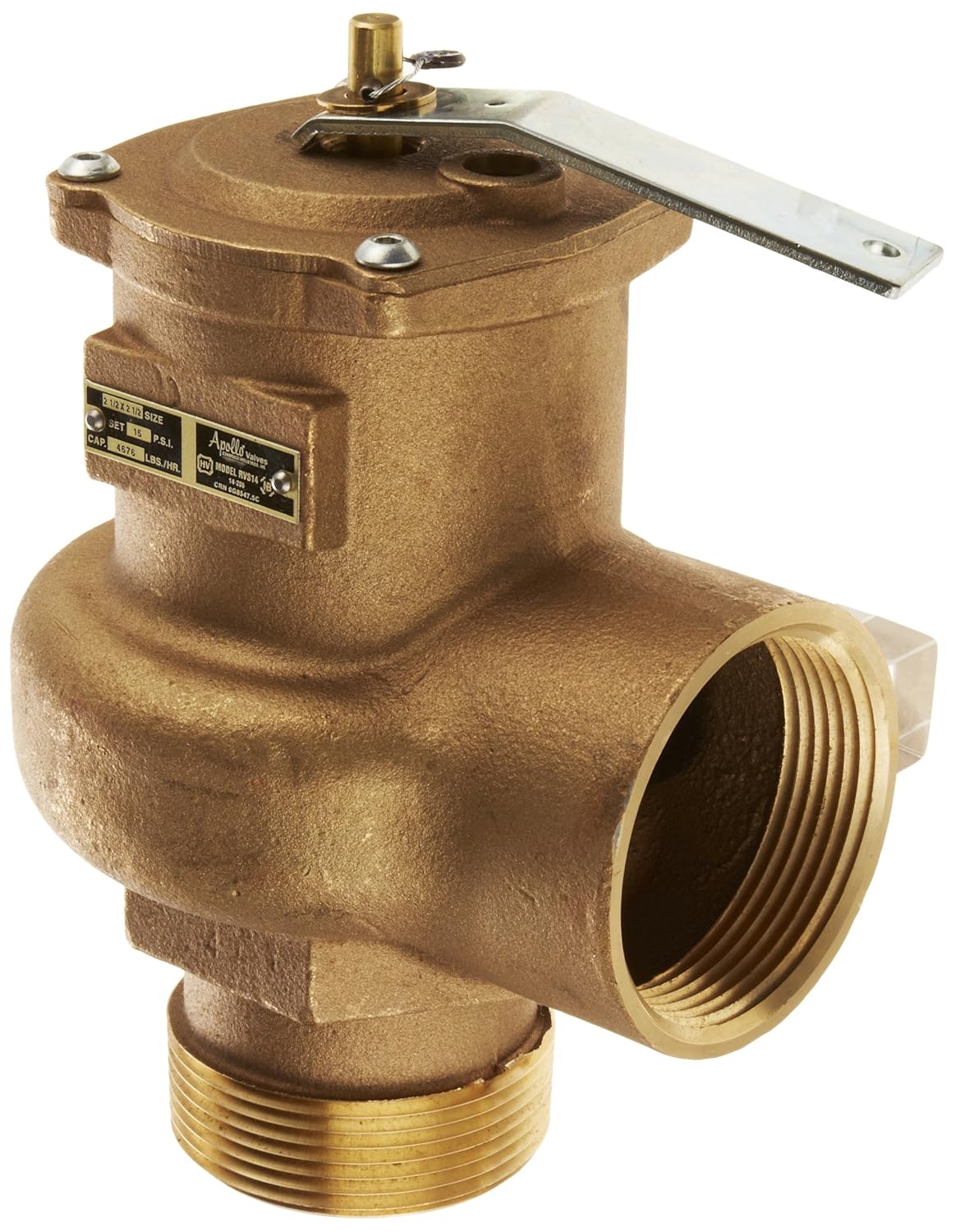

En detaljeret view of the Apollo Valve 14-200 Series Bronze Safety Relief Valve, showing its robust bronze body, threaded inlet and outlet connections, and the top-mounted lift lever mechanism. The product label is visible, indicating model and pressure specifications.

Nøglefunktioner:

• Relief Pressure: Preset to 15 psi for effective pressure release.
• Indgangsforbindelse: 2-1/2" male NPT threaded inlet for secure connection.
• Udgangstilslutning: 2-1/2" female NPT outlet.
• Konstruktion: Cast bronze body and steel spring for excellent corrosion resistance.
• Forsegling: Flat seat with a PTFE-faced disc for a reliable, positive seal.
• Certificering: ASME-sikkerhedsklassificeret til Sektion IV-varmekedler.
• Afløbstilslutning: Features a 3/8" NPT side tapping for drain connection.
• Driftstemperatur: Suitable for operating temperatures up to 250 degrees F.

4. Opsætning og installation

Installation of the Apollo Valve 14-200 Series Safety Relief Valve should only be performed by a qualified and licensed professional in accordance with all local and national plumbing and boiler codes.

Installationstrin:

1. Systemforberedelse: Ensure the boiler system is depressurized and cooled before beginning installation.
2. Indgangsforbindelse: Thread the 2-1/2" male NPT inlet of the valve into the designated female NPT connection on the boiler. Use appropriate thread sealant to ensure a leak-free connection. Do not overtighten.
3. Udgangstilslutning: Connect suitable discharge piping to the 2-1/2" female NPT outlet of the valve. The discharge piping must be adequately sized, sloped for drainage, and routed to a safe discharge point where steam or hot water can be safely released without causing harm or damage. Avoid any restrictions or valves in the discharge line.
4. Drain Connection (Optional): If required, connect a 3/8" NPT drain line to the side tapping for condensate drainage.
5. Endelig kontrol: After installation, slowly repressurize the system and carefully inspect all connections for leaks.

5. Driftsprincipper

The Apollo Valve 14-200 Series Safety Relief Valve operates automatically to protect the boiler from overpressure conditions. It is a spring-loaded, direct-acting valve.

• Under normal operating conditions, the system pressure is below the valve's set pressure (15 psi), and the valve remains closed, maintaining system integrity.
• If the system pressure exceeds the 15 psi set point, the force exerted by the pressure on the valve's disc overcomes the spring force, causing the disc to lift and the valve to open.
• Excess steam or fluid is then discharged through the outlet, reducing the system pressure to a safe level.
• Once the system pressure drops below the reseating pressure, the spring force closes the valve, restoring normal operation.
• The valve also features a manual lift lever for periodic testing, which should be performed carefully and only when the system is at a safe operating pressure, to ensure the valve is not seized. Consult boiler operation guidelines for proper testing procedures.

6. Vedligeholdelse

Regular maintenance is essential to ensure the continued reliability and safety of your Apollo safety relief valve. All maintenance should be performed by qualified personnel.

Vedligeholdelsesplan:

• Årlig inspektion: Visually inspect the valve for any signs of external damage, corrosion, or leaks. Check the discharge piping for obstructions.
• Operationel test: Periodically test the valve by manually lifting the lever to ensure the disc moves freely and reseats properly. This should be done in accordance with boiler manufacturer recommendations and safety protocols.
• Rensning: If the valve shows signs of weeping or leakage, it may indicate debris on the seat. A gentle manual lift of the lever while the system is under pressure (if safe to do so per boiler manual) can sometimes clear minor debris. If leakage persists, the valve may need to be replaced.
• Udskiftning: Safety relief valves have a finite lifespan. It is recommended to replace the valve according to boiler manufacturer guidelines or if it fails any operational tests, shows signs of significant wear, or has discharged frequently.

7. Fejlfinding

This section provides basic troubleshooting steps for common issues. For complex problems or if you are unsure, always consult a qualified professional.

8. Specifikationer

Detailed technical specifications for the Apollo Valve 14-200 Series Bronze Safety Relief Valve.

9. Garanti og support

For specific warranty information regarding the Apollo Valve 14-200 Series Safety Relief Valve, please refer to the documentation provided at the time of purchase or contact Apollo Valves directly. Warranty terms typically cover manufacturing defects under normal use and service.

For technical support, replacement parts, or further inquiries, please contact Apollo Valves customer service. Apollo Valves is a brand of Conbraco, a company founded in 1928 and headquartered in Matthews, NC, meeting international standard ISO/IEC 17025:2005.

Producentkontakt: Please visit the official Apollo Valves website or consult your local distributor for the most current contact information.
