Microsoft Optical Desktop Elite for Bluetooth User Manual

Indledning

The Microsoft Optical Desktop Elite for Bluetooth provides a wireless keyboard and mouse solution designed for use with Windows PCs. This combo utilizes Bluetooth wireless technology for connectivity, offering enhanced range and reliability. It enables synchronization and information sharing between your PC and other Bluetooth-enabled devices.

Hvad er der i æsken

• Microsoft Bluetooth-tastatur
• Microsoft Bluetooth Optical Mouse
• USB Bluetooth Transceiver
• Batterier (forinstalleret eller medfølger separat)
• Produktdokumentation

Image: The retail packaging for the Microsoft Optical Desktop Elite for Bluetooth, showing the keyboard, mouse, and USB transceiver.

Opsætning

1. Installer batterier

   Ensure fresh batteries are installed in both the keyboard and the mouse. Refer to the battery compartment markings for correct polarity.

2. Connect USB Transceiver

   Plug the included USB Bluetooth transceiver into an available USB port on your Windows PC. The system will typically install the necessary drivers automatically.

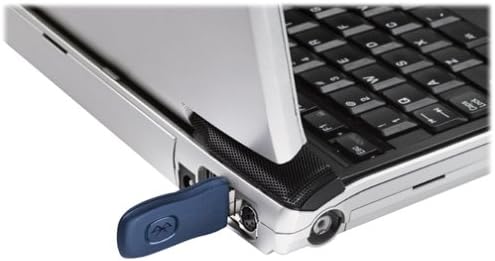

   Image: A blue USB Bluetooth transceiver plugged into the side of a laptop computer.

3. Par enheder

   Follow the on-screen prompts or refer to your Windows Bluetooth settings to pair the keyboard and mouse with the transceiver. This usually involves pressing a connect button on the devices and the transceiver.

4. Install Software (Optional)

   For advanced customization of keyboard shortcuts and mouse buttons, install the Microsoft IntelliPoint and IntelliType Pro software from the official Microsoft website or the included CD (if applicable).

Betjeningsvejledning

The Microsoft Optical Desktop Elite for Bluetooth offers a range of features for enhanced productivity.

Image: The Microsoft Optical Desktop Elite keyboard and mouse, showcasing their ergonomic design and wireless nature.

Tastaturfunktioner:

• Standard QWERTY-layout: Full-size keyboard with a standard QWERTY layout.
• Programmerbare genvejstaster: Utilize the customizable hot keys for quick access to applications, documents, or web sider.
• Mediekontrol: Dedicated keys for volume control, play/pause, and track navigation.
• Side-til-side rulning: The keyboard features a scroll wheel or button for horizontal scrolling in documents and web sider.

Mus funktioner:

• Optisk sporing: Giver præcis og jævn markørkontrol på forskellige overflader.
• Scrollhjul: For vertical scrolling and button functionality.
• Side-til-side rulning: The mouse scroll wheel also supports horizontal scrolling.
• Programmerbare knapper: Customize side buttons for specific functions using the IntelliPoint software.
• Længere batterilevetid: Designed for extended use between battery replacements.

Image: A detailed diagram highlighting various features and buttons on the Microsoft Optical Desktop Elite keyboard and mouse.

Opretholdelse

Rensning:

• Tastatur: Brug en blød, fnugfri klud lidt damprengøres med vand eller en mild rengøringsopløsning. Undgå for meget fugt.
• Mus: Clean the optical sensor area on the bottom of the mouse with a dry cotton swab. Wipe the body with a soft, damp klæde.
• Do not immerse devices in liquid.

Udskiftning af batteri:

• When battery indicators on the keyboard or mouse signal low power, replace batteries promptly.
• Åbn batterirummet, tag de gamle batterier ud, og isæt nye. Sørg for, at polerne vender korrekt.
• Bortskaf gamle batterier i henhold til lokale regler.

Fejlfinding

Devices not connecting or frequently disconnecting:

• Ensure the USB Bluetooth transceiver is securely plugged into a working USB port.
• Check battery levels in both the keyboard and mouse. Replace if low.
• Re-pair the devices with the transceiver. Refer to the "Pair Devices" step in the Setup section.
• Ensure no other strong wireless signals (e.g., Wi-Fi routers, other Bluetooth devices) are causing interference. Try moving the transceiver closer to the devices.
• Genstart din computer.

Musemarkøren er uregelmæssig eller reagerer ikke:

• Rengør den optiske sensor på undersiden af ​​musen.
• Sørg for at bruge musen på en passende overflade. Meget reflekterende eller gennemsigtige overflader kan forårsage problemer.
• Kontroller batteriniveauer.

Keyboard keys are not responding:

• Kontroller batteriniveauer.
• Ensure the keyboard is paired correctly.
• Verify that the keyboard is not in a sleep mode. Press any key to wake it.

Side-to-side scrolling not working:

• Ensure the IntelliPoint/IntelliType Pro software is installed and configured correctly.
• Verify that the application you are using supports horizontal scrolling.

Specifikationer

Garanti og support

For warranty information and technical support, please refer to the documentation included with your product or visit the official Microsoft support webwebsted. Gem din købsbevis til garantikrav.

Online support: support.microsoft.com
