CYNOVA C-DM-FM-005 5 In 1 Two Way Charging Hub
In The Box

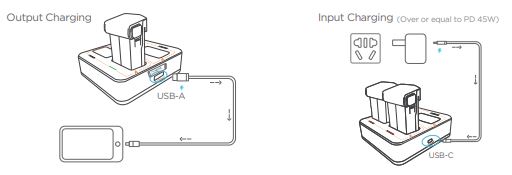

Charging time ( Take PD 65W input as an example
Two batteries: About an hour
Warning
Do not store or carry flammable liquids, gases, or explosive materials in the same compartment of your device/its parts /or accessories. Turn off your device, and do not remove or install battery chargers, AC adapters, or any other accessories for your device when you are in an area with potentially explosive atmospheres. To reduce the risk of fire, shock or damage to your device, do not expose your device to rain, snow or other types of moisture. Do not use your device near water or in a damp or excessively humid location (e.g., near a shower, bathtub, sink, or swimming pool, or in a damp basement).
Why not simultaneous charging?
When there are two batteries left to be charged, if they are not on the same side or not on a diagonal position, can not be recharged at the same time. Just move one battery to another compartment, please.

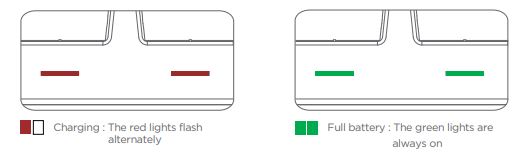

Charging status indicator
Instruction

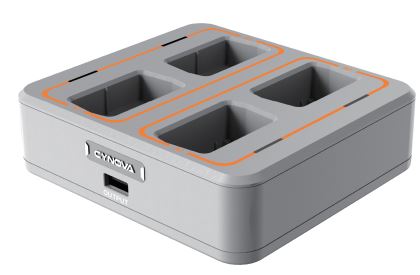

CYNOVA 5 in 1 Two-way Charging Hub
Suitable for DJI MINI 3 PRO
Product parameters
- Product name: CYNOVA 5 in 1 Two-way Charging Hub
- Product number: C-DM-FM-005
- Product material: ABS+PC
Technical parameters
- TYPE-C Input: 5V-15V
- USB Output : 5V == 2A
- Charger Recommendation:
- PD 45W or above USB wall chargers (two batteries can be charged at the same time),
- PD 65W or above USB wall chargers, full power charge two batteries at the same time.
- Compatible battery model: Mini 3 Pro intelligent battery
- Compatible Model: DJI MINI 3 PRO
| Wall charger power | Battery charging rules |
| Less than PD 45W | Charging batteries in sequence according to their remaining power level, from highest to lowest one by one. |
|
PD 45W or above |
Full power charging the 1st battery which with the highest remaining power. The rest power will be charged to another battery which is on the same side/or in a diagonal position, according to their remaining power level, from highest to lowest one by one. |
| PD 65W or above | Full power simultaneous charging 2 batteries. |
