Emerson ES522

Emerson SmartVoice 4-in-1 Wall Plug

Model: ES522 - Instruction Manual

1. Úvod

The Emerson SmartVoice 4-in-1 Wall Plug (Model ES522) provides convenient, offline voice control for your devices without the need for Wi-Fi, apps, or complex setup. This smart outlet features two AC outlets and two USB-A ports, offering versatile power management for your home or office. Enjoy enhanced privacy and accessibility with local voice command processing.

Emerson SmartVoice Wall Plug in a bedroom setting with a parent and child, illustrating voice control. The plug is shown with two AC outlets and two USB-A ports.

Image: The Emerson SmartVoice Wall Plug in use, demonstrating its convenience for controlling devices like lamps with simple voice commands. It highlights the 'Hey Emerson, Lights on' command.

2. Bezpečnostní informace

  • Pouze pro vnitřní použití: This device is designed for indoor use in dry locations. Do not expose to water or moisture.
  • Elektrické hodnocení: Do not exceed the electrical rating of 15 Amps, 125 Volts AC, 1875 Watts. Overloading may cause damage or fire.
  • Základy: Ujistěte se, že je zásuvka ve zdi řádně uzemněna.
  • Děti: Uchovávejte mimo dosah dětí.
  • Větrání: Do not cover the device or block ventilation openings.
  • Demontáž: Nepokoušejte se zařízení rozebírat ani upravovat. Veškerý servis svěřte kvalifikovanému personálu.
  • Seznam ETL: This product is ETL listed, ensuring it meets recognized safety standards.

3. Obsah balení

Ověřte, zda váš balíček obsahuje následující položky:

  • Emerson SmartVoice 4-in-1 Wall Plug (Model ES522)
  • Uživatelská příručka (tento dokument)
  • Rychlý návod
Emerson SmartVoice Wall Plug product packaging, showing the device and key features on the box.

Image: The retail packaging for the Emerson SmartVoice Wall Plug, displaying the product and highlighting features like '30+ Voice Commands' and 'No App, No Wi-Fi, No Hub'.

4. Konec produktuview

The Emerson SmartVoice Wall Plug is designed for ease of use and functionality. Familiarize yourself with its components:

  • Regular Outlet: An always-on AC outlet for devices requiring continuous power.
  • SmartVoice Outlet: An AC outlet controlled by voice commands.
  • Porty USB-A (x2): For charging USB-compatible devices. These ports are always on.
  • Kontrolka: Poskytuje vizuální zpětnou vazbu o stavu zařízení.
  • Power/Program Button: Used for manual control and programming wake words.

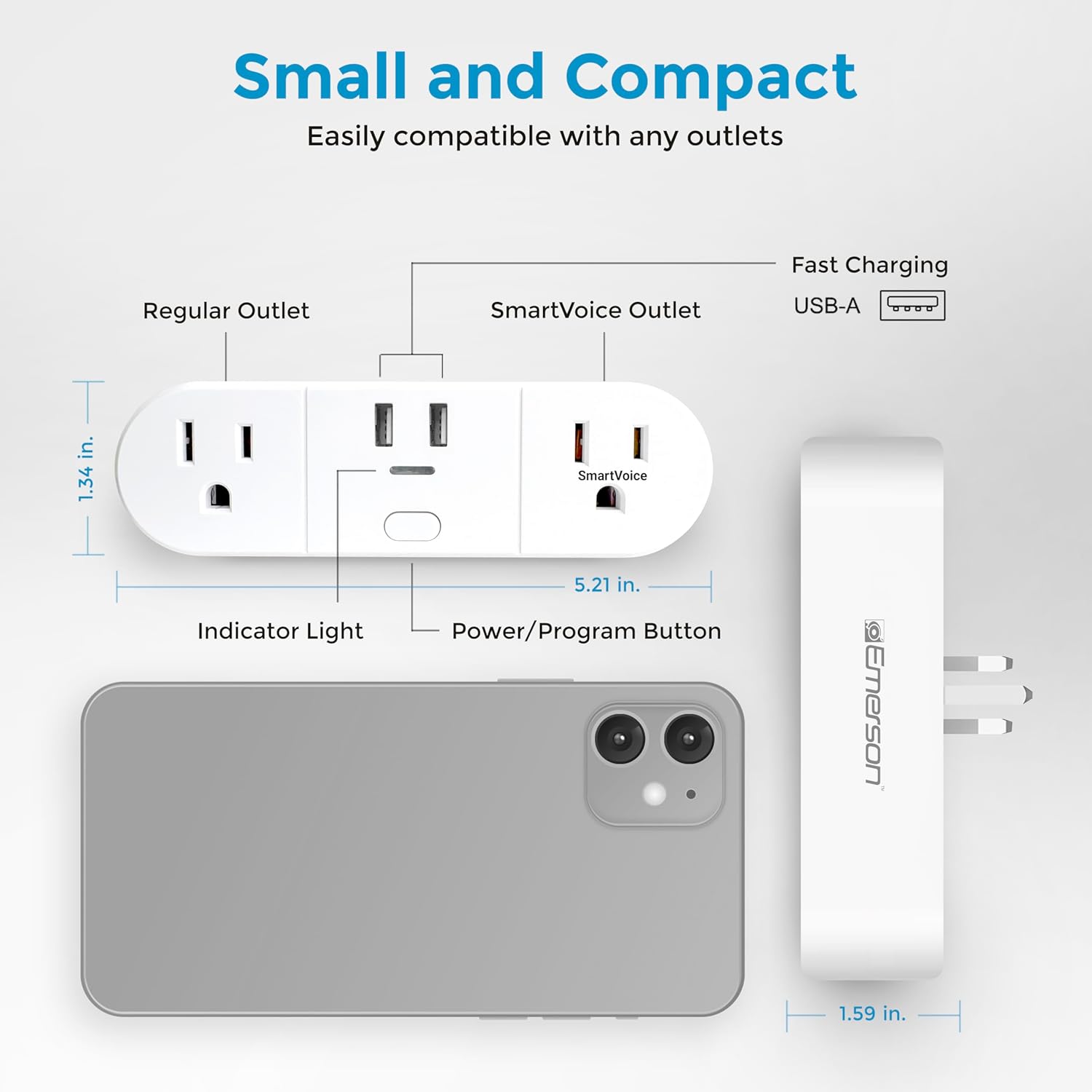

Diagram of the Emerson SmartVoice Wall Plug showing its dimensions and labeling its components: Regular Outlet, SmartVoice Outlet, Fast Charging USB-A, Indicator Light, and Power/Program Button.

Image: A detailed diagram of the Emerson SmartVoice Wall Plug, highlighting its compact size and labeling each component for easy identification, including the regular outlet, SmartVoice outlet, USB-A ports, indicator light, and power/program button.

5. Nastavení

The Emerson SmartVoice Wall Plug requires no Wi-Fi, app, or complex setup. It works instantly out of the box.

  1. Připojit: Insert the SmartVoice Wall Plug into a standard 3-prong wall outlet.
  2. Připojit zařízení:
    • Plug devices you want to control via voice into the SmartVoice Outlet.
    • Plug devices requiring continuous power into the Regular Outlet.
    • Připojte zařízení USB k Porty USB-A pro nabíjení.
  3. Začněte používat: The device is now ready for voice commands.
Emerson SmartVoice Wall Plug installed in a wall outlet, with a lamp and a fan connected, demonstrating how it can control various home appliances.

Image: The Emerson SmartVoice Wall Plug plugged into a wall, illustrating its use with a floor lamp and a tower fan, showing how it integrates into a living space to control appliances.

6. Návod k obsluze

The SmartVoice Wall Plug responds to over 30 offline voice commands. Ensure you are within a reasonable range for the microphone to pick up your voice clearly.

6.1 Základní hlasové příkazy

To activate the device, start with the default wake word "Hey Emerson," followed by a command. The SmartVoice Outlet will respond.

  • Zapnout: "Hey Emerson, Turn On" or "Hey Emerson, Lights On" or "Hey Emerson, Power On"
  • Vypnout: "Hey Emerson, Turn Off" or "Hey Emerson, Lights Off" or "Hey Emerson, Power Off"
Illustration of the Emerson SmartVoice Wall Plug surrounded by speech bubbles showing various voice commands like 'Hey Emerson', 'Turn On', 'Lights On', 'Power Off', 'Lights Off', 'Sleep in one hour', 'Wake in 6 hours', and 'Hey Plug 1'.

Image: A visual guide to common voice commands for the Emerson SmartVoice Wall Plug, including commands for turning devices on/off and setting timers.

6.2 Sleep & Wake Timers

You can set timers using voice commands for the SmartVoice Outlet.

  • Nastavit časovač vypnutí: "Hey Emerson, Sleep in [X] hours/minutes" (e.g., "Hey Emerson, Sleep in one hour")
  • Set Wake Timer: "Hey Emerson, Wake in [X] hours/minutes" (e.g., "Hey Emerson, Wake in 6 hours")
  • Zrušit časovač: "Hey Emerson, Cancel Timer"

6.3 Customizing Wake Words (Group Control)

The SmartVoice Wall Plug supports up to five different custom wake words, allowing you to control multiple plugs individually or as a group in the same room.

  1. Vstupte do režimu programování: Press and hold the Power/Program Button for 5 seconds until the indicator light flashes.
  2. Speak New Wake Word: Say your desired custom wake word (e.g., "Hey Lamp," "Hey Fan," "Hey Plug 1").
  3. Potvrdit: The indicator light will stop flashing and confirm the new wake word.
  4. Use Custom Wake Word: Now, use your custom wake word followed by a command (e.g., "Hey Lamp, Turn On").

To reset a custom wake word to the default "Hey Emerson," repeat the programming steps and say "Hey Emerson" as the new wake word.

7. Údržba

To ensure optimal performance and longevity of your Emerson SmartVoice Wall Plug:

  • Čištění: Disconnect the plug from the wall outlet before cleaning. Wipe with a dry, soft cloth. Do not use liquid cleaners or aerosols.
  • Skladování: Store in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
  • Inspekce: Periodically inspect the plug and connected cords for any signs of damage. Discontinue use if damage is observed.

8. Řešení problémů

If you encounter issues with your SmartVoice Wall Plug, refer to the following common solutions:

ProblémMožná příčinaŘešení
Device does not respond to voice commands.Microphone not picking up voice; incorrect wake word or command; device not powered.Speak clearly and closer to the device. Ensure you are using the correct wake word and command. Check if the plug is securely inserted into the wall outlet.
SmartVoice Outlet does not turn on/off.Device connected to the Regular Outlet; power outage; faulty appliance.Ensure the appliance is plugged into the SmartVoice Outlet. Check your home's circuit breaker. Test the appliance in a different outlet.
Funkce časovače nefunguje.Incorrect timer command; timer already active.Ensure the timer command is spoken correctly (e.g., "Sleep in 1 hour"). Try saying "Cancel Timer" before setting a new one.
Kontrolka nesvítí.V zásuvce není proud.Check the wall outlet and your home's circuit breaker.

9. Specifikace

  • Model: ES522
  • Vstupní objemtage: 125V AC
  • Max. proud: 15 Amps
  • Maximální výkon: 1875 wattů
  • USB výstup: 5V DC, 2.4A (shared)
  • Prodejny: 2 AC outlets (1 voice-controlled, 1 always-on), 2 USB-A ports (always-on)
  • Rozměry: 5.21"H x 1.34"Š x 1.59"V
  • Hmotnost: 8.1 unce
  • Materiál: Plast, Guma
  • certifikace: Seznam ETL
  • Provozní prostředí: Pouze pro vnitřní použití
An image showing the Emerson SmartVoice Wall Plug with icons representing its key features: Offline Voice Control, Supports 5 Wake Words, USB-A, Dual Plug Ports, 15 Amps, and ETL Listed.

Image: A visual summary of the Emerson SmartVoice Wall Plug's features and specifications, including its offline voice control, multiple wake word support, USB-A ports, dual outlets, 15A rating, and ETL certification.

10. Záruka a podpora

For warranty information and customer support, please refer to the documentation included with your product or visit the official Emerson Smart webmísto.

Oficiální stránka produktu: https://emersonsmart.com/products/emerson-smartvoice-wall-plug-es521

If you require further assistance, please contact Emerson customer service through their webmísto.
