1. Úvod
This manual provides comprehensive instructions for the installation, operation, and maintenance of your MiBOXER FUT087 Touch Dimming Remote Controller. The FUT087 is a wall-surface mounted remote designed for single-color LED lighting systems, offering precise brightness control through its touch interface. It utilizes 2.4GHz wireless technology for reliable communication with compatible MiBoxer/Mi-Light products.
Obrázek 1.1: Přední strana view of the MiBOXER FUT087 Touch Dimming Remote Controller.
2. Vlastnosti produktu
- 2.4G RF Wireless Technology: Employs 2.4GHz radio frequency for stable and interference-resistant wireless communication.
- Kompatibilita: Designed to control MiBoxer/Mi-Light 2.4G series products.
- Kontrolní vzdálenost: Offers a wireless control range of up to 30 meters (98 feet).
- Nastavitelný jas: Allows for precise adjustment of light brightness levels.
- Touch Dimming Control: Intuitive touch interface for adjusting brightness.
- Wall Surface Mounted: Designed for convenient and neat installation on wall surfaces.

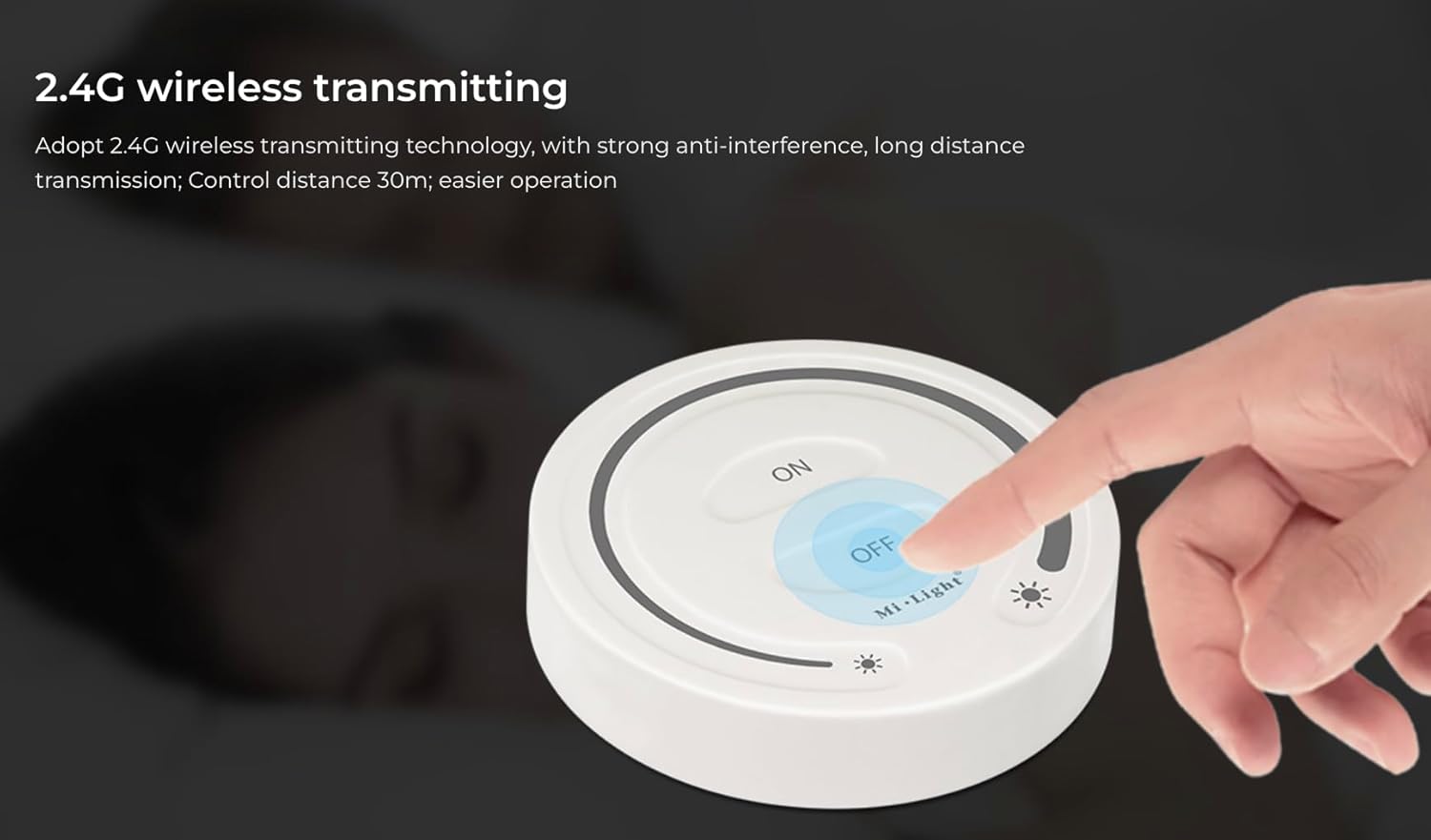

Image 2.1: The FUT087 remote utilizing 2.4G wireless transmitting technology.
Image 2.2: Visual representation of the brightness adjustment function.
3. Technické specifikace
| Specifikace | Detail |
|---|---|
| Číslo modelu | FUT087 |
| Značka | MiBOXER |
| Bezdrátová technologie | 2.4G RF Wireless |
| Kontrolní vzdálenost | 30 metrů (98 stop) |
| Zdroj napájení | AAA batteries (2 pcs, not included) |
| Kompatibilní zařízení | MiBoxer/Mi-Light 2.4G series products (Lights) |
| Barva | Černý |
| Hmotnost položky | 2.56 unce |
| Rozměry balení | 3.5 x 3.5 x 1 palce |
4. Instalační příručka
Follow these steps to properly install your FUT087 remote controller:
- Vyberte umístění instalace: Choose a suitable wall surface for mounting. Ensure the surface is clean and dry.
- Namontujte základnu: Install the remote's base to the selected place. Ensure the two screw holes are level. Install with the arrow on the base pointing upwards.
- Vložte baterie: Open the battery compartment on the back of the remote. Insert two AAA batteries (not included), ensuring correct polarity.
- Attach Remote to Base: Align the remote with the mounted base. Press the remote downwards and rotate it to the left to securely fix it onto the base.
Image 4.1: Installation and dismantlement diagram for the FUT087 remote.

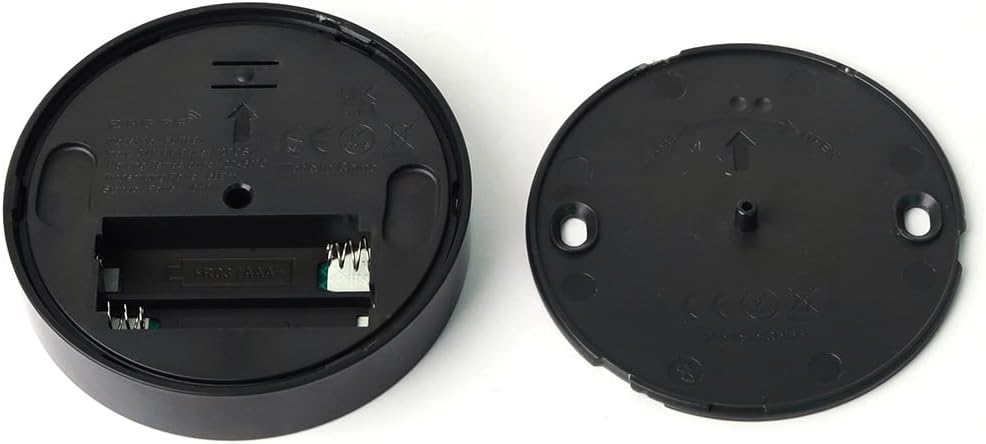

Obrázek 4.2: Zadní strana view of the remote, illustrating the battery compartment.
5. Návod k obsluze
The FUT087 remote controller provides simple and intuitive operation for your single-color LED lights:
- Zapnutí: Press the "ON" button to turn on the connected lights.
- Vypnout: Press the "OFF" button to turn off the connected lights.
- Nastavení jasu: Use the touch-sensitive ring to adjust the brightness. Slide your finger along the ring to increase or decrease the light intensity.
Image 5.1: Demonstrating interaction with the touch dimming ring.
6. Údržba
To ensure optimal performance and longevity of your remote controller, follow these maintenance guidelines:
- Čištění: Wipe the surface of the remote with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as they may damage the finish.
- Výměna baterie: When the remote's response becomes sluggish or inconsistent, it is likely time to replace the AAA batteries. Refer to the "Installation Guide" for battery replacement steps.
- Skladování: If storing the remote for an extended period, remove the batteries to prevent leakage and potential damage.
7. Řešení problémů
If you encounter issues with your FUT087 remote, consider the following:
- Dálkové ovládání nereaguje:
- Zkontrolujte, zda jsou baterie správně vloženy a zda jsou dostatečně nabité. V případě potřeby je vyměňte.
- Ensure the remote is within the 30-meter control range of the receiver.
- Verify that the remote is properly paired with your MiBoxer/Mi-Light 2.4G series product. Refer to your lighting product's manual for pairing instructions.
- Inconsistent Brightness Adjustment:
- Clean the touch surface of the remote to remove any dirt or residue that might interfere with touch sensitivity.
- Ujistěte se, že mezi dálkovým ovladačem a přijímačem nejsou žádné významné překážky.
- Krátký regulační rozsah:
- Avoid placing the remote near large metal objects or other sources of 2.4GHz interference.
- Ujistěte se, že jsou baterie čerstvé.
8. Záruka a podpora
Informace o záruce a technickou podporu naleznete v dokumentaci dodané s vaším nákupem nebo navštivte oficiální webové stránky MiBOXER. webUschovejte si doklad o koupi pro případné reklamace.
