ELICENT Rec Duo 150 Plus RC

Konec produktuview

The ELICENT Rec Duo 150 Plus RC is a decentralized Mechanical Ventilation with Heat Recovery (VMC) unit, designed to provide efficient air exchange and heat recovery in residential and commercial spaces. It features an adjustable timer, a humidistat for intelligent humidity control, and includes a remote control for convenient operation. This unit can also function as a bathroom extractor.

Key features include a 24-hour automatic mode, heat recovery at adjustable speeds, and G3 class polypropylene filters for optimal air cleanliness. Its innovative design incorporates a high-output ceramic heat exchanger, ensuring excellent thermo-acoustic insulation and preventing condensation issues.

Image: The ELICENT Rec Duo 150 Plus RC ventilation unit shown alongside its remote control. The unit is white with a square front panel and a cylindrical body, designed for through-wall installation. The remote control is also white with various function buttons.

Image: A diagram highlighting the key features of the ELICENT Rec Duo 150 Plus RC. Icons and text indicate 90% thermal efficiency, 150mm wall hole diameter, prevention of mold and condensation, automatic humidity detection, single or paired installation, and quiet operation with low power consumption.

Nastavení a instalace

The ELICENT Rec Duo 150 Plus RC unit is versatile and can be installed in various environments, including bedrooms and living rooms. It can be installed individually or in pairs, either within the same room or in two separate spaces to optimize ventilation.

• Tloušťka stěny: The unit is designed for direct ejection on walls with a thickness ranging from 340 mm to 500 mm. It can be adapted to different thicknesses using adjustable dimensions (from 250 mm to 1000 mm).
• Průměr otvoru: A wall hole with a diameter of 150 mm is required for installation.
• Snadná instalace: Installation is quick thanks to features like the magnetic hook/release mechanism for the fan unit and an external grille with an anti-insect mesh that can be installed from the inside. The telescopic tube further simplifies the process.

Image: A technical diagram showing the dimensions of the ELICENT Rec Duo 150 Plus RC unit in millimeters. It illustrates the square front panel (200x200mm) and the cylindrical body with various diameters (ø149mm, ø158mm, ø186mm) and lengths (340-500mm, 250-1000mm for the telescopic tube).

Image: A diagram illustrating the air flow cycle of the ELICENT Rec Duo 150 Plus RC. It shows two phases: one where air is extracted from the interior to the exterior (red arrow) and another where fresh air is drawn from the exterior to the interior (blue arrow). The diagram indicates a 60-second inversion cycle for heat recovery.

Image: The ELICENT Rec Duo 150 Plus RC unit discreetly installed high on a white wall in a modern living room setting, demonstrating its compact and flush design.

Návod k obsluze

The ELICENT Rec Duo 150 Plus RC features intelligent control for optimal air quality and energy efficiency.

• Inteligentní ovládání: The unit operates in a 24-hour automatic mode with heat recovery (push-pull) at one of two adjustable fixed speeds.
• Funkce časovače: In single extraction mode, a timer function is available for controlled operation.
• Inteligentní regulace vlhkosti: The unit is equipped with a humidistat. When the detected humidity exceeds a set threshold, the unit gradually increases the push-pull operation speed proportionally to the humidity level. If high humidity persists, it transitions to forced expulsion mode until the humidity is dispersed.
• Dálkové ovládání: All functions can be conveniently managed using the included remote control. Refer to the remote control diagram for button functions.
• Free-Cooling Function: The unit also includes a free-cooling function for enhanced comfort during suitable conditions.

Údržba

Regular maintenance of your ELICENT Rec Duo 150 Plus RC unit ensures optimal performance and air quality.

• Čištění/výměna filtru: The unit uses Class G3 polypropylene filters for air filtering during both input and extraction. These filters are positioned before the heat exchanger to ensure optimal air cleanliness.
• The filters are designed to be easily removable, allowing for quick replacement or washing when needed. It is recommended to inspect and clean the filters periodically based on usage and environmental conditions.
• Generální úklid: Periodically clean the exterior surfaces of the unit with a soft, damp tkanina. Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.

Odstraňování problémů

This section provides guidance for common issues you might encounter with your ELICENT Rec Duo 150 Plus RC unit.

• Jednotka nereaguje:
  • Check if the unit is properly connected to the power supply.
  • Ujistěte se, že baterie v dálkovém ovladači nejsou vybité.
• Snížený průtok vzduchu:
  • Inspect the G3 polypropylene filters. They may be clogged and require cleaning or replacement.
  • Check for any obstructions in the air intake or exhaust vents.
• Neobvyklý hluk:
  • Ensure the unit is securely mounted and there are no loose parts.
  • Check if the fan unit or heat exchanger has any debris.
• Humidity Control Not Working:
  • Verify that the humidistat settings are correctly configured.
  • Ensure there are no external factors significantly impacting humidity readings near the unit.

Pokud problémy přetrvávají i po vyzkoušení těchto řešení, kontaktujte zákaznickou podporu.

Specifikace

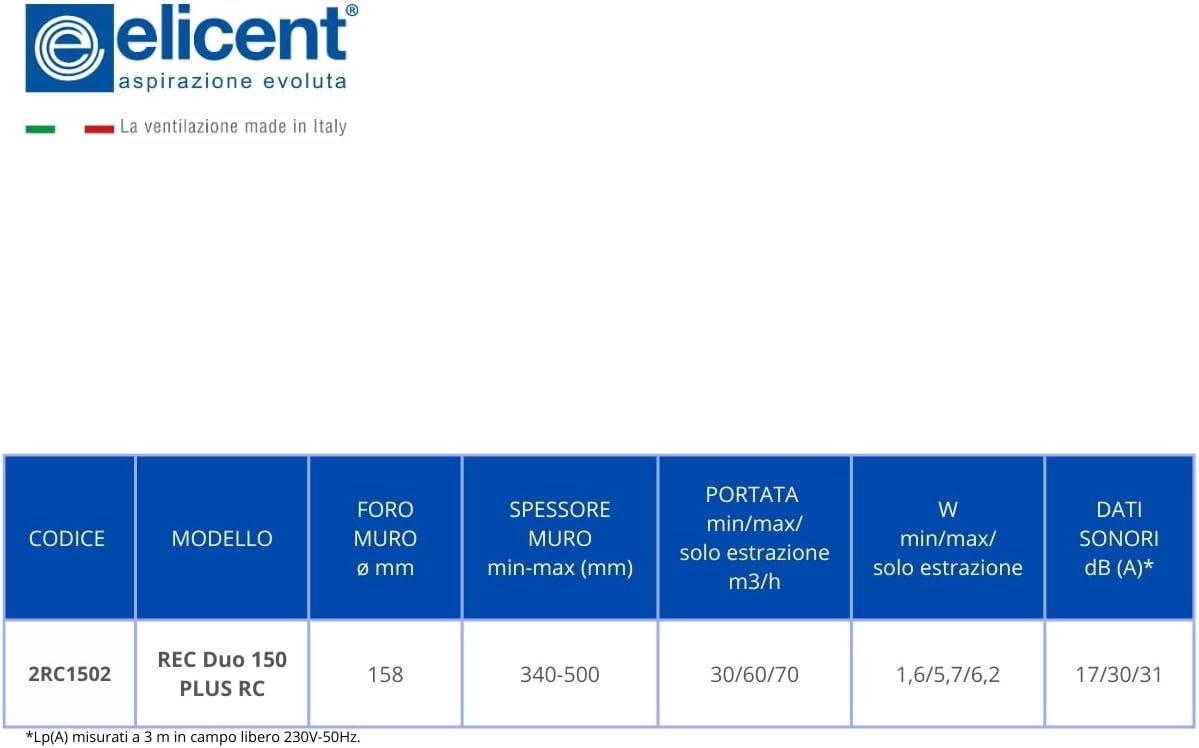

Image: A table displaying technical specifications for the ELICENT Rec Duo 150 Plus RC (model 2RC1502). It includes details such as required wall hole diameter (ø 150 mm), wall thickness range (340-500 mm), minimum/maximum airflow (30/60/70 m³/h), minimum/maximum wattage (1.6/5.7/6.2 W), and sound data (17/30/31 dB(A)).

Záruka a podpora

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official ELICENT website. Ensure you have your product model number (RecDuo) and part number (2RC1502) available when contacting support.

Výrobce: Maico Italia

Datum první dostupnosti: 4. června 2024
