Uživatelská příručka k bezdrátovému vysavači INSE

Zavedení

Thank you for choosing the INSE Cordless Vacuum Cleaner. This manual provides important information on the safe operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before use and keep it for future reference.

Image: The INSE Cordless Vacuum Cleaner shown with its main body, extension wand, floor brush, and various attachments including the crevice tool, dusting brush, and wall mount.

Obsah balení a nastavení

Before assembly, ensure all components are present and undamaged. The package typically includes:

• Hlavní motorová jednotka (ruční vysavač)
• Prodlužovací hůlka
• LED Floor Brush (2-in-1 Turbine Brush)
• Štěrbinový nástroj
• Dusting Brush (2-in-1 Brush)
• Držák na zeď
• Nabíječka
• Nástroj na čištění
• Uživatelská příručka

Montážní návod:

1. Nabíjení baterie: Fully charge the battery before first use. The removable and rechargeable 2200 mAh battery can be charged while attached to the vacuum or separately. Connect the charger to the battery pack and a power outlet. The charging indicator will show the charging status.


   Image: Illustration showing the removable 2200 mAh battery and its runtime of up to 45 minutes.
2. Attaching the Extension Wand: Zasuňte prodlužovací tyč do hlavní motorové jednotky, dokud nezacvakne na místo.
3. Attaching the Floor Brush: Connect the LED floor brush to the other end of the extension wand, ensuring it clicks securely.
4. Použití příloh: For handheld use, attach the crevice tool or dusting brush directly to the main motor unit.
5. Montáž na stěnu: The vacuum can be stored using the included wall mount. Choose a suitable location near a power outlet for convenient charging and storage.


   Image: Depiction of three storage and charging methods: wall-mounted, main unit charging, and separate battery charging.

Návod k obsluze

The INSE Cordless Vacuum Cleaner is designed for versatile cleaning across various surfaces.

Zapnutí/vypnutí a režimy sání:

• Stisknutím tlačítka napájení zapněte vysavač.
• Toggle between standard mode (30-45 minutes runtime) and max mode (12-20 minutes runtime) for different cleaning needs. Max mode provides stronger suction for stubborn dirt.

Čištění povrchů:

• Čištění podlah: Use the LED floor brush for hard floors (wood, tile) and carpets. The 2-in-1 motorized turbine brush adapts to different surfaces without needing to change the brush head.


  Image: A woman demonstrating the powerful suction of the INSE Cordless Vacuum Cleaner on a wooden floor, effectively cleaning debris.



  Image: Close-up of the 2-in-1 floor and carpet brush, illustrating its effectiveness on both wooden floors and tiles.
• V části Čištění nábytku: The flexible motorized LED floor brush allows for 150° side swivels and 90° up/down movement, making it easy to clean under furniture and in dark corners. The 4 LED lights illuminate hidden dirt.


  Image: The vacuum cleaner's LED headlights illuminating dust and debris under a sofa, demonstrating its ability to clean hard-to-reach areas.

• Ruční čištění: Convert the vacuum into a handheld unit by detaching the extension wand and attaching the desired accessory. This is ideal for cleaning stairs, sofas, car interiors, and tight gaps.


  Image: Four panels showing the versatility of the vacuum cleaner for cleaning stairs, sofa, car interiors, and narrow gaps.

• High-Reach Cleaning: The retractable metal tube allows for height adjustment, enabling you to clean dust from curtains or ceilings. The main motor unit weighs only 1.45 kg, making one-handed cleaning easy.


  Image: A woman holding the lightweight vacuum cleaner with the extension wand, illustrating its use for high-reach cleaning, highlighting its 1.45 kg weight.

Údržba

Pravidelná údržba zajišťuje optimální výkon a prodlužuje životnost vašeho vysavače.

Dust Cup and Filter Cleaning:

Vysavač je vybaven 5-stage sealed cyclone filtration system that captures 99.99% of fine particles down to 0.1um. Regular cleaning of the dust cup and filters is crucial to maintain strong suction and prevent clogging.

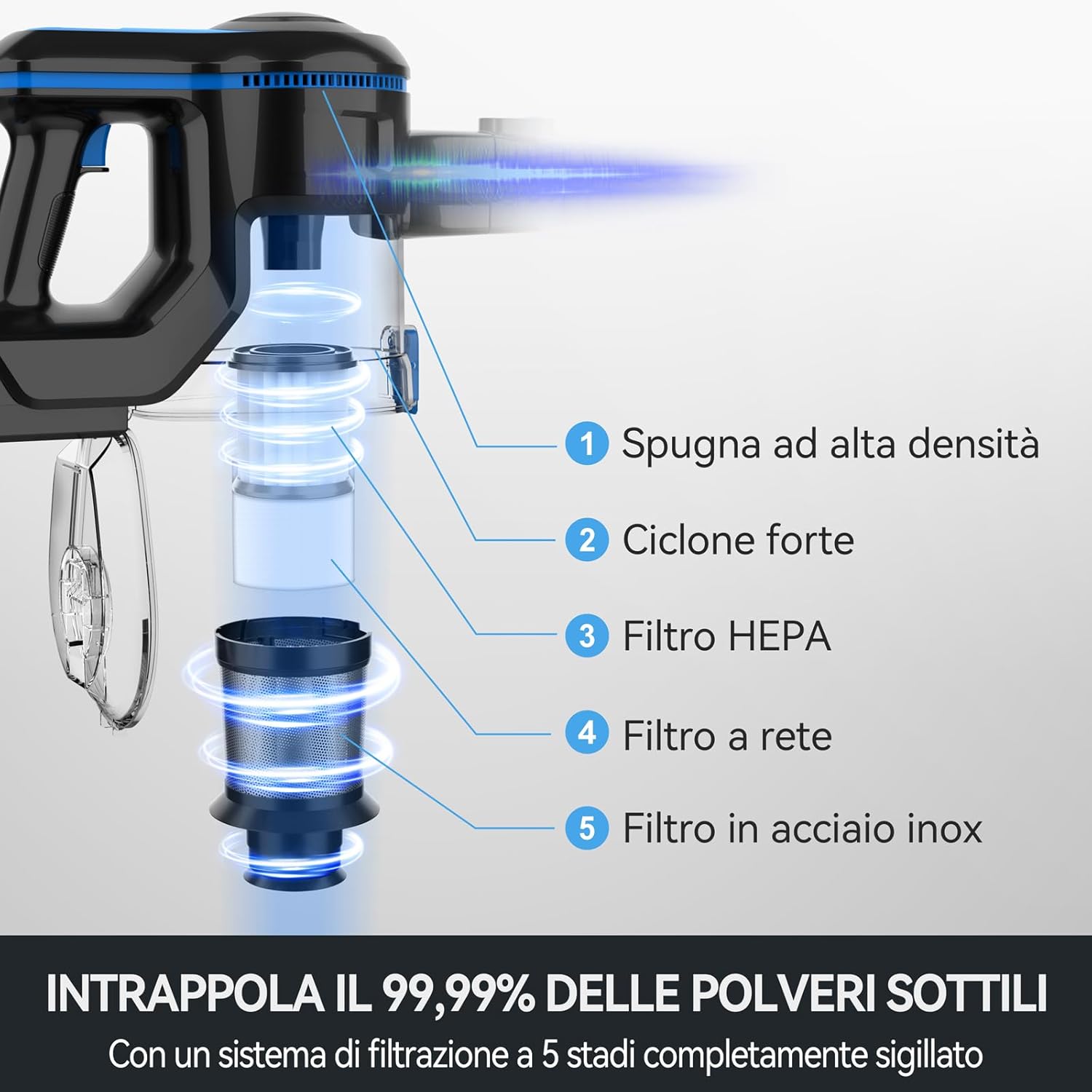

Obrázek: Diagram znázorňující šestkytage filtration system, including high-density sponge, strong cyclone, HEPA filter, mesh filter, and stainless steel filter, designed to trap 99.99% of fine dust.

1. Vyprázdnění nádoby na prach: Press the dust cup release button to detach it from the main unit. Empty the collected debris into a trash bin.
2. Čištění filtrů:
   • Remove the HEPA filter and other filter components from the dust cup.
   • Tap off loose dust. For thorough cleaning, rinse the filters under cold running water.
   • Ensure all filter components are completely dry before reassembling them into the dust cup and reattaching to the vacuum. Drying can take up to 24 hours. Do not use the vacuum with wet filters.

Údržba kartáčového válce:

• Pravidelně kontrolujte kartáčový válec, zda v něm nejsou zamotané vlasy nebo nečistoty.
• To remove the brush roll, follow the instructions in the diagram (if available, otherwise describe). Use the provided cleaning tool to cut and remove any tangled hair.
• Reinsert the brush roll securely.

Odstraňování problémů

If you encounter issues with your INSE Cordless Vacuum Cleaner, refer to the following common problems and solutions:

Specifikace

Key technical specifications for the INSE Cordless Vacuum Cleaner:

Záruka a podpora

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official INSE webUschovejte si účtenku jako doklad o koupi pro případ reklamace.

For technical assistance or spare parts, please contact INSE customer service through their official channels. You can often find contact information on the product packaging or on the brand's official webmísto.
