Enttec OCTO Mk2 71521 8 Universe DIN Rail eDMX to LED Pixel Converter & Controller User Manual

1. Úvod

The Enttec OCTO Mk2 (model 71521) is a robust and reliable 8-universe, dual-output eDMX to LED pixel data converter designed for installation-grade projects. This smart controller connects directly to LED lights and supports various eDMX protocols including Art-Net, sACN, ESP, and KiNet. It is compatible with most SPI LED strips and offers features like standalone FX mode, Overdrive Mode for increased universe output, and an intuitive web rozhraní pro konfiguraci.

2. Bezpečnostní informace

• Ensure the device is installed by qualified personnel in accordance with local electrical codes.
• Use only the specified power supply (DC 4-60V, 5W max) to prevent damage.
• Nevystavujte zařízení vlhkosti, extrémním teplotám ani korozivnímu prostředí.
• Před jakýmkoli připojením nebo údržbou odpojte napájení.
• Zařízení je určeno pouze pro vnitřní použití.

3. Obsah balení

The Enttec OCTO Mk2 package typically includes:

• Enttec OCTO Mk2 Unit
• Power Supply (with universal connectors)
• Ethernetový kabel
• Stručný průvodce (není součástí této digitální příručky)

4. Konec produktuview

The OCTO Mk2 features a compact 4-module DIN-rail form factor with dual pixel outputs. It includes an Identify/Reset button for wiring verification and flexible mounting options.

4.1. Přední View

Obrázek 1: Přední strana view of the Enttec OCTO Mk2, highlighting the status LEDs for Power, Data RX, Data TX, and IP connection, along with the Identify button.

4.2. Zadní View (Mounting and Ethernet Ports)

Obrázek 2: Zadní view of the Enttec OCTO Mk2, illustrating the DIN rail mounting clip and the Ethernet IN and THROUGH ports.

4.3. Ethernet Ports Detail

Obrázek 3: Detailní view of the Ethernet 10/100 IN and THROUGH ports, along with the Reset/Identify button.

4.4. Power and Output Terminals

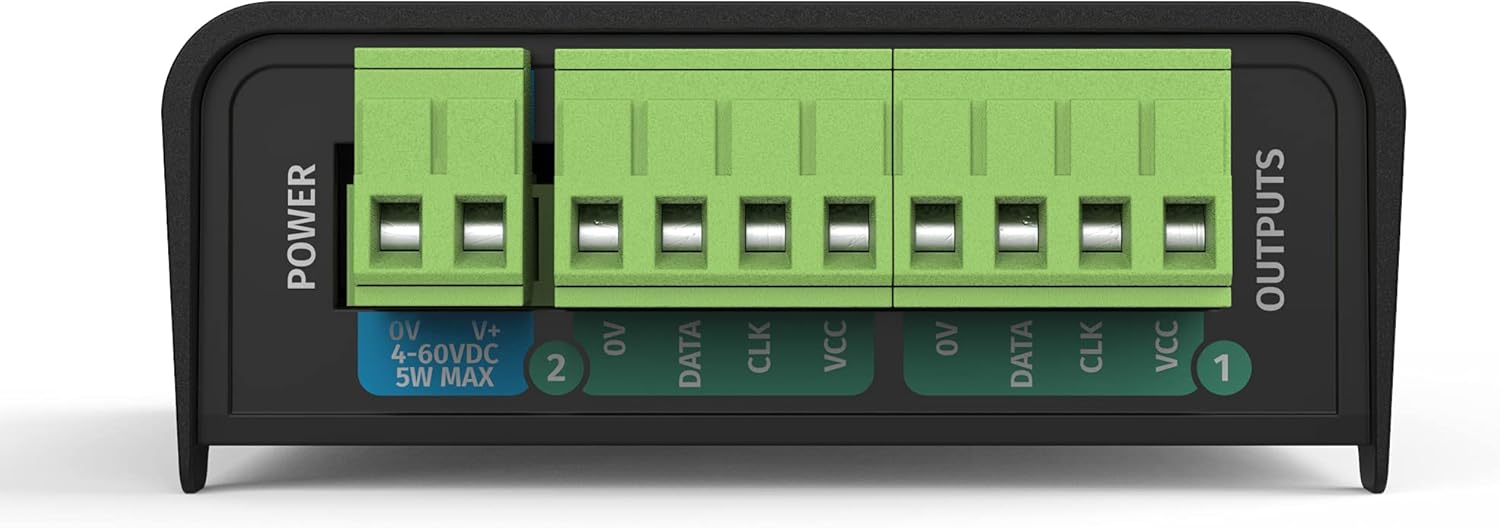

Figure 4: Close-up of the power input terminals (0V, V+, DC 4-60V) and the dual SPI-TTL data output terminals (0V, Data, CLK, VCC for each output).

5. Nastavení

5.1. Fyzická připojení

1. Připojení napájení: Connect the provided power supply to the "POWER" terminals (0V and V+) on the OCTO Mk2. Ensure the voltage je v rozsahu DC 4-60V.
2. Ethernetové připojení: Connect an Ethernet cable from your network switch or computer to the "IN" Ethernet port on the OCTO Mk2. For daisy-chaining, use the "THROUGH" port to connect to another network device.
3. LED Pixel Output: Connect your SPI LED strips or pixel dots to the "OUTPUTS" terminals. Each output provides connections for 0V (Ground), Data, CLK (Clock), and VCC (Power). Refer to your LED strip's specifications for correct wiring.

5.2. Network Configuration (Accessing the Web Rozhraní)

The OCTO Mk2 features a built-in web interface for configuration. To access it, your computer needs to be on the same network as the OCTO Mk2.

1. Počáteční připojení: Connect your computer directly to the OCTO Mk2 using an Ethernet cable, or ensure both are on the same local network.
2. Identify IP Address: The default IP address for the OCTO Mk2 is typically printed on the device or found in the quick start guide. If using DHCP, the device will obtain an IP address from your network.
3. Přístup Web Rozhraní: Otevřete a web browser and enter the IP address of the OCTO Mk2 into the URL bar. This will open the device's configuration page.
4. Konfigurace nastavení sítě:
   • Přejděte na Nastavení tab.
   • To assign a static IP address, uncheck the Povolit DHCP volba.
   • Manually enter the desired IP adresa, NetMaska Brána. Ensure the IP address is unique on your network and within the same subnet as your control computer.
   • Klikněte Použít pro uložení změn.

Refer to the datasheet image for an example z web interface settings:

Figure 5: Excerpt from the Enttec OCTO Mk2 datasheet, showing an overview z web interface with network and DMX port settings.

Figure 6: Excerpt from the Enttec OCTO Mk2 datasheet, detailing updated features like UL Certification, Overdrive Mode, Standalone Mode, and Free ELM Software License.

6. Provozní režimy

6.1. eDMX Control

The OCTO Mk2 supports various eDMX protocols for controlling your LED pixels from a compatible DMX software or console.

• Podporované protokoly: Art-Net, sACN, ESP, and KiNet.
• Konfigurace: V web rozhraní pod DMX Port Settings, nastavte Typ to "Output (DMX Out)" and select your desired Protokol (e.g., Art-Net). Configure the Vesmír settings (Net, Subnet, Uni) to match your DMX setup.
• Sloučení výstupů: The device supports output merging options like "LTP Merge (Latest Takes Precedence)" to handle multiple DMX sources.

6.2. Standalone Mode with Inbuilt FX Engine

The OCTO Mk2 can operate in Standalone Mode, allowing you to create and run gradient effects directly from the device without an external DMX source.

• Access the inbuilt FX engine via the web interface to design and edit effects.
• Configure the device to run these standalone shows automatically upon power-up.

6.3. Overdrive Mode

Overdrive Mode allows the OCTO Mk2 to output more than 4 universes per port, boosting total output up to 16 universes. This feature is useful for managing a higher universe count.

• Note that utilizing Overdrive Mode may result in a lower maximum Frames Per Second (FPS). Evaluate your specific needs to determine its suitability.

7. Supported SPI LED Protocols

The OCTO Mk2 is compatible with a wide range of SPI LED protocols, including but not limited to:

• APA 104
• GS8208B
• SPXL (16-bit & 8-bit)
• 6812 SK
• TM1804, TM1812, TM1814
• UCS1903, UCS2903, UCS2904, UCS8903 (16-bit & 8-bit), UCS8904 (16-bit & 8-bit)
• WS2811, WS2812, WS2812B, WS2813, WS2815, WS2818
• AHL003 (16-bit & 8-bit)
• SJ1221 (16-bit & 8-bit)
• TLC5973 (16-bit & 8-bit)
• Ability to create custom pixel output protocols (refer to the user manual for criteria).

8. Údržba

• Čištění: K čištění zařízení používejte měkký, suchý hadřík. Nepoužívejte tekuté ani aerosolové čisticí prostředky.
• Aktualizace firmwaru: Pravidelně kontrolujte enttec.com for the latest firmware updates. Always review release notes for special instructions before updating.
• Skladování: Pokud zařízení nepoužíváte, skladujte jej na chladném a suchém místě.

9. Řešení problémů

• Bez napájení: Check power connections and ensure the power supply is functioning correctly. Verify the input voltage je ve specifikovaném rozsahu.
• Žádné síťové připojení:
  • Ujistěte se, že jsou ethernetové kabely bezpečně připojeny.
  • Verify network settings (IP address, subnet mask, gateway) in the web interface are correct for your network.
  • If using a static IP, ensure it is unique and not conflicting with other devices.
• No DMX/Pixel Output:
  • Check the DMX Port Settings in the web interface (Type, Protocol, Universe).
  • Verify the wiring of your LED strips to the output terminals (Data, CLK, VCC, GND).
  • Use the Identify button on the device to check correct wiring without a data source.
  • Ensure your DMX control software is correctly configured to send data to the OCTO Mk2's IP address and universe.
• Lower FPS in Overdrive Mode: This is expected behavior. If higher FPS is critical, consider reducing the number of universes or adjusting your setup.

10. Specifikace

11. Záruka a podpora

For warranty information, technical support, and additional resources, please visit the official Enttec webmísto na www.enttec.com. You can also find information regarding the free ELM software 8 Universe license and the latest firmware downloads there.
