Zavedení
This manual provides essential information for the safe and efficient use of your LS 12V B-Type Plug Battery Charger. This charger is designed to power 12V children's electric ride-on vehicles, including models such as Yamaha Raptor 700R, Toyota FJ Cruiser, MegaTredz, and Motion Trendz ride-on cars. Please read this manual thoroughly before operation and retain it for future reference.
Bezpečnostní informace
WARNING: Electrically Operated Product. This charger is not a toy.
- This charger must not be used for other products in order to not to damage the charger, battery, and circuit.
- Do not draw the wire when switching off the power.
- Always supervise children when the charger is in use.
- Ensure the charger is disconnected from the power outlet and the vehicle before cleaning or maintenance.
- Nevystavujte nabíječku vodě nebo extrémním teplotám.
- Only use this charger with 12V batteries. It is NOT FOR 6V TYPE.
Nastavení
- Vybalte nabíječku: Carefully remove the charger from its packaging. Inspect for any visible damage.
- Identify the Plug Type: Ensure the B-type plug on the charger matches the charging port on your ride-on vehicle. Refer to the images below for visual confirmation of the B-type plug.
- Zásuvka: Locate a standard AC120V 50/60Hz power outlet.
Obrázek 1: Detail view of the male B-type plug, showing its distinct shape and two prongs.
Obrázek 2: Přample of a female B-type charging port, which the charger's plug connects to.
Návod k obsluze
- Připojení k vozidlu: Insert the B-type plug of the charger firmly into the charging port of your 12V ride-on vehicle.
- Připojení k napájení: Plug the charger's AC plug into a standard 120V wall outlet.
- Monitor nabíjení: The charger features a two-color LED indicator to show the charging status:
- Červené světlo: Indicates that the battery is currently charging.
- Zelené světlo: Indikuje, že je baterie plně nabitá.
- Ochrana nabíjení: The charger is equipped with a charging protection mechanism to prevent overcharging, ensuring the longevity of your battery.
- Odpojit: Once the green light appears, indicating a full charge, first unplug the charger from the wall outlet, then disconnect the B-type plug from the vehicle.
Figure 3: The charger unit with its label and the LED indicator light, which glows green when fully charged.
Údržba
- Čištění: Wipe the charger with a dry, soft cloth. Do not use liquid cleaners or immerse the charger in water.
- Skladování: Pokud nabíječku nepoužíváte, skladujte ji na chladném a suchém místě mimo dosah přímého slunečního záření a vlhkosti.
- Péče o kabely: Avoid bending or crimping the charger cable excessively. Do not wrap the cable tightly around the charger unit.
- Inspekce: Periodically inspect the charger, cable, and plugs for any signs of wear, damage, or fraying. Discontinue use if damage is found.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Charger light not on / Battery not charging | No power from outlet; Loose connection; Incorrect voltage battery; Damaged charger/cable. | Check wall outlet with another device; Ensure all connections are secure; Verify vehicle battery is 12V; Inspect charger for damage. |
| Charger light remains red after extended charging | Battery not holding charge; Battery capacity too large for charger; Faulty charger. | Test battery health; Ensure charger is appropriate for battery capacity; Contact support if charger is suspected faulty. |
| Nabíječka se během nabíjení zahřívá | Normální provoz; Špatné větrání. | Slight warmth is normal. Ensure charger is in a well-ventilated area and not covered. If excessively hot, discontinue use. |
Specifikace
| Funkce | Detail |
|---|---|
| Model | SL12-12-03E |
| Vstup | AC120V 0.30A 50/60Hz |
| Výstup | 12.0V = 1.0A |
| Typ konektoru | B-Type Plug |
| Rozměry produktu | 2.38 x 6.1 x 3 palce |
| Hmotnost položky | 5 unce |
| Speciální funkce | Charging Indicator (Red/Green LED) |
| Certifikace | UL-listed, BC certified |
| Kompatibilní zařízení | Yamaha Raptor 700R, Toyota FJ Cruiser, MegaTredz Ride On Cars, Motion Trendz Ride On Cars (12V systems only) |

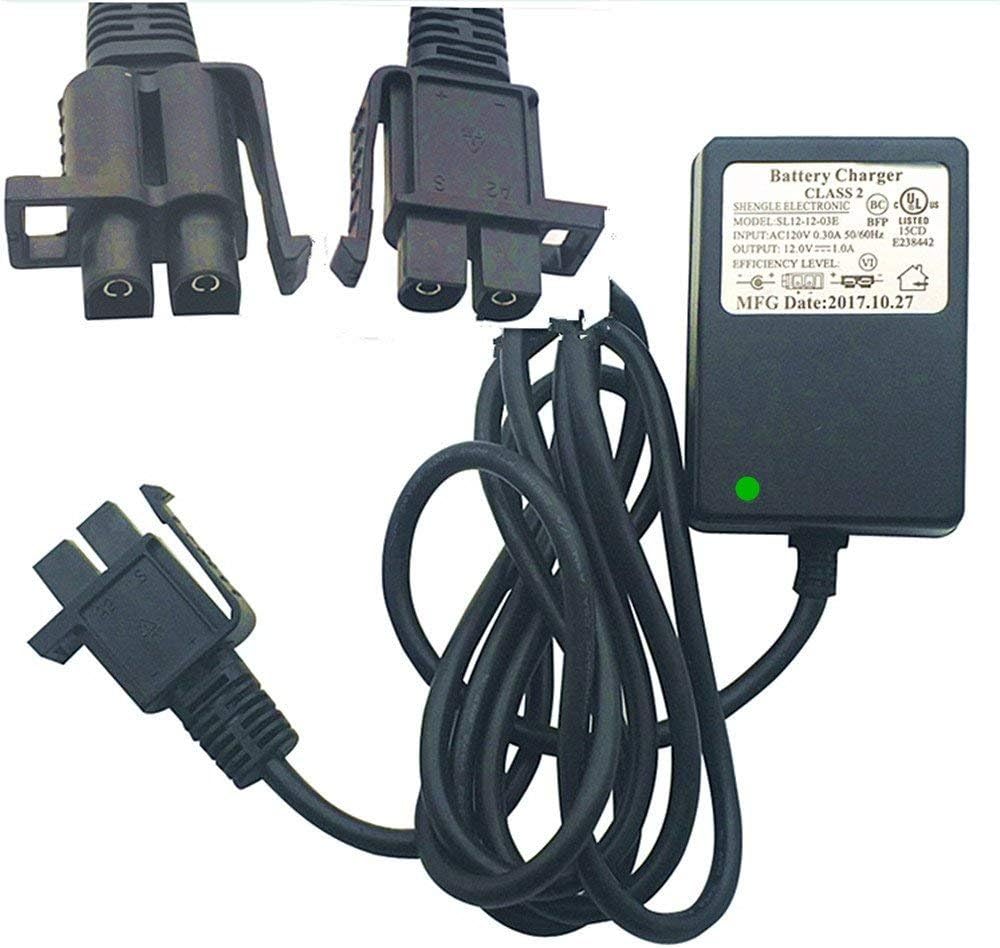

Obrázek 4: Přesview of the LS 12V B-Type Plug Battery Charger, including the main unit and different plug configurations.
Záruka a podpora
Informace o záruce nebo technickou podporu naleznete na obalu produktu nebo se obraťte přímo na výrobce. Uschovejte si účtenku jako doklad o koupi.
Manufacturer: FULIHUA
Značka: LS
