Philips MSD Platinum 2 R 132W reflektor Lamp Uživatelská příručka

1. Konec produktuview

The Philips MSD Platinum 2 R is a 132W High-Intensity Discharge (HID) reflector lamp designed for professional entertainment lighting applications, such as DJ and club lighting. This lamp offers a compact design, high beam intensity, and excellent color reproduction, making it suitable for creating dynamic lighting effects.

Klíčové vlastnosti:

• Philips MSD Technology: Utilizes advanced Philips MSD technology for optimal performance.
• 132W výstupní výkon: Provides significant light output for professional use.
• Compact Reflector Design: Allows for smaller and lighter luminaire designs.
• Very Short Arc: Contributes to high beam intensity and precise light control.
• High Correlated Color Temperature: Ensures vibrant and accurate color reproduction.
• Vysoký světelný tok: Delivers 5150 lumens for bright illumination.

Výhody:

• Long and Reliable Lifetime: Rated for up to 6000 hours of operation.
• Intenzita dálkových světel: Produces a powerful and focused light beam.
• Fast Lamp Nahrazení: Designed for quick and easy lamp changes with perfect alignment.
• Vysoká účinnost: Efficient light production compared to traditional halogen bulbs.

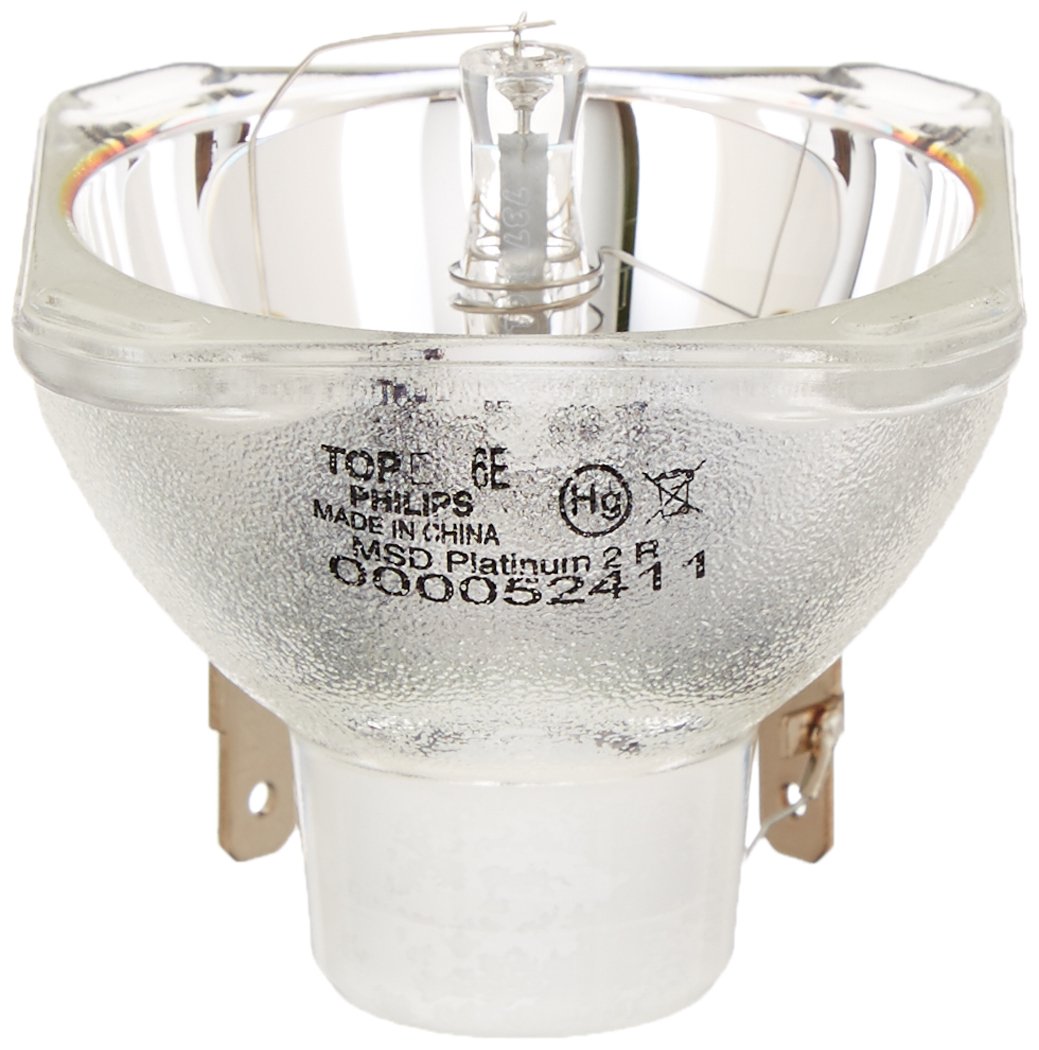

Obrázek 1: Philips MSD Platinum 2 R 132W reflektor Lamp. This image shows the compact design of the lamp, highlighting its reflector shape and connection points.

2. Bezpečnostní informace

Read all safety instructions carefully before installing, operating, or maintaining the lamp. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.

• Profesionální instalace: Tento lamp should be installed by qualified personnel familiar with professional lighting equipment and electrical systems.
• Odpojení napájení: Always disconnect power to the fixture before installing, replacing, or cleaning the lamp.
• Horký povrch: Lamppracují při vysokých teplotách. Nechte lamp and fixture to cool completely before handling.
• UV záření: HID lamps emit UV radiation. Avoid direct exposure to the lamp when operating without proper shielding.
• Lamp Zacházení: Nedotýkejte se lamp glass with bare hands. Oils from skin can create hot spots and reduce lamp life. Use clean gloves or a soft cloth.
• Likvidace: Použité l. zlikvidujteamps according to local regulations, as they may contain hazardous materials.
• Kompatibilita: Ujistěte se, že lamp is compatible with the fixture's ballast and electrical specifications (e.g., 132W, 120V).

3. Nastavení a instalace

Proper installation is crucial for the performance and longevity of the lamp. Always refer to the specific instructions provided with your lighting fixture.

1. Vypnout: Ensure the lighting fixture is completely disconnected from the power supply.
2. Ochladit: Pokud vyměňujete starý lamp, allow the fixture and lamp to cool down completely to prevent burns.
3. Přístup Lamp Prostor: Otevřete lamp compartment of your lighting fixture according to the manufacturer's instructions.
4. Odstraňte staré Lamp (pokud existuje): Opatrně odstraňte starou lamp, if present, following the fixture's guidelines.
5. Handle New Lamp: Wear clean gloves or use a soft, lint-free cloth to handle the new Philips MSD Platinum 2 R lampNedotýkejte se přímo skleněného obalu.
6. Vložte Lamp: Zarovnejte lamp's base with the socket in the fixture. Gently insert the lamp, ensuring it is seated correctly and securely. The design allows for quick and precise alignment.
7. Bezpečná přihrádka: Close and secure the lamp přihrádka svítidla.
8. Zapnutí: Reconnect the fixture to the power supply.

4. Návod k obsluze

The Philips MSD Platinum 2 R lamp is designed for use in compatible professional lighting fixtures. Operation is typically controlled by the fixture's internal systems or external DMX controllers.

• První zapálení: Upon first power-up or after a lamp výměna, lamp may take a few moments to reach full brightness and stable color temperature. This is normal for HID lamps.
• Doba zahřívání: Povolit lamp to fully warm up before critical use to ensure optimal performance and color consistency.
• Opětovné zapálení: Pokud lamp is turned off, allow it to cool down for several minutes before attempting to re-ignite it. Hot re-ignition may not be immediate or could reduce lamp život.
• Provozní prostředí: Ensure the fixture operates within its specified temperature and ventilation parameters to prevent overheating and extend lamp život.

5. Údržba

Regular maintenance helps ensure optimal performance and extends the lifespan of your Philips MSD Platinum 2 R lamp.

• Čištění: Pravidelně čistěte vnější povrch lamp and the fixture's reflector with a soft, dry, lint-free cloth. Ensure the lamp is cool and power is disconnected before cleaning. Do not use abrasive cleaners or solvents.
• Inspekce: Pravidelně kontrolujte lamp for any signs of damage, such as cracks or discoloration. Replace damaged lamps okamžitě.
• Lamp Nahrazení: Vyměňte lamp when it reaches its rated lifetime (6000 hours) or if its performance significantly degrades (e.g., dimming, color shift, flickering). Follow the installation steps outlined in Section 3.
• Údržba svítidla: Adhere to the maintenance schedule for your lighting fixture, including cleaning fans and filters, to ensure proper cooling and operation of the lamp.

6. Řešení problémů

If you encounter issues with your Philips MSD Platinum 2 R lamp, postupujte podle následujících běžných kroků pro řešení potíží:

• Lamp Not Igniting:
  • Zkontrolujte, zda je zařízení napájeno.
  • Ujistěte se, že lamp is correctly seated in its socket.
  • Verify the ballast is functioning correctly.
  • Jáamp may have reached the end of its life. Replace if necessary.
• Lamp Flickering or Dim:
  • To může naznačovat lamp se blíží ke konci své provozní životnosti.
  • Check for loose connections within the fixture.
  • Zajistěte správné větrání, aby nedošlo k přehřátí.
• Inconsistent Color:
  • Allow sufficient warm-up time for the lamp stabilizovat.
  • If the issue persists, the lamp may be faulty or nearing end-of-life.
• Lamp Předčasně se vypne:
  • Check for overheating issues in the fixture (e.g., blocked vents, fan failure).
  • Verify the ballast is compatible and functioning correctly.

For persistent issues, consult a qualified lighting technician or contact Philips customer support.

7. Technické specifikace

8. Záruka a podpora

Philips products are manufactured to high standards and are backed by a manufacturer's warranty. The specific warranty period and terms may vary based on your region and point of purchase.

• Záruční nároky: For warranty service, please retain your proof of purchase. Contact your retailer or the official Philips support channel for assistance.
• Technická podpora: For technical inquiries or further assistance, please visit the official Philips lighting webnebo kontaktujte jejich oddělení zákaznických služeb.
• Online zdroje: Additional product information, FAQs, and support documents may be available on the Philips webmísto.
