INSTRUCTION MANUAL
ADVANCED 2.4GHZ
RADIO CONTROL SYSTEM
#C-59066
Version : 2024-01-08
WARNING and SAFETY PRECAUTION
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product.
CAUTION: Procedures, which if not be properly followed, is able to create a possibility of physical property damage AND or possibility of injury.
ATTENTION: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Fail to operate the product correctly can result in damage to the product, personal property and cause serious injury.
ATTENTION: This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and requires some basic mechanical ability.
Fail to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property.
This product is not intended for use by children without direct adult supervision.
Do not attempt to disassemble, use with incompatible components or augment product in any way without the approval of Corally.
This manual contains instructions for safety, operation and maintenance.
It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
SPECIFICATIONS
- 2CH Transmitter with 3-channel receiver.
- The device has an integrated 2.4GHz antenna.
- Steering DUAL RATE (D/R).
- Steering Trim.
- Steering and throttle Reverse
- 50% of 100% throttle power function
TRANSMITTER
Model Type: ……………….Car/Boat
RF power: …………………<20dBm
Modulation: …………………. GFSK
Sensitivity: …………………. 1024
Low Voltage Warning: …………..<4,5V
Power: ……………6 VDC (1.5V AA x4)
Range: ………………….. >200m
Weight: ……………………. 250g
Dimensions:…………..160x150x90mm
Certificate: ………………. CE – FCC

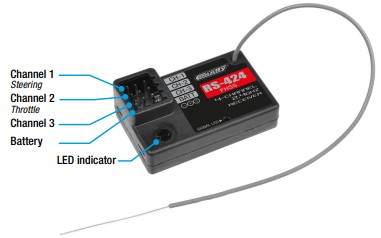

RECEIVER
Channels: …………………….. 3
Model type: ………………..car/boat
Frequency band: ……………. 2.4 GHz
Modulation: …………………. GFSK
Sensitivit y: …………………. 1024
RF receiver sensitivity: ……….-100 dbm
Power: ………………..4.5–7.2 vdc
Weight: ………………………7 g
ANT length: ………………..106 mm
Dimensions:…………….38x24x14mm
Certificate: ………………. CE – FCC
TRANSMITTER
WARNING : Do not cover/hold the built-in antenna part of the transmitter by your hand during running. Do not put any conductive plate/sticker on the antenna part. Otherwise, the operating range may become shorter.
RECEIVER
Antenna:
Never shorten the antenna.
Install the antenna as far as possible outside the receiver box.

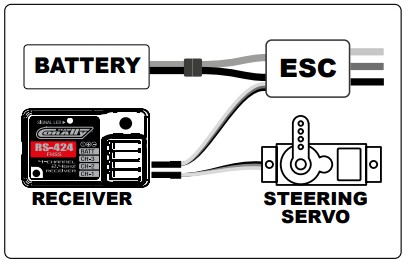

RECEIVER CONNECTION
CONNECTION WITH A CONTROLLER
Install the Receiver in your model using double-sided Velcro. Velcro will hold the receiver in place and protect it from vibrations. Mount the antenna up and away from the vehicle in an antenna tube. The higher up the antenna is, the better signal it will receive.
Install and connect the receiver, servos and other components in accordance with the “Assembly Precautions”.
BATTERY INSTALLATION / REPLACEMENT
Remove the cover and insert 4 AA size batteries.
Observe the polarity markings and insert accordingly. Power ON the transmitter and check the Led status.
Battery Voltage LED – SOLID Light = OK
Battery Voltage LED – FLASHING Light = Low Voltage (Replace batteries)
TRANSMITTER FUNCTIONS
ON/OFF SWITCH
LED Status
SERVO REVERSE
ST.REV (Steering Reverse) :This function reverses the rotation direction of the STEERING servo.
Set the button to position 1 and press the FN button for 5sec to reverse direction.
TH.REV (Throttle Reverse) :This function reverses the rotation direction of the THROTTLE servo.
Set the button to position 2 and press the FN button for 5sec to reverse the GAS.
STEERING TRIM
The steering trim is used to adjust the steering setting so that the car moves in a straight line without using the steering wheel to compensate.
STEERING DUAL RATE (D/R)
Use this function to adjust the steering travel of your model. If the model understeers while cornering, add steering by turning CW of the D/R button. When the model oversteers, take away steering by turning CCW of the D/R button.
OPERATE YOUR MODEL
MOVE YOUR MODEL
- Gently pull the trigger to move your model forward.
The speed is proportional, the more you pull the trigger, the faster the model moves forward. - Release the trigger in neutral position to slow down your model.
- Pull the trigger forward to brake your model.
For reverse, after stopping the model, release the trigger to neutral position then pull the trigger forward again to activate reverse.
BINDING / LINKING THE RECEIVER AND TRANSMITTER
The transmitter and receiver are already paired at the factory and you do not have to do anything. If you wish to connect the receiver with another transmitter or connect a new receiver, or if you have a problem with the link, follow the steps below to re-pair.
CAUTION
The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Consult the dealer.
PRECAUTIONS
Check the receiver, servos, and battery connectors, to be sure they are firmly connected. If a connector is not fully inserted, vibration may cause the connector to work loose while the model is operating. This will result in loss of control.
Operate each servo horn over its full stroke and check to see that the linkage does not bind or is not too loose. Excessive force applied to the servo horn by binding or poor installation may lead to servo problems and result in loss of control.
Electric Cars and Boats: Isolate the receiver from vibration by attaching to the chassis or mounting plate with thick double sided tape.
Gas Powered Cars and Boats: Isolate the receiver from vibration by wrapping it in foam rubber or similar type cush-
ioning material. Protect the unit from water damage by placing it in a plastic bag or waterproof radio box. The receiver contains precision electronic parts. These parts are vulnerable to vibration and shock. Any contact with moisture (water or condensation) may cause receiver malfunction and loss of control.
Keep all devices that emit high frequency noise, such as motors, batteries, and wiring that handles heavy current loads, at least 1/2 inch away from the receiver and the receiver antenna. High frequency noise will cause a decrease in operating range and could cause loss of control.
Install electronic speed control heat sinks as well as other components that conduct electricity so they can not come in contact with aluminium, carbon fibre or other materials that conduct electricity.
If, for example, the speed control came loose while the model was running and touched an aluminium chassis, a short circuit may occur that would cause irreparable damage to the system as well as loss of control.
Noise suppression capacitors should be installed on almost all motors. If the proper capacitors are not installed, high frequency noise will reduce range and cause loss of control along with various other problems.
Inspect all linkage installations and any point where metal could come in contact with other metal parts. Make sure these parts do not touch other metal parts under vibration. Should a linkage or other metal parts come in contact with other metal parts under vibration, the high frequency noise generated by this contact will cause interference and possible loss of control.
Do Not disassemble any part of this system that is not specified in the instruction manual. Corally will not be respon-sible for any damage due to improper disassembly of any part of the radio control system.
WARRANTY CONDITIONS & LIABILITY DISCLAIMER
If material defects or manufacturing faults should arise in a product distributed or manufactured by Team Corally / JSP Group Intl bvba, and purchased by a consumer, we Team Corally / JSP Group Intl bvba acknowledge the obligation to cor-rect those faults or defects within the limitations described below. This manufacturers warranty is in addition to, and does not affect, the legal or contractual rights of the consumer which arise from the purchase of such products. Team Corally / JSP Group Intl bvba guarantees the consumer that its products are free from material, manufacturing, and construction faults, as determined by the general state of knowledge and technology valid at the time of manufacturing. The fault re-sponsible for causing the damage must be proven to have been present in the product at this time. Claims for compensa-tion arising from consequential damage or product liability will not be considered valid unless they fall under peremptory provisions of the law. If material defects or manufacturing faults should arise in a product distributed or manufactured by Team Corally / JSP Group Inti bvba in the European community (EC) and purchased by a consumer, then Team Corally / JSP Group Intl bvba undertakes to correct those defects within the limitations described below. This manufacturer’s declaration does not affect the consumer’s legal or contractual rights regarding defects arising from the purchase contract between the consumer and the dealer or reseller. Extend of the Warranty
If a claim is made under warranty, we take at our discretion to repair or replace the defective goods. We will not consider supplementary claims, especially for reimbursement of costs relating to the defect (e:g. installation / removal costs) and compensation for consequent damages unless they are allowed by statute. This does not affect claims on legal regula-tions, especially according to the product liability law.
Provisions of the Warranty
The purchaser is required to make the warranty claim in writing, and must enclose original proof of purchase (e.g. invoice, receipt, delivery note) and the appropriate warranty card. He must send the defective goods to our local representatives or directly to Team Corally/JSP Group Intl bvba, Geelseweg 80, 2250 Olen, Belgium at his own risk and cost. The purchaser should state the material defect or manufacturing fault, or symptoms of the fault, as accurate as possible, so that we can check if our warranty obligation is applicable. The goods are transported from the consumer to us, and from us to the consumer, entirely at the risk and cost of the consumer.
Invalidation of the Warranty
The consumer cannot make a claim under warranty when the fault is affecting the use of the product arising from natural wear, competition use, or improper use (including installation) or external forces. The consumer’s adherence to the building and operating instructions relevant to the model, including the installation, operation, use of, and maintenance of, mod-el-related components cannot be supervised by Team Corally / JSP Group Intl bvba. Therefore Team Corally / JSP Group Intl bvba is in no way liable for loss, damage, or costs resulting from improper use, or behaviour in any way connected to the above described provisions. Unless otherwise required by law, Team Corally / JSP Group Intl bvba is in no way what-ever liable to provide compensation for damages arising from the improper use of the model (including personal injury, death, damage to buildings, loss of turnover, loss of business, or interruption of business, or any other direct, or indirectly caused, consequential damage).
Duration of Validity
The claim period is 24 months from the date of purchase of the product by the consumer from a dealer in the European Community (EC) counted from the date of purchase. The claim period is 12 months from the date of purchase of the product by the consumer from a dealer outside the European Community (EC) counted from the date of purchase. If a defect arises after the end of the claim period, or if evidence or documents required according to this declaration in order to make the claim valid are not presented until after this period, then the consumer forfeits any rights or claims from this declaration. The guarantee period is not prolonged by the granting of any claims within the framework of this warranty, especially in the case of repair or replacement. The guarantee period also does not restart in such cases.
Warranty Expiration
If we do not acknowledge the validity of a claim based on this declaration within the claim period, all claims based on this declaration will expire after six months from the time of registering the claim; however this cannot occur prior to the end of the claim period.
For any support, you can contact us by email at info@corally.com
WEEE: At the end of this device’s useful life, please remove all the batteries and dispose of them separately. Take electrical appliances to the local collection points for waste electrical and electronic equipment. Other components can be disposed of in domestic refuse. Thank you for your co-operation!
DECLARATION OF CONFORMITY
(in accordance with ISO/IEC 17050-1)
Type Name : CT2S
Description : Transmitter
Item Number : C-59066
This declaration is issued under the sole responsibility of the manufacturer.
Product(s) : Corally CT2S
– The object of declaration described above is in conformity with the relevant Union harmonization Legislation, specifically the requirements of the specifications listed below, following the provisions of the European RED Directive 2014/53/EU, 2011/65/EU (RoHS):
EN 301 489-1 V2.2.3:2019
EN 301 489-17 V3.2.4:2020
EN 300 328 V2.2.2:2019
EN 62479 : 2010
EN 62368-1:2020+A11:2020
EN 50581:2012
Signed for and on behalf of :
JSP GROUP INTL • Geelseweg, 80 • 2250 Olen • Belgium
Place and Date : Olen, Belgium, 05 January 2024
Name : Stefan Engelen
Title : Ceo
Signature
