PPL-MM-8U-8P-OM4-BEU

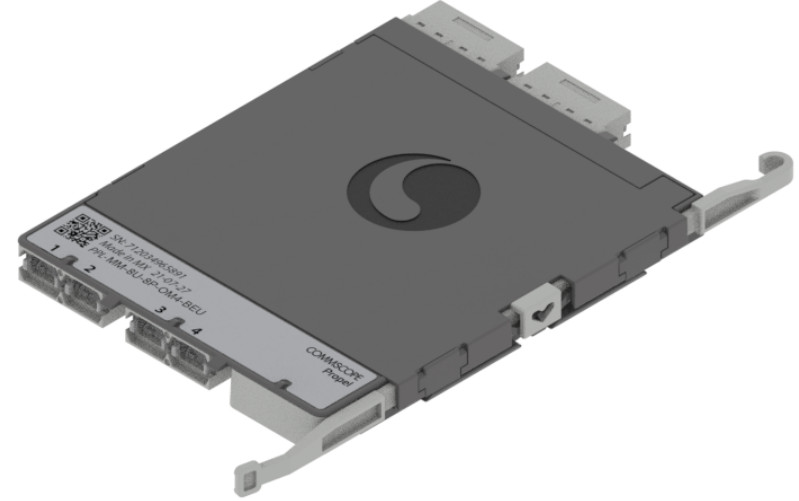

Propel ULL Multimode OM4 MPO-8 Mesh Module, 4x8f MPO/UPC nonpinned to 4X8f MPO/UPC pinned
- Replicates mesh architecture redundancy without cable congestion
- Can be installed and removed from front or rear of panel
- Serialized QR code provides easy access to factory optical test results
- This component requires 3 of the 12 lanes on the Propel Panel blade
This module simplifies mesh network fiber cabling management and software managed routing.
It takes 4 MPO8 ports from 4 different switches on the rear and assigns a pair from each to each of the 4 MPO8 ports on the front. It replaces a series of array cables (internally) and uses 4 standard MPO8 ULL patch cords on the front to 4 separate switches.
Product Classification
| Regional Availability |
Asia | Australia/New Zealand| EMEA| Latin America | North America |
| Portfolio |
SYSTIMAX® |
| Product Type |
Fiber module |
| Product Brand |
Propel |
| Product Series |
PPL |
General Specifications
| Color, front |
Gray |
| Color, rear |
Gray |
| Interface, front |
MPO |
| Interface Feature, front |
Internal shutters |MPO Pinned |UPC |
| Interface, rear |
MPO |
| Interface Feature, rear |
Internal shutters |MPO Non-Pinned |UPC |
| Total Fibers, quantity |
32 |
| Total Ports, quantity, front |
4 |
| Total Ports, quantity, rear |
4 |
Dimensions
| Height |
11 mm | 0.433 in |
| Width |
98 mm | 3.858 in |
| Depth |
170 mm | 6.693 in |
Optical Specifications
| Fiber Mode |
Multimode |
| Fiber Type |
OM4, LazrSPEED® 550 |
| Insertion Loss, maximum |
0.4 dB |
Environmental Specifications
| Qualification Standards |
IEC 61753-1 | TIA-568.3-D |
| Safety Standard |
c-UL-us |
Packaging and Weights
