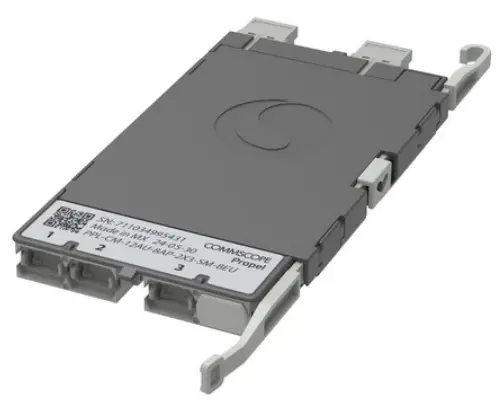

COMMSCOPE PPL-CM-12AU Propel ULL Single Mode Conversion Module

Product Specifications

• Product Classification: Regional Availability Portfolio
• Product Type: Fiber Conversion Module
• Product Brand: Propel
• Product Series: ULL Singlemode Conversion Module

Product General Specifications

• Functionality: Breakout
• Color, front: Gray
• Color, rear: Gray
• Data Module Type: MPO Internal shutters | MPO Pinned
• Interface, front: MPO Internal shutters
• Interface Feature, front: MPO Pinned
• Interface, rear: MPO Non-Pinned
• Interface Feature, rear: MPO Internal shutters
• Polarity: Method B Enhanced (ULL)
• Total Fibers, quantity: 24
• Total Ports, quantity, front: 3
• Total Ports, quantity, rear: 2

Product Dimensions

• Height: 11 mm | 0.433 in
• Width: 65 mm | 2.559 in
• Depth: 170 mm | 6.693 in

Product Optical Specifications

• Fiber Mode: Singlemode
• Fiber Type: G.657.A2
• Insertion Loss, maximum: 0.7 dB

Product Environmental Specifications

• Qualification Standards: IEC 61753-1 | TIA-568.3-D
• Safety Standard: UL 62368

Product Packaging and Weights

• Packaging quantity: 1

Product Usage Instructions

To install the Propel ULL Singlemode Conversion Module, follow these steps:

1. Ensure the panel blade has available space for the module.
2. If necessary, remove any protective covers from the panel ports.
3. Gently insert the module into the panel either from the front or rear until securely in place.
4. If applicable, connect fibers to the appropriate ports based on polarity.
5. You can now use the Propel ULL Singlemode Conversion Module for your fiber optic connections.

Frequently Asked Questions (FAQ)

• Can the Propel ULL Singlemode Conversion Module be installed in any orientation?
  Yes, the module can be installed from either the front or rear of the panel.
• How many total ports does the module have?
  The module has a total of 5 ports – 3 on the front and 2 on the rear.

INTRODUCTION

Propel ULL Singlemode Conversion Module, (2) MPO-12/APC non-pinned ports rear, (3) MPO-8/APC pinned ports front

• Ultra-low loss (ULL) with Method B Enhanced polarity
• Can be installed and removed from front or rear of panel
• Serialized QR code provides easy access to factory optical test results
• This component requires 2 of the 12 lanes on the Propel Panel blade

SPECIFICATION

• Product Classification
  • Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
  • Portfolio SYSTIMAX®
  • Product Type Fiber module
  • Product Brand Propel
  • Product Series PPL
• General Specifications
  • Functionality Breakout
  • Color, front Gray
  • Color, rear Gray
  • Data Module Type Fiber Conversion Module
  • Interface, front MPO
  • Interface Feature, front Internal shutters | MPO Pinned
  • Interface, rear MPO
  • Interface Feature, rear Internal shutters | MPO Non-Pinned
  • Polarity Method B Enhanced (ULL)
  • Total Fibers, quantity 24
  • Total Ports, quantity, front 3
  • Total Ports, quantity, rear 2
• Dimensions
  • Height 11 mm | 0.433 in
  • Width 65 mm | 2.559 in
  • Depth 170 mm | 6.693 in
• Optical Specifications
  • Fiber Mode Singlemode
  • Fiber Type G.657.A2
  • Insertion Loss, maximum 0.7 dB
• Environmental Specifications
  • Qualification Standards IEC 61753-1 | TIA-568.3-D
  • Safety Standard UL 62368
• Packaging and Weights
  • Packaging quantity 1
