CommScope 760257052 Propel ULL Multimode OM4 Conversion Module

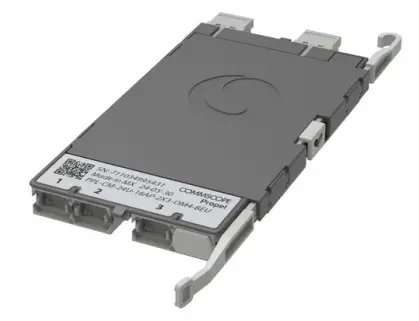

Propel ULL Multimode OM4 Conversion Module, (2) MPO-24/UPC non pinned ports rear, (3) MPO-16/APC pinned ports front
- Ultra-low loss (ULL) with Method B Enhanced polarity
- Can be installed and removed from the front or rear of the panel
- Serialized QR code provides easy access to factory optical test results
- This component requires 2 of the 12 lanes on the Propel Panel blade
Product Classification
- Regional Availability Asia
- Portfolio SYSTIMAX
- Product Type Fiber module
- Product Brand Propel
- Product Series PPL
Specifications
- General Specifications
- Functionality Breakout
- Color, front Gray
- Color, rear Gray
- Data Module Type Fiber Conversion Module
- Interface, front MPO
- Interface Feature, front Internal shutters | MPO Pinned
- Interface, rear MPO
- Interface Feature, rear Internal shutters | MPO Non-Pinned
- Polarity Method B Enhanced (ULL)
- Total Fibers, quantity 48
- Total Ports, quantity, front 3
- Total Ports, quantity, rear 2
Dimensions
- Dimensions
- Height 11 mm | 0.433 in
- Width 65 mm | 2.559 in
- Depth 170 mm | 6.693 in
Optical Specifications
- Optical Specifications
- Fiber Mode Multimode
- Fiber Type G.657.A2 | OM4
- Insertion Loss, maximum 0.4 dB
Environmental Specifications
- Qualification Standards: IEC 61753-1 | TIA-568.3-D
- Safety Standard: UL 62368
Packaging and Weights
- Packaging quantity
Product Usage Instructions
To install the Propel ULL Multimode OM4 Conversion Module, follow these steps:
- Identify the front and rear ports as per the provided specifications.
- If installing from the front, align the module with the panel blade and gently push it in until secure.
- If installing from the rear, carefully slide the module into the designated slots until it clicks into place.
- Verify proper installation by checking for secure connections on both front and rear ports.
FAQs
Q: Can the Propel ULL Multimode OM4 Conversion Module be installed in any orientation?
A: Yes, this module can be installed from both the front and rear of the panel, allowing flexibility in orientation.
Q: What is the maximum insertion loss for this module?
A: The maximum insertion loss for this module is 0.4 dB.
