Hetoy Electric Dirt Bike User Manual

1. Introduzione

This manual provides essential information for the safe and effective operation and maintenance of your Hetoy Electric Dirt Bike. Please read this manual thoroughly before assembly and use to ensure proper function and to prevent injury. Keep this manual for future reference.

Image 1.1: The Hetoy Electric Dirt Bike, showcasing u so cuncepimentu è e so caratteristiche.

2. Informazioni di sicurezza

WARNING: Riding without adult supervision is prohibited.

• Always wear a helmet and protective gear (knee and elbow pads) when riding.
• Assicuratevi chì tutti i cumpunenti sianu fissati bè prima di ogni usu.
• Do not operate the dirt bike in unsafe conditions or on public roads.
• Keep hands and feet clear of moving parts, especially the chain and wheels.
• Ùn supere micca a capacità di pesu massimu di 150 lbs.
• Recommended age for safe operation is 0-10 years, but consider the child's physical development and ability to reach controls.

3. Cuntenutu di u pacchettu

Before beginning assembly, ensure all parts are present and accounted for. The package typically includes:

• Main Electric Dirt Bike Frame (partially assembled)
• Rota di fronte
• Manubri
• Parafango anteriore
• Caricatore
• Assembly Tools (e.g., Allen wrench, screwdriver)
• Keys (for ignition)
• Manuale d'istruzzioni

4. Installazione è assemblaggio

Follow these steps to assemble your Hetoy Electric Dirt Bike. For a visual guide, please refer to the installation video below.

1. Unpacking: Carefully remove all components from the packaging. Remove any protective wrapping or ties.
2. Installazione di manubri: Attach the handlebars to the front fork using the provided clamps and screws. Ensure they are centered and tightened securely.
3. Attaccu di a rota anteriore: Insert the front wheel into the fork. Secure it with the washers and nuts on both sides, tightening them with the provided wrench.
4. Mise en place de l'aile avant : Position the front fender over the front wheel and secure it to the fork using the small screws and screwdriver.
5. "Gas Tank" Cover: Place the decorative "gas tank" cover over the battery compartment and secure it with the screws.
6. Carica iniziale: Before first use, fully charge the battery. Locate the charging port on the side of the motor housing and connect the charger.

5. Operating Instructions

Familiarizàvi cù i cuntrolli prima di cavalcà.

1. Power On: Insert the key into the ignition and turn it to the ON position. A red light on the motor housing will illuminate.
2. faro: Turn the key further to activate the front LED headlight. The headlight is adjustable to suit rider preference.
3. Controlu di l'acceleratore: Use the twist-grip throttle on the right handlebar to control speed. Twist gently to accelerate.
4. frenu: The hand-operated rear brake lever on the left handlebar controls the rear brake. Squeeze the lever to slow down or stop.
5. Display di putenza: The LED power display on the throttle indicates the current battery level.

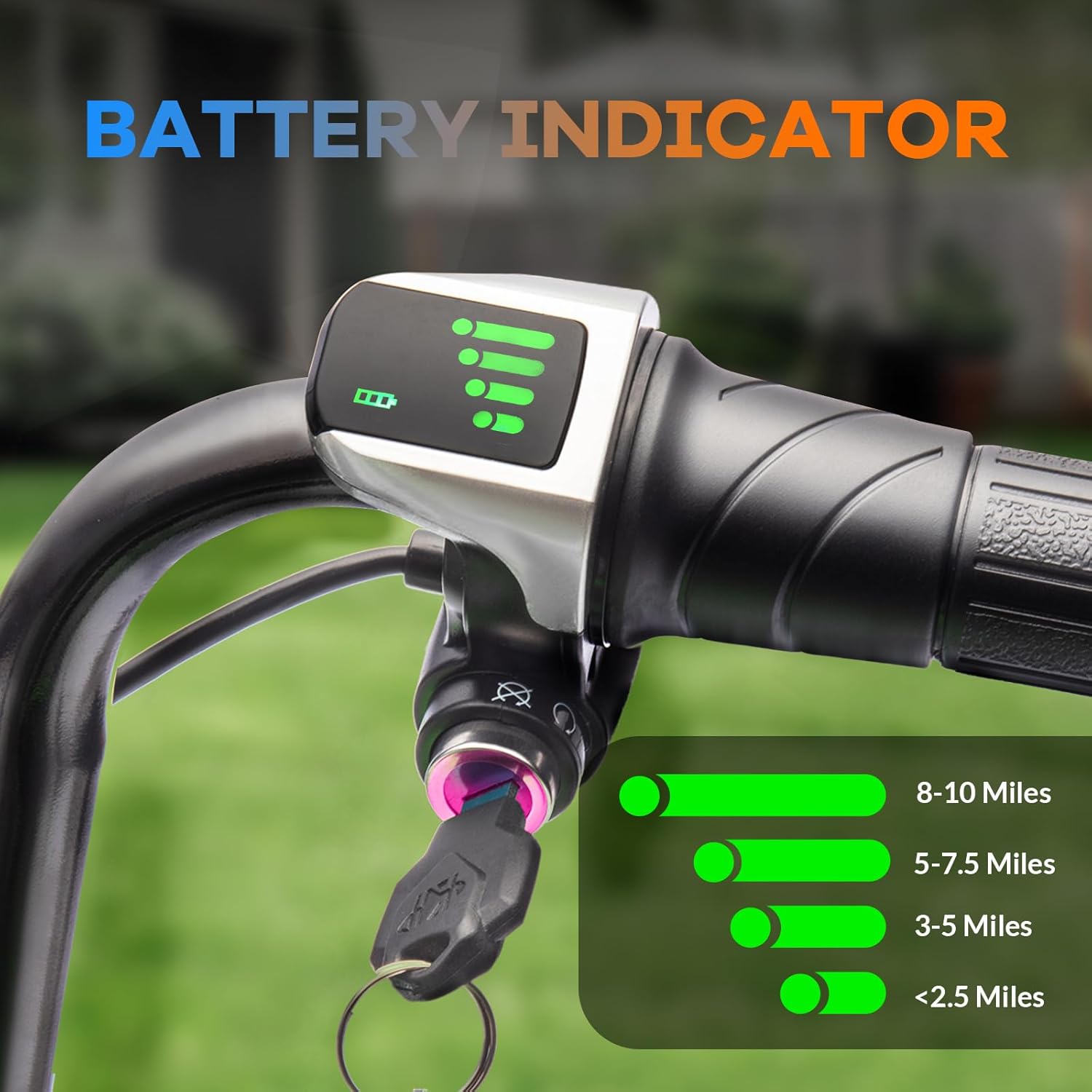

Image 5.1: Handlebar with key ignition and LED battery indicator.

6. Features & Components

• Motore: Equipped with a 24V 250W powerful chain-driven motor.
• Velocità: Capable of reaching speeds up to 15 MPH.
• Gamma: Offers a maximum range of 10 miles on a full charge.
• Pneumatici: Features 12-inch air-filled, wear-resistant inflatable rubber wheels designed for various terrains including grass, sand, mud, and brick roads.
• Suspension: Rear seat shock springs provide a smoother ride.
• Sede : Soft leather seat for rider comfort.
• Lumi: Front LED headlight for visibility.

Image 6.1: The 12-inch air-filled tires are suitable for diverse terrains.

Image 6.2: Speed and age recommendations for the electric dirt bike.

Image 6.3: Recommended height and dimensions for the electric dirt bike.

7. Mantenimentu

• Carica: Always use the provided charger. Ensure the dirt bike is turned off during charging. Do not overcharge the battery.
• Pressione di i pneumatici: Regularly check and maintain proper tire pressure for optimal performance and safety.
• Pulizia: Clean the dirt bike with a damp cloth. Avoid using harsh chemicals or excessive water, especially near electrical components.
• Conservazione: Store the dirt bike in a dry, cool place away from direct sunlight and extreme temperatures. If storing for extended periods, charge the battery periodically.

8. Risoluzione di prublemi

If you encounter issues with your electric dirt bike, try the following:

• A bicicletta ùn si accende micca: Check if the key is fully inserted and turned to the ON position. Ensure the battery is charged.
• Perdita di putenza: A batteria pò esse bassa. Ricaricate a batteria cumpletamente.
• rumori inusuali: Inspect the chain and wheels for any obstructions or loose parts.
• Brake not responding: Check the brake cable for proper tension and connection.

For persistent issues, contact Hetoy customer support.

9. Specificazioni

10. Garanzia è Supportu

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Hetoy websitu. Conservate a vostra prova d'acquistu per qualsiasi reclamazione di garanzia.
