Introduzione
Welcome to the instruction manual for your Hetoy 3-in-1 Kids 24V Ride-On Tractor, Excavator, and Bulldozer. This versatile electric vehicle is designed to provide an engaging and authentic construction play experience for children. It can be configured as a tractor with a shovel bucket, an excavator with a digging bucket, or a tractor with a detachable trailer. Please read this manual thoroughly before assembly and operation to ensure safe and correct usage.
Linee guida di sicurezza
WARNING: To prevent the risk of serious injury, adult supervision is required at all times. Never leave children unattended while operating this vehicle.
- Raccomandazione di età: Stu pruduttu hè adattatu per i zitelli di 3 anni è più.
- Limitu di pesu: Do not exceed the maximum weight capacity specified in the 'Product Specifications' section.
- Ambiente operativu: Use the vehicle on flat, level surfaces. Avoid slopes, uneven terrain, public roads, or areas near swimming pools or other bodies of water.
- Equipamentu di prutezzione: Assicuratevi sempre chì u zitellu porti l'equipaggiu di sicurezza adattatu, cum'è un cascu, quandu conduce u veiculu.
- Cintura di sicurezza: Always use the provided safety belt.
- Carica: Only use the charger provided with the product. Do not overcharge the battery.
- Mantenimentu: Regularly inspect the vehicle for damage, loose parts, or wear. Do not operate if damaged.
Cuntenutu di u pacchettu
Verificate chì tutti i cumpunenti sò presenti prima di principià u montaggio:
- Ride-On Tractor Base Unit
- Shovel Bucket Attachment
- Digging Bucket Attachment
- Detachable Trailer
- Control remoto
- Caricatore
- Ferramenta di montaggio (viti, dadi, ecc.)
- Manuale d'istruzzioni
Setup è Assemblea
Assembly of the Hetoy 3-in-1 Ride-On Vehicle requires adult supervision. Follow the steps below to assemble the main unit and attach the desired accessories.
1. Main Vehicle Assembly
Refer to the included graphical instructions for detailed steps on assembling the main tractor chassis, wheels, steering wheel, and seat. Ensure all connections are secure before proceeding.
2. Attaccu di l'accessori
The vehicle offers three primary configurations: Tractor with Shovel Bucket, Tractor with Digging Bucket, and Tractor with Trailer. Choose the desired attachment and follow the specific instructions for its installation.
Figura 1: Various configurations of the Hetoy 3-in-1 Ride-On Vehicle.
Figura 2: Detailed view of the Shovel Bucket, Digging Bucket, and Trailer attachments.
3. Multi-Functional Components
The vehicle features interactive components for an enhanced play experience:
- Shovel Bucket: Operate the push arm using the left and right control levers.
- Sede : The seat can be flipped back to allow for easier interaction with the digging bucket.
- Digging Bucket: Control its up and down movement with the dedicated joystick.
- Trailer: Easily detachable for varied play scenarios.
Figura 3: Multi-functional features of the ride-on tractor.
Operating Your Ride-On Vehicle
1. Charging the Battery
Before first use, fully charge the vehicle's 24V battery for approximately 8-12 hours. Subsequent charges typically take 8-12 hours. A full charge provides 50-60 minutes of continuous operation. The power display on the dashboard indicates the current battery level.

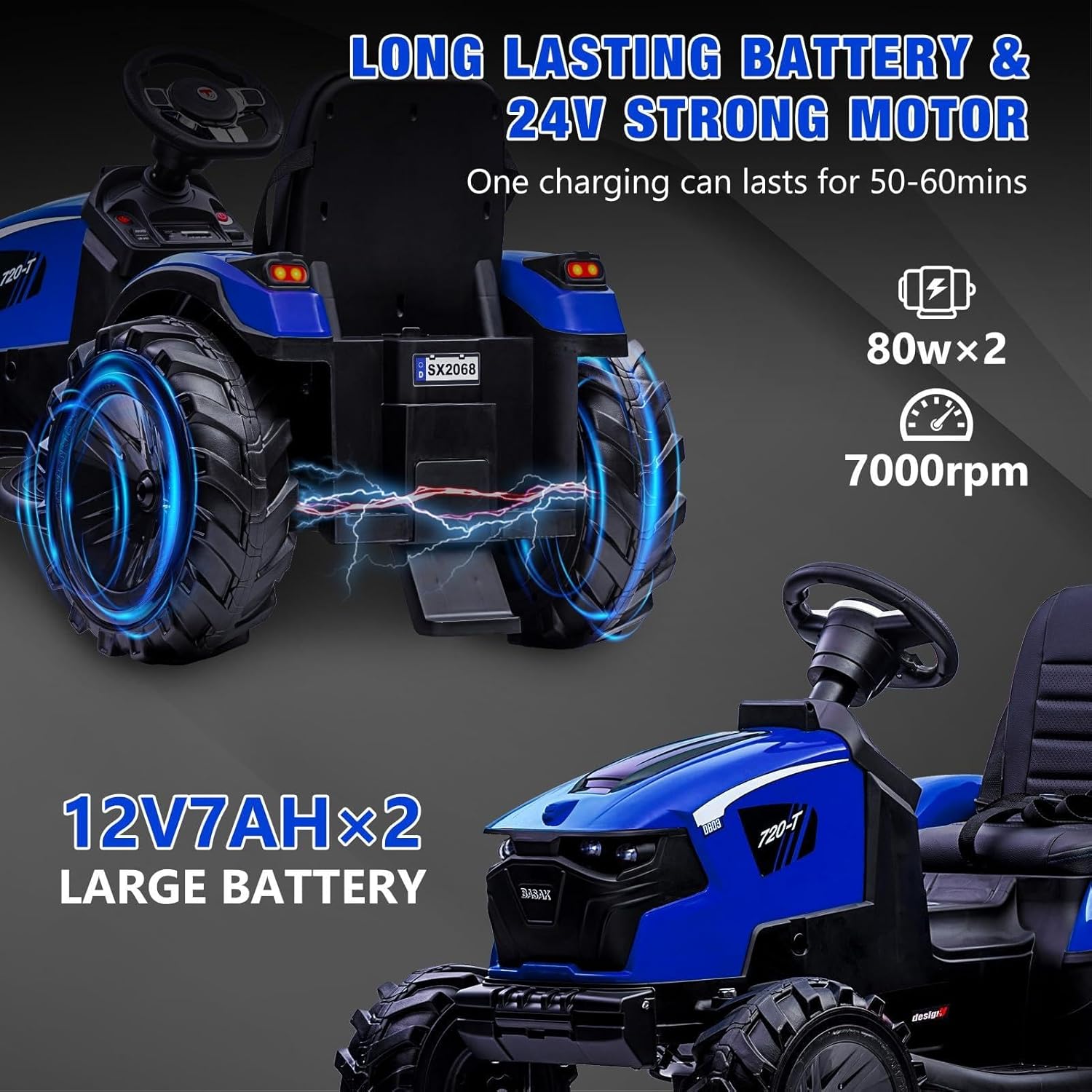

Figura 4: Battery and motor specifications.
2. Modi di guida
The Hetoy ride-on vehicle offers two control modes:
- Kids Manual Control: The child operates the vehicle using the foot pedal for acceleration and the steering wheel for direction. A switch allows selection between high and low speeds, and forward/backward movement.
- Cuntrollu Remotu Parentale: Parents can use the included 2.4G remote control to steer, accelerate, brake, and select speeds, providing an additional layer of safety and interaction.
Figura 5: Two drive modes: Kids Manual and Parent Remote.
3. Funzioni di divertimentu
The vehicle is equipped with various entertainment options:
- Built-in Music and Stories: Access pre-loaded audio content for an engaging ride.
- USB/MP3 Ports: Connect external devices to play your own music.
- Luci LED: Bright headlights illuminate the path, enhancing visibility and realism.
Figura 6: Control panel and entertainment features.
Cura è Mantenimentu
Proper care and maintenance will extend the life of your ride-on vehicle.
- Pulizia: Asciugà u veiculu cun un soffiu, damp pannu. Ùn aduprate micca detergenti abrasivi o solventi. Evitate di spruzzà acqua direttamente nantu à i cumpunenti elettrichi.
- Cura di a batteria: Recharge the battery after each use. If storing for an extended period, charge the battery at least once a month to maintain its lifespan. Disconnect the battery when not in use for long periods.
- Conservazione: Conservate u veiculu in un locu frescu è asciuttu, luntanu da a luce diretta di u sole è da l'umidità.
- Ispezione: Periodically check all screws, nuts, and connections to ensure they are tight. Inspect wheels and tires for wear or damage.
Guida à a risoluzione di i prublemi
If you encounter issues with your Hetoy ride-on vehicle, refer to the table below for common problems and solutions.
| Prublemu | Causa Possibile | Soluzione |
|---|---|---|
| U veiculu ùn si move micca | Carica di bateria bassa A cunnessione di a batteria libera A prutezzione di sovraccarichi attivata | Caricà a bateria Verificate è assicurate i terminali di a batteria Turn off the vehicle, wait a few minutes, then restart |
| U veiculu si move lentamente | Carica di bateria bassa Veiculu sopracargatu Operating on uneven terrain | Caricà a bateria Reduce weight on the vehicle Sposta à una superficia plana è liscia |
| U cuntrollu remoto ùn funziona micca | E batterie di telecomando sò morte Remote not paired with vehicle | Sustituite e batterie di telecomando Refer to remote control pairing instructions in the full manual |
| Luci o musica ùn funzionanu micca | Carica di bateria bassa Cablaggio sciolto Cumponente difettuosu | Caricà a bateria Check wiring connections (adult supervision) Cuntattate l'assistenza clienti |
Specificazioni di u produttu
- Mudellu: B0FGQDN585
- Dimensioni di u produttu (L x W x H): 95.7 x 25 x 31.5 inches (approximate, with attachments)
- Pesu di l'articulu: 74.5 liri
- Età consigliata da u fabricatore: 3 anni è più
- Batterie: 2 batterie da 12V (incluse)
- Motore: 2 x 80W (7000rpm)
- Tempu di carica: 8-12 ore
- Run Time: 50-60 minutes (depending on usage)
- Pneumatici: EVA (Ethylene-vinyl acetate)
Figura 7: Product dimensions and shipping information.
Garanzia è Assistenza Clienti
Hetoy products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or contact Hetoy customer service.
If you have any questions, require technical assistance, or need to report a missing or damaged part, please contact Hetoy customer support through the retailer where the product was purchased or visit the official Hetoy websitu per l'infurmazioni di cuntattu.
Supportu in ligna: Per risorse supplementari è infurmazioni nantu à i prudutti, visitate u Hetoy Store on Amazon.
