1. Impurtante Information Safety
Before operating the Matrix Fitness TF50 Treadmill, please read and understand all safety instructions. Failure to follow these instructions may result in injury or damage to the equipment.
- Cunsultate un Medicu: Cunsultate sempre un prufessiunale di a salute prima di inizià qualsiasi novu prugramma d'eserciziu.
- Supervisione: Stu apparecchiu ùn hè micca destinatu à l'usu di persone cù capacità fisiche, sensoriali o mentali ridotte, o mancanza di sperienza è cunniscenze, salvu ch'elli sò stati dati a supervisione o istruzzioni riguardanti l'usu di l'apparechju da una persona rispunsevule per a so sicurità. I zitelli anu da esse vigilati per assicurà chì ùn ghjucanu micca cù l'apparechju.
- Stop d'emergenza: Familiarize yourself with the safety key and its function. Always attach the safety key clip to your clothing during operation. In case of an emergency, pulling the safety key will immediately stop the treadmill.
- U locu propiu: Place the treadmill on a level, stable surface with adequate clearance around it (at least 6 feet behind and 2 feet on each side). Do not place on thick carpet as it may interfere with ventilation.
- Cordone d'alimentazione: Ensure the power cord is not pinched or damaged. Do not use extension cords. Plug directly into a grounded outlet.
- Mantenimentu: Eseguite a manutenzione regulare cum'è descritta in questu manuale per assicurà un funziunamentu sicuru.
WARNING: To reduce the risk of electric shock, fire, and serious injury, read all instructions before using this equipment.
2. Produttu Finituview
The Matrix Fitness TF50 Treadmill with XUR 22" Touchscreen Console is designed to provide a club-quality workout experience in a home environment. It features a robust frame, a spacious running deck, and an interactive console for diverse training options.

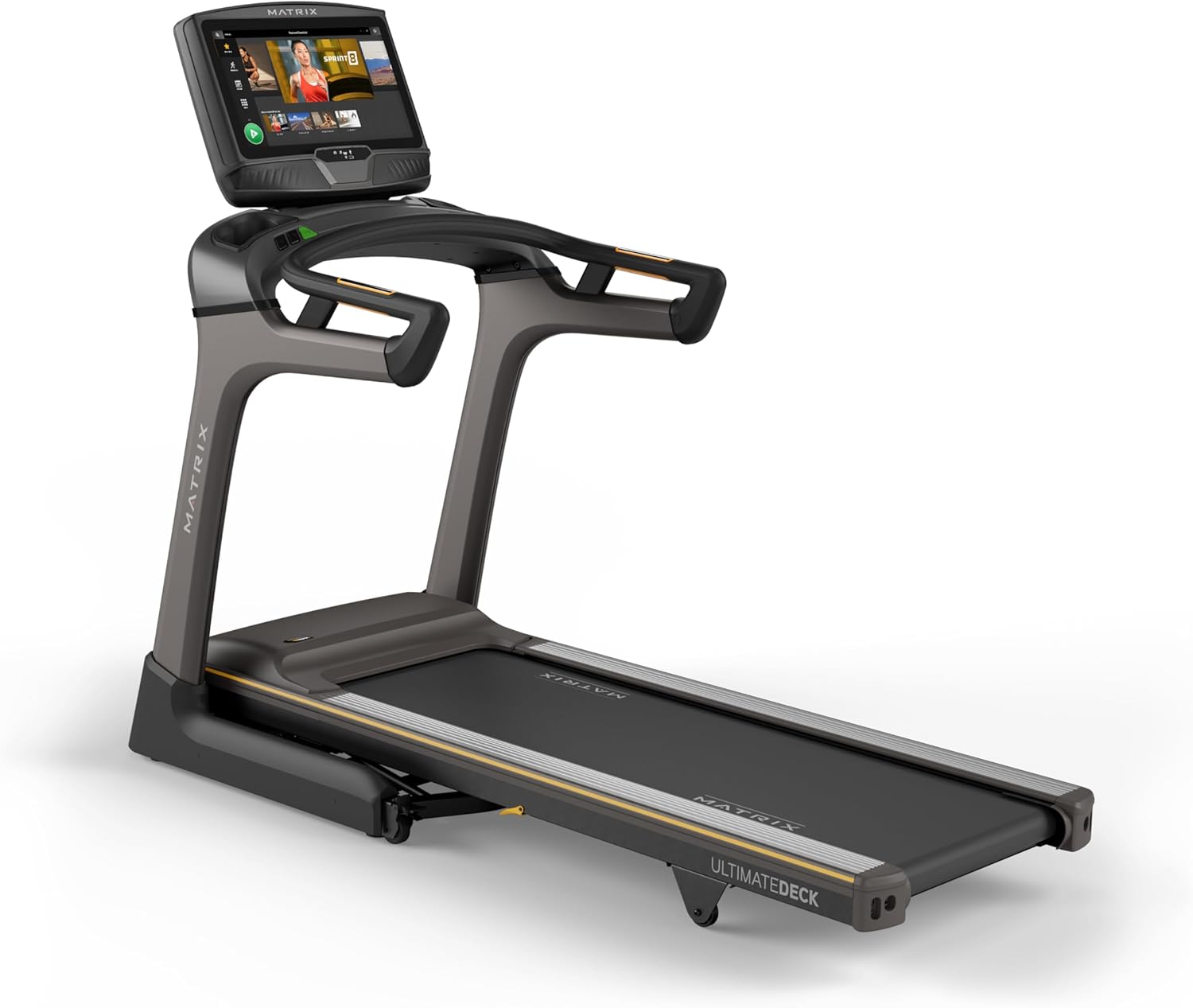

Image: Front view of the Matrix Fitness TF50 Treadmill, showcasing the 22-inch touchscreen console and the running deck.
Funzioni chjave
- XUR 22" Touchscreen Console: Offers streaming apps, iFIT integration, virtual active programs, and performance tracking.
- Johnson Drive System: A quiet, durable, and responsive motor for consistent performance.
- Ultimate Deck System: Provides industrial-grade cushioning for a comfortable running experience.
- Design Pieghevole: Near 90-degree folding for space-saving storage.
- Expanded Running Surface: 20" x 60" deck accommodates various stride lengths.
- Speed and Incline: 0.5-12.5 mph speed range and 0-15% incline for versatile workouts.
Image: Diagram highlighting key features of the TF50 Treadmill, including its folding design, 20"x60" Ultimate Deck System, quiet DC motor, 0-15% incline range, 0.5-12.5 mph speed range, and industrial-grade cushioning.
3. Setup è Assemblea
The Matrix Fitness TF50 Treadmill requires assembly. It is recommended to have two people for assembly due to the size and weight of the components. Ensure all parts listed in the hardware kit are present before beginning.
3.1 Unpacking and Placement
- Carefully remove all components from the packaging. Keep packaging materials until assembly is complete.
- Place the treadmill in a location that meets the recommended clearance requirements: at least 6 feet (1.8 meters) behind the treadmill and 2 feet (0.6 meters) on each side.
- Ensure the surface is level and stable. Avoid placing on thick carpet that could obstruct ventilation.
3.2 Passi di Assemblea
Refer to the included assembly guide for detailed, step-by-step instructions and diagrams. General steps include:
- Attach the upright masts to the treadmill frame.
- Secure the console base and handlebars to the masts.
- Connect all necessary cables between the console and the frame.
- Install any remaining covers or accessories.
3.3 Cunnessione di putenza
- Ensure the treadmill is turned off before plugging it in.
- Plug the power cord directly into a dedicated, grounded electrical outlet. Do not use extension cords or adapters.
- Turn on the main power switch, usually located near the front of the treadmill base.
4. Operating Instructions
This section details how to operate your Matrix Fitness TF50 Treadmill and utilize its features.
4.1 Cunsola Overview (XUR 22" Touchscreen)
The XUR console provides access to various workout programs, entertainment apps, and performance data.
Image: Close-up of the XUR 22-inch touchscreen console, highlighting its extra-large HD display, streaming app capabilities (Netflix, YouTube, Spotify), Virtual Active Sprint 8 and iFIT integration, Bluetooth FTMS, integrated HDMI, 13 metric-driven programs, and Bluetooth HR strap connectivity.
- Power On: Once plugged in and the main power switch is on, the console will power up.
- Configurazione iniziale: Follow the on-screen prompts to connect to Wi-Fi, set up user profiles, and activate any included subscriptions like iFIT.
- Navigazione: Use the touchscreen to navigate through menus, select workouts, and access applications.
Image: The main workout screen of the XUR console, displaying various workout options and a 'Sprint 8' program tile.
Image: The entertainment apps screen on the XUR console, showing icons for Netflix, YouTube, Spotify, Facebook, Twitter, Instagram, and other applications.
4.2 Cumincià un allenamentu
- Attach Safety Key: Clip the safety key to your clothing. The treadmill will not operate without the safety key in place.
- Select Program/Mode: From the console, choose a quick start, a pre-programmed workout, an iFIT workout, or a virtual active route.
- Start: Press the START button on the console. The belt will begin to move at a low speed.
- Adjust Speed and Incline: Use the speed and incline buttons on the console or handlebars to adjust your workout intensity.
Image: Close-up of the treadmill handlebars, showing integrated speed and incline control buttons for easy adjustments during a workout.
4.3 Fermà un allenamentu
- Fermata Normale: Press the STOP button on the console. The belt will gradually slow down and stop.
- Stop d'emergenza: Pull the safety key from the console. The treadmill will stop immediately.
4.4 Piegatura è almacenamentu
The TF50 Treadmill features an easy-folding design for convenient storage.
- Ensure the treadmill is stopped and powered off.
- Alzate cù cura a piattaforma di corsa finu à ch'ella si blocca in pusizione verticale.
- To unfold, gently push the deck release lever and slowly lower the deck to the floor.
Image: The Matrix TF50 Treadmill shown in its folded, upright position, demonstrating its space-saving design.
Image: A woman demonstrating the folding mechanism of the treadmill, lifting the running deck into its upright storage position.
5. Mantenimentu
Una manutenzione regulare assicura a longevità è e prestazioni ottimali di u vostru tapis roulant.
5.1 Pulizia
- Ogni ghjornu: Wipe down the console and handlebars with a soft, damp cloth after each use. Avoid abrasive cleaners or excessive moisture.
- settimanale: Vacuum around and under the treadmill to prevent dust and debris buildup.
5.2 Running Belt Maintenance
- Lubrificazione: The Ultimate Deck System is designed for low maintenance. Refer to the full product manual for specific lubrication schedules, if any. Over-lubrication can cause damage.
- Tension and Alignment: Periodically check the running belt for proper tension and alignment. If the belt slips or drifts to one side, consult the full manual for adjustment procedures or contact customer support.
Image: A cutaway diagram illustrating the multi-layered cushioning of the Ultimate Deck System, designed for impact absorption.
5.3 Motor Compartment
- Verificazione Annuale: Annually, or as needed, unplug the treadmill and carefully remove the motor cover. Vacuum any dust or debris from the motor area. Do not touch any electrical components. Replace the cover securely.
Imagine: Un tagliu view of the Johnson Drive System motor, showing its internal components and design for quiet and responsive operation.
6. Risoluzione di prublemi
This section provides solutions to common issues you might encounter with your TF50 Treadmill. For more complex problems, contact Matrix Fitness customer support.
| Prublemu | Causa Possibile | Soluzione |
|---|---|---|
| U tapis roulant ùn s'accende micca. | Power cord not plugged in; Main power switch off; Circuit breaker tripped. | Ensure power cord is securely plugged in. Turn on the main power switch. Check household circuit breaker. |
| A cinta di corsa ùn si move micca. | Safety key not in place; Emergency stop activated; Motor issue. | Ensure safety key is fully inserted. Check if emergency stop button is pressed. If problem persists, contact support. |
| Console is unresponsive or frozen. | Software glitch; Temporary electrical issue. | Turn off the main power switch, wait 30 seconds, then turn it back on. If issue continues, contact support. |
| A cinta di corsa scivola o esita. | Belt tension too loose; Belt lubrication needed. | Refer to the full manual for belt tension adjustment. Check lubrication schedule. |
If you encounter an issue not listed here or if the suggested solutions do not resolve the problem, please contact Matrix Fitness customer support.
7. Specificazioni
Detailed technical specifications for the Matrix Fitness TF50 Treadmill with XUR Console.
Image: Diagram showing the dimensions of the Matrix TF50 Treadmill: 81 inches (D) x 35 inches (W) x 62 inches (H).
| Feature | Specificazione |
|---|---|
| Marca | Matrice |
| Nome di mudellu | Matrix Fitness TF50 Treadmill |
| Cunsola | XUR 22" Touchscreen |
| Dimensioni di u produttu (LxWxH) | 81" x 35" x 62" |
| Dimensione plegata | 42" x 35" x 76" |
| Pesu di l'articulu | 310 liri |
| Pesu Massimu di l'Usuariu | 400 liri |
| Running Surface (Deck Length x Width) | 60" x 20" |
| Velocità massima | 12.5 Miglia à l'ora |
| Velocità minima | 0.5 Miglia à l'ora |
| Percentuale di inclinazione massimatage | 15% |
| Potenza di u Motore | 3.25 cavalli |
| Materiale | Alloy Steel |
| Fonte d'energia | Corded Electric |
| Tecnulugia di cunnessione | HDMI, USB, WiFi, Bluetooth |
| Metriche misurate | Distance, Speed, Incline, Calories, Time |
| Assemblea Necessaria | Iè |
| UPC | 763165008938 |
8. Garanzia è Support
Matrix Fitness provides comprehensive warranty coverage for the TF50 Treadmill.
8.1 Garanzia infurmazione
- Frame: Garanzia a vita
- Motor and Cushioning: Garanzia a vita
- Parts (Console): 5 anni
- Labor (Console): 1 annu
- Parts (Frame): 7 anni
- Labor (Frame): 2 anni
Please retain your proof of purchase for warranty claims. Warranty terms may vary by region. For full details, refer to the warranty card included with your product or visit the official Matrix Fitness websitu.
8.2 Assistenza Clienti
For technical assistance, parts, or service inquiries, please contact Matrix Fitness customer support. Have your model number (TF50 Treadmill with XUR) and serial number ready when contacting support.
Visita u Matrix Fitness Store on Amazon for more information or to find contact details.
