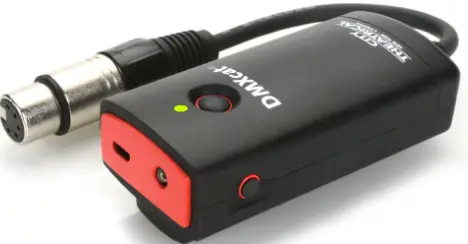

CITY THEATRICAL DMXcat Multi Function Test Tool
INTRODUCTION
Anyone Can Turn on Any DMX Device, From an LED PAR to a Complex Moving Light
City Theatrical’s DMXcat system is designed for use by the lighting professional who is involved with the planning, installation, operation, or maintenance of theatrical and studio lighting equipment.

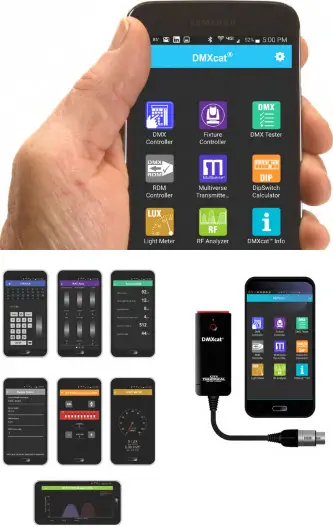

The system consists of a small interface device and a suite of mobile applications. Together, they combine to bring DMX/RDM control plus several other functions to the user’s smartphone. DMXcat works with Android and iPhone, and can function in seven languages.
Key Features
- Built-in LED flashlight
- Audible alarm (for locating a misplaced unit)
- LED status indicator
- XLR5M to XLR5M Turnaround
- Removable belt clip
- Optional accessories include: XLR5M to RJ45 Adapter, XLR5M to XLR3F Adapter, XLR5M to XLR3M Turnaround, and Belt Pouch
Product Usage Instructions
Step 1: Power On
Press and hold the power button on the interface device to turn on the DMXcat system.
Step 2: Pair with a Smartphone
Download the DMXcat mobile application on your smartphone from the respective app store. Open the app and follow the on-screen instructions to pair it with the interface device.
Step 3: Select Function
Choose the desired function from the mobile application, such as DMX/RDM control, LED flashlight, or audible alarm.
Step 4: Connect to DMX Device
Use the provided XLR5M to XLR5M Turnaround or optional adapters to connect the interface device to the DMX device you want to control or monitor.
Step 5: Operation and Monitoring
Utilize the features of the DMXcat system to operate, monitor, or troubleshoot the connected DMX device as needed.
citytheatrical.com/DMXcat | 800-230-9497
FAQ:
- Q: Can the DMXcat system work with both Android and iPhone?
A: Yes, the DMXcat system is compatible with both Android and iPhone devices. - Q: What languages are supported by the DMXcat system?
A: The DMXcat system supports operation in seven languages for user convenience. - Q: Are there additional accessories available for the DMXcat system?
A: Yes, optional accessories like adapters and a belt pouch are available to enhance the functionality and portability of the DMXcat system.
