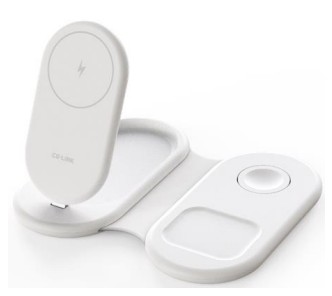

Wireless charger with QI2
Module
MPP23-1TCNC-J
User Manual
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before using this product. Please keep this manual for reference in the future.
INTRODUCTION
This product is a wireless charging device in accordance with the QI protocol which is suitable for mobile phones, and other devices based on wireless charging 3W, 5W or 15W. Connect the wireless charger to a power supply and then you can charge your device which is supported wireless charging (mobile phones, etc.) by putting it on the wireless charger directly.
FEATURES
- Port input:
Type-C PD: 5V3A, 9V3A, 12V3A, 36W - Transmitting terminal output1: 5W/15W
- Transmitting terminal output2: 5W
- Transmitting terminal C962 module output3: 3W
- It is light, smart and convenient to use
- Compatibility:
- iPhone 16 Series & HMD Skyline
- AirPods Pro (1st and 2nd Generation)
- AirPods (With Wireless Charging Case)
- Apple Watch Series 9 / 8 / 7 / Ultra / Ultra 2 (Fast Charging)
- Apple Watch Series 1-6
- Apple Watch SE
Note: You can charge your Apple Watch Ultra and Apple Watch Ultra 2, but the watch button bumps must face up; facing down will prevent charging due to size.
SPECIFICATIONS
| Input | Type-C PD: 5V3A 9V3A 12V3A 36W |
| Output | 15W Max (QI2 Module) 5W Max (AirPods) 3W Max (C962 Module ) |
| Wireless Charging Frequency | 128kHz / 360kHz & 326.5 kHz and 1.778 MHz |
| Operation Temperature Range | 0 — 35°C |
| Magnetic Force | 6.5 — lON |
| Over Voltage Protection | Yes |
| Under Voltage Protection | Yes |
| Size | 147 * 170 * 13mm |
| Weight | 313g |
| User Manual | English Version |
PACKING LIST
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
- Main unit×1
- User Manual×1
OPERATION
Operation Procedures
- Connect the wireless charger to the power adapter, and connect the power adapter to the power supply.
- Place your device (which supports wireless charging) on the wireless charger.
- Please take out the device after it is fully charged.
Operation Notes
- For optimum performance, please use the wireless charger according to this user manual.
- Please connect the wireless charger to the power adapter which the output should be 5V3A, 9V3A, 12V3A. It is also compatible with PD protocol.
- Please unplug the wireless charger after using.
- Do not use the wireless charger with an electronic product which is not in conformity with the specifications, so as to avoid any problems caused by specification mismatching.
- It’s normal that wireless charger will be a little overheated in the use process.
- When the wireless charger stops working under some accidents, you need to check whether the device is compatible with this charger.
- Do not let the wireless charger close to fire, such as stove, candles and etc.
- Do not let the wireless charger soak into liquid, such as swimming pool, bathtub, etc.
- Do not wash the wireless charger with corrosive cleaner.
- If the wireless charger cannot work properly, please contact the store or distributor in your area.
- Do not place metal objects on the back of the phone while it is charging wirelessly.
CONNECTION DIAGRAM
FCC STATEMENT
- This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation. - Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
