Cardo A02 Freecom X Helmet Intercom System
Product Information:
- Product Name: FREECOM X –
- Manufacturer: Cardo Systems
- Website: cardosystems.com
- Support: cardosystems.com/support
- YouTube Channel: youtube.com/CardoSystemsGlobal
Cardo Connect App: A mobile app designed to enhance the functionality and user experience of the FREECOM X. Product
Usage Instructions
Option 1: Installation on a Narrow Rim Helmet

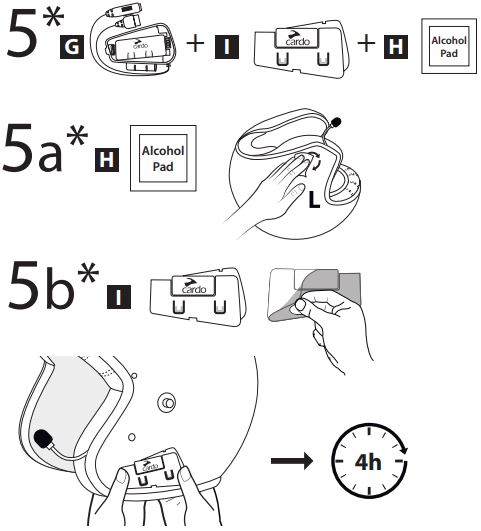

- Start by preparing the installation area. Clean the helmet’s rim using the provided alcohol pad.
- Remove the clamp from the FREECOM X device.
- Place the FREECOM X device on the helmet’s rim, aligning it properly.
- Securely attach the device by following the instructions provided in steps 5c* G and +H.

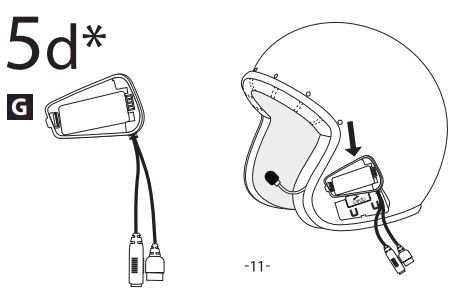

- Adjust the position of the device using steps 5d* G, 4h, 6, 7, 7a, 7b, 7c, and 8J, as necessary.
- Use the 2-click method (step 1 followed by step 2) to ensure proper installation.
- If needed, use booster pads (step 9) to place the speakers closer to your ears for better audio quality.

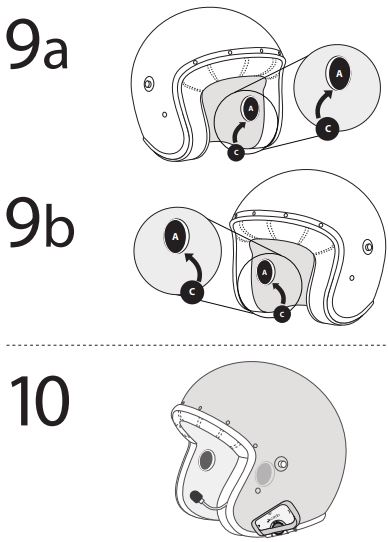

- Follow steps 9a, A, C, and 9b for additional adjustments and securing the device in place.
- Consult the FREECOM1x Installation Guide for further instructions.
Note:
For more detailed instructions and visual demonstrations, refer to the FREECOM X Installation Guide provided by Cardo Systems.
Option 1

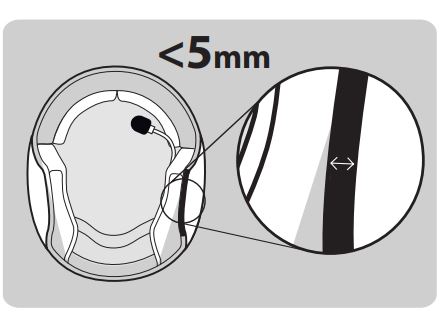

Installation on narrow rim helmet
Push clamp into place.
Option 2

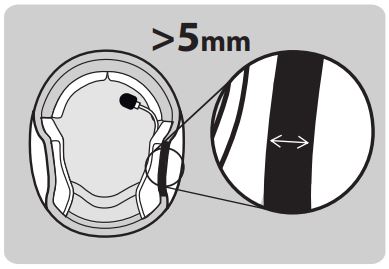

Installation on wide rim helmet
Remove clamp
Optional C
If needed, use booster pads to place speakers closer to ear
youtube.com/CardoSystemsGlobal/
MAN00578 MAN INSTALLATION GUIDE FOR FREECOM X_A02
