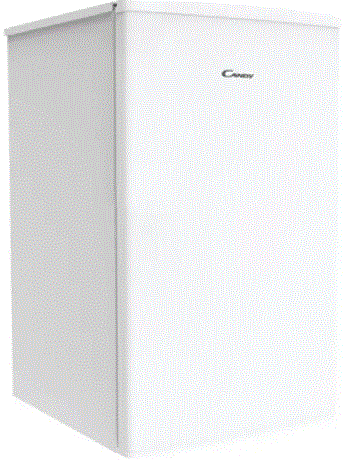

CANDY COT1S45EW Table Top

CANDY-COT1S45EW-Table-Top-product-image

Product Information

Specifications

  • Intended Use: Household use or similar applications
  • Power Supply: 220-240 VAC/50 Hz
  • Operating Voltage: 220-240 VAC

DOWNLOAD THE hOn App
Discover extra contents and create your inventory list

CANDY-COT1S45EW-Table-Top-image (1)

Thank you for purchasing this product.
Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:

  • the kitchen area for personnel in shops, offices and other working environments
  • on farms, by clientele of hotels, motels and other environments of a residential type
  • at bed and breakfasts (B & B)
  • for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

SAFETY INFORMATION

  • Please read the operating and installation instructions carefully!
  • They contain important information on how to install, use and maintain the appliance.
  • The manufacturer is not liable if you fail to comply with the instructions and warnings.

Retain all documents for subsequent use or for the next owner.

  • Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed. Keep children away from packaging and its parts.
  • Danger of suffocation from folding cartons and plastic film!
  • Leave to stand for at least 4 hours before switching on the product, to allow compressor oil to settle if transported horizontally.
  • Make sure there is no transport damage.
  • Do not damage the refrigerant circuit.
  • Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.
  • Never use water to wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.
  • Handle the appliance always with at least two persons because it is heavy.
  • Install and level the appliance in an area suitable for its size and use.
  • Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
  • The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
  • Only for UK: The appliance’s power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.
  • Make sure that mains cable is not caught under the appliance during and after carrying/moving the appliance, to avoid the mains cable becoming cut or damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
  • Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.
  • Do not install the appliance near heaters or inflammable materials.
  • FOR appliances with a freezer compartment: if there is a power failure do not open the lid. Frozen food should not be affected if the failure lasts for less than the hours indicated on the rating label (Temperature rise time). If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.
  • If you find that the lid of the appliance is difficult to open just after you have closed it, don’t worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes.
  • Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance, it is not recommended to store materials that require strict temperatures.
  • Do not excessively pull or fold the power cord or touch the plug with wet hands.
  • Do not store products which contain flammable propellant (e.g. spray cans) or explosive substances in the appliance. Risk of explosion!
  • Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water.
  • Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
  • Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.
  • At risk here are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.
  • Check that children and vulnerable people have understood the hazards. A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance. Only children aged 8 years and above may use the appliance.
  • Children should not play with the appliance.
  • Children aged from 3 to 8 years are allowed to load and unload this appliance.
  • FOR appliances with a freezer compartment: do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst!
  • FOR appliances with a freezer compartment: never put frozen food straight from the freezer compartment in your mouth. Risk of low-temperature burns!
  • Keep plastic parts and the door seal free of oil and grease. Otherwise, plastic parts and the door seal will become porous.
  • Before performing any operation, unplug the power cord from the power socket.
  • Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
  • Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.
  • Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.
  • It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.
  • Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact always our customer service.
  • Supervise children while the appliance is being cleaned or maintained.
  • Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
  • WARNING: The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a) and insulating gas (cyclopentane). It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite.
  • If the refrigerant circuit should be damaged:
    • Switch off the appliance and pull out the mains plug,
    • Keep naked flames and/or ignition sources away from the appliance,
    • Thoroughly ventilate the room for several minutes,
    • Inform customer service.
  • WARNING: Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.
  • WARNING: Do not use multiple portable socket-outlets or portable power supplies. We do not recommend the use of extension leads and multi-way adapters.
  • Do not attempt to sit or stand on the top of the appliance. You could injure yourself or damage it. This appliance is not designed for stacking with any other ones.
  • The product is designed and built for domestic household use only.
  • Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.
  • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
    • Clean regularly surfaces that can come in contact with food and accessible drainage systems.
    • Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.
    • Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
    • Two-star frozen-food compartments(if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
    • One-, two- and three -star compartments, if present in the appliance, are not suitable for the freezing of fresh food.
    • If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance.
  • FOR Wine Coolers: this appliance is intended to be used exclusively for the storage of wine
  • FOR a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance
  • FOR appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs
  • Replaceable (LED only) light source by a professional
  • This product contains a light source of energy efficiency class G .CANDY-COT1S45EW-Table-Top-image (2)

Scrapping old appliancesCANDY-COT1S45EW-Table-Top-image (3)

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

  • WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.
  • Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:
    • WEEE should not be treated as household waste;
    • WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity
By placing theCANDY-COT1S45EW-Table-Top-image (4) mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

Guarantee
Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

Energy Saving
For better energy saving we suggest :

  • Installing the appliance away from heat sources and not exposed to direct sunlight and in a well ventilated .
  • Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continues functionalizing of the compressor.
  • Do not excessively stuff foods so as to ensure proper air circulation.
  • Defrost the appliance in case there is ice to facilitate the transfer of cold.
  • In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
  • Open or keep the doors of the appliance open as little as possible
  • Avoid adjusting the setting to temperatures too cold.
  • Remove dust present on the rear of the appliance

Before first use

  • You must allow the fridge to settle for at least four hours prior to switching the power on.
  • It is recommended that you clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm water and then thoroughly drying the interior. The fridge may have an odor to it at first use. This will disappear as the appliance cools.

Please note:
The appliance will start 5℃ for fridge and -18℃ for freezer and work continuously until it comes down to the correct temperature. If the appliance is switched off, you should allow five minutes before switching it on again to prevent unnecessary damage to the compressor. Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance. This fridge cools your food by making the inside back of the cavity cold. It is normal for frost to build up on this surface; it then dissipates and drains through a small drain at the bottom, where it evaporates harmlessly. The presence of frosting at the back is not a malfunction of the fridge.

Fridge use

  • Never put liquids in the refrigerator uncovered.
  • Never put hot foods in the refrigerator. Warm food should be allowed to cool to room temperature before being put into the refrigerator.
  • Nothing should rest against the rear wall of the refrigerator, as this will cause frost and possible condensation problems which will be difficult to remove.
  • Make sure food is clean and any extra water is wiped away before putting into the fridge.
  • Wrap or cover food before putting into the fridge. This will help prevent the loss of moisture, keep food fresh and avoid unpleasant odors.
  • Sort foods prior to storing. Any foods to be used soon should be stored at the front of the shelf to prevent deterioration caused by the door being open for prolonged periods.
  • Do not overfill the fridge. There should be sufficient space between the foods to allow the cool air to circulate.
  • Thawing frozen foods in the fridge compartment will help to keep the temperature low and save energy.
  • Never store raw meats on shelves above cooked meats or other produce. This will help to prevent juices from raw meat contaminating other foodstuffs.

Freezer use

  • The freezer compartments are designed to store only frozen food.
  • Never put hot or warm foods in the freezer, allow them to cool fully before putting them into the freezer.
  • Follow the instructions on the food packaging for storage of frozen food. If no information is provided, foods should not be stored for more than three months after the purchase date.
  • Store food in small packages (ideally less than1kg).This reduces the freezing time and improves the quality of the food after thawing.
  • Wrap food before putting into the freezer. To stop the wrapping sticking together, ensure it is dry.
  • Label the food before freezing with information including type of food and dates of storage and expiry.
  • Once food is thawed, it must not be refrozen. Only defrost as much food as is required to prevent wastage.
  • Bottled or canned drinks should not be stored in the freezer compartments as they could explode.
  • The maximum amount of fresh food that can be frozen within a 24 hour period is 2.0kg.
  • Do not attempt to freeze more than the maximum amount.

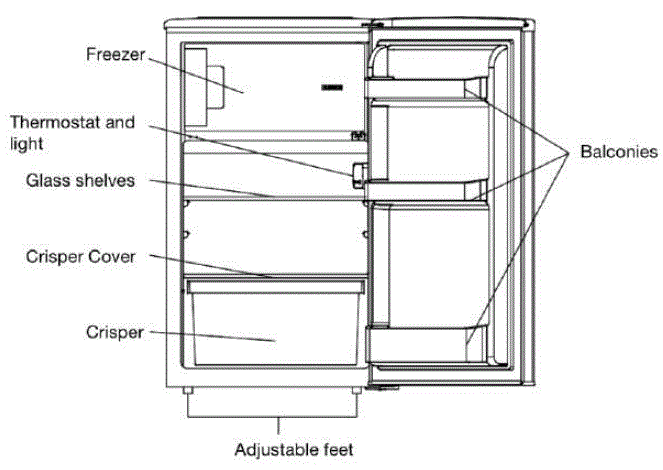

Overview

CANDY-COT1S45EW-Table-Top-image (5)

** The pictures above are only for reference. The actual configuration will depend on the physical product or statement by the distributor.

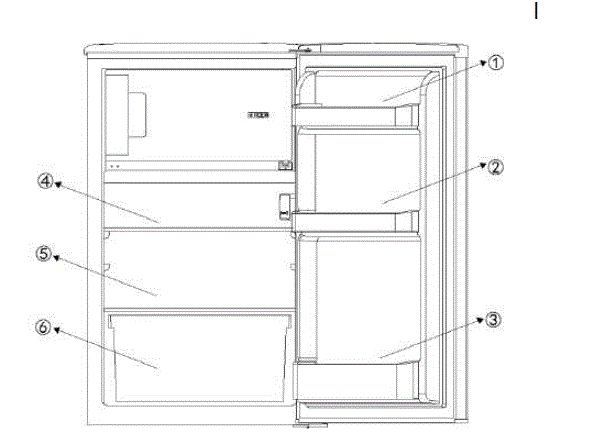

Storage

  • The fridge section is for short term food storage. Although low temperatures can be maintained, extended periods of food storage is not recommended.
  • As the cold air circulates within the fridge, the temperature can vary between the different sections. As such, foods should be stored in different sections according to type.
  1. Butter, cheeses etc.
  2. Food in jars and bottles
  3. Drinks, e.g. milk
  4. Cooked food
  5. Yogurts, preserves etc.
  6. Fruit and vegetables
  • The fridge shelves can be moved according to the storage requirements within the fridge section. To move the shelf, lift up the rear section and then pull it outwards.
  • To replace, slide the shelf back into the slot, and then lower the rear section.
  • The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures.

CANDY-COT1S45EW-Table-Top-image (6)

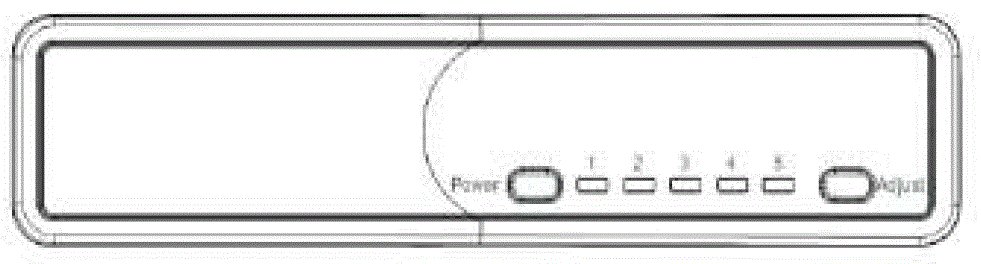

Control panel

There are total 5 temperature settings for the refrigerator. After connecting to the power supply, the refrigerator will be set on setting 3, which is the default setting.

  • Button “Power”: Located on the left side ,functioned as switching on / off by pressing 3s.
  • Button “Adjust”: located on the right side, functioned as adjusting the temperature settings for the refrigerator

Adjusting the temperature:
The inside temperature of the refrigerator is adjusted by pressing the left “adjust” button. By pressing the button, the settings 1 to 5 represent different temperatures from the highest to the lowest.

Caution: Some time will be required for the refrigerator to reach the set level when temperature adjustments are made. The length of this period is determined by difference in the existing and set temperatures, the ambient temperature, the frequency with which the door is opened and closed and the amount of food in storage.

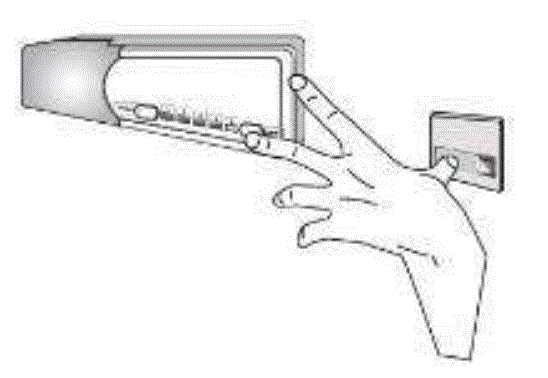

Super freezing function
To activate the Super Freezing function:

  • set the thermostat in position 5,
  • press door switch and temperature adjustment button together, wait until the Led of position 5 blinks continuously ,the SF function has been activated.

SF will working 24h, after that the function will quit automatically, then back to the original position setting.

Note: During the SF period, the Led of position 5 will keep blinking.

CANDY-COT1S45EW-Table-Top-image (7)

Position Conditions
1-2 Summer or ambient temperature between 25°C- 35 °C
3-4 Spring Autumn or ambient temperature between 15°C-25 °C
5 Winter or ambient temperature between 5°C- 15 °C
Super freezing function Quick freeze

Reversing the appliance doors
We recommend you seek the help of another individual to support the doors whilst performing this operation.

  1. remove the top screws coverCANDY-COT1S45EW-Table-Top-image (8)

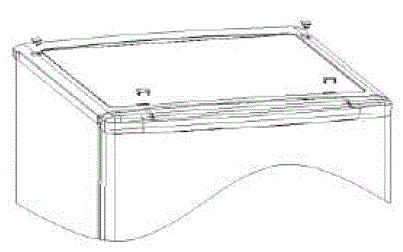

  2. remove the screws then remove the top cover CANDY-COT1S45EW-Table-Top-image (9)
  3. unscrews the top hinge and then unscrew the hinge pin,turn the hinge over and replace it.CANDY-COT1S45EW-Table-Top-image (11)

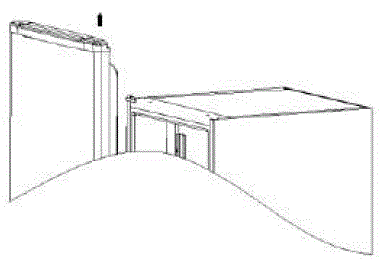

  4. remove the doorCANDY-COT1S45EW-Table-Top-image (12)

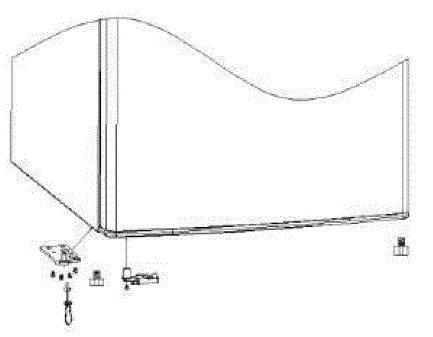

  5. unscrews the lower hinge and adjustable feet then unscrew the hinge pin,turn the hinge over and replace it.CANDY-COT1S45EW-Table-Top-image (13)
  6. get the left side stopper from accessory bag and install it on the lest side of refrigerator, then install the lower hinge on the on the lest side of refrigerator accordingly.CANDY-COT1S45EW-Table-Top-image (14)

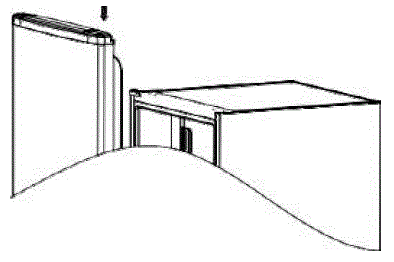

  7. fix the door on the lower left side hingeCANDY-COT1S45EW-Table-Top-image (15)

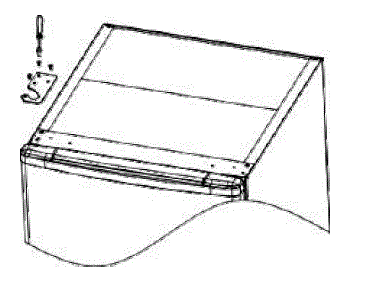

  8. refit the top hinge CANDY-COT1S45EW-Table-Top-image (16)

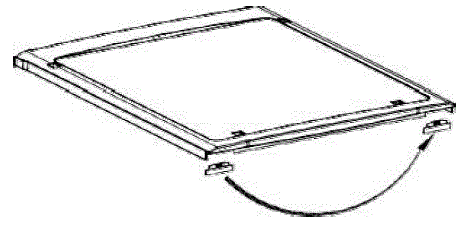

  9. change the screws hole cover from left side to right side and refit the top cover.CANDY-COT1S45EW-Table-Top-image (17)

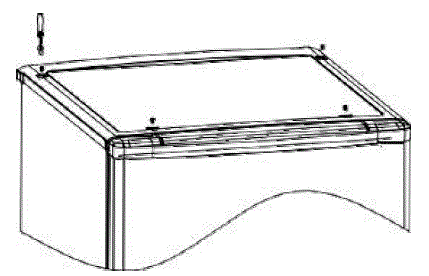

  10. install the top cover screwsCANDY-COT1S45EW-Table-Top-image (18)

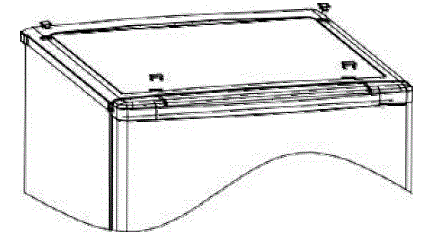

  11. refit the top screws coverCANDY-COT1S45EW-Table-Top-image (19)

Install door external handle (if external handle present)

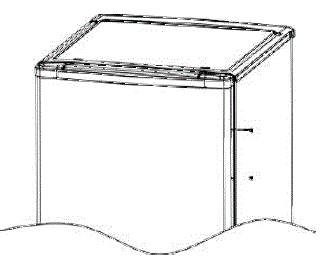

  1. unscrew the handle on the left side. CANDY-COT1S45EW-Table-Top-image (20)

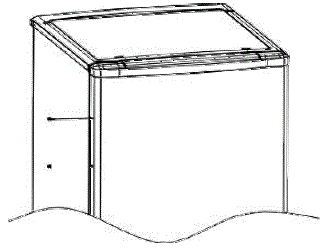

  2. remove the screws cover from right sideCANDY-COT1S45EW-Table-Top-image (21)
  3. install the screw cover on the left sideCANDY-COT1S45EW-Table-Top-image (22)

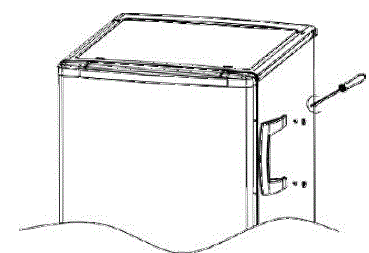

  4. Install the handle to the right side

CANDY-COT1S45EW-Table-Top-image (23)

Reversing the inner doors

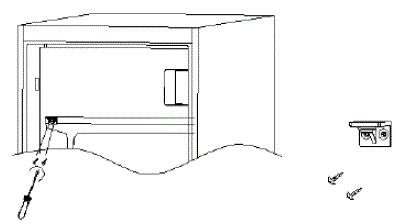

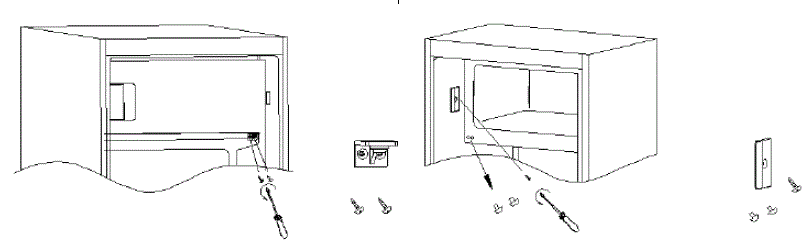

  1. remove the screw cover on the right side, then unscrew the screws.
  2. remove the screw cover on the left side. CANDY-COT1S45EW-Table-Top-image (24)

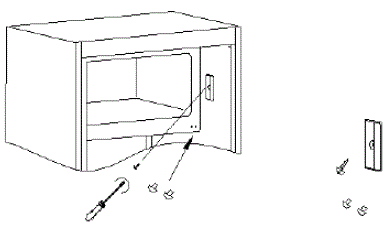

  3. install the screw cover from left side to right side.CANDY-COT1S45EW-Table-Top-image (25)
  4. Rotate inner door and install to the left side and then install the screws.CANDY-COT1S45EW-Table-Top-image (26)

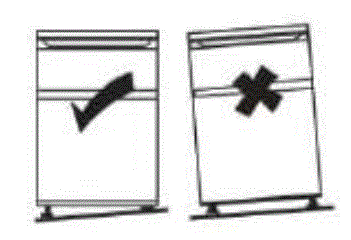

Ensuring the door seals correctly:
It is normal for the seal to be compressed after the door has been reversed. With the door closed, use a hair dryer to expand the seal and fill the gap between the door and the body of the appliance. Take care not to use the hair dryer too close to the appliance, which could damage the seal. A distance of approximately 10cm should be adequate. When completed, allow the seal and door to cool before touching them. Once done, the seal should remain in position.

INSTALLATION

WARNING! The appliance is heavy. Always handle with at least two persons. Before first use

  • Remove all packaging materials.
  • Clean the appliance with water and a mild detergent and dry it with soft cloth.
  • Check if power supply, socket and fusing are appropriate to the rating plate.
  • Check if the power socket is earthed and no multi-plug or extension is present.
  • Check if the power plug is accessible after the appliance has been positioned.
  • Refrigerator and freezer temperature are automatically set at 4°C and -18°C respectively. These are the recommended settings. If desired, you can change these temperature manually. See Adjust the temperature.

Environmental conditions

  • This appliance should be installed in a room that is dry and well ventilated.
  • Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation or exposed to direct sunlight.
  • If this appliance is situated in a cold environment (such as a shed, outhouse or garage), the performance will be affected and this may damage the food.

Install this product in a position where the ambient temperature is not lower or higher than the operating temperature: in this case the appliance does not work properly.

  • Extended temperate (SN): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’.
  • Temperate (N): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’.
  • Subtropical (ST): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’.
  • Tropical (T): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’.

Levelling the appliance
The appliance should be placed on a flat and solid surface

  1. Tilt the appliance slightly backwards.
  2. Turn the feet clockwise to raise the refrigerator.
  3. Turn the feet counter clockwise to lower the refrigerator.

CANDY-COT1S45EW-Table-Top-image (27)

Moving the appliance

  1. Remove all food and unplug the appliance
  2. Secure shelves and other moveable parts in the fridge and in the freezer with adhesive tape.
  3. Do not tilt the refrigerator more than 45° to avoid damaging the refrigerating system.

TIPS FOR FOOD STORAGE
Position different food in different compartments according to be below table:

Refrigerator compartment Type of food
Door or balconies of fridge compartment
  • Foods with natural preservatives, such as jams, juices, drinks, condiments
  • Do not store perishable foods
Crisper drawers (salad drawer)
  • Fruits, herbs and vegetables should be placed separately in the crisper bin
  • Do not store bananas, onions, potatoes, garlic in the refrigerator
Fridge shelf – middle Dairy products, eggs
Fridge shelf – top Foods that do not need cocking, such as ready- to-eat foods, deli meats, leftovers
Freezer drawer(s)/tray
  • Foods for long-term storage
  • Bottom drawer for raw meat, poultry, fish
  • Middle drawer for frozen vegetables, chips
  • Top tray for ice cream, frozen fruit, frozen baked goods
  • It’s suggested to set the temperature at 4°C in the fridge compartment, and, whether possible, at -18°C in the freezer compartment.
  • For most food categories, the longest storage time in the fridge compartment is achieved with colder temperatures. Since some particular products (as fresh fruits and vegetables) may be damaged with colder temperatures, it is suggested to keep them in the crisper drawers, whenever present. If not present, maintain an average setting of the thermostat.
  • For frozen food, refer to the storage time written on the food packaging. This storage time is achieved whenever the setting respects the reference temperatures of the compartment (one-star -6°C, two stars -12°C, three stars -18°C)

Tips for storing food in the fridge

  • Keep your fridge temperature below 5°C.
  • Hot food must be cooled to room temperature before storing in the appliance.
  • Foods stored in the refrigerator should be washed and dried before storing.
  • Food to be stored should be properly sealed to avoid odour or taste alterations. It is advisable to keep food covered with materials that are tasteless, impermeable to air and water, non-toxic and free of pollution, to avoid contamination or odour transfer.
  • It is recommended not to obstruct the air outlets of the refrigerator compartment.
  • Do no store excessive quantities of food. Leave spaces between foods to allow cold air flowing around them, for a better and more homogenous cooling.
  • Leave a gap between foods and the inner walls, allowing air flowing. In special way don’t store foods against the rear wall, as food could freeze.
    The ageing process of some fruit and vegetables (such as melons, papaya, banana, pineapple etc) can be accelerated in the refrigerator; therefore, it is not advisable to store them in the refrigerator. However, the ripening of strongly greed fruits can be promoted for a certain period. Onions, garlic, ginger and other root vegetables should also be stored at room temperature.

Tips for freezing fresh food

  • The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time
  • Place the fresh food to be frozen in the freezer compartment
  • The maximum amount of food that can be frozen in 24 hours is specified on the rating plate
  • The freezing process lasts 24 hours: during this period do not add other food to be frozen

Tips for storing food in the freezer

  • Keep the freezer temperature at -18°C
  • Hot foot must be cooled to room temperature before storing in the freezer compartment
  • Food cut into small portions will freeze faster and will be easier to defrost and cook. The recommended weight for each portion is less than 2.5 kg
  • It is better to pack the food before putting it into the freezer.
  • Defrosted food cannot be re-frozen unless it is first cooked
  • Do not load excessive quantities of fresh food in the freezer compartment
  • Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12 months, depending on its properties (e.g. meat: 3-12 months, vegetables 6-12 months). Do not exceed the food storage time recommended by the manufacturers.

CARE AND CLEANING

WARNING! Disconnect the appliance from the power supply before cleaning

General
The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odours.

  • Clean the inside and housing of the appliance with lukewarm water and some neutral soap.
  • Rinse and dry with soft cloth.
  • Clean the accessories only with lukewarm water and neutral detergent. Make sure that all soap is rinsed off and all parts are dry before replacing them inside the appliance.
  • Do not clean any of the parts of the appliance in a dishwasher.
  • Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

Replacing the LED-lamps
The internal light is a LED type. To replace the lamp, please contact the customer service. See Troubleshooting.

Door opening alarm
When the appliance door is left open for more than 1 minute, the door opening alarm will sound. The alarm can be silenced by closing the door or by pressing the SET key (this will not affect the temperature setting, it will just mute the alarm).

Non-use for long periods
If the appliance is not used for an extended period of time:

  1. Take out the food and unplug the power cord.
  2. Clean the appliance as described in the “Care and Cleaning – General” section
  3. Keep the door and freezer drawers/door open to prevent the creation of bad odors inside.

Power interruption
In the event of power cut, food should remain safely cold for see rating plate. Follow these tips during a prolonged power interruption, especially in summer:

  • Open the door/drawer as few times as possible.
  • Do not put additional food into the appliance during a power interruption.
  • If prior notice of a power interruption is given and the interruption duration is longer than the amount of hours indicated on the rating plate, make some ice and put it in the top of the refrigerator compartment.
  • The storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) in order to prevent health risks.

Availability of spare parts

  • Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of 7 years after placing the last unit of the model on the market.
  • Door handles, door hinges, trays and baskets for a minimum period of 7 years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

TROUBLESHOOTING

In case of a problem please check all shown possibilities and follow below instructions before contacting an after sales service.

Problem Possible cause Possible solution
The appliance does not work The appliance is turned off Press the ON/OFF key to turn on the appliance
Mains plug is not connected in the mains socket Connect the mains plug
Fuse has blown or is defective Check the fuse and replace it if necessary
Socket is defective Mains malfunctions should be corrected by an electrician
The appliance runs frequently or runs for a too long period of time The indoor or outdoor temperature is too high It is normal for the appliance to run longer
The appliance has been off power for a period of time Normally, it takes 8 to 12 hours for the appliance to cool down completely
A door/drawer of the appliance is not tightly closed Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door
The inside of the refrigerator is dirty and/or smells The inside of the refrigerator needs cleaning Clean the inside of the refrigerator
Food of strong odour is stored in the refrigerator Wrap the food thoroughly
Moisture formation on the inside of the refrigerator The climate is too warm and too damp Increase the temperature
A door/drawer of the appliance is not tightly closed. Close the door/drawer
Food containers or liquids are left open Let hot foods cool to room temperature and cover foods and liquids
Moisture accumulates on the refrigerators outside the surface or between the doors/door and drawer The climate is too warm and too damp This is normal in damp climate and will change when the humidity decreases
The door/drawer is not closed tightly Ensure that the door/drawer is tightly shut
Strong ice and frost in the freezer compartment The goods were not adequately packaged Always pack the goods well
A door/drawer of the appliance is not tightly closed Close the door/drawer
Unusual noises The appliance is not at level Re-adjust the feet
The appliance is touching the wall or other objects Slightly move the appliance
UI Led’s are flashing One of the sensors is out of range Contact the assistance
An alarm is beeping The fridge storage compartment door is open Close the door or silence the alarm manually
The interior lighting or cooling system does not work The LED-lamp is out of order Please call the service for changing the lamp
  • During operation, the side walls and perimeter of the freezer compartment may be hot: this is normal and is due to the normal working cycle of the product.
  • To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/
  • Under the section “website”, choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.
  • For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR on the energy label supplied with the appliance

FAQ

  • Q: Can children operate this appliance?
    • A: Children aged from 3 to 8 years are allowed to load and unload this appliance under supervision.
  • Q: What should I do if there is abnormal noise when operating the appliance?
    • A: Abnormal noise during operation may indicate abnormal voltage fluctuation. In such cases, an automatic regulator should be mounted to prevent damage to the appliance.

Documents / Resources

CANDY COT1S45EW Table Top [pdf] User Manual
COT1S45EW Table Top, COT1S45EW, Table Top, Top

References

Leave a comment

Your email address will not be published. Required fields are marked *
