CAL-ROYAL A2200 SERIES Rim Exit Device

CAL-ROYAL-A2200-SERIES-Rim-Exit-Device-PRODUCT-IMAGE

Specifications

  • Product Series: A2200
  • Exit Device Type: Non-rated
  • Door Width Compatibility: 30″ to 36″
  • Handing: Right-hand reverse bevel or Left-hand reverse bevel
  • Mounting: Surface flush on the door

INSTALLATIO INSTRUCTIONS

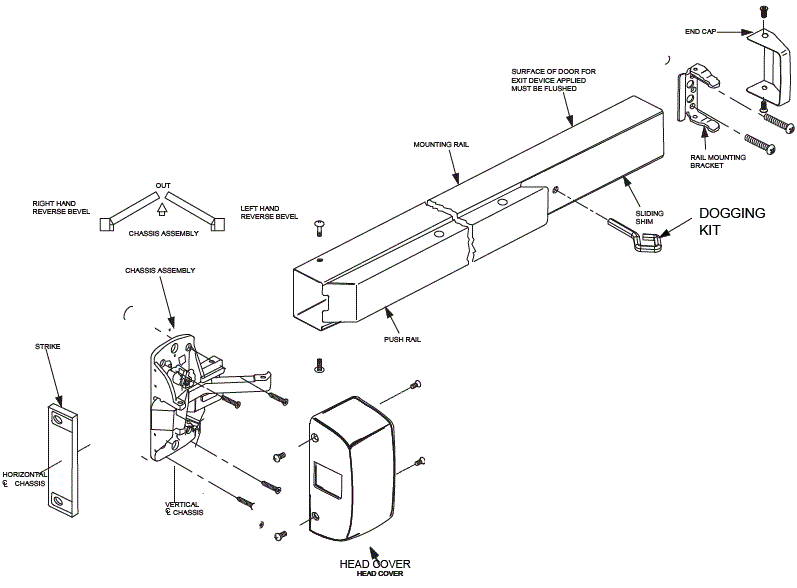

  1. BEFORE INSTALLING DEVICE, PLEASE CHECK:
    1. IF DOOR FITTED AND HUNG
    2. SIZE OF EXIT DEVICE, FUNCTION AND DESIGN.
      1. 36″ DEVICES CAN BE CUT TO FIT DOORS DOWN TO 30″ WIDE.
      2. 48″ DEVICES CAN BE CUT TO FIT DOORS DOWN TO 36″.
      3. HAND OF DEVICE AGAINST APPLICATION.CAL-ROYAL-A2200-SERIES-Rim-Exit-Device-IMAGE (1)

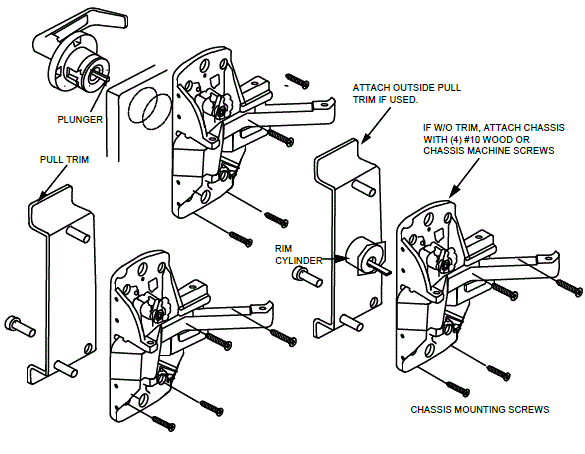

APPLY HARDWARE

CAL-ROYAL-A2200-SERIES-Rim-Exit-Device-IMAGE (2)

ASSEMBLY

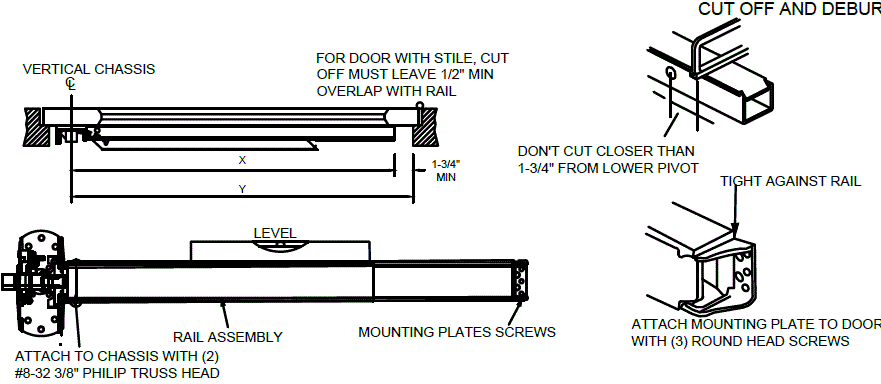

APPLY RAIL ASSEMBLY:

  1. CHECK THE SIZE OF DEVICE, IF CUTTING LENGTH REQUIRED.
  2. DETERMINE CUT OFF LENGTH “X” BY SUBTRACTING 1-3/4″ FROM “Y”. MARK CUT OFF POINT ON MOUNTING RAIL.
  3. DEPRESS ARM INTO RAIL OPENING AND SLIDE RAIL ONTO CHASSIS. LEVEL RAIL AND FASTEN CHASSIS AND MOUNTING PLATE.

CAL-ROYAL-A2200-SERIES-Rim-Exit-Device-IMAGE (6)

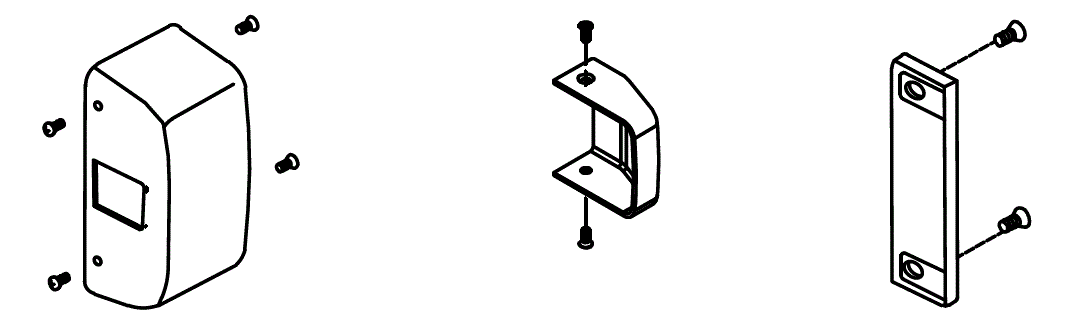

APPLY COVER AND STRIKES:CAL-ROYAL-A2200-SERIES-Rim-Exit-Device-IMAGE (3)

  • ATTACH COVER TO CHASSIS WITH (4) #8 TRUSS HEAD MACHINE SCREW
  • ATTACH END CAP TO MOUNTING PLATE WITH (2) COVER SCREWS.
  • ATTACH STRIKE TO DOOR STOP WITH (2) STRIKE SCREW AND 1 WASHER

PREPARE DOOR

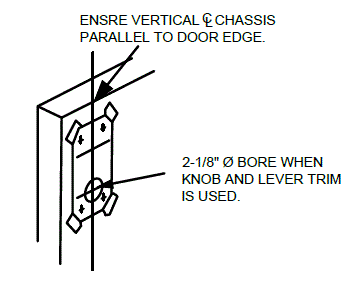

  1. FOR 2-1/8″ Ø BORE PREP
    POSITION TEMPLATE OVER EXISTING HOLE AND MARK FOR TWO CHASSIS MOUNTING SCREW HOLES.CAL-ROYAL-A2200-SERIES-Rim-Exit-Device-IMAGE (4)

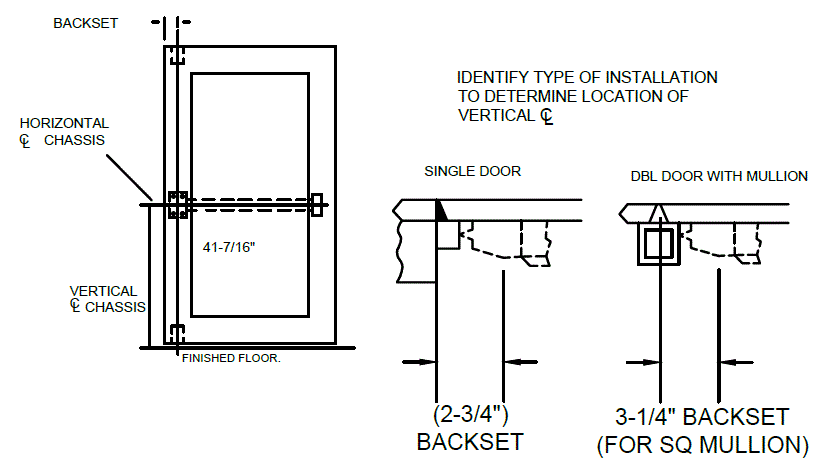

  2. FOR DOOR W/O BORE PREP, MARK VERTICALCAL-ROYAL-A2200-SERIES-Rim-Exit-Device-IMAGE (7) CHASSIS AND HORIZONTAL CAL-ROYAL-A2200-SERIES-Rim-Exit-Device-IMAGE (7)CHASSIS USINGCL DIMENSIONS BELOW.CAL-ROYAL-A2200-SERIES-Rim-Exit-Device-IMAGE (5)

Frequently Asked Questions

  • Q: Can the exit device be used on doors wider than 36 inches?
    • A: No, the device is recommended for doors ranging from 30 to 36 inches wide. Cutting may be required for smaller door widths.
  • Q: How should I determine the handing of the device?
    • A: The device can be installed for right-hand reverse bevel or left-hand reverse bevel applications based on the specific requirements of your door setup.
  • Q: What screws should be used for attaching the chassis without trim?
    • A: For installations without trim, use either #10 wood screws or chassis machine screws to secure the chassis in place.

Documents / Resources

CAL-ROYAL A2200 SERIES Rim Exit Device [pdf] Instruction Manual
A2200 SERIES Rim Exit Device, A2200 SERIES, Rim Exit Device, Exit Device
