HP 22" FHD All-in-One Desktop PC (Model 22aio) User Manual

1. Introducció

Welcome to the user manual for your new HP 22" FHD All-in-One Desktop PC. This document provides essential information to help you set up, operate, maintain, and troubleshoot your computer. Please read this manual thoroughly to ensure optimal performance and longevity of your device.

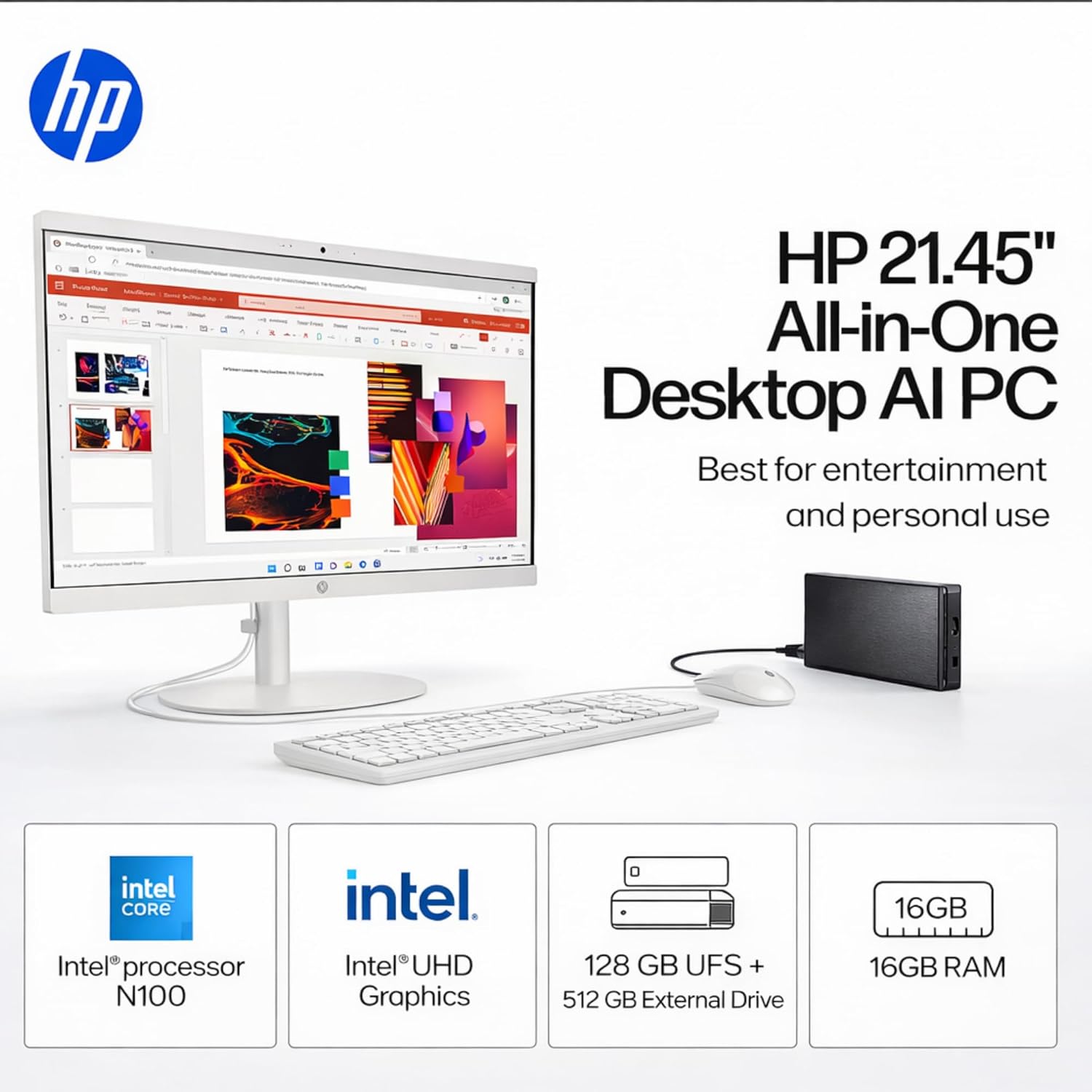

Figure 1: The HP 22 inch All-in-One Desktop PC, showcasing its sleek design with the included wired keyboard and mouse.

2. Guia de configuració

2.1 Unboxing Your PC

Traieu amb cura tots els components de l'embalatge. La caixa ha de contenir els elements següents:

• Ordinador de sobretaula tot en un HP de 22 polzades
• Computer Stand (base and arm)
• Teclat USB amb cable
• Ratolí USB amb cable
• Adaptador d'alimentació i cable
• USB Hard Drive and Cable (external storage)
• Guia d'inici ràpid i documentació

2.2 Muntatge del suport

1. Attach the stand arm to the stand base. Ensure it clicks securely into place.
2. Carefully align the assembled stand with the mounting points on the back of the HP All-in-One PC.
3. Gently push the PC onto the stand until it locks securely.

2.3 Connexió de perifèrics

Connect the wired keyboard and mouse to the available USB Type-A ports on the back of the computer.

2.4 Powering On Your PC

1. Connect the power cable to the power adapter, then plug the adapter into the power port on the back of the PC.
2. Connecteu l'altre extrem del cable d'alimentació a una presa de corrent.
3. Press the power button, usually located on the bottom right side of the display, to turn on your PC.
4. Seguiu les instruccions que apareixen a la pantalla per completar la configuració inicial del Windows 11, incloent-hi l'idioma, la regió, la connexió de xarxa i la creació del compte d'usuari.

Figura 2: Un primer pla view of the HP All-in-One PC highlighting its wireless connectivity features, USB Type-C port, Full HD display, and anti-glare panel.

3. Com fer funcionar l'ordinador

3.1 Característiques de visualització

Your HP All-in-One PC features a 21.5" Full HD (1920x1080) IPS display with an anti-glare coating. This provides sharp visuals and comfortable viewing by reducing reflections. The display also includes low blue light and flicker-free technology for reduced eye strain.

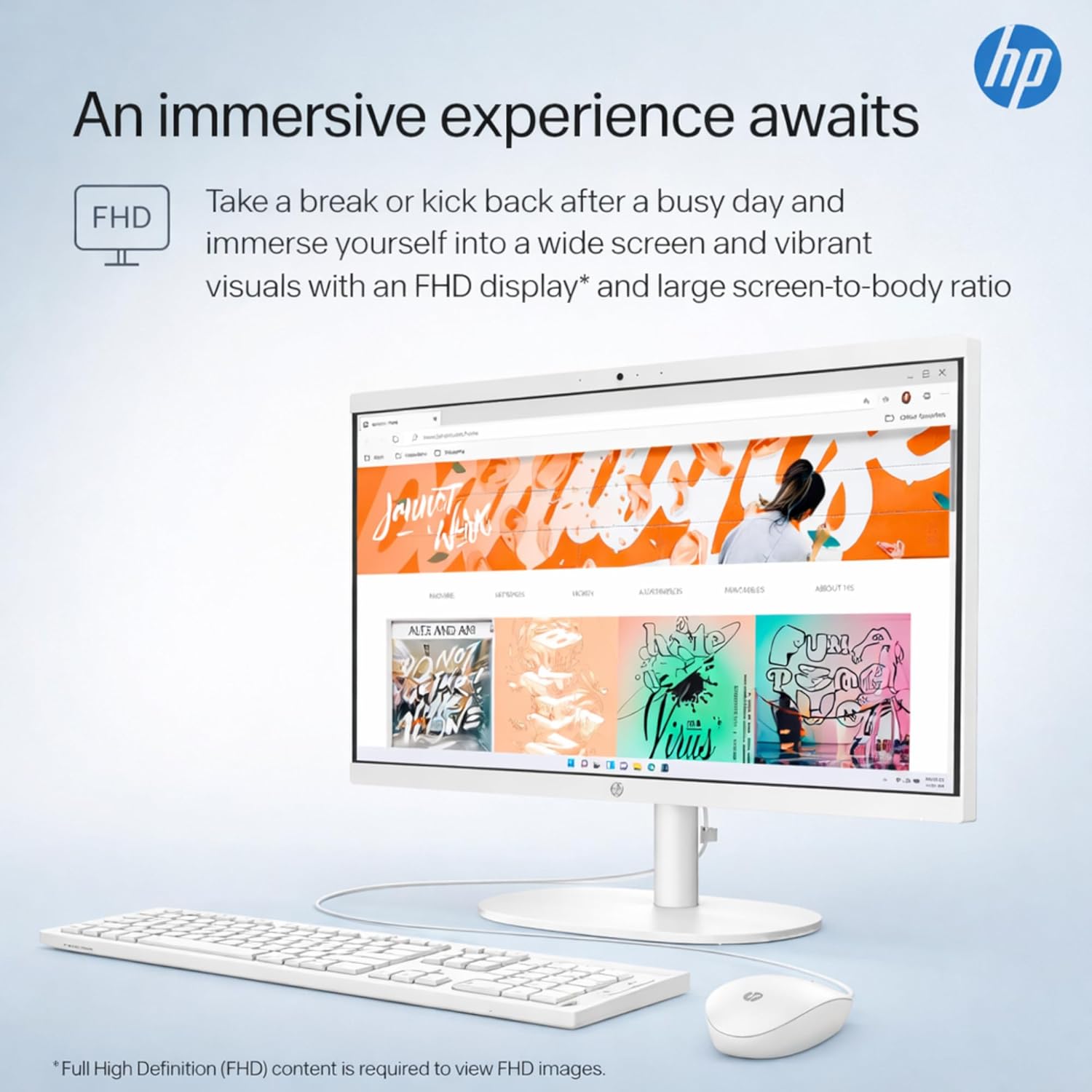

Figure 3: The HP All-in-One PC showcasing its Full HD display with vibrant colors, illustrating an immersive viewexperiència.

3.2 Processador i rendiment

Equipped with a 13th Gen Intel N100 Processor (4 cores, up to 3.4GHz) and 16GB DDR5 RAM, your PC delivers efficient performance for everyday computing, multitasking, and web browsing. The integrated Intel UHD Graphics handles visual tasks smoothly.

3.3 Emmagatzematge

The system includes 128GB UFS internal storage and a 512GB external flash drive, providing a total of 640GB storage for your documents, applications, and media.

3.4 Connectivitat

Your PC offers a variety of ports and wireless options:

• USB tipus C: 1x (5Gbps, data transfer only)
• USB tipus A: 2x Hi-Speed, 1x (5Gbps)
• Àudio: 1x 3.5mm headphone/microphone combo jack
• Xarxa: 1 port Ethernet RJ-45
• Sortida de vídeo: 1x sortida HDMI
• Sense fil: WiFi 6 i Bluetooth 5.3

Figura 4: Detall view of the rear of the HP All-in-One PC, indicating the locations of the USB Type-C, HDMI Out, and RJ-45 ports, along with other additional ports.

3.5 Àudio i Weblleva

El HD integrat webcam features a privacy shutter for enhanced security during video calls. Dual built-in microphones ensure clear audio input, complemented by high-definition stereo speakers for immersive sound output.

Figure 5: A user engaged in a video conference on the HP All-in-One PC, emphasizing the AI noise reduction feature for clear communication.

3.6 Pre-installed Software

Your PC comes with Windows 11 Home operating system and Microsoft Office 365 for the Web, providing essential productivity tools and a modern user experience.

4. Manteniment

4.1 Cleaning Your PC

• Pantalla: Utilitzeu un drap suau i sense pelusa dampNetegeu amb aigua o un netejador de pantalles. No ruixeu el netejador directament sobre la pantalla.
• Exterior: Wipe the surfaces with a soft, dry cloth. Avoid abrasive cleaners.
• Reixetes: Netegeu periòdicament la pols de les obertures de ventilació amb aire comprimit per garantir un flux d'aire adequat i evitar el sobreescalfament.

4.2 Actualitzacions de programari

Regularly check for and install operating system and driver updates to ensure your PC has the latest security patches and performance enhancements. Windows Update can be accessed via the Settings menu.

5. Solució De Problemes

If you encounter issues with your HP All-in-One PC, refer to the following common solutions:

• Sense energia: Ensure the power cable is securely connected to both the PC and the wall outlet. Try a different outlet.
• Sense pantalla: Check that the PC is powered on. If an external monitor is connected, ensure the correct input source is selected on the monitor.
• El teclat/ratolí no respon: Verify that the USB cables are firmly plugged into the PC's USB ports. Try connecting them to different USB ports.
• Sense connexió a Internet: Check your Wi-Fi connection or ensure the Ethernet cable is properly connected. Restart your router/modem.
• Rendiment lent: Close unnecessary applications, check for background processes, and ensure your system is up to date. Consider running a disk cleanup.

Per a problemes més complexos, consulteu el servei d'assistència d'HP weblloc web o poseu-vos en contacte amb el servei d'atenció al client d'HP.

6. Especificacions

Detailed technical specifications for your HP 22" FHD All-in-One Desktop PC:

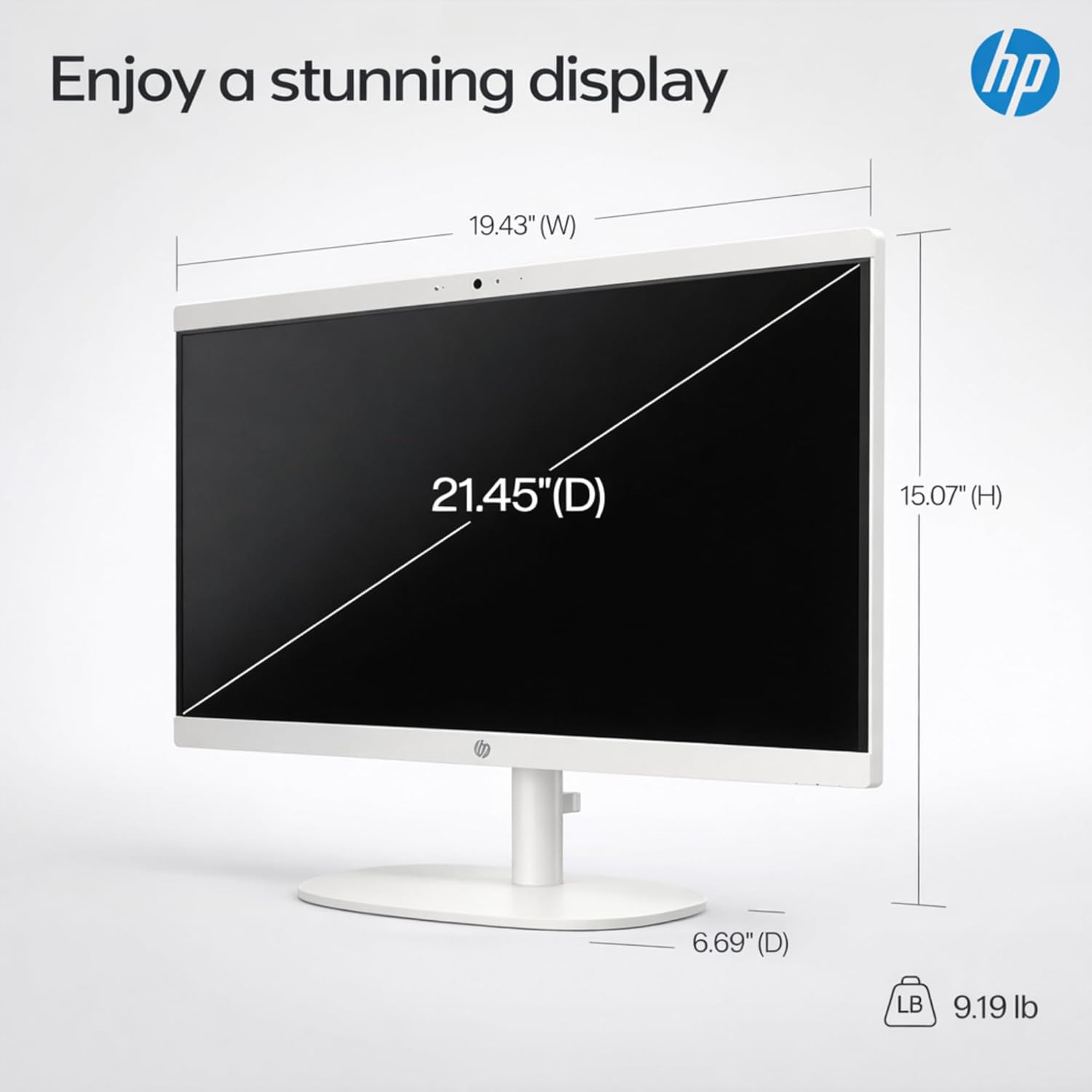

Figure 6: A diagram illustrating the physical dimensions of the HP All-in-One PC's 21.45-inch display, including width, height, and depth.

7. Garantia i Suport

For warranty information, please refer to the documentation included with your purchase or visit the official HP support website. HP provides various support resources, including drivers, troubleshooting guides, and contact options for technical assistance.
