Introducció
This manual provides detailed instructions for the proper setup, operation, maintenance, and troubleshooting of your BAOFENG AR-152 PRO Ham Radio. Please read this manual thoroughly before using the device to ensure safe and efficient operation.

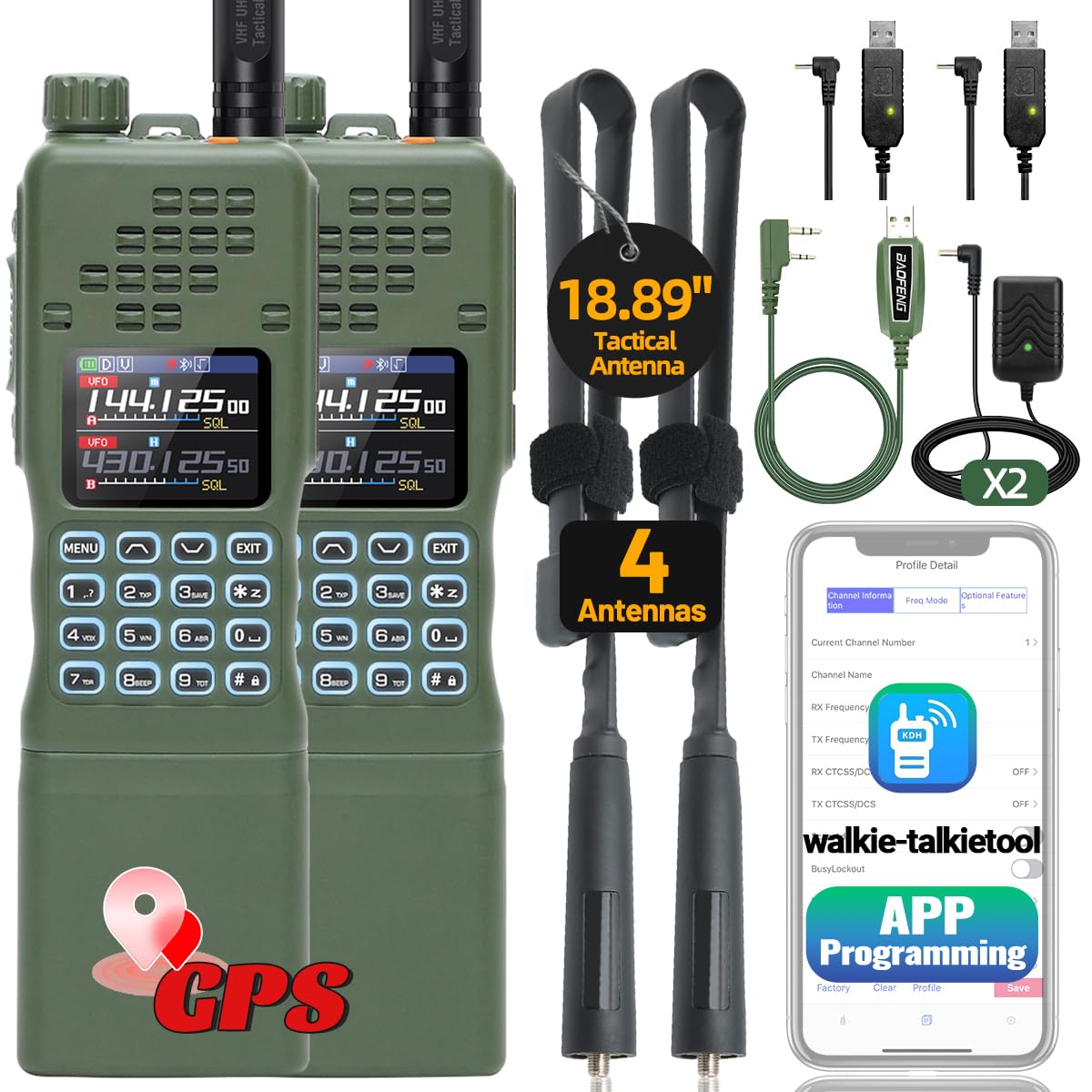

Figure 1: BAOFENG AR-152 PRO Ham Radio
Característiques clau
- 10W High Power Output for Long Range Communication
- Built-in GPS Function for Location Tracking
- APP Programming via Mobile Device
- Frequency Duplication (Copy Frequency)
- NOAA Weather Receiver with 10 Channels
- FM Radio and VOX Functionality
- Multiple Antennas (21CM and 48CM Tactical Antenna)
- 12000mAh Rechargeable Battery with USB Charging Support
Configuració
1. Contingut del paquet
Verifiqueu que tots els elements siguin presents al paquet:
- 2 x BAOFENG AR-152 PRO Radios
- 2 bateries de 12000 mAh
- 2 x 21CM Antennas
- 2 x 48CM Tactical Antennas
- 2 auriculars
- 2 x USB Charger Cables
- 2 x Wall Chargers
- 1 x cable de programació
- 1 x Manual d'usuari
2. Instal·lació i càrrega de la bateria
Abans del primer ús, carregueu completament la bateria de la ràdio.
- Alineeu la bateria amb la part posterior de la ràdio i feu-la lliscar fins que faci clic.
- Connect the USB charger cable to the 2.5mm charging port on the side of the battery.
- Plug the USB cable into the wall charger or any compatible USB power source (e.g., power bank, laptop, car charger).
- The charging indicator light will be red during charging and turn green when fully charged.
Figure 2: Battery installation and charging options
3. Fixació de l'antena
Select the appropriate antenna for your communication needs and attach it to the radio.
- Screw the desired antenna (21CM standard or 48CM tactical) clockwise onto the antenna connector at the top of the radio until it is finger-tight. Do not overtighten.
Figure 3: Attaching the tactical antenna
4. Programació d'aplicacions
The AR-152 PRO supports programming via a mobile application, eliminating the need for complex cables for basic frequency management.
- Turn on the radio and navigate to the Bluetooth settings to ensure it is enabled.
- Download and install the 'walkie-talkietool' or 'Radio Tool (AR152Pro Serirs)' application on your mobile device.
- Open the app and connect to your AR-152 PRO radio via Bluetooth.
- Follow the in-app instructions to read current radio settings, modify frequencies, and write new settings to the radio.
Figure 4: Wireless APP Programming
Video 1: Guide to APP Programming for BAOFENG AR-152 PRO Ham Radio.
Instruccions de funcionament
1. Engegada/Apagada i Volum
- To power on the radio, rotate the top knob clockwise. To power off, rotate it counter-clockwise.
- Ajusteu el volum girant el mateix botó.
2. Channel Selection and Frequency Duplication
The radio supports up to 1000 channels and features frequency duplication.
- Use the keypad to directly input frequencies or navigate through stored channels.
- To use the frequency duplication feature, activate the function (refer to the on-screen menu or APP for specific steps) and place the AR-152 PRO near another radio to quickly copy its frequency.
Vídeo 2: Acabatview of BAOFENG AR-152 PRO features, including frequency copy and GPS.
3. Tri-Power Switching (High/Mid/Low)
Adjust the transmission power to optimize battery life and range.
- The AR-152 PRO offers High (10W), Mid (8W), and Low (4W) power settings.
- Access this setting through the radio's menu or the mobile application to select the desired power level.
Figure 5: Tri-Power Output Settings
4. Funció GPS
The built-in GPS provides real-time location information.
- Activate the GPS function via the radio's menu.
- The display will show your current latitude and longitude coordinates. This feature can be used for location tracking and enhancing communication effectiveness in group settings.
Figure 6: GPS Positioning Display
5. Ràdio meteorològica de la NOAA
Rebre previsions meteorològiques i alertes d'emergència.
- Access the NOAA Weather Receiver function through the radio's menu.
- The radio can receive 10 NOAA weather channels, providing critical information during adverse weather conditions.
Figura 7: Funció de ràdio meteorològica de la NOAA
6. Ràdio FM
La ràdio inclou un receptor d'emissores FM.
- Navigate to the FM Radio option in the menu to listen to FM broadcasts.
Manteniment
1. Neteja
- Netegeu l'exterior de la ràdio amb un drap suauamp tela. No utilitzeu productes químics aggressivs ni netejadors abrasius.
- Assegureu-vos que tots els ports estiguin lliures de pols i deixalles.
2. Emmagatzematge
- Guardeu la ràdio en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- If storing for extended periods, remove the battery and charge it periodically to maintain its health.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La ràdio no s'encén | La bateria està esgotada o no està instal·lada correctament. | Charge the battery or ensure it is securely attached. |
| Sense senyal o mala recepció | Incorrect frequency/channel, antenna not properly attached, or out of range. | Verify frequency/channel settings. Check antenna connection. Move to an area with better line-of-sight. |
| Cannot program via APP | Bluetooth not enabled on radio or mobile device, incorrect model selected in app, or app not updated. | Ensure Bluetooth is active on both devices. Select 'AR-152 PRO (BLE inside)' in the app. Update the app to the latest version. |
| Durada de la bateria curta | High power setting, frequent transmission, or aging battery. | Use lower power settings when possible. Reduce transmission time. Consider replacing the battery if it's old. |
Especificacions
| Característica | Detall |
|---|---|
| Número de model | AR-152 PRO |
| Potència de sortida | 10W (High/Mid/Low Tri-Power Switching) |
| Canals | 1000 |
| Capacitat de la bateria | 12000mAh (9V battery included) |
| Característiques especials | GPS Function, APP Programming, Frequency Duplication, NOAA Weather Receiver, FM Radio, VOX, DTMF |
| Antennas Included | 21CM Antenna, 48CM Tactical Antenna |
| Mètodes de càrrega | USB Charger Cable, Wall Charger |
| Pes de l'article | 4.05 lliures |
| Dimensions del paquet | 11.34 x 8.07 x 5.59 polzades |
| Nivell de resistència a l'aigua | No resistent a l'aigua |
Garantia
Based on the provided product information, there is no explicit warranty stated for this product. Please refer to the retailer's return policy for details on returns or exchanges.
Suport
For technical assistance, programming software, or any other inquiries, please contact the after-sales service provided by the seller. They will actively assist you with your needs.
