Introducció
Thank you for choosing the ELECAENTA 12 Volt Refrigerator. This 43-quart dual-zone car fridge and portable freezer is designed for versatile use, offering powerful cooling performance from -4°F to 68°F. It supports multiple power supply methods including DC, AC, and solar, with an optional detachable battery for extended portability. This manual provides essential information for safe and efficient operation, setup, maintenance, and troubleshooting.
The ELECAENTA 43qt Dual Zone Car Refrigerator, showcasing its two compartments filled with fruits and beverages, along with a smartphone displaying its control app.
Informació de seguretat
Llegiu atentament tots els avisos i instruccions de seguretat abans d'utilitzar aquest aparell per evitar lesions o danys. Conserveu aquest manual per a futures consultes.
- Assegureu-vos que la font d'alimentació coincideixi amb el voltage requirements of the refrigerator (12/24V DC, 110-240V AC).
- No feu funcionar l'aparell si el cable d'alimentació està danyat o si l'aparell no funciona correctament.
- Mantenir les obertures de ventilació lliures d'obstruccions.
- No utilitzeu aparells elèctrics dins dels compartiments d’emmagatzematge d’aliments tret que siguin del tipus recomanat pel fabricant.
- Eviteu col·locar la nevera sota la llum solar directa o a prop de fonts de calor.
- When using in a vehicle, secure the refrigerator to prevent movement during transit.
- Desendolleu l'aparell abans de netejar-lo o fer-ne cap manteniment.
- Aquest aparell el poden utilitzar nens a partir de 8 anys i persones amb capacitats físiques, sensorials o mentals reduïdes o amb manca d'experiència i coneixements si han rebut supervisió o instruccions sobre l'ús de l'aparell d'una manera segura i entenen els perills que comporta. .
Què hi ha a la caixa
En desempaquetar, comproveu que hi hagi tots els elements següents:
- ELECAENTA 12 Volt Refrigerator (Black)
- Adaptador de CA
- Carregador de cotxe
- Cistella
- Manual d'usuari (aquest document)
Característiques del producte
- Dual Temperature Zones and Reversible Doors: Features a refrigerator/freezer combination with two zones (33 quarts and 10 quarts) and individual temperature control from -4°F to 68°F. The reversible door design offers flexible opening options.
- Multiple Power Supply Methods: Supports 12/24V DC, 110-240V AC, solar panel power supply, and optional detachable battery power (sold separately).
- Fast Cooling, Energy Saving, and Battery Protection: Offers Max mode for rapid cooling and Eco mode for energy efficiency. Includes a temperature memory function and a three-level battery protection system to prevent vehicle battery drain.
- Shockproof and Durable Design: Engineered to withstand rocky roads, shocks, and vibrations, capable of operating smoothly even when tilted up to a 45° angle for short periods. Features user-friendly handles, heavy-duty pull rods, and durable wheels for easy portability.
- High Efficiency and Low Noise: Utilizes advanced 3D refrigeration technology and a powerful compressor for fast cooling. Operates at approximately 45 decibels, ensuring quiet performance indoors or outdoors.
- Control tàctil: Easy-to-use touch panel for setting temperatures and modes.
- Llum LED: Internal LED lighting for visibility.
- Drainage Hole: Convenient drainage for easy cleaning.
An infographic highlighting key features such as dual zone, large capacity, reversible doors, battery powered, battery protection, fast cooling, shockproof and durable design, LCD control, energy saving, and USB output.
A visual representation of the 43-quart capacity, showing 33 quarts and 10 quarts zones, capable of holding 48 cans of cola, 46 bottles of water, or 25 bottles of wine.
An illustration demonstrating the low noise level of the car refrigerator, rated at ≤ 45 dB, comparable to a whisper or leaves rustling.
Configuració
1. Desembalatge i col·locació inicial
Carefully remove the refrigerator from its packaging. Place it on a flat, stable surface, ensuring adequate ventilation around all sides. Allow the unit to stand upright for at least 6 hours before connecting to power, especially if it was transported horizontally.
2. Connexió a l'alimentació
The refrigerator supports multiple power inputs:
- Alimentació de CA (ús domèstic): Use the provided AC adapter. Connect the adapter to the refrigerator's AC input port, then plug the adapter into a standard 110-240V AC wall outlet.
- DC Power (Car/Vehicle Use): Use the provided car charger. Connect the car charger to the refrigerator's DC input port, then plug the other end into your vehicle's 12V or 24V cigarette lighter socket.
Visual representation of the four charging methods: Battery Powered (sold separately), AC Charging, DC Charging, and Solar Charging (battery installation required).
3. Optional Detachable Battery Installation
If you have purchased the detachable battery (sold separately), insert it into the designated battery compartment on the side of the refrigerator until it clicks into place. Ensure it is securely connected for portable operation.

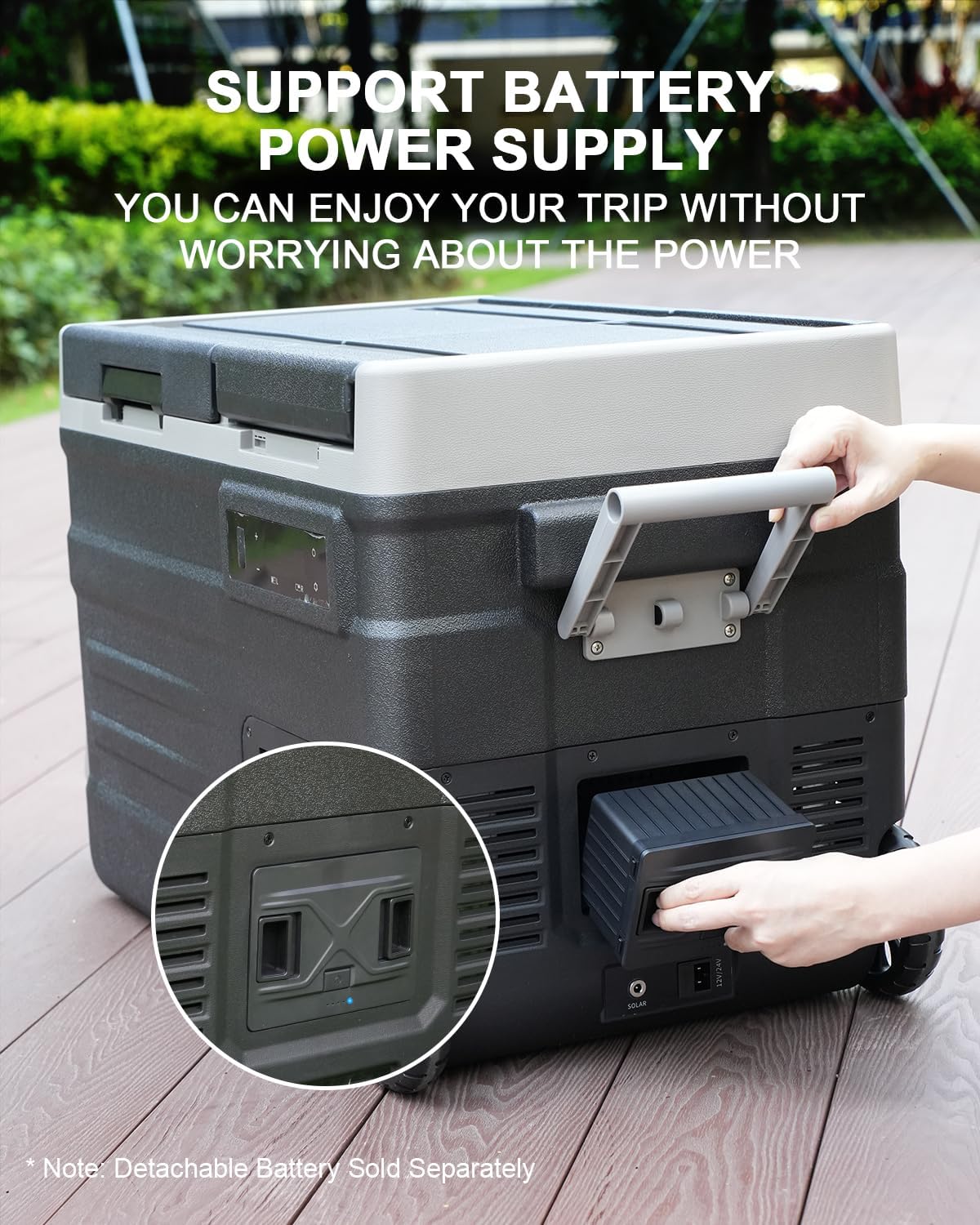

A hand demonstrating the insertion of the detachable battery into the ELECAENTA portable refrigerator, highlighting the battery power supply feature.
4. Configuració de portes reversibles
The refrigerator features reversible doors for enhanced flexibility. Refer to the detailed instructions in the separate "Reversible Door Installation Guide" (if provided) or contact customer support for assistance with changing the door hinge direction.
A visual demonstrating the user-friendly design of the refrigerator, including its reversible doors and pull handle, allowing for easy adaptation to various scenarios.
Instruccions de funcionament
1. Encès / apagat
Manteniu premut el botó d'encesa (●) on the control panel for 3 seconds to turn the refrigerator on or off. The display will illuminate when the unit is powered on.
Un primer pla view of the touch control panel, showing a finger adjusting the temperature, indicating ease of use.
2. Temperature Adjustment (Dual Zone)
The ELECAENTA refrigerator features dual temperature zones. Use the '+' and '-' buttons on the control panel to adjust the desired temperature for each compartment. The display will show the current temperature and allow you to set the target temperature. The temperature range is -4°F to 68°F (-20°C to 20°C).
Un de dalt a baix view of the dual temperature zones, one filled with meat and the other with beverages, illustrating the separate temperature control for each compartment.
A diagram illustrating four different configuration options for the dual zones: both as refrigerator, both as freezer, or one of each, providing flexibility for various cooling needs.
3. Mode Selection (Max/Eco)
La nevera ofereix dos modes de funcionament:
- Mode màxim: Proporciona un refredament ràpid per a una reducció ràpida de la temperatura.
- Mode Eco: Optimizes energy consumption for extended battery life and efficiency.
Press the 'ECO' button on the control panel to switch between Max and Eco modes.
A visual demonstrating the fast cooling capability of the refrigerator, showing it can cool from 80°F to 32°F in just 20 minutes, with a temperature range of -20°C to 20°C.
4. Battery Protection System
The unit features a three-level battery protection system to prevent your car battery from running out of power. You can select the protection level (L - Low, M - Medium, H - High) based on your needs. The factory default is H mode.
Per ajustar el nivell de protecció de la bateria:
- Press the power button for 3 seconds until the screen flashes.
- Press the power button again to cycle through the protection modes (L, M, H).
- Release the button when your desired mode is displayed. The setting will save automatically.
A table detailing the cut-out and cut-in voltages for each battery protection level (L, M, H) for both 12V and 24V DC inputs. Note: The voltage values are theoretical and may vary slightly in different scenarios.
5. Control d'aplicacions per a telèfons intel·ligents
The ELECAENTA refrigerator can be controlled via a smartphone app. Download the official ELECAENTA app from your device's app store. Follow the in-app instructions to pair your refrigerator and control settings remotely.
A smartphone displaying the ELECAENTA app interface, which allows users to monitor current temperature, adjust settings, and control the refrigerator remotely.
Manteniment
1. Neteja
To clean the refrigerator, first unplug it from all power sources. Use a soft cloth dampened with mild detergent and water to wipe down the interior and exterior surfaces. Do not use abrasive cleaners or harsh chemicals. Ensure the unit is completely dry before reconnecting power.
2 Drenatge
The refrigerator is equipped with a drainage hole for easy water removal, especially after defrosting or cleaning. Open the drainage plug located at the bottom of the unit to allow water to drain out. Close the plug securely after drainage.
A diagram highlighting the drainage hole at the bottom of the refrigerator, indicating its function for easy water removal.
3. Emmagatzematge
When storing the refrigerator for extended periods, ensure it is clean, dry, and unplugged. It is recommended to leave the lids slightly ajar to prevent odors and mold growth. Store in a cool, dry place away from direct sunlight.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La nevera no s'encén. | No hi ha subministrament elèctric; connexió fluixa; fusible fundit al vehicle. | Check power cable connections. Ensure power outlet is functional. Check vehicle's fuse box. |
| No refreda prou. | Temperature setting too high; poor ventilation; overloaded; door not sealed properly. | Lower temperature setting. Ensure adequate space around the unit for ventilation. Do not overfill. Check door seal for obstructions. |
| Mostra el codi d'error. | Mal funcionament intern; problema amb el sensor. | Refer to the specific error code in the full user manual (if available) or contact customer support. Try restarting the unit. |
| Soroll excessiu. | Unitat no anivellada; obstrucció del ventilador. | Ensure the refrigerator is on a flat, stable surface. Check for any debris obstructing the fan. |
Especificacions
| Característica | Detall |
|---|---|
| Nom de marca | ELECENTA |
| Informació del model | UD39-B |
| Pes de l'article | 39.6 lliures (18 quilograms) |
| Dimensions del producte | 18.46 x 16.02 x 27.17 polzades (27" de profunditat x 15.5" d'amplada x 18" d'alçada) |
| Capacitat | 39 litres (43 quarts) |
| Capacitat de la nevera d'aliments frescos | 40.6 litres |
| Capacitat del congelador | 40.6 litres |
| Consum anual d'energia | 60 watts |
| Tipus d'instal·lació | Autònom |
| Característiques especials | Anti-Shake, Large Capacity, Portable, Rechargeable Battery (Optional), Touch Control |
| Color | Negre |
| Voltage | 12/24 Volts (DC), 110-240 Volts (AC) |
| Sistema de descongelació | Manual |
| Frontisses de portes | Reversible |
| Nombre De Portes | 2 |
Producte acabatview Vídeo
An official product video from ELECAENTA showcasing the features and usage scenarios of the 12 Volt Refrigerator Car Fridge Cooler. This video provides a visual overview of the product's design, capacity, and portability for camping i viatjar.
Garantia i Suport
ELECAENTA products come with a standard manufacturer's warranty. For specific warranty details, registration, or to obtain technical support, please visit the official ELECAENTA weblloc web o contacteu directament amb el seu servei d'atenció al client. Conserveu el rebut de compra com a comprovant de compra.
