VEVOR Commercial Snowflake Ice Machine QLX100F2-1 User Manual

1. Introducció

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your VEVOR Commercial Snowflake Ice Machine, model QLX100F2-1. Please read these instructions thoroughly before using the appliance and retain them for future reference.

The VEVOR Commercial Snowflake Ice Machine is designed for producing snowflake ice from various liquids, suitable for commercial environments such as bakeries, cafes, and tea shops. It features an air-cooling system and an intelligent touch control panel for ease of use.

2. Instruccions de seguretat

• Assegureu-vos sempre que la màquina estigui col·locada sobre una superfície estable i anivellada.
• Do not operate the machine with wet hands or near flammable materials.
• Assegureu-vos que hi hagi una ventilació adequada al voltant de la màquina per evitar el sobreescalfament.
• Desendolleu l'aparell abans de netejar-lo o fer-ne cap manteniment.
• Mantingueu els nens i el personal no autoritzat allunyats de la màquina en funcionament.
• Use only liquids specified for ice production; avoid corrosive or highly viscous substances.
• Do not insert foreign objects into the ice outlet or any other part of the machine.
• In case of malfunction, switch off and unplug the machine immediately and contact customer support.

3. Producte acabatview

3.1 Característiques clau

• Producció eficient de gel: Produces approximately 397 lbs (180 kg) of snowflake ice per day with a 40-second pre-cooling time and 3-second rapid ice release.
• Versatile Ice Shapes: Adjustable roller speed allows for various ice textures including snow ice, spaghetti, and waterfall shapes.
• Control tàctil intel·ligent: Features a digital LED touch panel for speed adjustment, one-touch cleaning, and monitoring roller rotation speed.
• Construcció duradora: Machine body made of SUS201 stainless steel, food-grade SUS304 stainless steel roller, and 5CR15 stainless steel blade for rust resistance and easy cleaning.
• Sistema de refrigeració per aire: Ensures rapid heat dissipation for stable and continuous operation.

3.2 Components i accessoris

The VEVOR Commercial Snowflake Ice Machine comes with the following components and accessories:

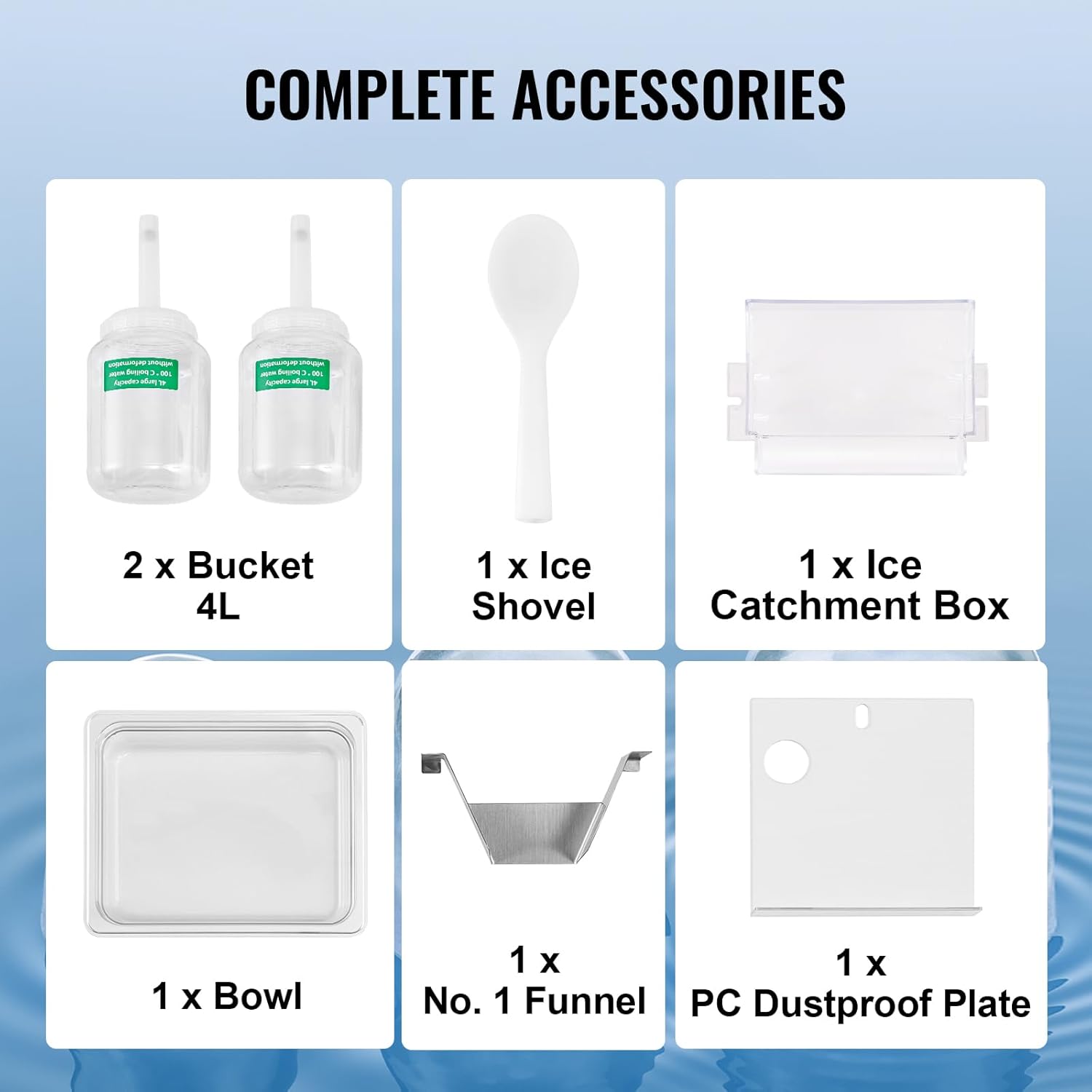

Image: Included accessories for the VEVOR Snowflake Ice Machine, showing two 4L buckets, an ice shovel, an ice catchment box, a bowl, a funnel, and a PC dustproof plate.

• 2 x 4L Buckets
• 1 x Pala de gel
• 1 x Ice Catchment Box
• 1 x Bol
• 1 x No. 1 Funnel
• 1 x PC Dustproof Plate

Imatge: Primer pla view of the ice machine's internal components, highlighting the SUS304 refrigeration roller, 5CR15 stainless steel blade, and SUS201 stainless steel shell, emphasizing durability and ease of cleaning.

4. Instruccions de configuració

1. Desembalatge: Carefully remove the machine from its packaging. Inspect for any shipping damage. Retain packaging for future transport if needed.
2. Col·locació: Place the ice machine on a stable, level, and dry surface. Ensure there is adequate space around the machine (at least 10 cm on all sides) for proper air circulation and heat dissipation, especially around the air cooling grille.
3. Connexió d'alimentació: Connecteu el cable d'alimentació a una presa de corrent amb connexió a terra que coincideixi amb el volum de la màquina.tagrequisits electrònics (vegeu les especificacions).
4. Neteja inicial: Before first use, clean all parts that will come into contact with liquids, including the roller and ice catchment area, according to the cleaning instructions in Section 6.
5. Liquid Reservoir: Place the liquid reservoir (bucket) securely on top of the machine. Ensure it is properly seated to allow liquid to flow into the ice-making mechanism.

Image: The VEVOR Commercial Snowflake Ice Machine with a liquid reservoir placed on top, ready for operation in a kitchen setting.

5. Instruccions de funcionament

1. Fill Liquid Reservoir: Pour your desired liquid (e.g., sugar drinks, fruit juice, milk, alcoholic beverages with less than 10% alcohol content) into the 4L bucket placed on top of the machine.
2. Encès: Press and hold the "ON/OFF" button on the digital LED touch screen for 2 seconds to start the machine. The machine will begin its pre-cooling cycle.
3. Producció de gel: After the pre-cooling phase (approximately 40 seconds), the machine will start producing snowflake ice. Ice will be released in about 3 seconds.
4. Adjust Roller Speed (Ice Shape):


   Image: Close-up of the digital LED touch screen and the ice-making roller, illustrating the adjustable roller speed feature for different ice textures.

   Utilitzeu el cap amunt (▲) i cap avall (▼) arrow buttons on the control panel to adjust the roller's rotation speed. Different speeds will produce different ice textures:

   • Fine Snow Ice Shape: Typically achieved at higher roller speeds.
   • Refreshing Spaghetti Shape: Achieved at moderate roller speeds.
   • Smooth Waterfall Shape: Achieved at lower roller speeds.

   The display screen will show the current roller rotation speed for monitoring.

5. Atura l'operació: To stop ice production, press the "ON/OFF" button again.
6. Empty Ice Catchment: Regularly empty the ice catchment box to prevent overflow and ensure continuous operation.

5.1 Guia de vídeo operativa

6. Manteniment

6.1 Neteja diària

1. One-Touch Cleaning: The machine is equipped with a one-touch cleaning function. Press the "Clean" button on the control panel to initiate an automatic cleaning cycle.
2. Neteja manual: For thorough cleaning, unplug the machine. Remove the liquid reservoir and ice catchment box. Wash these components with mild soap and warm water. Rinse thoroughly and dry completely before reassembling.
3. Netejar l'exterior: Netegeu l'exterior de la màquina amb anunciamp drap. No utilitzeu productes de neteja abrasius ni submergiu la unitat principal en aigua.

Image: The digital LED touch screen of the VEVOR Snowflake Ice Machine, highlighting the "Clean" button for easy maintenance.

6.2 Emmagatzematge a llarg termini

If the machine will not be used for an extended period, perform a thorough cleaning. Ensure all parts are dry. Store the machine in a cool, dry place, covered to protect it from dust.

7. Solució De Problemes

For issues not listed above, please contact VEVOR customer support for assistance.

8. Especificacions

Image: Diagram showing the dimensions of the VEVOR Commercial Snowflake Ice Machine and a summary of its key specifications.

9. Garantia i Suport

VEVOR products are designed for durability and performance. For warranty information, product registration, or technical support, please visit the official VEVOR weblloc web o contacteu directament amb el seu servei d'atenció al client.

Podeu trobar més informació i suport a Botiga VEVOR a Amazon.
