ZIBOO 15B PRO True RMS Digital Multimeter User Manual

1. Informació de seguretat

Before using the ZIBOO 15B PRO Digital Multimeter, please read and understand all safety instructions. Failure to follow these instructions may result in electric shock, fire, or personal injury.

1.1 Pautes generals de seguretat

• Assegureu-vos sempre que el multímetre estigui en la funció i el rang correctes abans de fer mesures.
• No utilitzeu el multímetre si sembla que està danyat o si els cables de prova estan compromesos.
• Observe all safety precautions for working with electricity, including wearing appropriate personal protective equipment (PPE).
• No supereu mai els valors d'entrada màxims per a cap funció.
• The device is rated CAT III 600V and CAT II 1000V. Adhere to these ratings for safe operation.
• The multimeter features double fuse protection to prevent damage from overload.

2. Producte acabatview

The ZIBOO 15B PRO True RMS Digital Multimeter is a compact and reliable tool designed for a wide range of electrical testing applications. It offers accurate measurements for AC/DC voltage, AC/DC current, resistance, continuity, diode, capacitance, and duty cycle. Its True RMS capability ensures precise readings for non-sinusoidal waveforms.

Figura 1: Frontal view of the ZIBOO 15B PRO Digital Multimeter, showing the display, rotary dial, and function buttons.

2.1 Característiques clau

• RMS veritable: Provides accurate measurements for both sinusoidal and non-sinusoidal AC waveforms.
• Visualització de 6000 comptes: High-resolution display for precise readings.
• Volum AC / DCtage: Measures up to 1000V.
• Corrent CA/CC: Measures up to 10A (optional current clamp for up to 600A).
• Resistance, Continuity, Diode, Capacitance, Duty Cycle: Essential functions for comprehensive electrical troubleshooting.
• VFD AC 600V: Variable Frequency Drive measurement capability.
• NCV/LIVE: Vol. Sense contactetage and Live Wire Detection with Red LED Flash.
• Conservació de dades: Congela la lectura mostrada per facilitar el registre.
• Il·luminació de fons: Bright white backlight for clear visibility in various lighting conditions.
• C protectoraasing: Durable outer casing for enhanced protection.

Figure 2: Visual representation of the various measurement functions available on the multimeter.

2.2 Què hi ha a la caixa

• ZIBOO 15B PRO Digital Multimeter
• Multimeter Test Leads (Red and Black)
• Protective Caps for Test Leads
• Manual d'usuari

Note: AC pliers are an optional accessory and are not included with the standard package.

3. Configuració

3.1 Instal·lació de la bateria

1. Assegureu-vos que el multímetre estigui apagat.
2. Localitzeu el compartiment de la bateria a la part posterior del dispositiu.
3. Unscrew the single Phillips #1 screw to open the compartment.
4. Insert three AA 1.5V batteries, observing correct polarity.
5. Substituïu la tapa del compartiment de la bateria i fixeu-la amb el cargol.

3.2 Connexió dels cables de prova

1. Inseriu el cable de prova negre al connector 'COM' (comú).
2. Per a la majoria de mesures (voltage, resistance, continuity, diode, capacitance, frequency, duty cycle), insert the red test lead into the 'VΩHz' jack.
3. Per a mesures de corrent de fins a 10 A, inseriu el cable de prova vermell a la presa '10 A'.
4. Per mil·liampere (mA) or microampere (µA) measurements, insert the red test lead into the 'µAmA' jack.

Figure 3: The ZIBOO 15B PRO Multimeter with its test leads, showing the connection points.

4. Instruccions de funcionament

4.1 Engegada/Apagada i Visualització

Turn the rotary dial from 'OFF' to any desired function to power on the multimeter. To power off, turn the dial back to 'OFF'. The device features an automatic power-off function to conserve battery life. Press the LED button to activate or deactivate the display backlight for improved visibility.

4.2 Funcions de mesura

Rotate the dial to select the desired measurement function. Use the MODE button to toggle between different sub-functions within a dial position (e.g., AC/DC voltage, NCV/LIVE).

1. VoltagMesura (CA/CC):
   Set the dial to 'V~' for AC voltage o 'V=' per a vol DCtage. Connect the test leads in parallel to the circuit or component being measured. The display will show the voltage lectura.
2. Mesura de corrent (CA/CC):
   Set the dial to 'A~' for AC current or 'A=' for DC current. Ensure the red test lead is in the appropriate current jack (10A or µAmA). Connect the multimeter in series with the circuit.
3. Resistance Measurement (Ω):
   Set the dial to 'Ω'. Connect the test leads across the component. Ensure the circuit is de-energized before measuring resistance.
4. Prova de continuïtat ():
   Set the dial to 'Ω' and press MODE until the continuity icon appears. A buzzer will sound and a green LED will flash if continuity is detected (low resistance).
5. Prova de díodes ():
   Set the dial to 'Ω' and press MODE until the diode icon appears. Connect the test leads across the diode.
6. Capacitance Measurement (F):
   Set the dial to 'F'. Connect the test leads across the capacitor. Ensure the capacitor is discharged before measurement.
7. NCV (vol sense contacte).tage) / LIVE (Live Wire Detection):
   Set the dial to 'NCV LIVE'. The multimeter will detect AC voltage without direct contact. 'L' indicates a live wire with voltage, accompanied by a red LED flash and buzzer. 'EF' indicates non-contact detection.

Figure 4: The multimeter's NCV function detecting voltage near an electrical outlet, indicated by 'EF' on the display.

4.3 Funcions especials

• MANTENIR: Premeu el botó MANTENIM per congelar la lectura actual a la pantalla. Premeu-la de nou per alliberar-la.
• MIN / MAX: Premeu el botó MIN / MAX button to record the minimum and maximum values during a measurement session. Press again to cycle through MIN, MAX, and current readings.
• GAMMA: Premeu el botó GAMMA button to switch between auto-ranging and manual ranging.

5. Manteniment

5.1 Neteja

Netegeu el multímetre casing amb anunciamp cloth and mild detergent. Do not use abrasive cleaners or solvents. Ensure the device is completely dry before use.

5.2 Substitució de la bateria

When the battery indicator appears on the display, replace the batteries as described in Section 3.1. Always use three new AA 1.5V batteries.

5.3 Canvi de fusibles

The multimeter is equipped with internal fuses for protection. If a current measurement function stops working, the fuse may need replacement. To access the fuses, open the battery compartment (Section 3.1). The fuses are located inside. Replace with fuses of the correct type and rating (e.g., 10A/1000V and 500mA/1000V).

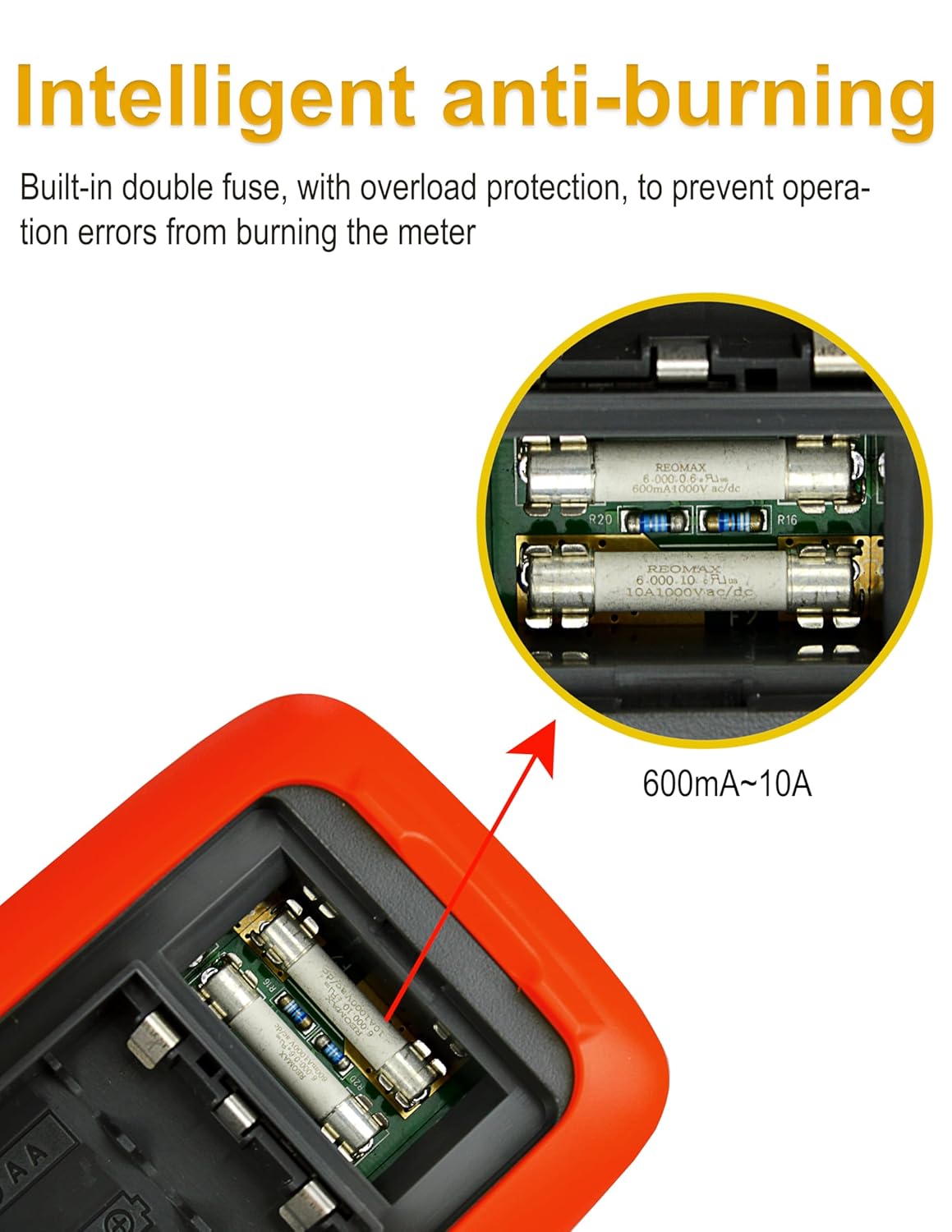

Figura 5: Intern view highlighting the double fuse protection for safety and durability.

5.4 Cura dels cables de prova

The test leads come with protective caps. Use these caps to protect the sharp tips when not in use or when measuring in situations where only a short tip is required. This helps prevent damage to the probes and ensures safety.

6. Solució De Problemes

If you encounter issues with your ZIBOO 15B PRO Digital Multimeter, refer to the following common troubleshooting steps:

• Sense pantalla/Pantalla tènue: Check battery levels and replace if necessary. Ensure the multimeter is powered on.
• Lectures incorrectes: Verify the test leads are correctly inserted into the appropriate jacks for the selected function. Ensure the rotary dial is set to the correct measurement type and range. Check for damaged test leads.
• Current Function Not Working: The internal fuse for current measurement may have blown due to an overload. Replace the fuse as described in Section 5.3.
• Continuity Buzzer Not Sounding: Ensure the multimeter is in continuity mode. Check for open circuits or high resistance.

For persistent issues, consult the manufacturer's support resources.

7. Especificacions

Note: Accuracy specifications are typical values and may vary slightly.

Figure 6: A detailed table outlining the technical specifications for the ZIBOO 15B PRO multimeter.

8. Garantia i Suport

For warranty information and customer support, please refer to the official ZIBOO website or contact the seller directly through the platform where the product was purchased. Standard return policies typically apply (e.g., 30-day return window).
