Poly Studio V52 USB Video Bar Instruction Manual

1. Introducció

This manual provides instructions for the installation, operation, and maintenance of the Poly Studio V52 USB Video Bar. The Poly Studio V52 is designed for medium-sized meeting rooms, offering 4K UHD video conferencing capabilities with advanced AI features for an enhanced collaborative experience.

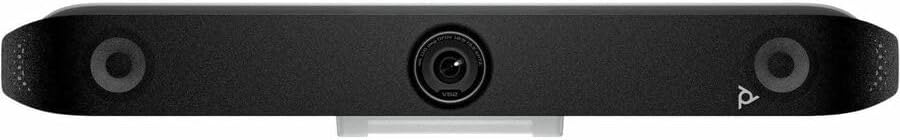

Figura 1.1: Davant view of the Poly Studio V52 USB Video Bar, showcasing the central camera and integrated speakers.

2. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet abans de continuar amb la instal·lació:

• Poly Studio V52 USB Video Bar
• Adaptador d'alimentació i cable
• USB Cable (Type-A to Type-C or Type-C to Type-C, depending on model)
• Cable HDMI
• Wall Mount Kit (if included)
• Guia d'inici ràpid
• Informació sobre seguretat i normativa

3. Producte acabatview

The Poly Studio V52 integrates a 4K camera, powerful speakers, and advanced microphones into a single device. Key features include:

• 4K UHD Camera: 20 Megapixel sensor with a 95° Field of View (FOV) and 5x digital zoom for clear visuals.
• Àudio integrat: 4-way speakers deliver room-filling sound, complemented by advanced microphone arrays.
• Director d'IA de Poly: Intelligent camera framing to keep participants in view.
• NoiseBlockAI & Acoustic Fence: Technologies for noise reduction and clear voice pickup.
• Connectivitat flexible: USB for host connection, HDMI for display output, and RJ-45 for network.

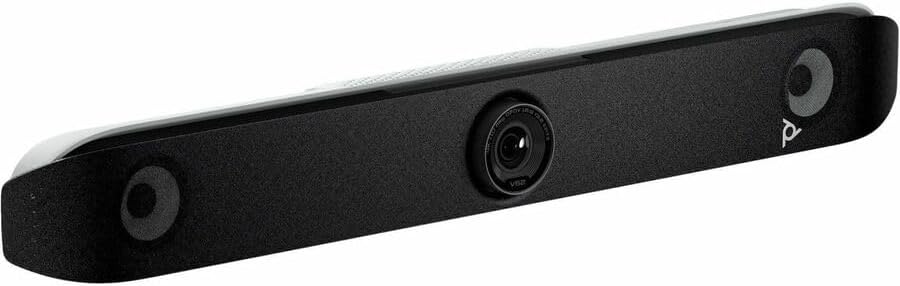

Figura 3.1: En angle view of the Poly Studio V52, highlighting its sleek design and integrated components.

Figura 3.2: posterior view of the Poly Studio V52, illustrating the various connectivity ports including USB, HDMI, and Ethernet.

4. Configuració

4.1 Col·locació física

Position the Poly Studio V52 either above or below your display in the meeting room. Ensure it has a clear line of sight to all participants. If using a wall mount, follow the instructions provided with the wall mount kit.

4.2 Cables de connexió

1. Connectar l'alimentació: Plug the power adapter into the Poly Studio V52 and then into a power outlet.
2. Connectar USB: Connect one end of the USB cable to the USB port on the Poly Studio V52 and the other end to a USB port on your meeting room PC or laptop. This connection enables video, audio, and device control.
3. Connect HDMI Out: Connect an HDMI cable from one of the HDMI Out ports on the Poly Studio V52 to an HDMI input on your display(s). The Poly Studio V52 has two HDMI Out ports for dual display support.
4. Connect HDMI In (Optional): If you need to share content from another device (e.g., a laptop) directly through the video bar, connect an HDMI cable from that device to the HDMI In port on the Poly Studio V52.
5. Connecta la xarxa (opcional): For network management or specific conferencing platforms, connect an Ethernet cable from the RJ-45 port on the Poly Studio V52 to your network switch or router.

Once connected, the device will power on automatically or can be powered on via its power button (if present).

5. Instruccions de funcionament

5.1 Encès inicial

After connecting power, the Poly Studio V52 will typically power on and perform a self-check. Indicators on the device will show its status.

5.2 Using with Conferencing Software

The Poly Studio V52 functions as a standard USB video and audio device. To use it with your preferred video conferencing application (e.g., Zoom, Microsoft Teams, Google Meet):

1. Launch your video conferencing application on the connected PC.
2. Navigate to the application's audio and video settings.
3. Select "Poly Studio V52" as the camera, microphone, and speaker device.
4. Adjust volume and other settings as needed within the application.

5.3 Camera Control and AI Features

The Poly Studio V52 features Poly DirectorAI for automatic camera framing. This technology automatically adjusts the camera to keep all participants in view or to focus on the active speaker. Manual camera controls (pan, tilt, zoom) may be available through the conferencing application or a dedicated Poly management application, if installed.

6. Manteniment

6.1 Neteja del dispositiu

Per mantenir un rendiment i un aspecte òptims:

• Assegureu-vos que el dispositiu estigui apagat i desconnectat abans de netejar-lo.
• Feu servir un drap suau, sec i sense borrissol per netejar les superfícies exteriors.
• Per a marques difícils, esbandiu lleugeramentampRenta el drap amb aigua. Evita fer servir productes químics agressius, netejadors abrasius o dissolvents.
• Gently clean the camera lens with a lens cleaning cloth, if necessary.

6.2 actualitzacions de microprogramari

Periodically check for firmware updates from the manufacturer's website. Firmware updates can provide new features, performance improvements, and bug fixes. Follow the manufacturer's instructions for applying updates.

7. Solució De Problemes

8. Especificacions

9. Garantia i Suport

The Poly Studio V52 USB Video Bar is covered by a manufacturer's warranty. For specific warranty terms, duration, and conditions, please refer to the warranty documentation included with your product or visit the official HP/Poly support weblloc.

For technical support, driver downloads, firmware updates, and additional resources, please visit the official Poly support portal or contact HP customer service. Keep your product model number (V52) and serial number ready when contacting support.

Assistència en línia: https://www.poly.com/us/en/support
