1. Introducció
This manual provides essential information for the proper use and maintenance of your VENTION Cat6 RJ45 Ethernet Extension Cable. This cable is designed to extend the reach of your existing Ethernet network, ensuring stable and high-speed data transmission.
Image: The VENTION Cat6 RJ45 Ethernet Extension Cable connected to a laptop, illustrating its function in extending network reach with 1000Mbps speed.
2. Característiques del producte
- Extensió de cable: Extends existing Cat 6 Ethernet cables, preventing the need to purchase longer cables and protecting device ports from wear.
- Transmissió d'alta velocitat: Supports data transfer speeds up to 1000 Mbps and a bandwidth of 250MHz, ensuring consistent network performance.
- Advanced Shielding: Constructed with 4 pairs of copper conductors, each shielded with aluminum foil, and an overall aluminum foil braided mesh for double shielding against signal interference.
- Disseny durador: Designed for durability, capable of withstanding over 10,000 bends and operating in temperatures from -15 to 65 degrees Celsius, suitable for indoor and outdoor applications.
- Compatibilitat universal: Universally compatible with all Cat 6 Ethernet cables, and backward compatible with Cat 5 and 5e cables. Connects various LAN components including PCs, laptops, servers, switches, routers, modems, smart TVs, and gaming consoles (PS5, PS4).

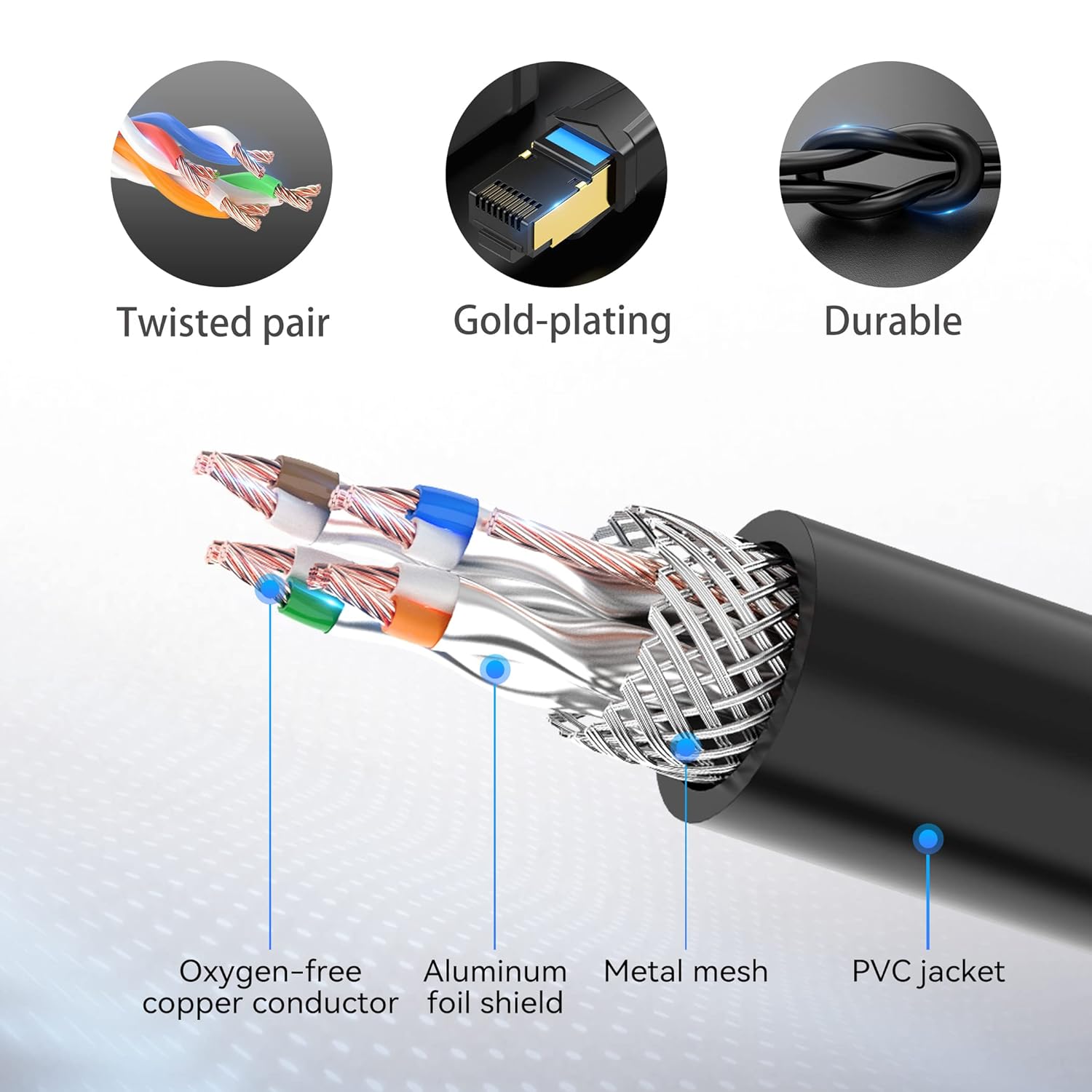

Image: Detailed diagram illustrating the internal construction of the VENTION Ethernet cable, highlighting its oxygen-free copper conductors, aluminum foil shielding, and metal mesh for enhanced performance and durability.
Imatge: Un primer pla view of the VENTION RJ45 connector, showcasing its gold-plated contacts for optimal signal integrity.
3. Configuració
The VENTION Cat6 RJ45 Ethernet Extension Cable is designed for simple plug-and-play installation.
- Identificar els punts de connexió: Locate the existing Ethernet cable you wish to extend and the device (e.g., computer, router) you want to connect.
- Connect Existing Cable: Plug the male end of your existing Ethernet cable into the female port of the VENTION extension cable. Ensure a secure connection.
- Connecta't al dispositiu: Plug the male end of the VENTION extension cable into the Ethernet port of your desired device.
- Verifica la connexió: Check the network status indicators on your device or router to confirm a successful connection.
Image: The VENTION Ethernet Extension Cable in use, extending the reach of a standard Ethernet cable to a laptop, demonstrating a typical setup.
4. Instruccions de funcionament
Once connected, the VENTION Cat6 RJ45 Ethernet Extension Cable operates automatically to extend your network signal. No additional software or configuration is required.
- The cable maintains the data transfer speed and bandwidth of your Cat6 network.
- It is compatible with various network devices and applications, including internet browsing, streaming, online gaming, and data transfer.
Image: An illustration demonstrating the broad compatibility of the VENTION Ethernet Extension Cable with common network devices such as PCs, laptops, routers, and smart TVs.
5. Manteniment
To ensure the longevity and optimal performance of your VENTION Ethernet Extension Cable, follow these maintenance guidelines:
- Eviteu corbes pronunciades: While durable, avoid excessively sharp bends or kinks in the cable to prevent internal damage.
- Mantingueu els connectors nets: Periodically inspect the RJ45 connectors for dust or debris. Use a soft, dry cloth or compressed air to clean them if necessary.
- Connexions segures: Ensure both ends of the extension cable are securely plugged in to prevent intermittent connections.
- Interval de temperatura: Operate the cable within its specified temperature range of -15 to 65 degrees Celsius.
- Emmagatzematge: When not in use, store the cable in a clean, dry place, ideally coiled loosely to prevent tangling or damage.
6. Solució De Problemes
If you encounter issues with your Ethernet extension cable, consider the following troubleshooting steps:
| Problema | Causa possible | Solució |
|---|---|---|
| Sense connexió de xarxa | Loose connection, faulty cable, incorrect port. | Ensure all RJ45 connectors are fully seated. Test with a different Ethernet cable or port. Check device network settings. |
| Velocitat de xarxa lenta | Cable damage, interference, network congestion. | Inspect the cable for visible damage. Ensure the cable is not near strong electromagnetic sources. Restart your router and device. |
| Connexió intermitent | Loose connection, cable stress. | Firmly re-seat all connections. Avoid pulling or stressing the cable. |
7. Especificacions
Detailed technical specifications for the VENTION Cat6 RJ45 Ethernet Extension Cable:
- Marca: VENCIÓ
- Número de model: IBL
- Tipus de connector: RJ45
- Tipus de cable: Ethernet
- Ethernet Cable Category: Cat 6 (backward compatible with Cat 5, 5e)
- Gènere del connector: Mascle a Dona
- Velocitat de transferència de dades: 1000 Megabytes Per Second (1 Gbps)
- Freqüència: 250 MHz
- Nombre de pins: 8
- Característiques especials: Braided, Data Transfer, High Speed, Double Shielded (Aluminum Foil Shield, Metal Mesh)
- Material del conductor: Coure sense oxigen
- Material de la jaqueta: PVC
- Forma: Ronda
- Pes de l'article: 45 grams (1.59 unces)
- Entorn d'ús: Interior, Exterior
- Durabilitat: Withstands 10,000+ bends
- Temperatura de funcionament: -15 a 65 graus centígrads
- Dispositius compatibles: PC, Router, Laptops, Servers, Switches, Modems, Network Media Players, Smart TVs, Network Printers, PS5, PS4
Image: A Fluke Networks test report confirming the VENTION Ethernet cable meets Cat6 network standards, indicating reliable performance.
Image: A diagram providing the precise dimensions of the VENTION RJ45 male and female connectors in millimeters, useful for installation planning.
8. Vídeo oficial del producte
Video: An official product video from Vention Official Store demonstrating the features and use of the Ethernet extension cable. Duration: 0:30.
9. Garantia i Suport
VENTION products are manufactured to high-quality standards. For specific warranty information and customer support, please refer to the product packaging or visit the official VENTION website. If you have any questions or require assistance, please contact VENTION customer service.
