Introducció

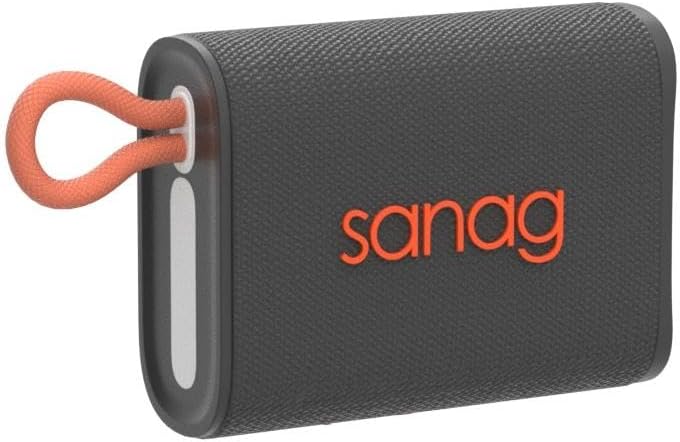

The Sanag M13S Pro is an ultra-portable Bluetooth speaker designed for high-quality audio on the go. It features dynamic RGB lighting, powerful 360° stereo sound with enhanced bass, and IPX7 waterproofing for durability in various environments. With Bluetooth 5.3 connectivity and an 18-hour playtime, it offers a seamless and extended listening experience. This manual provides essential information for setting up, operating, and maintaining your speaker.
Què hi ha a la caixa
- RGB Portable Bluetooth Speaker
- Cable de càrrega tipus C.
- Cable Aux
- Manual d'usuari
Característiques del producte
- Beat-Driven RGB Light Show: Dynamic lighting effects pulsate and sparkle to the beat of your music.
- So estèreo d'alta fidelitat: Full-range drivers and passive radiators deliver powerful 360° stereo sound with enhanced bass, tight mids, and crystal-clear highs. Advanced digital signal processor ensures distortion-free sound.
- IPX7 Impermeable: Designed to withstand water splashes, spray, and rain, making it suitable for outdoor use.
- Ultra Portable Design: Compact size with an integrated loop for easy carrying.
- Clear Call & 18H Playtime: Built-in noise-cancelling microphone for crystal clear calls and up to 18 hours of continuous music playback.
Configuració
Carregant l'altaveu
Before first use, fully charge the speaker. Connect the provided Type-C charging cable to the speaker's charging port and a suitable USB power source. The charging indicator light will show the charging status.
Emparellament Bluetooth
- Power on the speaker by pressing and holding the power button. The RGB light will begin to flash, indicating it is in pairing mode.
- Al dispositiu (telèfon intel·ligent, tauleta, etc.), activeu el Bluetooth i cerqueu els dispositius disponibles.
- Select "Sanag M13S Pro" from the list of devices.
- Once connected, the speaker will emit a confirmation tone, and the RGB light will stop flashing and display a steady pattern.
Vídeo: This video demonstrates the unboxing and initial setup of the Sanag Bluetooth Speaker, including how to power it on and connect it via Bluetooth to a mobile device. It highlights the speaker's compact size and features.
Instruccions de funcionament
Encès/Apagat
Press and hold the power button (usually marked with 'O') for a few seconds to turn the speaker on or off.
Control de volum i pista
- Pujar el volum: Premeu breument el botó '+'.
- Baixar el volum: Premeu breument el botó '-'.
- Pista següent: Premeu llargament el botó '+'.
- Pista anterior: Premeu llargament el botó '-'.
- Reproduir/pausa: Short press the power button ('O').
Modes de llum RGB
The speaker features multiple RGB light modes. To switch between modes, press the power button ('O') three times quickly. Available modes include:
- Gradient mode (music-synced light changes between various colors).
- Flowing mode (light changes brightness according to music volume).
- No indicator mode (lights off to conserve battery).
Vídeo: This video from the seller demonstrates the RGB pulsing light feature of the Sanag M13S Pro speaker, showcasing how the lights react to music.
Reproducció de targetes TF
Insert a TF (Micro SD) card with pre-loaded music into the designated slot. The speaker will automatically switch to TF card mode and begin playback. To switch back to Bluetooth mode, double-click the power button ('O').
Trucades mans lliures
The built-in noise-cancelling microphone allows for clear hands-free calls. When a call comes in, short press the power button ('O') to answer or end the call. Long press to reject a call.
Manteniment
Protecció impermeable (IPX7)
The Sanag M13S Pro is IPX7 waterproof, meaning it can be submerged in up to 1 meter of water for 30 minutes. Ensure the rubber flap covering the charging port and TF card slot is securely closed before exposing the speaker to water. After exposure to water, wipe the speaker dry with a soft cloth.
Atenció General
Clean the speaker with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials. Store the speaker in a cool, dry place when not in use.
Resolució de problemes
- L'altaveu no s'encén: Assegureu-vos que l'altaveu estigui completament carregat.
- No es pot emparellar per Bluetooth: Make sure the speaker is in pairing mode (flashing RGB light) and your device's Bluetooth is enabled. Try restarting both the speaker and your device.
- Sense so: Check the volume levels on both the speaker and your connected device. Ensure the speaker is correctly paired.
- Les llums RGB no funcionen: Cycle through the RGB light modes by pressing the power button three times quickly. Ensure the speaker is not in "No indicator mode."
Especificacions
| Característica | Especificació |
|---|---|
| Nom del model | M13 |
| Tipus d'altaveu | Subwoofer |
| Característica especial | Portàtil |
| Tecnologia de comunicació sense fils | Bluetooth 5.3 |
| Nivell de resistència a l'aigua | Impermeable (IPX7) |
| Potència de sortida màxima dels altaveus | 10 watts |
| Pes de l'article | 7.7 unces |
| Dimensions del producte | 3.03 "P x 3.8" W x 1.6" H |
| Font d'alimentació | Funciona amb bateria (1 bateria de polímer de liti inclosa) |
| Mode de sortida d'àudio | estèreo |
| Dispositius compatibles | iPhone, Samsung, Xiaomi, OnePlus |
Garantia i Suport
Sanag is committed to your satisfaction. We provide a 30-day no-reason return policy and a 180-day warranty. If you encounter any problems, please contact us promptly through one of the following options:
- Go to your Amazon account: [Account Service] > [Order History] > [Seller Contact].
- Click on our business name "NIEWEILI-US" on the product page, then click the yellow "Questions" button to send us an email.
