Manual d'usuari de la càmera frontal i posterior del salpicader Nextbase 222x

Introducció

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Nextbase 222x Front and Rear Dash Cam. Please read this manual thoroughly before using the device to ensure proper functionality and safety.

The Nextbase 222x is designed to record high-quality video footage of your journeys, offering enhanced security and peace of mind on the road. It features 1080p HD recording, a 140-degree wide viewing angle, and an intelligent parking mode.

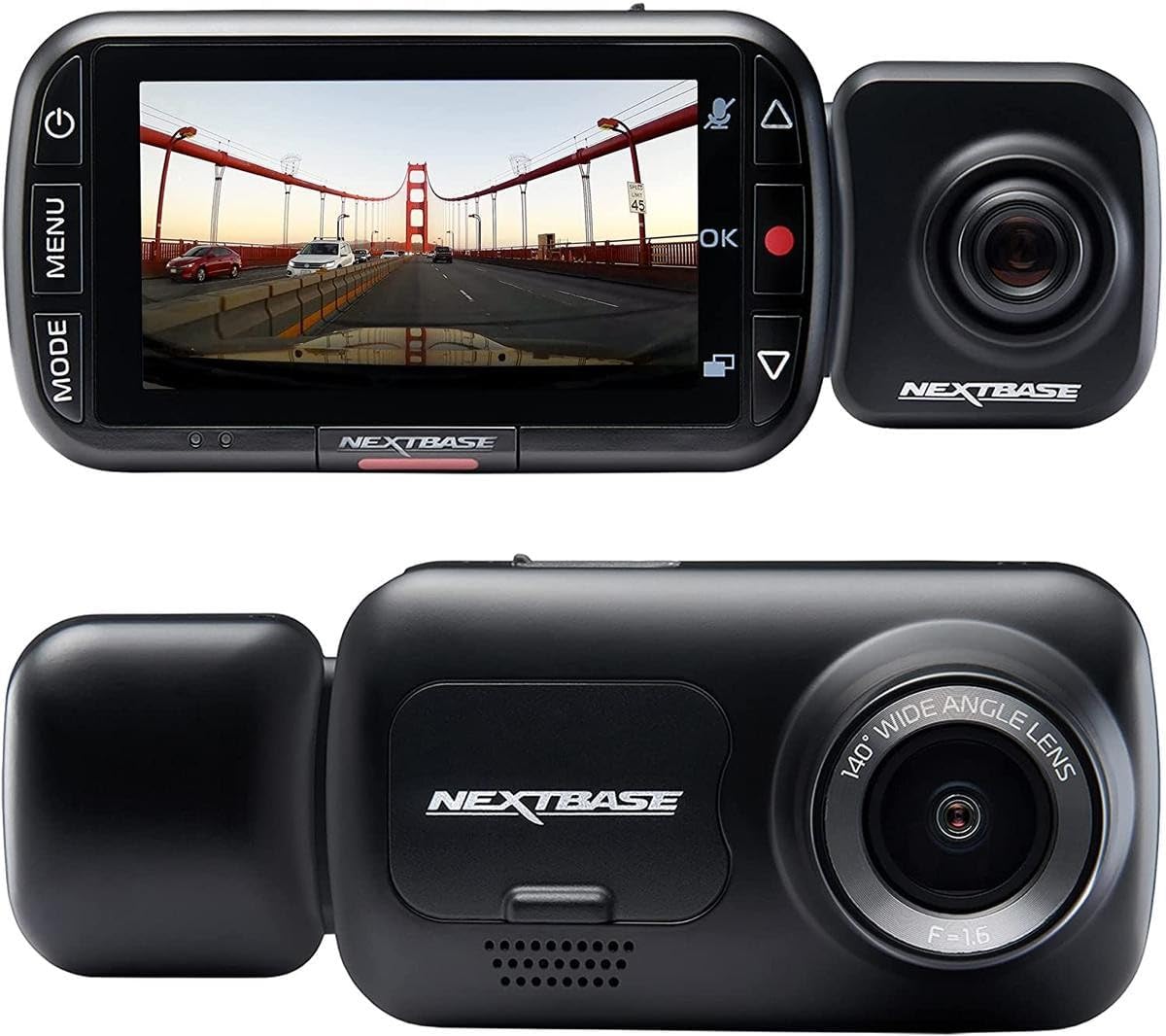

Image: The Nextbase 222x Dash Cam, showcasing its main unit with a display showing a road scene and the detachable rear camera module.

Contingut del paquet

Abans de continuar amb la instal·lació, comproveu que tots els elements estiguin presents al paquet:

• Nextbase 222x Front Dash Cam Unit
• Nextbase Rear Camera Module (if purchased as a bundle)
• Click&Go PRO Powered Car Mount
• Power Cable (Car Charger)
• Cable USB
• Manual d'usuari (aquest document)
• Adhesive Mount (optional, may be included)
• Suction Cup Mount (optional, may be included)

Note: A MicroSD card is required for operation and is sold separately. For optimal performance, Nextbase recommends using a U3 or V30 rated MicroSD card specifically designed for dash cam use.

Configuració i instal·lació

1. Inserció de la targeta MicroSD

1. Assegureu-vos que la càmera del salpicader estigui apagada.
2. Locate the MicroSD card slot on the side of the dash cam.
3. Insert the MicroSD card with the gold contacts facing the front of the camera until it clicks into place.
4. Per treure-la, premeu suaument la targeta fins que faci clic i, a continuació, deixeu-la anar per expulsar-la.

2. Muntatge de la Dash Cam

The Nextbase 222x uses a Click&Go PRO Powered Car Mount for easy installation and removal.

1. Clean the chosen area on your windshield thoroughly. Ensure it is free from dust and grease.
2. Attach the Click&Go PRO mount to the windshield. For suction cup mounts, press firmly and flip the lever to secure. For adhesive mounts, peel the protective film and press firmly for 30 seconds.
3. Slide the Nextbase 222x Dash Cam onto the Click&Go PRO mount until it clicks securely into place.
4. Ajusta l'angle de la càmera per garantir una visió clara view of the road ahead, centered on the horizon.

Image: The Nextbase 222x Dash Cam connected to its magnetic mount, illustrating the ease of attachment.

3. Connexió a l'alimentació

1. Connect the provided power cable to the Click&Go PRO mount.
2. Plug the other end of the power cable into your vehicle's 12V power socket (cigarette lighter socket).
3. Route the cable neatly around your windshield and dashboard to avoid obstructing your view or interfering with driving controls.

4. Installing the Rear Camera (Optional)

If you have the Nextbase Rear Camera Module, it easily connects to the main unit.

1. Ensure the main dash cam unit is powered off.
2. Align the rear camera module with the port on the side of the main dash cam unit.
3. Gently push the rear camera module into the port until it is securely connected.
4. The rear camera will automatically begin recording when the main unit is powered on.

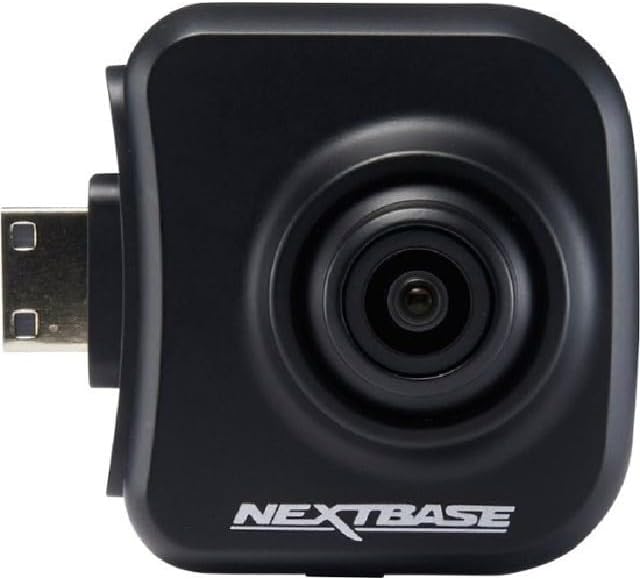

Image: The Nextbase Rear Camera Module, designed to plug directly into the main dash cam unit for dual-view gravació.

Instruccions de funcionament

Encès/Apagat

• The dash cam will automatically power on and begin recording when your vehicle's ignition is turned on and power is supplied to the 12V socket.
• S'apagarà automàticament poc després que s'apagui el contacte.
• To manually power on/off, press and hold the Power button (usually located on the side or top of the unit).

Modes d'enregistrament

• Gravació contínua: The dash cam records in seamless loops, overwriting the oldest unprotected filequan la targeta MicroSD està plena.
• Sensor G (enregistrament d'emergència): In the event of an impact or sudden braking, the built-in G-Sensor will automatically detect the event and protect the current recording segment from being overwritten. This file will be saved in a separate 'Protected' folder on the MicroSD card.
• Mode d'aparcament intel·ligent: When your vehicle is parked and the ignition is off, the dash cam will enter parking mode. If any physical movement or impact is detected, it will automatically record for a short period to capture the event.

Navegació pel menú

Use the buttons on the dash cam (typically 'Menu', 'Up', 'Down', 'OK') to navigate through settings and playback options on the 2.5" high-resolution IPS screen.

Image: The Nextbase 222x Dash Cam's user interface, showing the screen and control buttons for menu navigation.

Reproducció i File Gestió

• Reproducció al dispositiu: Access the 'Playback' menu on the dash cam to review recorded videos directly on the screen.
• Reproducció per ordinador: Remove the MicroSD card and insert it into a computer's card reader. Use a compatible media player (e.g., VLC Media Player) to view el vídeo files. Nextbase also offers desktop software for enhanced viewi anàlisi de dades.
• File Protecció: During recording, press the 'Protect' button (often indicated by a key icon) to manually protect the current recording segment from being overwritten.

Manteniment

• MicroSD Card Formatting: It is recommended to format your MicroSD card regularly (e.g., once a month) using the dash cam's menu. This helps maintain card health and prevents data corruption. Formatting will erase all data on the card, so back up any important files primer.
• Neteja de lents: Gently clean the camera lens with a soft, lint-free cloth. Avoid abrasive materials or harsh chemicals.
• Actualitzacions de firmware: Periodically check the Nextbase website for firmware updates. Keeping your dash cam's firmware up-to-date ensures optimal performance and access to new features.
• Consideracions sobre la temperatura: Avoid exposing the dash cam to extreme temperatures for prolonged periods. Remove the dash cam from the mount and store it in a cool, dry place when not in use, especially in hot climates.

Resolució de problemes

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please refer to the official Nextbase support resources.

Especificacions

Image: A visual representation of the Nextbase 222x Dash Cam's compact design, showing its approximate dimensions.

Garantia i Suport

Specific warranty details for your Nextbase 222x Dash Cam are typically provided with your purchase documentation or can be found on the official Nextbase weblloc web. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.

For technical support, firmware updates, or further assistance, please visit the official Nextbase support page or contact their customer service directly. Contact information is usually available on the manufacturer's weblloc.

Note: This manual does not contain specific warranty periods or direct contact information as these may vary by region and are subject to change. Always refer to the manufacturer's official resources for the most current information.
