1. Producte acabatview
The Xanlite APS300 is a solar-powered LED wall light designed for outdoor use. It features an integrated motion detector and a dusk-to-dawn sensor, providing automatic illumination when movement is detected in low-light conditions. This light is energy-efficient, utilizing solar energy for charging, and boasts an IP44 rating for weather resistance.
- Energia solar: Charges during the day using sunlight, eliminating the need for electrical wiring.
- Sensor de moviment: Automatically activates the light when motion is detected.
- Sensor del capvespre a l'alba: Ensures the light only operates when ambient light is low.
- Resistència a la intempèrie IP44: Protected against solid objects larger than 1mm and splashing water from any direction.
- Sortida de llum: Provides 300 lumens of cool white light (6000K).
Imatge 1.1: Frontal view of the Xanlite APS300 Solar LED Wall Light, showing the LED array and motion sensor.
2. Instruccions de seguretat
Please read and understand all safety instructions before installing or using the product. Keep this manual for future reference.
- Do not immerse the solar product in water.
- Ensure the solar panel is clean and unobstructed for optimal charging. Clean with a damp tela si cal.
- Do not attempt to open or modify the product. There are no user-serviceable parts inside.
- Mantingueu el producte allunyat de flames obertes o fonts de calor extrema.
- Desfeu-vos del producte i de la bateria de manera responsable d'acord amb la normativa local.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents al paquet:
- 1 x Xanlite APS300 Solar LED Wall Light
- Materials de muntatge (cargols, tacs de paret) - (Typically included, though not explicitly listed as separate item in source data)
- Manual d'usuari
4. Configuració i instal·lació
Follow these steps for proper installation of your solar LED wall light:
- Choose an Optimal Location: Select a mounting location that receives direct sunlight for at least 6-8 hours daily. This ensures the solar panel can fully charge the internal battery. Avoid areas under eaves, trees, or other obstructions that might block sunlight.
- Preparació per al muntatge: The light is designed for wall mounting. You will need to drill three holes for the mounting plate. Use a pencil to mark the desired positions on the wall.
- Forats: Using an appropriate drill bit for your wall material, drill the marked holes. Insert wall plugs if necessary.
- Col·loqueu la placa de muntatge: Fixeu la placa de muntatge a la paret amb els cargols proporcionats.
- Muntar la llum: Slide the Xanlite APS300 light onto the secured mounting plate until it clicks into place. Ensure it is firmly attached.
- Activa la llum: Locate the ON/OFF switch, usually on the back or bottom of the unit. Ensure it is set to the "ON" position. The battery will not charge if the switch is in the "OFF" position.

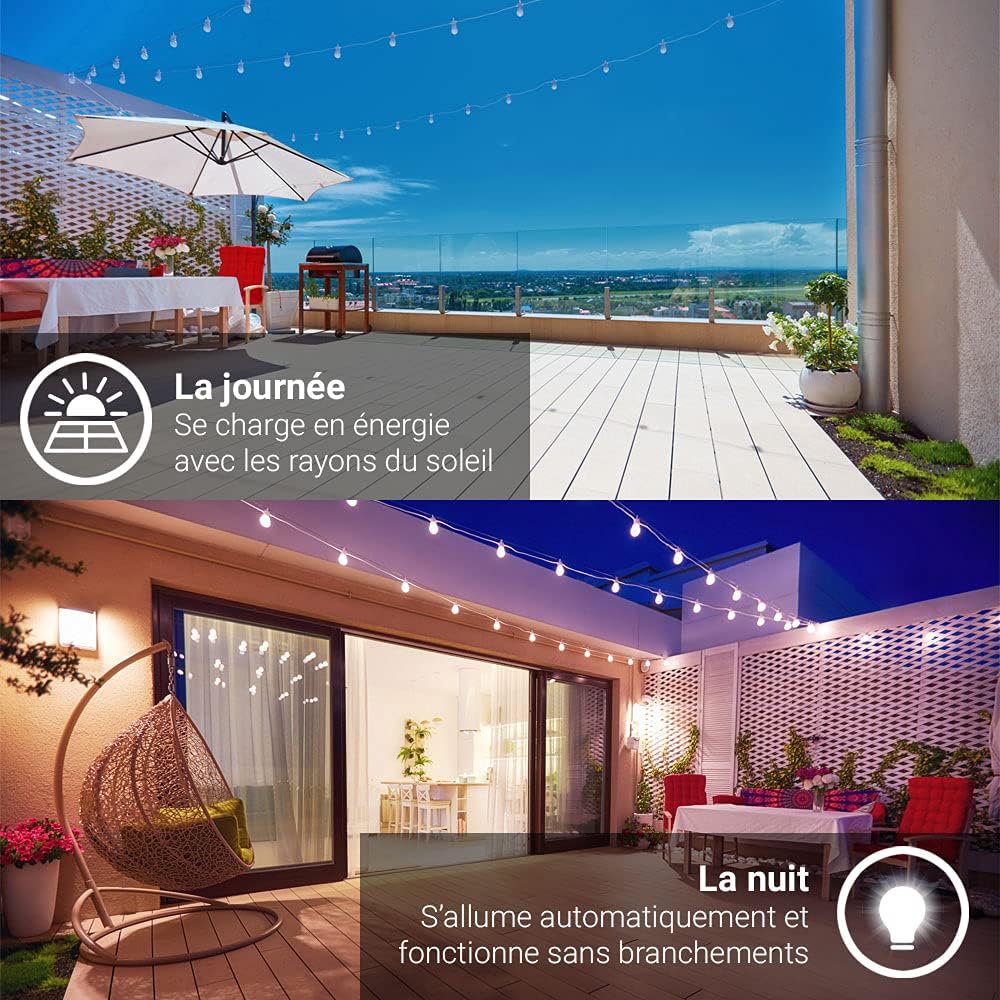

Image 4.1: Illustration of the solar light charging during the day and automatically illuminating at night.
5. Instruccions de funcionament
The Xanlite APS300 operates automatically once installed and activated:
- Càrrega automàtica: During daylight hours, the integrated solar panel converts sunlight into electricity, charging the internal rechargeable battery.
- Operació de la posta de sol a l'alba: The light features a built-in light sensor (crépusculaire detector) that detects ambient light levels. It will automatically enter standby mode at dusk when light levels are low.
- Detecció de moviment: While in standby mode at night, the motion sensor will detect movement within its range. Upon detection, the light will illuminate at full brightness (300 lumens) for approximately 25 seconds before returning to standby mode if no further motion is detected.
Nota important:
- Ensure the ON/OFF switch is always in the "ON" position for the light to charge and operate.
- The light will not turn on during daylight hours, even if motion is detected, to conserve energy.
Image 5.1: The light automatically illuminates when motion is detected.
6. Manteniment
To ensure optimal performance and longevity of your Xanlite APS300, follow these maintenance guidelines:
- Netegeu el panell solar: Netegeu regularment el panell solar amb un drap suau iamp drap per eliminar la pols, la brutícia, les fulles o la neu. Un panell net garanteix una càrrega eficient.
- Inspeccionar per danys: Periodically check the light for any signs of physical damage or wear.
- Eviteu productes químics durs: Do not use abrasive cleaners or solvents on the light, as they may damage the finish or components.
Image 6.1: The light is designed to withstand rain and garden watering (IP44 protection).
Image 6.2: The light is resistant to cold temperatures and snow.
7. Solució De Problemes
If you encounter issues with your Xanlite APS300, refer to the table below for common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s'encén a la nit. | 1. ON/OFF switch is in "OFF" position. 2. Càrrega solar insuficient. 3. El panell solar està brut o obstruït. 4. Ambient light is too high. | 1. Ensure the switch is set to "ON". 2. Relocate the light to an area with more direct sunlight. 3. Netegeu el panell solar. Traieu qualsevol obstrucció. 4. Ensure the installation location is dark enough at night. |
| Light stays on constantly or flashes. | 1. Motion sensor is continuously triggered. 2. Sensor defectuós. | 1. Ensure no constant movement (e.g., tree branches) is within the sensor's range. Adjust light angle if possible. 2. Contacteu amb el servei d'atenció al client si el problema persisteix. |
| La llum és tènue o només roman encesa durant poc temps. | 1. Càrrega solar insuficient. 2. Battery degradation (over time). | 1. Ensure the light receives full, direct sunlight for 6-8 hours daily. Clean solar panel. 2. If the product is old, battery capacity may have decreased. |
| Water inside the light enclosure. | Integritat del segell compromesa. | While the product is IP44 rated, extreme weather or manufacturing defects can cause ingress. If within warranty, contact customer support. Otherwise, replace the unit. |
8. Especificacions
Detailed technical specifications for the Xanlite APS300 Solar LED Wall Light:
| Característica | Especificació |
|---|---|
| Número de model | APS300 |
| Marca | Xanlite |
| Dimensions (L x A x A) | 25 x 25 x 25 cm (approx. 19.3L x 25W x 25H cm from other spec) |
| Pes | 499 g |
| Material | Aluminum (body), Polycarbonate (lampombra) |
| Color | Negre |
| Font de llum | LED |
| Flux lluminós | 300 lúmens |
| Temperatura de color | 6000K (blanc fred) |
| Angle del feix | 120° |
| Classificació de protecció d'entrada (IP). | IP44 |
| Classe d'eficiència energètica | A++ |
| Tipus d'instal·lació | Muntatge de paret |
| Característiques especials | Solar Powered, Motion Sensor, Dusk-to-Dawn Sensor, Robust |

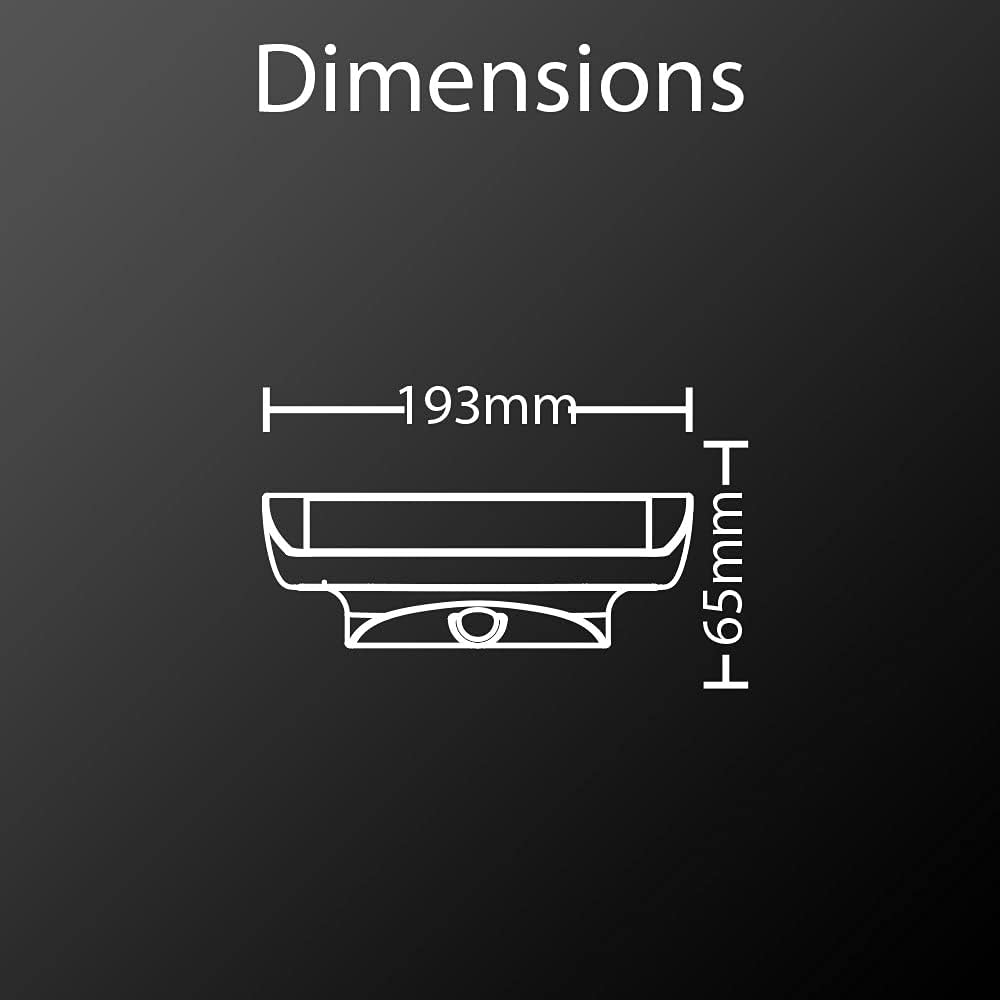

Image 8.1: Dimensional diagram of the light (193mm width, 65mm height).
9. Garantia i assistència
Informació de la garantia:
This Xanlite APS300 product comes with a 2 any de garantia from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.
Atenció al client:
For technical assistance, warranty claims, or any questions regarding your Xanlite APS300, please contact Xanlite customer service. Refer to the official Xanlite weblloc web o la documentació de compra per obtenir dades de contacte específiques.
This product is recyclable. Please dispose of it at designated collection points (e.g., Recyclum in France) to support environmental protection.
