Introducció
This manual provides essential information for the safe and effective installation, operation, and maintenance of your OSRAM SYLVANIA OCTRON 800 ECOLOGIC Linear Fluorescent Lamp, Model 22136. This T8 lamp is designed for general illumination applications, offering neutral white light with a color temperature of 3500K and a high Color Rendering Index (CRI) of 82. Please read this manual thoroughly before installation and retain it for future reference.

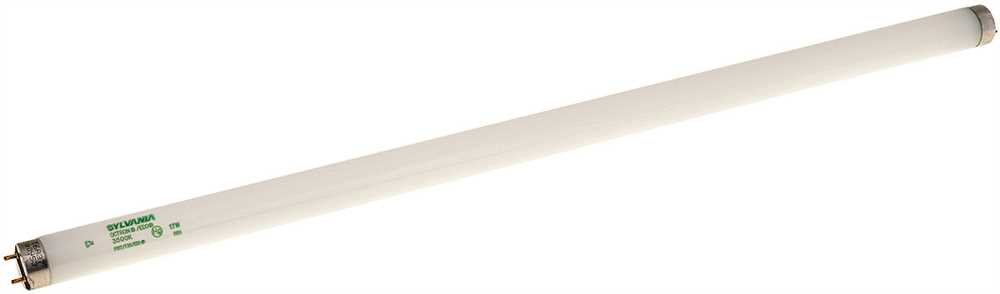

Image: OSRAM SYLVANIA OCTRON 800 ECOLOGIC Linear Fluorescent Lamp, Model 22136. This image displays the linear fluorescent tube, typically used in commercial or industrial lighting fixtures.
Informació de seguretat
Observeu sempre les següents precaucions de seguretat per evitar lesions o danys:
- Desconnecteu l'alimentació: Before installing, replacing, or cleaning the lamp, ensure the power supply to the fixture is turned off at the circuit breaker or fuse box.
- Manejar amb cura: Fluorescent lamps are made of glass and can break. Handle them carefully to avoid injury from broken glass or exposure to internal components.
- Eliminació adequada: Fluorescent lamps contenen petites quantitats de mercuri. Disposar de lampd'acord amb les normatives locals, estatals i federals. No llenceu a les escombraries domèstiques normals.
- Compatibilitat: Assegureu-vos que lamp is compatible with your fixture's ballast and socket type (Medium Bi-pin). Using an incompatible lamp can cause damage to the lamp o un accessori, o crear un perill d'incendi.
- Do Not Dim: Aquesta lamp is not designed for use with dimmers unless explicitly stated on the lamp or packaging.
- Temperatura de funcionament: Ensure the operating environment is within the specified temperature range for fluorescent lamps.
Configuració i instal·lació
Seguiu aquests passos per a una instal·lació correcta:
- Apagar: Turn off the power to the lighting fixture at the main circuit breaker.
- Elimina la L antigaamp (si escau): Gireu amb cura la vella l fluorescentamp 90 degrees and gently pull it out of the fixture's sockets.
- Inspeccionar l'aparell: Check the fixture's sockets and wiring for any signs of damage or wear. Replace any damaged components before proceeding.
- Insereix una nova Lamp: Align the bi-pin ends of the OSRAM SYLVANIA 22136 lamp amb les ranures dels endolls del dispositiu. Empenyeu suaument la lamp into the sockets until the pins are fully seated, then twist the lamp 90 degrees to lock it into place. Ensure the lamp is securely seated and makes good electrical contact.
- Restaura l'alimentació: Un cop lamp estigui instal·lat correctament, restableix l'alimentació a l'aparell a l'interruptor.
- Prova: Engegueu l'interruptor de la llum per comprovar el funcionament correcte.
Instruccions de funcionament
The OSRAM SYLVANIA 22136 fluorescent lamp operates in conjunction with a compatible fluorescent ballast within your lighting fixture. Once installed, operation is straightforward:
- Encès/apagat: Use the wall switch or fixture control to turn the lamp encès o apagat.
- Temps d'escalfament: Fluorescent lamps may require a brief warm-up period to reach full brightness, especially in colder environments.
- Funcionament normal: El lamp will provide consistent, neutral white light during its operational lifespan.
Manteniment
Minimal maintenance is required for the OSRAM SYLVANIA 22136 lamp per garantir un rendiment i una longevitat òptims.
- Neteja: Periodically, with the power off and the lamp cooled, gently wipe the lamp surface with a soft, dry, lint-free cloth to remove dust and debris. Do not use liquid cleaners directly on the lamp.
- Lamp Substitució: Substituïu la lamp when it reaches the end of its rated life (indicated by flickering, dimming, or failure to ignite) or if it becomes damaged. Always replace with a lamp del mateix tipus i aiguatage to ensure compatibility and proper operation. Refer to the 'Setup and Installation' section for replacement procedures.
- Inspecció de fixacions: Regularly inspect the lighting fixture for any signs of wear, corrosion, or loose connections. Address any issues promptly.
Resolució de problemes
Si la teva lamp is not functioning correctly, try the following troubleshooting steps:
| Problema | Causa possible | Solució |
|---|---|---|
| Lamp no s’encén | Sense poder per fixar Lamp not properly seated Defectuós lamp Ballast defectuós Defective starter (if applicable) | Comproveu l'interruptor de circuit i l'interruptor de paret Torneu a col·locar la lamp (see Setup) Substituïu-lo per una nova lamp Consulteu un electricista qualificat Replace starter |
| Lamp flickers or cycles on/off | Lamp a prop del final de la vida Incorrecta lamp type for ballast Temperatura ambient baixa Ballast defectuós | Substituïu la lamp Assegureu-vos lamp matches fixture specifications Permet lamp to warm up; ensure proper operating environment Consulteu un electricista qualificat |
| Lluentor reduït | Dust/dirt on lamp Lamp a prop del final de la vida Incorrecta lamp tipus | Netegeu la lamp (see Maintenance) Substituïu la lamp Assegureu-vos lamp matches fixture specifications |
| Extrems de lamp are dark | Normal aging Frequent switching Ballast defectuós | Substituïu la lamp when performance degrades Minimize frequent on/off cycles Consulteu un electricista qualificat |
If problems persist after attempting these solutions, consult a qualified electrician or contact OSRAM SYLVANIA customer support.
Especificacions
Key technical specifications for the OSRAM SYLVANIA OCTRON 800 ECOLOGIC Linear Fluorescent Lamp, Model 22136:
- Número de model: 22136
- Lamp Tipus: T8 Linear Fluorescent
- Wattage: 17 watts
- Tipus de base: Medium Bi-pin
- Temperatura de color: 3500 Kelvin (blanc neutre)
- Índex de reproducció del color (CRI): 82
- Lúmens inicials: 1,350
- Hores qualificades mitjanes: 30,000 hores
- Diàmetre: 1.098 polzades
- Longitud: 24 inches (approximate, depending on measurement method)
- Dimensions del producte: 7.75 x 6.13 x 25 inches (packaging/case dimensions)
- Pes de l'article: 6.59 pounds (for a case of lamps)
- Ecologic Feature: Designed for environmental responsibility.
Garantia i Suport
For information regarding the product warranty, please refer to the documentation provided with your purchase or visit the official OSRAM SYLVANIA website. For technical support or further assistance, please contact OSRAM SYLVANIA customer service through their official channels.
