Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your Zenec Z-E3726 2-DIN Car Radio Navigation System. The Z-E3726 is specifically designed for FIAT Ducato, Citroën Jumper, and Peugeot Boxer vehicles, offering advanced multimedia and navigation functionalities. Please read this manual thoroughly before using the device to ensure proper operation and to maximize your user experience.
Configuració i instal·lació
The Zenec Z-E3726 is engineered for optimal integration into FIAT Ducato, Citroën Jumper, and Peugeot Boxer dashboards. Professional installation is recommended.
Integració de vehicles
- The unit's design and amber key illumination are specifically matched to these vehicle models.
- An optionally available Stalk interface allows connection to an existing multifunction steering wheel, supporting audio and phone functions.
posterior View Connexió de càmera
The Z-E3726 supports easy connection of a rear-view càmera.
- Connect the camera to the designated input on the device.
- The camera activates automatically when reverse gear is engaged.
- Optional guidelines can be displayed on the screen for improved distance estimation, regardless of the camera model.
- The E>GO is compatible with cameras featuring integrated microphones.

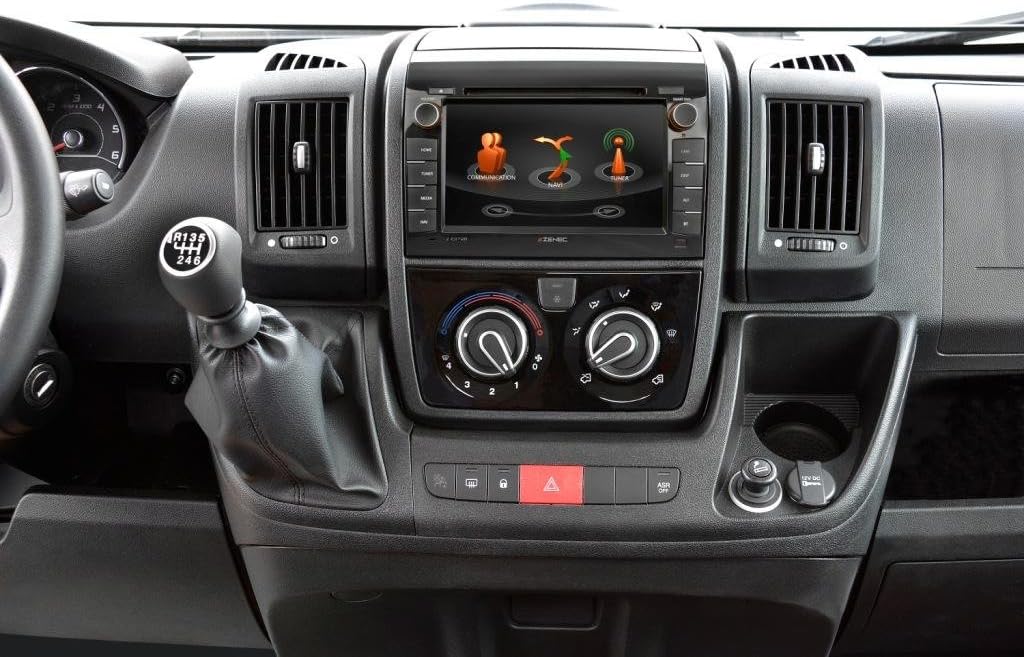

Image: The Zenec Z-E3726 unit seamlessly integrated into the dashboard of a compatible vehicle, showcasing its 7-inch display and physical control buttons.
Imatge: Una imatge detallada view of the Zenec Z-E3726 within the vehicle's interior, demonstrating its fit and the interactive display showing communication and navigation options.
Instruccions de funcionament
The Z-E3726 features a high-resolution 7-inch (17.8 cm) touchscreen for intuitive control. The menu is available in 28 languages.
Sistema de navegació
- The system uses the Zenec Primo NextGen navigation engine with an EU map package covering 47 countries.
- Includes over 6 million Premium Points of Interest (P.O.I.).
- Features detailed 3D maps, TMC (Traffic Message Channel), auto-zoom, and lane assist.
- CampingSchaf P.O.I. Database: A pre-installed, comprehensive database (in German) provides detailed information on approximately 20,000 camping and parking sites across Europe.
- Route planning can be optimized by selecting a vehicle profile and entering vehicle-specific data.
- Map updates are available for free for one year after initial use via the Naviextras portal.
Image: The Zenec Z-E3726 screen displaying a detailed navigation map, including route information and options for alternative routes.
Funcions multimèdia
- DAB+ Tuner: Enjoy a wide variety of digital radio programs with crystal-clear reception through the multituner system.
- Unitat de CD/DVD: Integrated drive supports various audio and video formats.
- Port USB: A rear USB port (with 80 cm cable extension) supports modern audio and video formats.
- Optimització d'àudio: Features a 4 x 50 watt amplifier with a DSP suite, including runtime correction and an equalizer with presets.

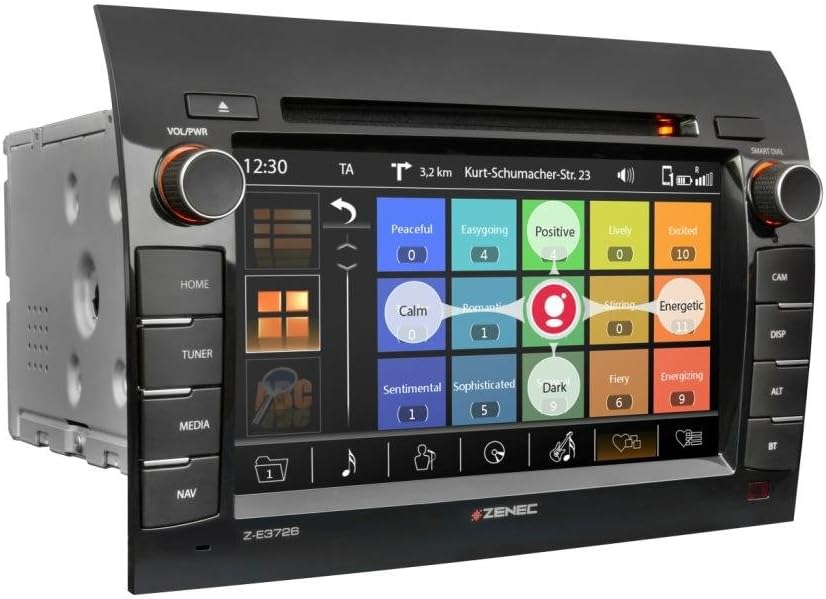

Image: The Zenec Z-E3726 interface displaying multimedia options, possibly for music selection based on mood or genre.
Connectivitat Bluetooth
- A powerful, database-supported Parrot Bluetooth unit enables hands-free calling.
- Supports comfortable music streaming while driving.
Image: The Zenec Z-E3726 screen showing an incoming call interface, demonstrating its Bluetooth phone functionality.
posterior View Funcionament de la càmera
- In addition to automatic activation, the Z-E3726 features a dedicated CAM button on the front panel for direct selection.
- This allows manual activation of the rear-view camera system whenever needed, aiding in maneuvering and parking.
Manteniment
- Neteja de pantalla: Use a soft, lint-free cloth to gently wipe the touchscreen. For stubborn marks, slightly dampNetegeu el drap amb aigua o un netejador de pantalles. Eviteu materials abrasius o productes químics agressius.
- Actualitzacions de programari: Regularly check the official Zenec website or the Naviextras portal for available software and map updates to ensure optimal performance and access to the latest features.
- Atenció general: Mantingueu la unitat lliure de pols i deixalles. Assegureu-vos que hi hagi una ventilació adequada al voltant de la unitat per evitar el sobreescalfament.
Resolució de problemes
If you encounter issues with your Z-E3726, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| No hi ha alimentació / La unitat no s'encén. | Cablejat incorrecte, fusible fundit, problema amb la bateria del vehicle. | Check power connections and fuses. Ensure vehicle battery is charged. Consult a professional installer. |
| Sense so. | Volume too low, mute activated, incorrect audio source, speaker wiring issue. | Increase volume. Check if mute is active. Select correct audio source. Verify speaker connections. |
| Navigation not working or inaccurate. | GPS signal loss, outdated maps, incorrect settings. | Assegureu-vos de clar view of the sky for GPS signal. Update maps via Naviextras. Check navigation settings. |
| Problemes de connexió Bluetooth. | Device not paired, Bluetooth off on phone, interference. | Assegureu-vos que el Bluetooth estigui activat en tots dos dispositius. Torneu a emparellar el dispositiu. Acosteu-vos a la unitat. |
| Touchscreen unresponsive or slow. | Temporary software glitch, dirty screen, system overload. | Restart the unit. Clean the screen. Perform a system reset if necessary (refer to advanced settings). |
If the problem persists after attempting these solutions, please contact Zenec customer support or a qualified service technician.
Especificacions
| Característica | Detall |
|---|---|
| Marca | Zenec |
| Nom del model | Z-E3726 |
| Número de model de l'article | 02027Z-E3726 |
| Mida de la pantalla | 7 polzada (17.8 cm) |
| Resolució | 1024 x 600 |
| Tipus de muntatge | Muntatge al quadre de comandament |
| Tipus de servei del vehicle | Fiat Ducato, Citroën Jumper, Peugeot Boxer |
| Característiques especials | Bluetooth, Navigation, DAB+ |
| Tecnologia de connectivitat | Bluetooth, USB |
| Tipus de mapa | Europe (47 countries) |
| Mode de sortida d'àudio | Digital, Stereo |
| Dimensions del paquet | 31.8 x 28 x 20.6 cm |
| Pes de l'article | 3.94 kg |
| Primera data disponible | 15 de gener de 2020 |
Informació de la garantia
Zenec products are covered by a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official Zenec weblloc web per conèixer els termes i condicions detallats. Conserveu el comprovant de compra per a reclamacions de garantia.
Map updates are guaranteed for one year free of charge after initial activation via the Naviextras portal.
Atenció al client
For technical assistance, troubleshooting, or general inquiries regarding your Zenec Z-E3726, please contact Zenec customer support.
- Assistència en línia: Visit the official Zenec website for FAQs, software downloads, and contact forms.
- Distribuïdors autoritzats: For installation support or service, contact your authorized Zenec dealer.
