1. Introducció
This manual provides essential instructions for the proper setup, operation, and maintenance of your Onkyo RC-487S Audio Remote Control. Please read this manual thoroughly before using the remote control to ensure correct usage and to maximize its lifespan. Keep this manual for future reference.
2. Producte acabatview
The Onkyo RC-487S is a dedicated audio remote control designed for use with compatible Onkyo audio components. It allows convenient control over various functions such as power, volume, input selection, and playback controls from a distance.
Figura 1: Davant view of the Onkyo RC-487S Audio Remote Control. This image displays the layout of the buttons and the overall design of the remote.
3. Configuració
3.1 Instal·lació de la bateria
The RC-487S remote control requires two AA (1.5V) alkaline batteries for operation. Batteries are not included with the remote control.
- Localitzeu la tapa del compartiment de la bateria a la part posterior del comandament a distància.
- Slide the battery compartment cover downwards or press the latch and lift to open it.
Figura 2: Enrere view of the remote control with the battery compartment cover visible. This shows the location of the cover before opening.
- Insert two new AA (1.5V) alkaline batteries, ensuring the positive (+) and negative (-) terminals are aligned correctly according to the diagram inside the compartment.

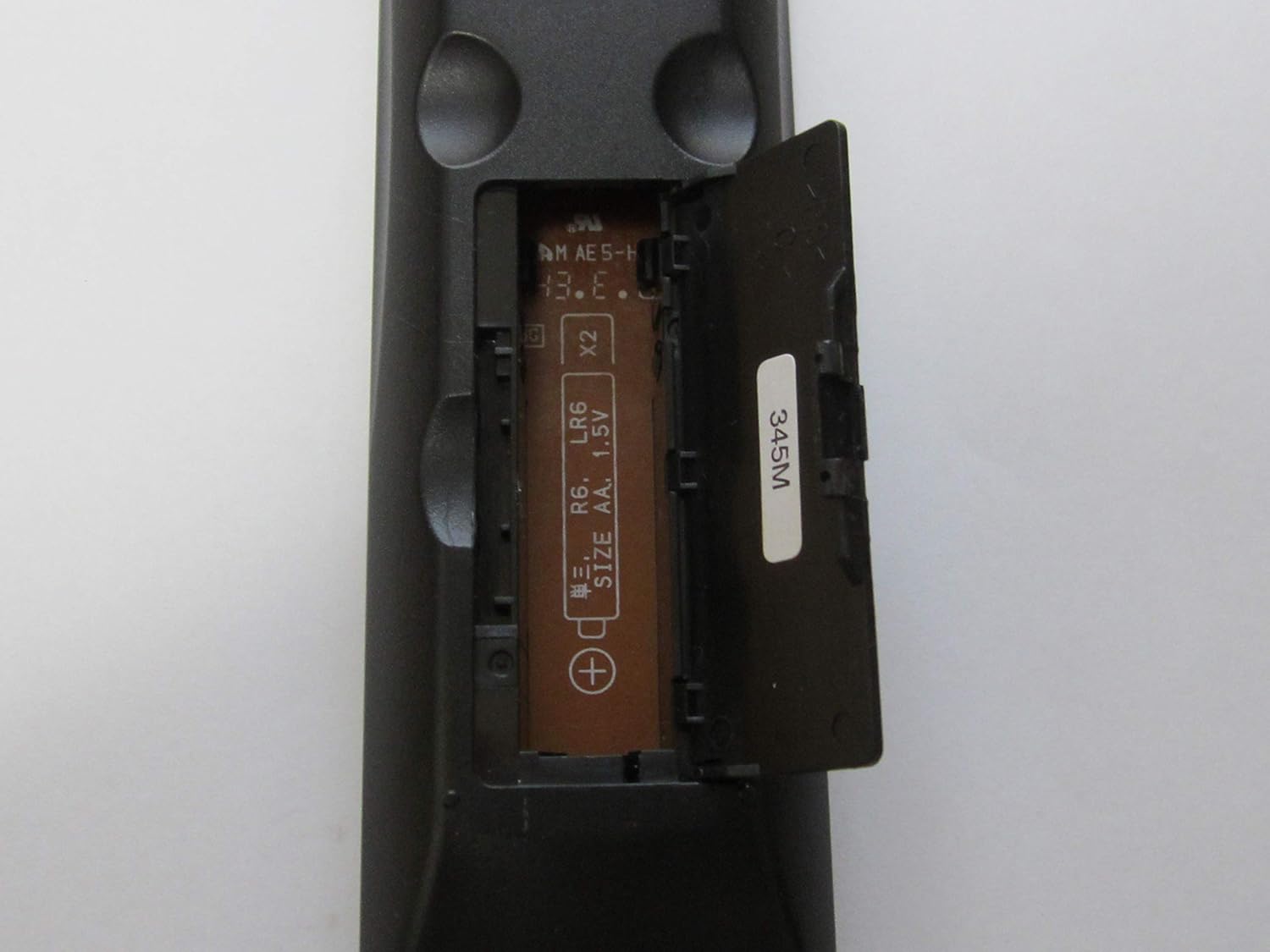

Figura 3: Remote control with the battery compartment open, revealing the slots for two AA batteries and polarity markings.
- Torneu a col·locar la tapa del compartiment de la bateria fent-la lliscar fins que faci clic de manera segura.
4. Instruccions de funcionament
To operate your Onkyo audio component using the RC-487S remote control, point the remote directly at the component's infrared sensor. Ensure there are no obstructions between the remote and the component.
- Encès/apagat: Premeu el botó PODER button to turn the audio component on or off.
- Control de volum: Utilitza el VOLUM + i VOLUM - botons per ajustar el nivell de so.
- Selecció d'entrada: Press the designated input buttons (e.g., CD, DVD, TUNER, AUX) to switch between different audio sources.
- Controls de reproducció: For compatible devices, use buttons such as JUGAR, PAUSA, STOP, SALTAR, i REWIND/FAST FORWARD to control media playback.
Refer to your Onkyo audio component's specific instruction manual for detailed functions corresponding to each button on the RC-487S remote control.
5. Manteniment
Proper maintenance ensures the longevity and reliable performance of your remote control.
- Neteja: Netegeu el comandament a distància amb un drap suau i sec. No utilitzeu productes de neteja abrasius, ceres ni dissolvents.
- Substitució de la bateria: Replace both batteries with new ones when the remote control's range decreases or it stops responding. Always replace both batteries at the same time and use the same type (AA alkaline).
- Emmagatzematge: Si no feu servir el comandament a distància durant un període prolongat, traieu-ne les piles per evitar fuites i possibles danys.
6. Solució De Problemes
If you experience issues with your RC-487S remote control, refer to the following common solutions:
| Problema | Solució |
|---|---|
| El control remot no funciona. |
|
| Remote control range is reduced. |
|
7. Especificacions
- Número de model: RC-487S
- Marca: Onkyo
- Color: Silver metallic (Note: Product appearance may vary)
- Dimensions (aprox.): 19.2 x 7 x 3.3 cm
- Pes (aprox.): 74 g
- Font d'alimentació: 2 x AA (1.5V) Alkaline Batteries (not included)
8. Garantia i Suport
For warranty information and technical support, please refer to the documentation that came with your Onkyo audio component or visit the official Onkyo weblloc web. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.
If you require further assistance, please contact Onkyo customer support.
