Omega J8004 Masticating Juicer Instruction Manual

Introducció

Thank you for choosing the Omega J8004 Masticating Juicer. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new juicer. The Omega J8004 is designed to extract juice from a variety of fruits and vegetables at a slow 80 RPMs, preserving nutrients and enzymes. Beyond juicing, this versatile appliance can also be used to make nut butter, extrude pasta, grind coffee and spices, mince herbs and garlic, and prepare baby food and frozen desserts.

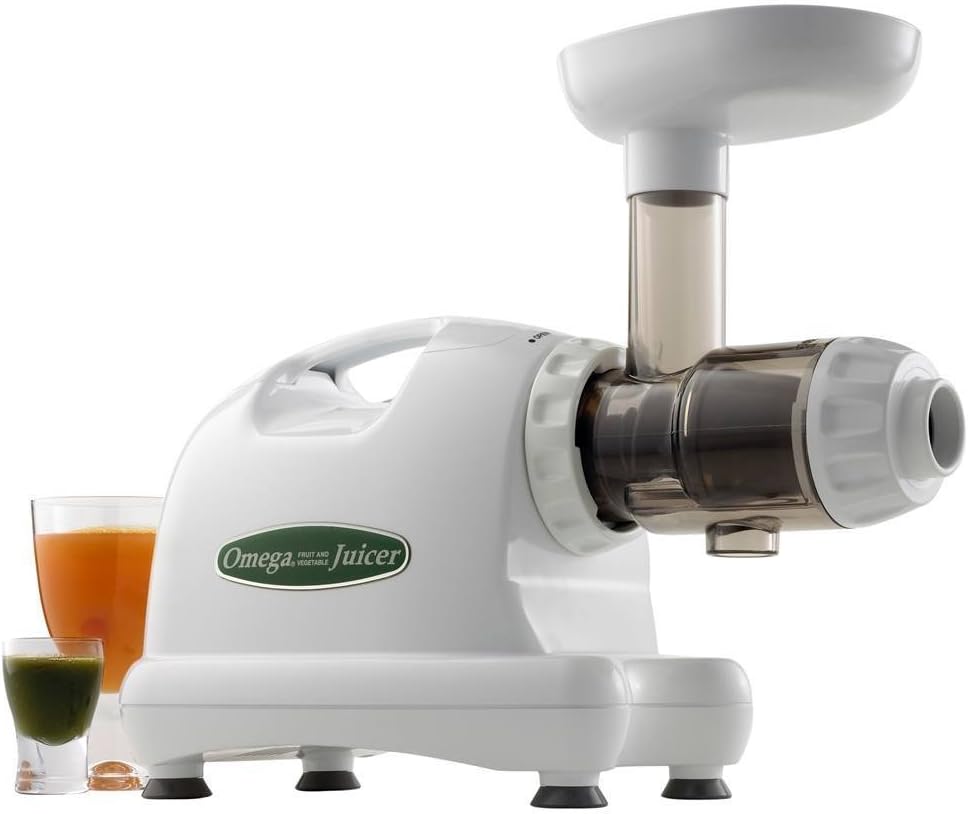

Image: The Omega J8004 Masticating Juicer in white, shown with two glasses of freshly extracted juice.

Instruccions importants de seguretat

Quan utilitzeu aparells elèctrics, sempre s'han de seguir les precaucions bàsiques de seguretat per reduir el risc d'incendi, descàrrega elèctrica i lesions a les persones.

• Llegiu totes les instruccions abans de fer funcionar l'espremedora.
• Ensure the power cord is not damaged and is properly connected to a grounded outlet (120 Volts).
• No submergiu la base del motor en aigua o altres líquids.
• Mantingueu les mans i els estris allunyats de les parts mòbils durant el funcionament per evitar lesions.
• Always use the food pusher provided to feed ingredients into the chute. Never use fingers or other objects.
• Unplug the juicer from the outlet when not in use, before assembling or disassembling parts, and before cleaning.
• No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi caigut o s'hagi danyat de cap manera.
• Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat. .
• Els nens han de ser supervisats per assegurar-se que no juguin amb l'aparell.

Components del producte

Familiarize yourself with the various parts of your Omega J8004 Juicer before assembly and operation.

Image: All individual components of the Omega J8004 Juicer, including the motor base, auger, juicing screen, end cap, food pusher, collection containers, and various nozzles for different functions.

1. Base del motor: The main unit containing the motor and controls.
2. Tambor: The transparent housing that holds the auger and screen.
3. Barrena: The masticating gear that crushes and presses ingredients.
4. Cribratge de sucs: Filters the pulp from the juice.
5. Tapa final ajustable: Regulates pulp expulsion pressure.
6. Tremuja: The top funnel for feeding ingredients.
7. Empenyedor d'aliments: S'utilitza per guiar els ingredients cap a la cargol.
8. Juice Collection Cup: For collecting extracted juice.
9. Pulp Collection Cup: For collecting expelled pulp.
10. Raspall de neteja: For easy cleaning of the screen and other parts.
11. Homogenizing Blank: Used for making nut butter, frozen desserts, etc.
12. Pasta Nozzles: Various shapes for extruding pasta.

Imatge: Un primer pla view of the Omega J8004 Juicer's motor base, showing the "Omega Juicer" brand logo and the control knob with "Open" indicator.

Muntatge i muntatge

Follow these steps to assemble your Omega J8004 Juicer before first use.

1. Col·loqueu la base del motor sobre una superfície plana i estable.
2. Insert the drum into the motor base, aligning the arrow on the drum with the arrow on the motor base. Twist clockwise until it locks into place.
3. Insert the auger into the drum, ensuring it is fully seated.
4. Place the juicing screen (or homogenizing blank for other functions) over the auger.
5. Attach the adjustable end cap to the front of the drum assembly. Twist clockwise to secure it. Ensure the end cap is set to the desired pressure level (typically level 5 for most juicing).
6. Place the hopper onto the top of the drum.
7. Position the juice collection cup under the juice spout and the pulp collection cup under the pulp ejection port.
8. Ensure the power switch is in the "OFF" position before plugging the unit into a 120V electrical outlet.

Imatge: Un primer pla view of the Omega J8004 Juicer's feed chute and the transparent drum assembly, showing the auger mechanism.

Instruccions de funcionament

General Juicing

• Renteu bé totes les fruites i verdures.
• Cut ingredients into pieces small enough to fit into the feeding chute. Remove large seeds, pits, and hard skins (e.g., pineapple skin).
• Gireu l'interruptor d'alimentació a la posició "ON".
• Feed ingredients slowly into the chute. Use the food pusher to gently guide them down. Do not force ingredients.
• The juicer will extract juice into the juice cup and expel pulp into the pulp cup.
• For optimal yield, alternate between soft and hard ingredients.
• When finished, turn the power switch to "OFF" and unplug the unit.

Funcions versàtils

The Omega J8004 is capable of more than just juicing. Use the homogenizing blank and appropriate nozzles for these functions:

• Nut Butter: Process roasted nuts (e.g., peanuts, almonds) through the homogenizing blank to create fresh nut butter. Multiple passes may be required for desired consistency.
• Pasta Extrusion: Prepare dough and use the various pasta nozzles to extrude fresh pasta shapes.
• Mòlta: Grind coffee beans, spices, or herbs using the homogenizing blank.
• Menjar per a nadons: Puree cooked fruits and vegetables into smooth baby food.
• Postres gelades: Process frozen fruits (e.g., bananas, berries) through the homogenizing blank to create healthy frozen desserts.
• Soy Milk/Nut Milk: Process soaked soybeans or nuts with water to create fresh plant-based milks.

Image: A visual grid demonstrating the diverse applications of the Omega J8004 Juicer, including fruit juice, vegetable juice, baby food, nut butter, green juice, soy/nut milk, extruded pasta, ground coffee, minced herbs, and sorbet.

Manteniment i Neteja

Proper cleaning after each use is crucial for maintaining the performance and longevity of your juicer.

• Neteja immediata: It is highly recommended to clean the juicer immediately after each use. This prevents pulp and juice residue from drying and becoming difficult to remove.
• Desmuntatge: Unplug the unit. Disassemble all removable parts (hopper, drum, auger, screen, end cap, collection cups).
• Esbandida: Rinse all parts under warm running water.
• Raspall: Use the provided cleaning brush to thoroughly scrub the juicing screen. This is the most critical part to clean to ensure efficient juicing.
• Rentat: Wash all removable parts with warm, soapy water. They are generally not dishwasher safe; refer to specific care instructions if available.
• Assecat: Assequeu totes les peces completament abans de tornar a muntar o emmagatzemar.
• Base del motor: Netegeu la base del motor amb un anunciamp drap. No submergiu mai la base del motor en aigua.

Resolució de problemes

If you encounter issues with your Omega J8004 Juicer, refer to the following common problems and solutions:

Especificacions

• Model: J8004
• Marca: Omega
• Color: Blanc
• Dimensions del producte: 20 "P x 15" W x 20" H
• Pes de l'article: 13.2 lliures
• Font d'alimentació: Elèctric amb cable
• Voltage: 120 Volts
• Nombre de velocitats: 1
• RPM: 80 RPM
• Material de la fulla: Acer inoxidable
• Material de l'habitatge: Plàstic
• Fabricant: Espremedores Omega

Garantia i Suport

The Omega J8004 Juicer is known for its durability and comes with a substantial warranty.

• Garantia: This product typically includes a 15-year warranty, covering parts and performance. Please refer to your warranty card or the official Omega weblloc per a termes i condicions específiques.
• Atenció al client: For technical assistance, replacement parts, or warranty claims, please contact Omega customer support. Visit the official Omega website for contact information and further resources.
