TenHutt 5.0Ah zamjenska baterija za Toro 60V Flex-Force Power System - Uputstvo za upotrebu

1. Uvod

This instruction manual provides essential information for the safe and effective use, maintenance, and storage of your TenHutt 5.0Ah Replacement Battery (Model: TR88650). This battery is designed as a compatible replacement for the Toro 60V Flex-Force Power System, offering reliable power for various outdoor power tools.

Please read this manual thoroughly before using the battery to ensure proper operation and to prevent potential hazards.

2. Sigurnosne informacije

WARNING: Failure to follow these safety instructions may result in fire, electric shock, personal injury, or property damage.

• Always use the battery with compatible Toro 60V Flex-Force Power System tools and chargers.
• Do not expose the battery to rain or wet conditions. Water entering a battery will increase the risk of electric shock or fire.
• Nemojte puniti bateriju u damp ili vlažnim lokacijama.
• Do not store the battery in locations where the temperature may reach or exceed 122°F (50°C), such as in direct sunlight or inside a vehicle in hot weather.
• Ne spaljujte bateriju, čak ni ako je ozbiljno oštećena ili potpuno prazna. Baterija može eksplodirati u požaru.
• Nemojte kratko spajati polove baterije.
• Ne rastavljajte, ne otvarajte niti ne cijepajte baterijski paket.
• If battery fluid leaks, avoid contact. If contact occurs, flush with water and seek medical help.
• Držite bateriju podalje od djece.
• Istrošene baterije odlažite odgovorno u skladu sa lokalnim propisima.

Image: The TenHutt battery features multiple safety protections including over-charging, over-heating, over-loading, over-voltage, over-circuit, and over-current protection, ensuring safe operation with compatible tools and chargers.

3. Proizvod je gotovview

The TenHutt 5.0Ah Replacement Battery is a high-capacity lithium-ion battery designed for extended runtime and durability. It features an integrated LED power meter and advanced cooling channels.

Ključne karakteristike:

• Voltage: 60V
• Kapacitet: 5000 mAh (5.0 Ah)
• Wattage: 300Wh
• LED Power Meter: Four indicator lights display the battery's charge status.
• Cooling Channels: Built-in air-cooling fins for stable heat dissipation during operation and charging.
• Precision Interface: Designed to match original equipment for seamless compatibility.
• Safety Management System (BMS): Protects against short circuit, over-charge/discharge, over-voltage, i pregrijavanje.

Image: The TenHutt 5.0Ah Replacement Battery, showing its robust casing i integrirana ručka.

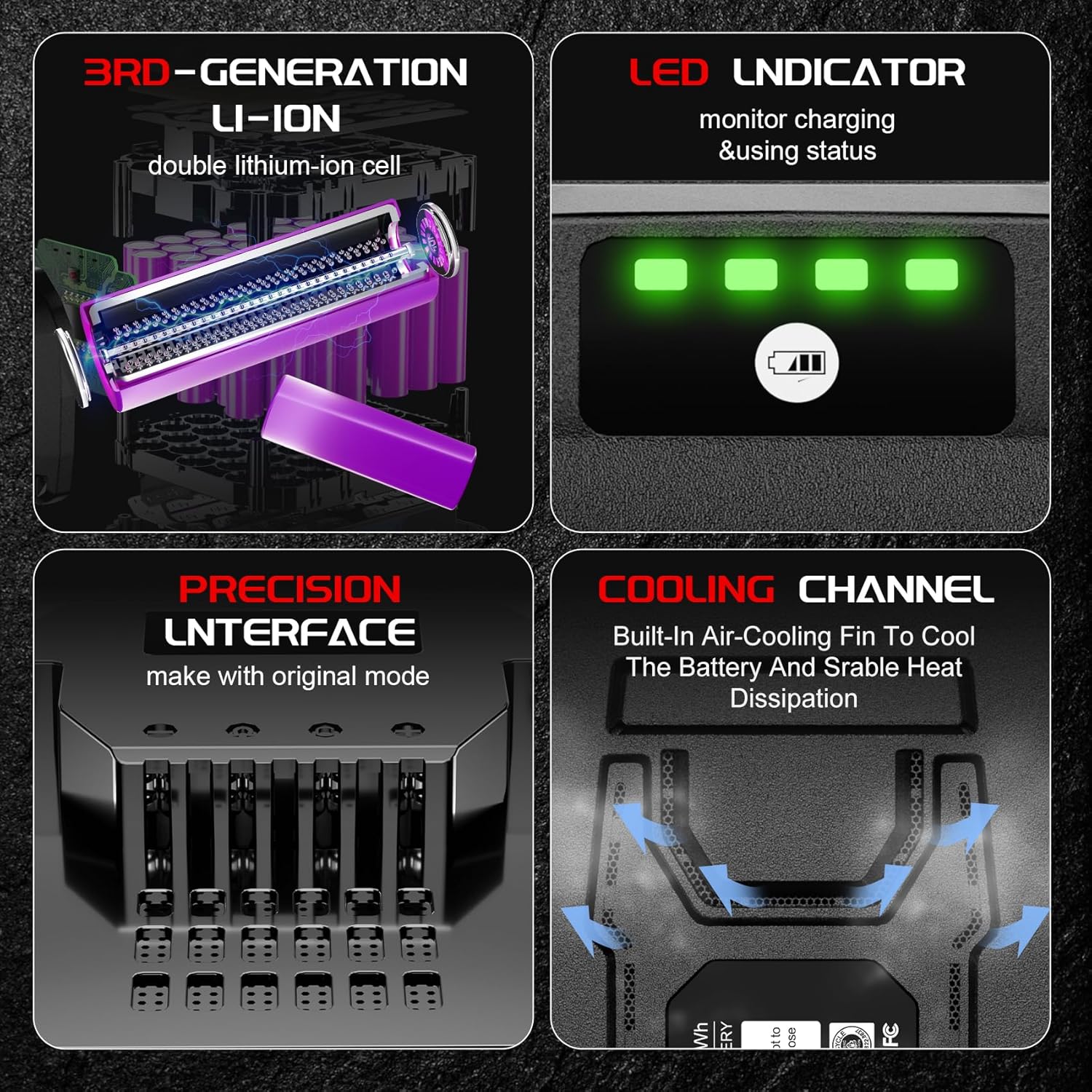

Slika: Detaljna view of the battery's LED indicator for charge status, the precision interface for tool connection, and the cooling channels designed for heat dissipation.

4. Podešavanje i punjenje

4.1 Početno punjenje

Prije prve upotrebe, potpuno napunite bateriju. Baterija se isporučuje nisko napunjena kako bi se spriječila oštećenja tokom transporta.

4.2 Procedura punjenja

1. Prije punjenja provjerite je li baterija čista i suha.
2. Insert the battery into a compatible Toro 60V charger. Ensure it clicks securely into place.
3. Priključite punjač na standardnu ​​utičnicu.
4. The LED indicators on the battery and/or charger will show the charging status. Refer to your charger's manual for specific indicator patterns.
5. Kada se potpuno napuni, isključite punjač iz utičnice i izvadite bateriju.

Note: The battery is compatible with all Toro 60V chargers.

Image: Illustration of the TenHutt battery being charged in a dual-port charger and inserted into a hedge trimmer, demonstrating its compatibility with Toro 60V systems.

5. Uputstvo za upotrebu

5.1 Instaliranje baterije

1. Align the battery with the battery port on your Toro 60V tool.
2. Slide the battery into the tool until it locks securely into place. You should hear a click.
3. Prije upotrebe alata provjerite je li baterija čvrsto postavljena.

5.2 Uklanjanje baterije

1. Pritisnite dugme(a) za otpuštanje baterije na alatu.
2. Izvucite bateriju iz alata.

5.3 Provjera nivoa napunjenosti baterije

The battery features a 4-LED power meter. Press the button next to the LEDs to display the current charge level:

• 4 LED diode: 75-100% punjenja
• 3 LED diode: 50-75% punjenja
• 2 LED diode: 25-50% punjenja
• 1 LED: 0-25% napunjenosti (uskoro dopunite)

Image: The TenHutt battery supports high-power mode, providing extended runtime for tools like leaf blowers, lawnmowers, and chainsaws.

Image: The TenHutt battery is compatible with a wide range of Toro 60V tools, including leaf blowers, string trimmers, lawnmowers, snow blowers, and chainsaws.

6. Održavanje i skladištenje

6.1 Opšte održavanje

• Keep the battery clean and free of debris. Use a dry cloth to wipe the exterior.
• Ne koristite vodu ili hemijska sredstva za čišćenje.
• Inspect the battery for any signs of damage before each use. Do not use a damaged battery.

6.2 Skladištenje

• Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures. The ideal storage temperature is between 50°F (10°C) and 80°F (27°C).
• For long-term storage, charge the battery to approximately 50-75% capacity. Do not store a fully discharged or fully charged battery for extended periods.
• Recharge the battery every 3-6 months during long-term storage to maintain its health.
• Keep the battery away from metallic objects that could short the terminals.

7. Otkrivanje problema

8. Specifikacije

9. Garancija i podrška

TenHutt provides a comprehensive warranty and customer support for this product.

• garancija: 3 Years (No Risk)
• Služba za korisnike: 24-hour response time.
• Povrat/Zamjena: Free exchange or refund available.

For warranty claims, technical assistance, or any product-related inquiries, please contact TenHutt customer service through the retailer where the product was purchased or visit the official TenHutt website.

Image: Icons representing 3-year warranty, fast shipping, and 24-hour quick response customer support.
