Zoook Hurricane 100 W Bluetooth Party Speaker User Manual

1. Uvod

Hvala na kupoviniasing the Zoook Hurricane 100 W Bluetooth Party Speaker. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.

2. Sigurnosne informacije

• Ne izlažite zvučnik vodi ili vlazi.
• Izbjegavajte postavljanje zvučnika u blizinu izvora toplote ili na direktnu sunčevu svjetlost.
• Ne pokušavajte rastavljati ili modificirati zvučnik. Za sve servisne radove obratite se kvalifikovanom osoblju.
• Koristite samo priloženi kabel za punjenje i adapter.
• Čuvati van domašaja djece.

3. Sadržaj paketa

Molimo Vas da provjerite paket za sljedeće stavke:

• Zoook Hurricane 100 W Bluetooth Speaker
• Kabel za punjenje
• Uputstvo za upotrebu

4. Proizvod je gotovview

Upoznajte se s komponentama i kontrolama zvučnika.

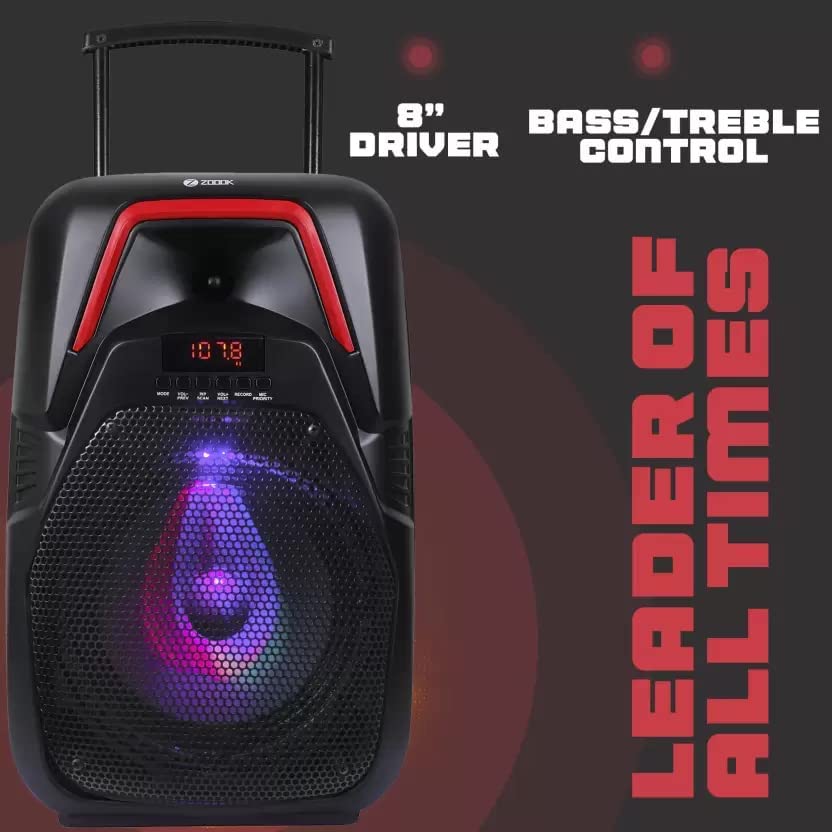

Figure 4.1: Speaker Front View
This image displays the front of the Zoook Hurricane 100 W Bluetooth Party Speaker, featuring its prominent 8-inch audio driver. The control panel, located above the driver, allows for adjustment of bass and treble levels, providing customized sound output.

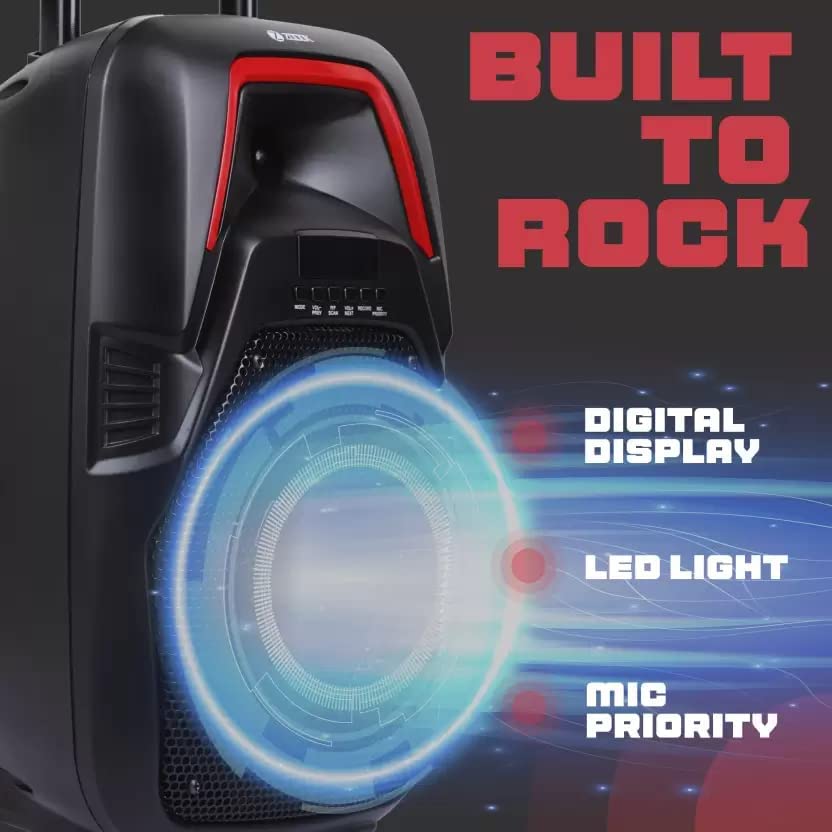

Slika 4.2: Detalji kontrolne ploče
Detaljno view of the speaker's control interface. It features a clear digital display for mode and track information, an integrated LED light for visual effects, and a dedicated microphone priority function, which lowers music volume when the microphone is in use.

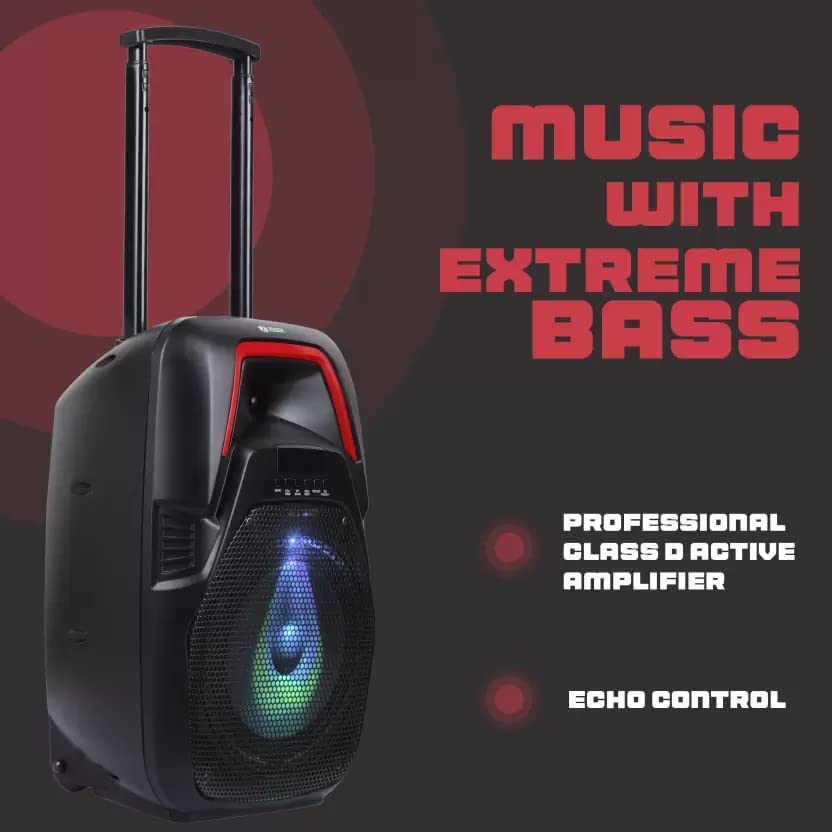

Figure 4.3: Speaker Side View sa karakteristikama
This image illustrates the speaker's design, highlighting its capacity for producing extreme bass. It is powered by a professional Class D active amplifier for efficient audio delivery and includes an echo control feature for microphone effects.

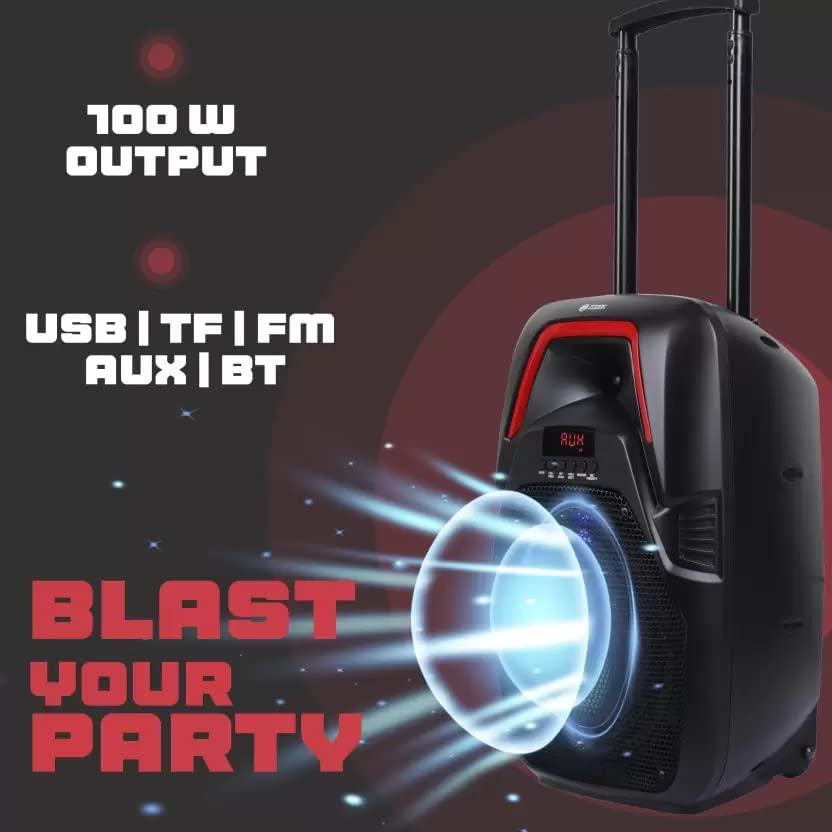

Slika 4.4: Opcije povezivanja
The speaker is shown with an emphasis on its 100W power output, indicating robust sound. It supports various input methods including USB drives, TF (microSD) cards, FM radio, a 3.5mm AUX input, and Bluetooth wireless connectivity.

5. Podešavanje

5.1 Punjenje zvučnika

1. Spojite kabel za punjenje na priključak za punjenje zvučnika.
2. Plug the other end of the cable into a suitable power adapter (not included) or a USB power source.
3. Indikatorska lampica punjenja će se upaliti. Ugasit će se ili promijeniti boju nakon što se uređaj potpuno napuni.

5.2 Uključivanje/isključivanje

• Da biste uključili uređaj, pritisnite i držite dugme za napajanje dok se ekran ne osvijetli.
• Da biste isključili uređaj, ponovo pritisnite i držite dugme za napajanje dok se ekran ne isključi.

6. Uputstvo za upotrebu

6.1 Bluetooth uparivanje

1. Power on the speaker. It will automatically enter Bluetooth pairing mode, indicated by a flashing Bluetooth icon on the display.
2. Omogućite Bluetooth na svom mobilnom uređaju (pametnom telefonu, tabletu itd.).
3. Traži "Zoook Hurricane" in the list of available devices and select it to pair.
4. Nakon uparivanja, zvučnik će emitirati zvuk potvrde, a ikona Bluetooth će prestati treptati.

6.2 Reprodukcija sa USB/TF kartice

1. Insert a USB drive or TF (microSD) card into the respective port.
2. Zvučnik će se automatski prebaciti u USB ili TF način rada i početi reproducirati zvuk. files.
3. Use the Play/Pause, Next, and Previous buttons on the speaker to control playback.

6.3 AUX ulaz

1. Spojite jedan kraj 3.5 mm audio kabela (nije uključen) na AUX ulazni priključak na zvučniku.
2. Drugi kraj priključite na audio izlaz vašeg eksternog uređaja.
3. Press the Mode button on the speaker to select AUX mode.

6.4 FM radio

1. Pritisnite dugme Mode da biste prešli na FM radio.
2. Press and hold the Play/Pause button to initiate an automatic station scan. The speaker will save available stations.
3. Use the Next and Previous buttons to navigate through saved FM stations.

6.5 Korištenje mikrofona (Karaoke)

1. Connect a microphone (not included) to the microphone input port.
2. Podesite jačinu zvuka mikrofona pomoću namenskog dugmeta.
3. Activate the Microphone Priority function (if available on your model) to automatically lower music volume when speaking into the microphone.
4. Adjust the Echo control knob for desired vocal effects.

6.6 Kontrola basa i visokih tonova

Use the dedicated Bass and Treble control knobs on the speaker's control panel to adjust the low and high frequencies of the audio output according to your preference.

6.7 LED kontrola svjetla

The speaker features an integrated LED light. Refer to the control panel for a dedicated button or setting to cycle through light modes or turn the light on/off.

7. Održavanje

• Očistite zvučnik mekom, suhom krpom. Ne koristite abrazivna sredstva za čišćenje ili rastvarače.
• Čuvajte zvučnik na hladnom i suvom mestu kada se ne koristi.
• Avoid blocking the speaker's vents to ensure proper airflow.

8. Otkrivanje problema

9. Specifikacije

10. Garancija i podrška

The Zoook Hurricane 100 W Bluetooth Party Speaker comes with a 6-mjesečna garancija od datuma kupovine. Molimo sačuvajte dokaz o kupovini za potrebe reklamacije.

For technical support or warranty inquiries, please contact Zoook customer service through their official webstranicu ili određene kanale podrške.
